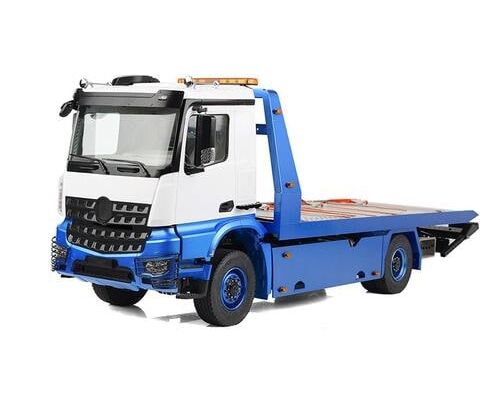

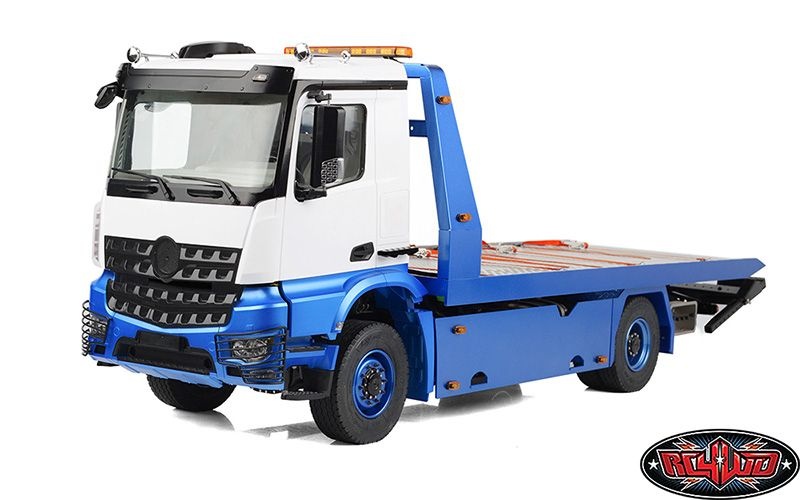

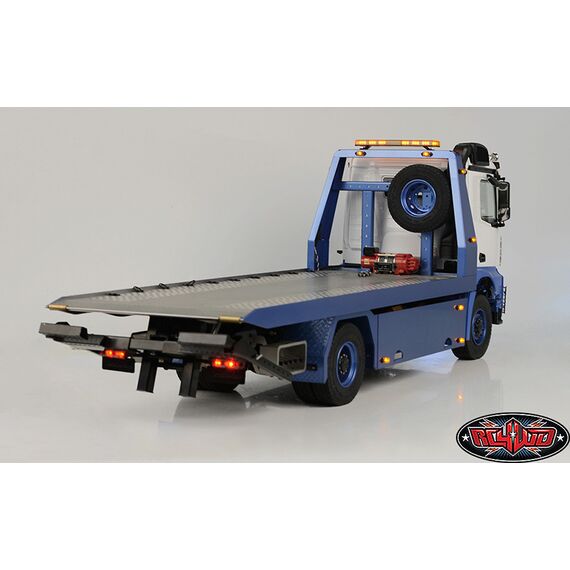

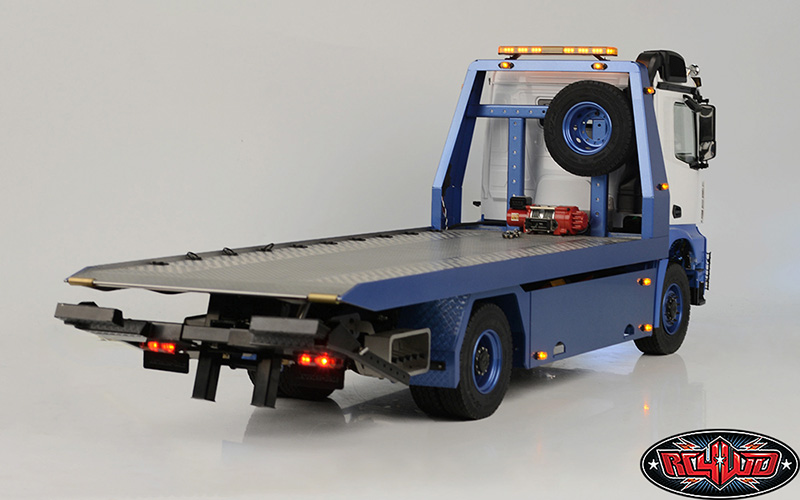

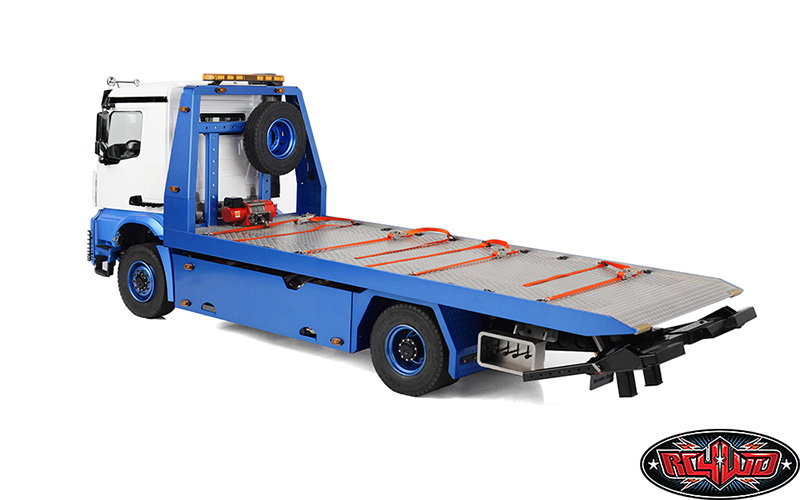

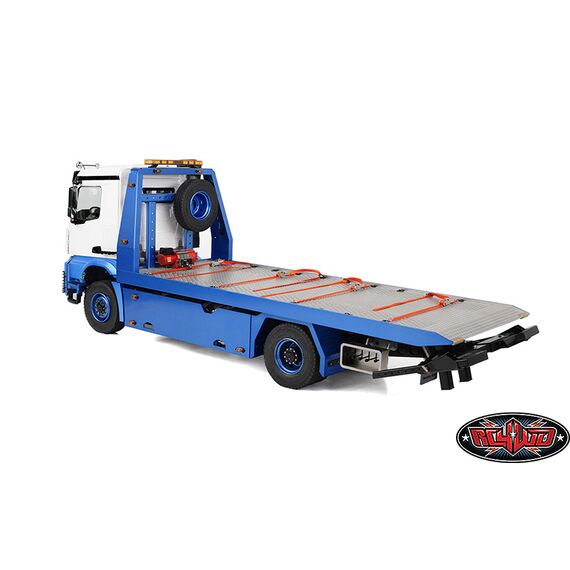

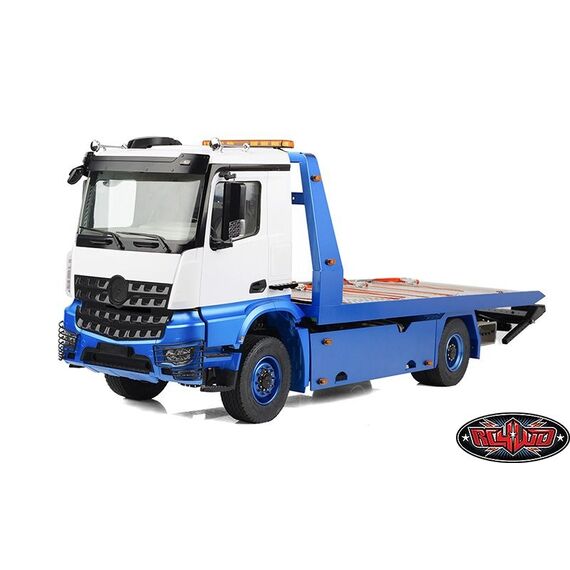

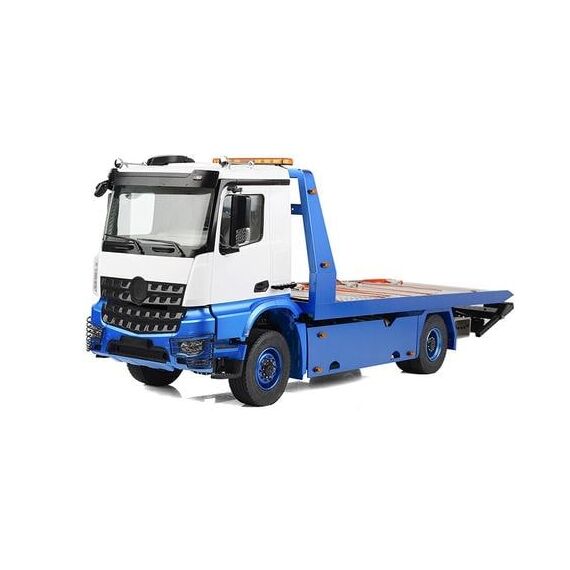

1:14 4x4 Abschlepp Truck hydraulisch
Scale Lastwagen mit Hydraulischer Abschlepp-Pritsche

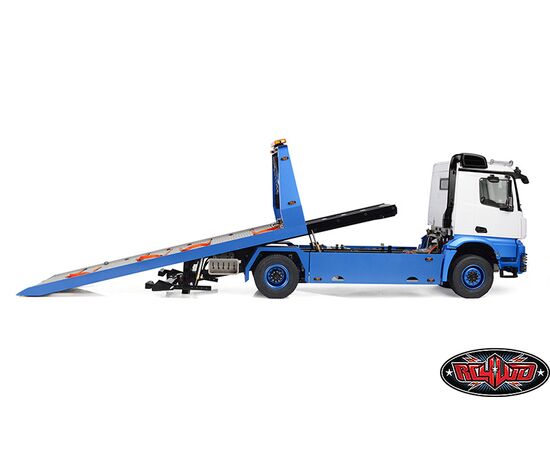

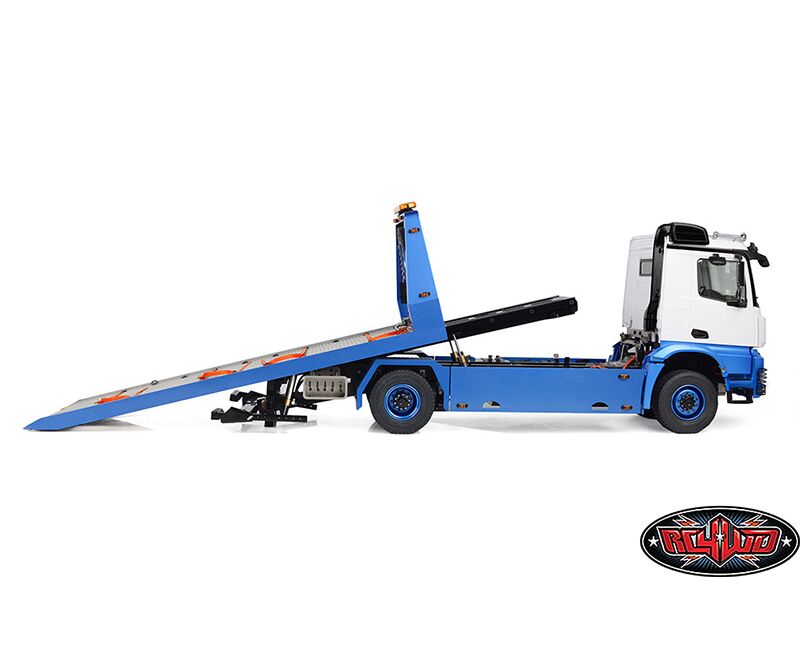

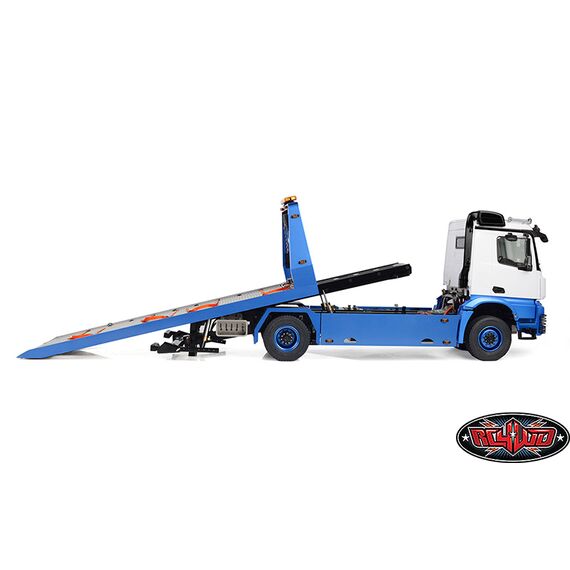

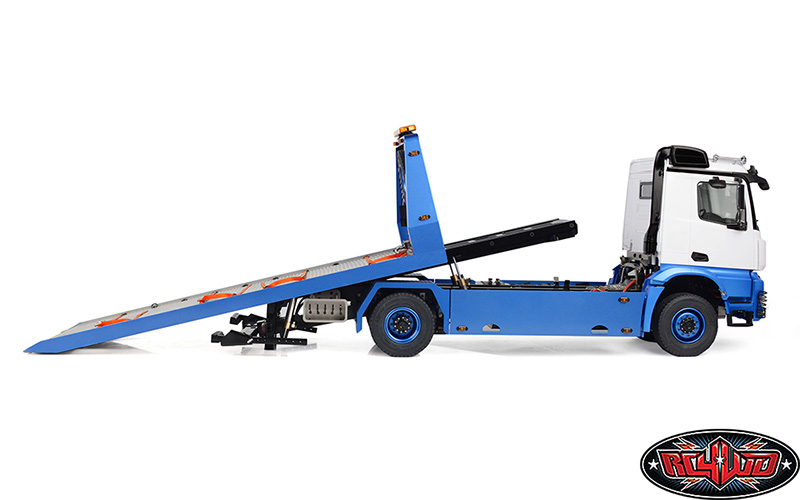

Abschlepp-Plattform lässt sich Hydraulisch Kippen und Ausfahren
Schaltbares 3-Gang Getriebe und sperrbare Differentiale
Detailgetreue Kabine aus Hart-Kunststoff
Hydraulik Pumpe mit 930 kV Brushless Motor
Umfangreiche Beleuchtung
Inklusive professionellem FlySky Paladin 18-Kanal Sender
Specifications:
- Hard Plastic European Style Front Cab
- Full Metal 3 Speed Transmission (Planetary Gears)
- Transfer Case (Billet Aluminum)
- Simulation Air Suspension
- Scale Wheels and Tires (Wheels: Stainless Steel / Billet Aluminum)
- Remote Lockable Front and Rear Axle (Locking Differential)
- Full Metal Front and Rear Axle Housing
- Steel Scale Drive Shaft
- Front Cab Latch
- Molded Fuel Tank
- Rear Light Guard (Protects Against Rocks)
- Scale Light Buckets (Fits 3-5mm LED)

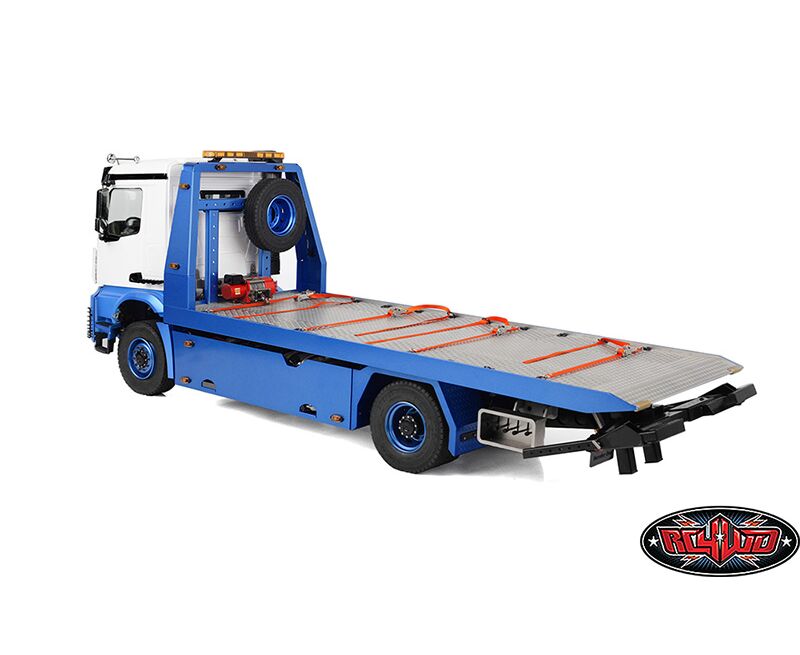

- Flatbed Winch

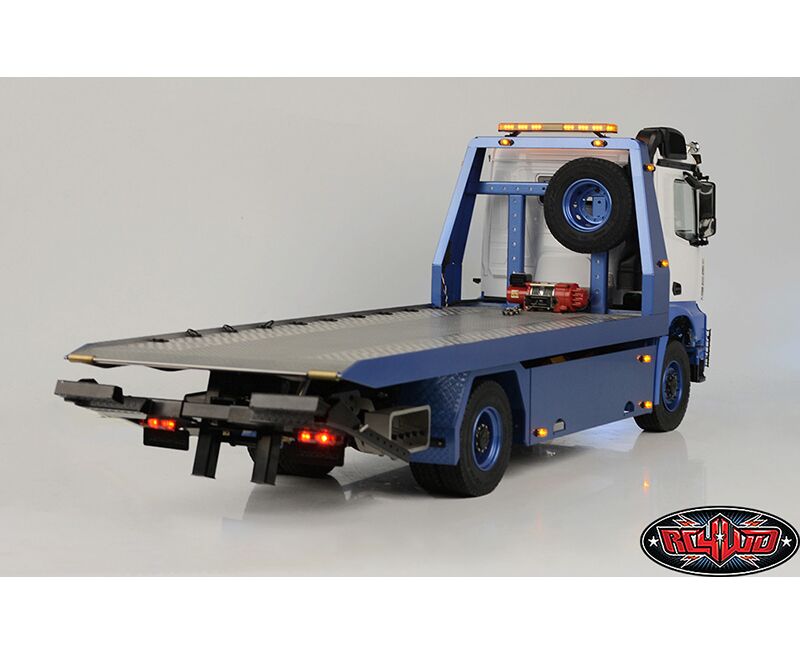

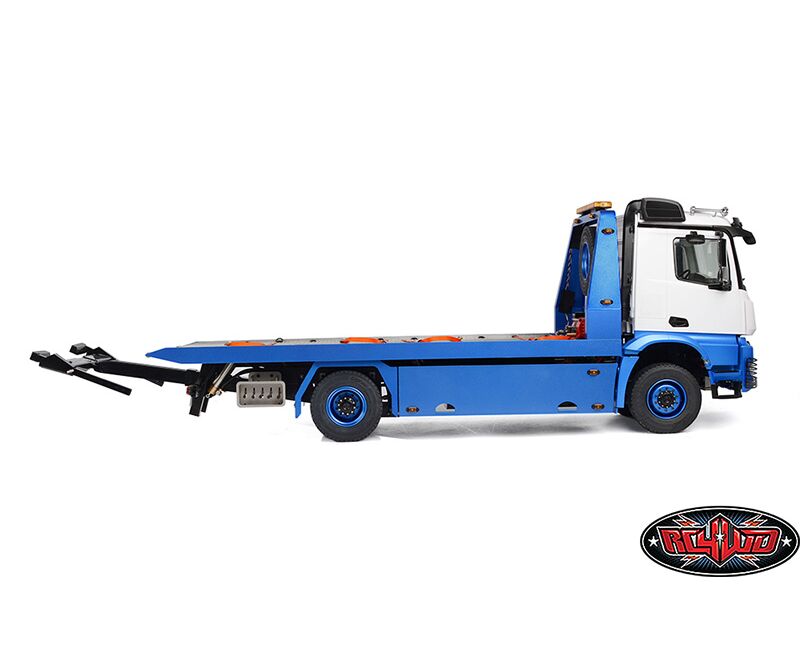

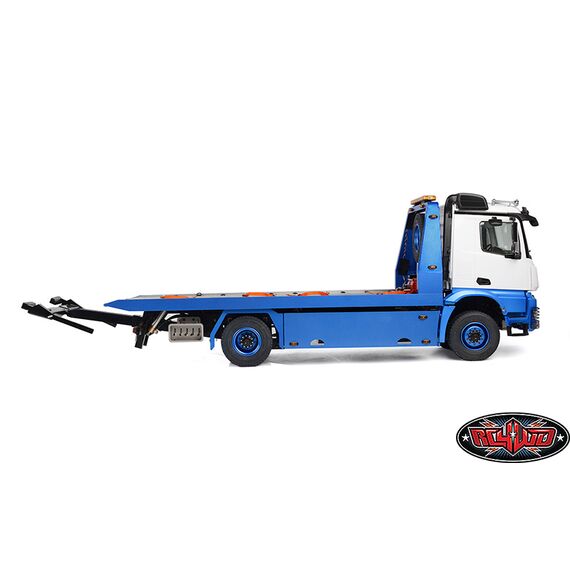

- Rear Underlift
- Recommended Payload: 10kg / 22lbs
- Rear Underlift Payload: 3.00kg / 6.61lbs
- LiPo Cutoff
- Fully Painted
- Brushed Driven Motor
- 930KV Brushless Motor-Driven Micro Hydraulic Pump
- Length: 728mm / 28.6in
- Width: 218.5mm / 8.60in
- Height: 277.5mm / 10.9in
- Weight: 6.5kg / 14.3lbs
- Hydraulic Oil Type: 32# / 46#
- Working Oil Pressure: 3MPa
- Bed Maximum Lifting Angle: 14°
- First Gear 1/113, Second Gear 1/86.4, Third Gear 1/62.1 (Transmission)
- 18 Channel 2.4Ghz Radio
- 4 Pack 2in x 15in Orange Ratchet Strap with J Hooks

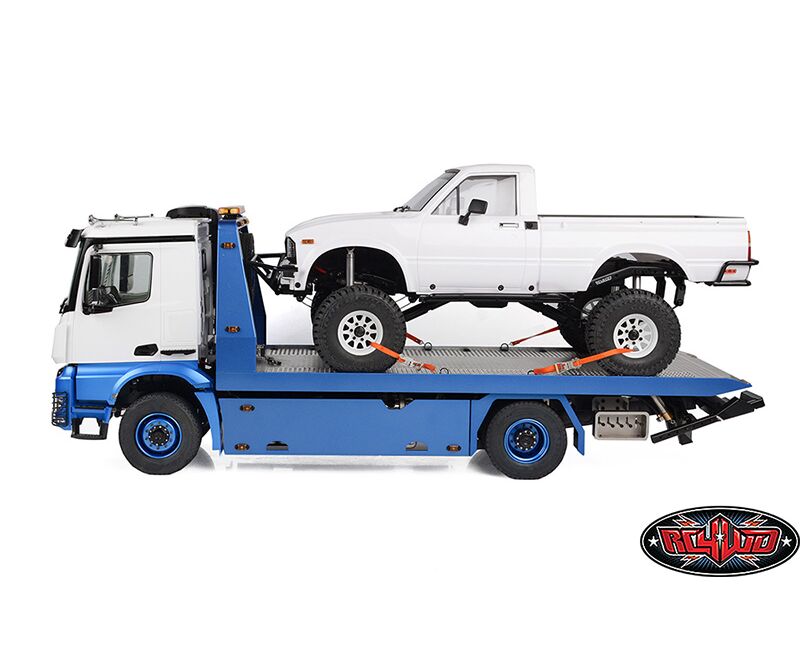

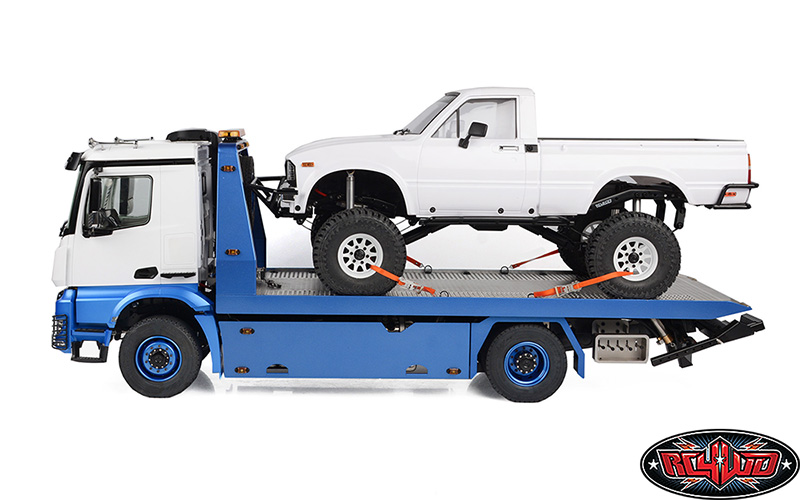

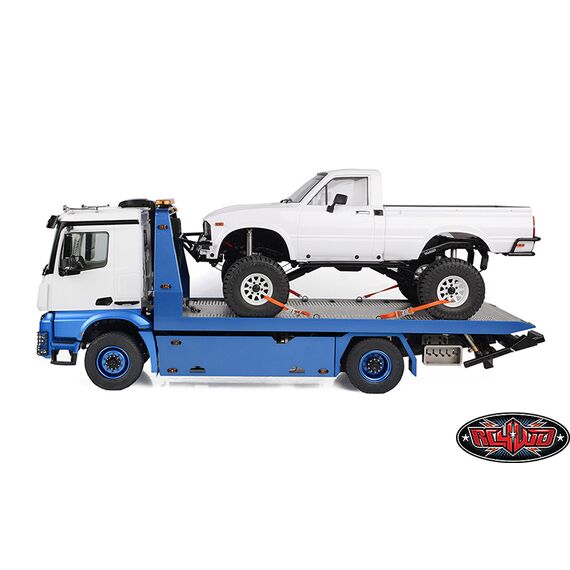

Shown with RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set (Z-RTR0045) for example (Not Included)
What's Included:
- 1x 1/14 4x4 Wrecker Flat Bed Hydraulic Tow Truck
Required Parts:
- 5000mAh 11.1V 50C 3S1P LiPo Battery Pack with XT60 Plug (Battery size must be no bigger than 140mm in length, 45mm in width, and 25mm in height)
- Compatible Battery Charger
- Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)
Replacement Parts:
- Earth Digger 4200XL Excavator Brushed ESC (VVV-S0011)
- Hydraulic Connector M5 x 4mm Tube (90deg) (VVV-S0069)
- Do not operate the lift past its fully-extended height and do not operate at its highest limit for longer than 2 seconds as these positions can damage the hydraulic system.
- Do not use more than 3S battery. (11.1 volt(s))
- Must turn on the transmitter before starting the ESC.
- ESC Supports XT60 Connector
- While some components may come assembled, it may be in your best interests to check the product's hardware and screws are properly secure, especially after shipping. In some cases, you may want to apply threadlock to some of the installed hardware.
- Use good quality hex drivers to avoid stripping screw heads.
- This product is for experienced R/C users. Not recommended for beginners.
- The axle hubs can be removed, but may require additional force.
- This JDM Product ships in carton packaging with a padded shipping crate inside for added protection.
- This shipping crate solely protects this JDM product through the shipping process. Any other case utilization is outside of its intended purpose.
- This Product Is Professionally Pre-Assembled.
- Manufactured by JDCustoms 30 Days Limited Warranty.
General
Massstab
1:14
Motor / Antrieb
- Elektro Brushless-Motor
Einsatz
- On-Road
Anspruch
- Geübte Piloten
Fertigungsgrad
ARR (almost ready to run)
Max. Geschwindigkeit
00-10 km/h
Hersteller
RC4WD
