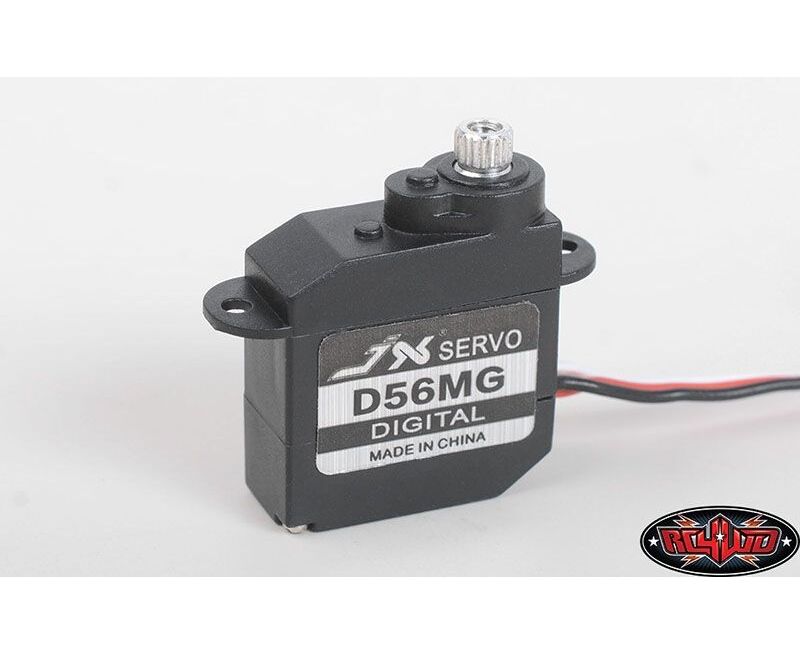

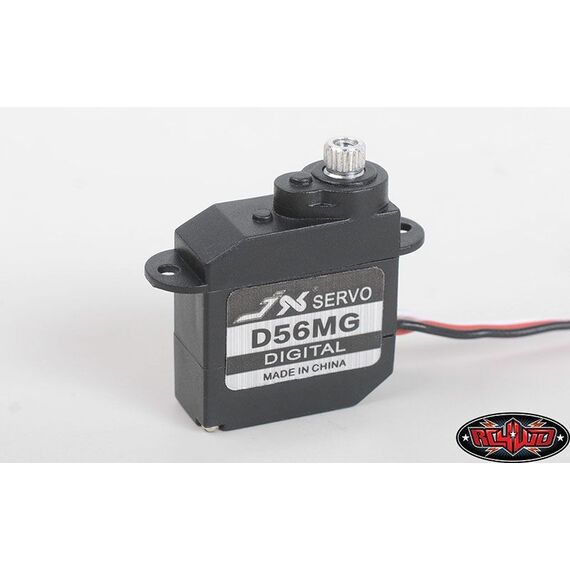

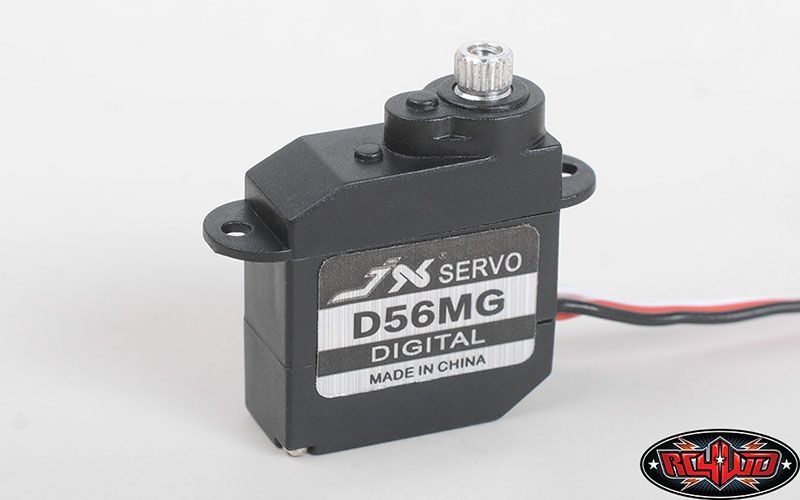

1/24 Digital Servo for Rascal All Metal Scale Truck Chassis
RC4WD-VVV-S0225
1/24 Digital Servo for Rascal All Metal Scale Truck Chassis Set
1/24 Digital Servo for Rascal All Metal Scale Truck Chassis Set
Specifications:
Dead Band: 1µs
Working Frequence: 1520µs / 330hz
Working Voltage: 3.7V-5.5V
Motor Type: Coreless Motor
Operating Speed (3.7V): 0.13 sec/60°
Operating Speed (5.5V): 0.10 sec/60°
Stall Torque (3.7V): 0.58 kg/cm (8.05 oz/in)
Stall Torque (5.5V): 0.89 kg/cm (12.35 oz/in)
Dimensions: 19.8 x 8.2 x 20 mm / 0.78 x 0.32 x 0.79 in
Weight: 0.20oz / 5.6g
What's Included:
1x 1/24 Digital Servo for Rascal All Metal Scale Truck Chassis Set
1x Servo horn kit (as shown in the figure)
Specifications:
Dead Band: 1µs
Working Frequence: 1520µs / 330hz
Working Voltage: 3.7V-5.5V
Motor Type: Coreless Motor
Operating Speed (3.7V): 0.13 sec/60°
Operating Speed (5.5V): 0.10 sec/60°
Stall Torque (3.7V): 0.58 kg/cm (8.05 oz/in)
Stall Torque (5.5V): 0.89 kg/cm (12.35 oz/in)
Dimensions: 19.8 x 8.2 x 20 mm / 0.78 x 0.32 x 0.79 in
Weight: 0.20oz / 5.6g
What's Included:
1x 1/24 Digital Servo for Rascal All Metal Scale Truck Chassis Set
1x Servo horn kit (as shown in the figure)
General
Hersteller
RC4WD
