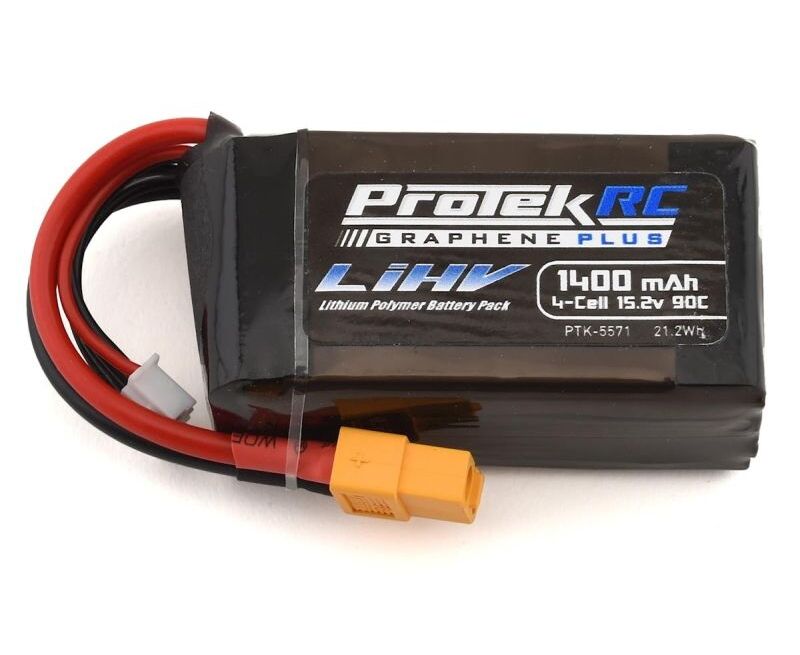

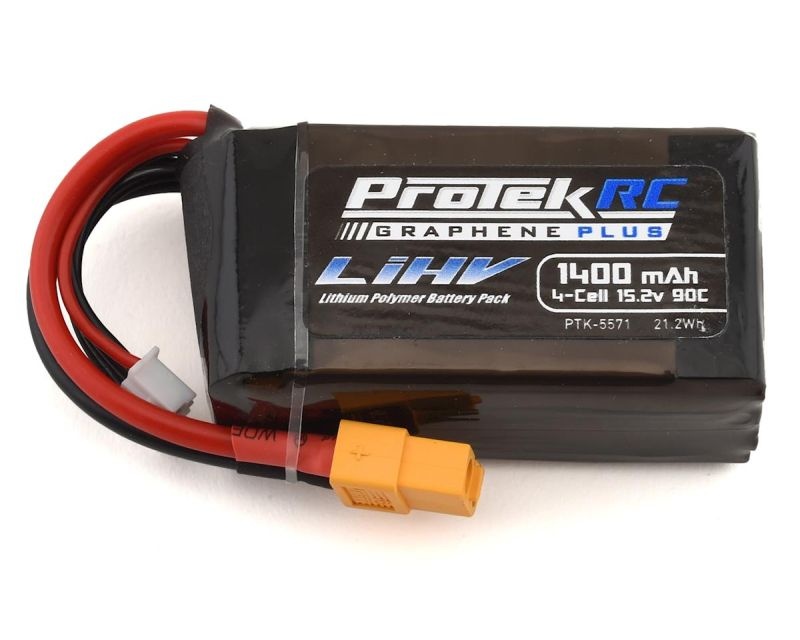

4S 90C Si-Graphene HV LiPo Batterie mit XT60 Stecker (15.2V/1400mAh)

PTK-5571
CHF35.60
Auf Lager bei Lieferant
Externes Lager. Lieferung in ca. 10 Werktagen.
+

The ProTek R/C 4S 90C 1400mAh Si-Graphene + HV LiPo Battery was developed for drones, airplanes, comp crawlers - or any application where space is at a premium and light weight is critical. These micro sized packs are incredibly lightweight and shoehorn a ton of power into a compact 70x34x30mm form. Everything from FPV race drones, airplanes and high performance comp crawlers can benefit from the performance these packs deliver.

In addition to its small size, this featherweight pack comes in at just 150 grams, and is approximately 15 grams lighter than a comparable 1300mAh LiPo battery, so you get more capacity and reduced weight! Plus, when charged at LiHV specs this battery produces 17.4V instead of the standard 16.8V, of a fully charged standard LiPo, meaning performance oriented enthusiasts can take advantage of the light weight, and higher voltage throughout the discharge curve to give them a more consistent power delivery.

Want more reasons to run this pack? When compared to standard LiPo and LiHV, Silicon Graphene cells deliver improved efficiency, lower operating temperatures, lower internal resistance, better run time, increased cycle life and increased voltage - but Graphene + LiPo batteries take that a step further with even more power, more capacity and lower internal resistance!

Lab testing has shown that ProTek R/C Silicon Graphene packs have double the cycle life when charged at 1C rates, and can be charged at higher amp rates, with less risk of damage to the pack. More importantly, the discharge curve is flatter, meaning the cells maintain higher voltage throughout the discharge cycle with no significant drop off. Additionally, when compared to conventional LiPo batteries Silicon Graphene batteries are lighter, providing a higher capacity per gram ratio. With 15.2V nominal voltage, 90C discharge ratings, incredibly high charge rates and ten different models to choose from, ProTek R/C Graphene + packs are perfect for enthusiasts that demand the absolute best.

Features:

  • 25 grams lighter than a standard 1800mAh 4S LiPo
  • Great choice for FPV racing, airplanes and other applications
  • Improved power to weight ratio and a lower overall CG
  • Silicone Graphene can handle more abuse and deliver more current than a standard LiPo battery
  • Improved efficiency, lower operating temperatures, and lower internal resistance!
  • Increased run time, increased cycle life and increased voltage!
  • More capacity gram for gram when compared to standard LiPo cells
  • 2C max charge rates - 1C charge rate recommended for longest life
  • 15.2V nominal voltage
NOTE: While these batteries are technically LiHV cells, they can still be charged with a standard LiPo charger. The overall voltage and capacity will be slightly less than if charged to LiHV specs, but the performance will be better than a standard LiPo thanks to the reduced weight and low internal resistance.





Battery Model HV 1400mAh 4S LiPo
Application Aircraft & Comp Crawlers
Type Silicon Graphene
Voltage 15.2 nominal
Capacity @14.8V
1300mAh
Capacity @15.2V
1400mAh
Weight 150g
Connector Type
XT60
Balance Connector 4 Pin XH
Number of Cells 3 Cell
Configuration 3S1P
Dimensions (WxLxH) 34x70x30mm
Maximum Charge Rate 2C (3.6A)
Burst Current
90C
Watt Hour @11.4V
20.5Wh
General
Akku-Stecker
  • XT-60
Akku-Technologie
  • LiPo
Akkuleistung (C)
90
Leistung in mAh
1400
Verwendung
  • Multicopter
  • RC Auto
  • RC Boot
  • RC Flugzeug
  • RC Heli
Spannung
15.2V
Hersteller
ProTek RC
