Arrma TYPHON 6S V5 4WD BLX Buggy with Spektrum Fir

ARA8606V5
CHF629.00
Auf Lager bei Lieferant
Merken Vergleichen

Designed fast and designed tough, the ARRMA® TYPHON™ 6S BLX 4WD RTR Speed Buggy is now equipped to deliver even bigger and better 1/8 scale bashing thrills — with a Spektrum™ SLT3™ radio, dual protocol receiver, Smart ESC, stronger servo and more.

Key Features
  • Aktualisiert mit Spektrum ™ -Komponenten und Smart-kompatibel
  • 113+km/h bei Einsatz eines 6S LiPos und Verwendung des beiliegenden optionalen Ritzels unter optimalen Bedingungen erreichbar
  • EXB kompatible Strebe vorne
  • Größere wasserdichte Empfänger Box
  • Betriebsbereit - Installieren Sie einfach einen aufgeladenen 4-Zellen- oder 6-Zellen-LiPo-Akku Ihrer Wahl



In The Box
  • ARRMA® TYPHON™ 6S BLX 1/8 Speed Buggy 4WD RTR
  • Spektrum™ Firma™ 150A Smart 4S/6S Regler (installiert)
  • Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor (installiert)
  • Spektrum ™ S652 Metallgetriebe Digital Servo (installiert)
  • Spektrum ™ SR315 3-Channel Dual Protokoll Empfänger (installiert)
  • Spektrum ™ SLT3™ 2.4GHz 3-Kanal Sender
  • Bedienungsanleitung



Needed to Complete
  • 4S oder 6S LiPo Akku
  • LiPo Ladegerät
  • LiPo Ladebeutel
  • (4) AA Batterien

Introduction

Experience a thrilling new level of bashing performance with the 1/8 scale, ready-to-run ARRMA® TYPHON 6S BLX 4WD Speed Buggy. Designed fast, designed tough, and now outfitted with a versatile Spektrum 3-channel radio system and Firma brushless electronics, it's all set for fast action on all terrain, in all conditions.

Features

  • Ready-to-run
  • Spektrum SLT3 2.4GHz 3-Channel Radio
  • Spektrum SR315 Dual Protocol 3-Channel Receiver
  • Spektrum S652 Digital Servo
  • Spektrum Firma 150A Smart ESC
  • Spektrum Firma 4074 2050Kv Brushless Motor
  • EXB compatible front brace
  • Stronger chassis design
  • Large volume waterproof* receiver box
  • +1mm wheel hexes
  • Anodized aluminum chassis
  • Strong composite chassis side pods
  • Strong front and rear composite chassis brace
  • High-speed low downforce wing and strong mounts
  • Oil-filled adjustable shocks
  • Aluminum shock caps and protectors
  • Black-anodized aluminum front and rear shock towers
  • Durable steel driveshafts throughout
  • Heavy-duty drivetrain
  • All-metal diff outdrives and gearbox internals
  • Never-loose red aluminum servo saver
  • Never-pop ball ends
  • 4-Bolt center diff removal
  • Easy-access sliding motor mount for quick motor removal
  • Super-durable wheel hubs for increased strength
  • Low drag wheels
  • Multi-terrain dBoots® KATAR tires
  • Forged composite style matte paint scheme
  • IC5® connectors (EC5 compatible)
  • 2-year limited warranty (see manual for details)

*For details on waterproof standards, please refer to the product instruction manual



Overview

ARRMA® engineers have updated the TYPHON 6S BLX 4WD Speed Buggy with a brushless power system featuring the Spektrum Firma 150A Smart ESC and Firma 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum S652 Digital Servo — which is 32% stronger and 5% faster than the previous version's ADS-15M servo.

The ready-to-run package now also includes a 3-channel Spektrum SLT3 radio and Spektrum SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3 is compatible with Tactic® SLT receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT and DSMR® protocols, you can easily upgrade to a Spektrum DSMR® transmitter later — then, download the free Spektrum Dashboard app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

The TYPHON 6S BLX 4WD Speed Buggy blasts over dirt, asphalt and grass, with adjustable oil-filled shocks soaking up the bumps. The shocks are mounted on black-anodized aluminum towers and include aluminum shock caps and protectors to maintain their super-smooth damping.

For the durability needed to support intense brushless performance, ARRMA® uses a strengthened, anodized aluminum chassis as its foundation. Front and rear composite chassis braces and composite chassis side pods add more toughness. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, all contribute to a reliable, heavy-duty drivetrain that holds up to extreme bashing. A "never loose" aluminum steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount gives you quick, hassle-free access to the motor. The center diff is easy to reach and can be removed by taking out just four bolts.

The low-drag buggy wheels, now with +1mm hexes, arrive outfitted with super-aggressive, multi-surface dBoots® KATAR tires. A low-drag wing helps keep the vehicle grounded. Both contribute to confident control and responsive handling at thrilling high speeds. Topping it all off is a sleek buggy body with streamlined good looks, featuring a matte black and red paint scheme with forged composite detail.

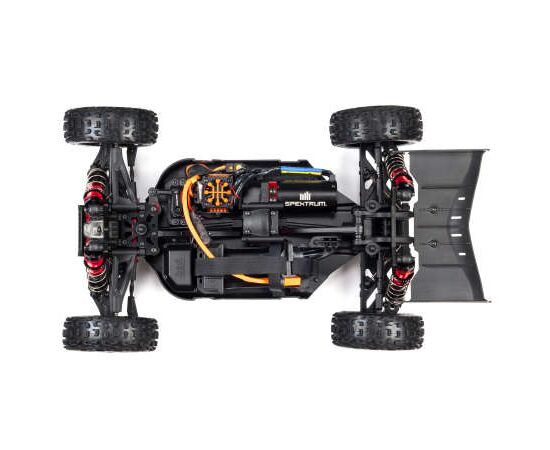

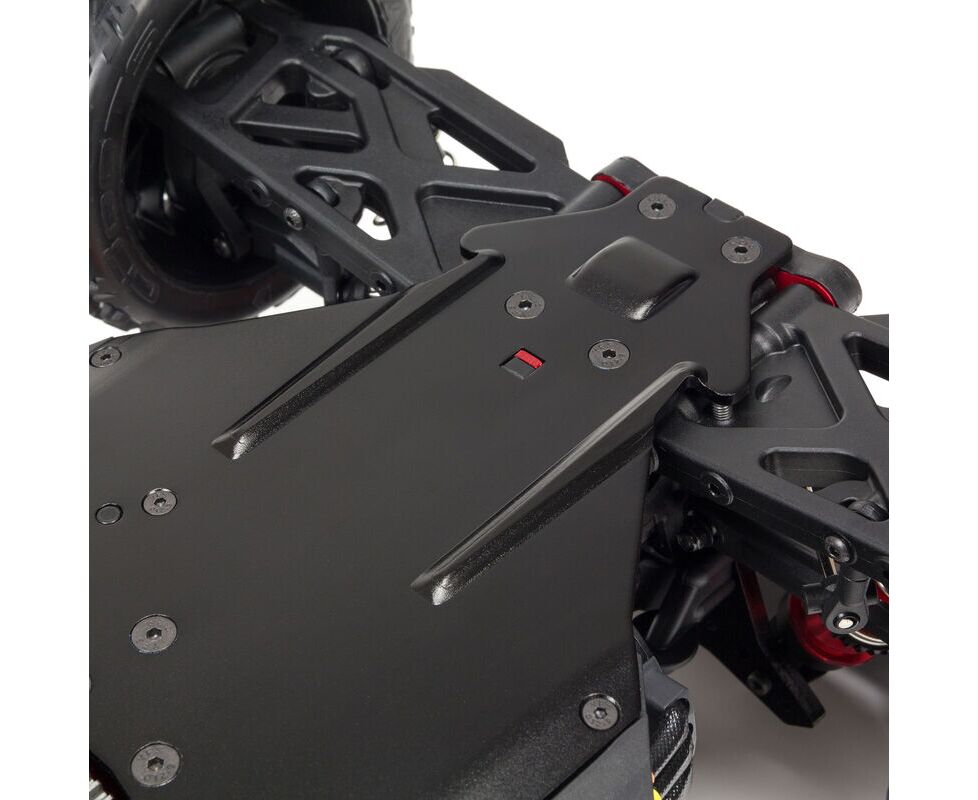

UPDATED CHASSIS DESIGN

UPDATED CHASSIS DESIGN

Wider rear section and 3D form introduced in key areas to greatly improve strength.



SAFE-D FIRST

SAFE-D FIRST

Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.

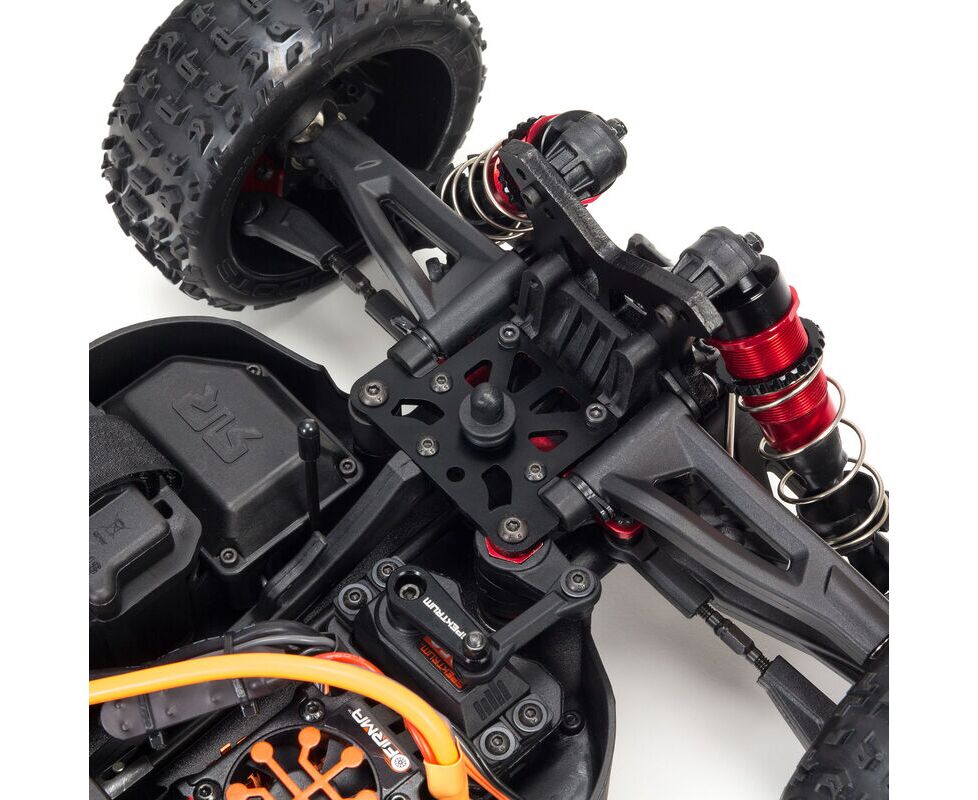

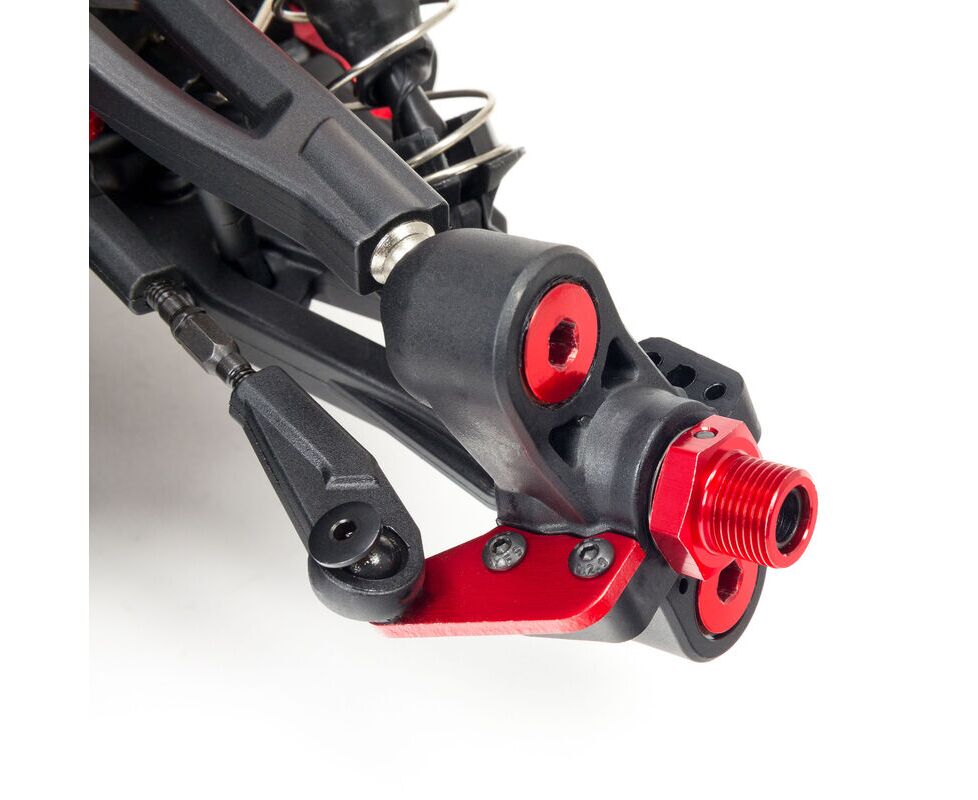

FRONT PIVOT BALL SUSPENSION

FRONT PIVOT BALL SUSPENSION

For precise handling at top speeds

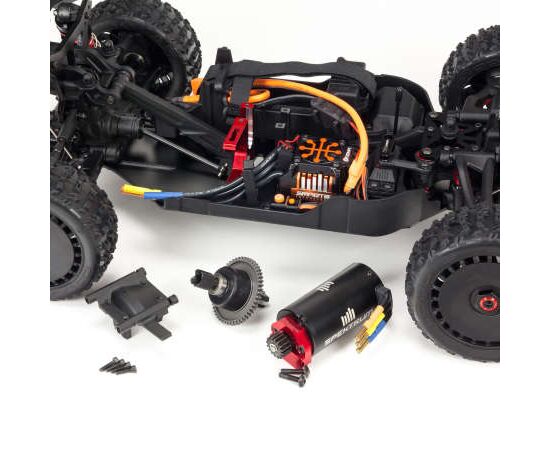

QUICK MAINTENANCE

QUICK MAINTENANCE

4 bolt center diff removal for easy access

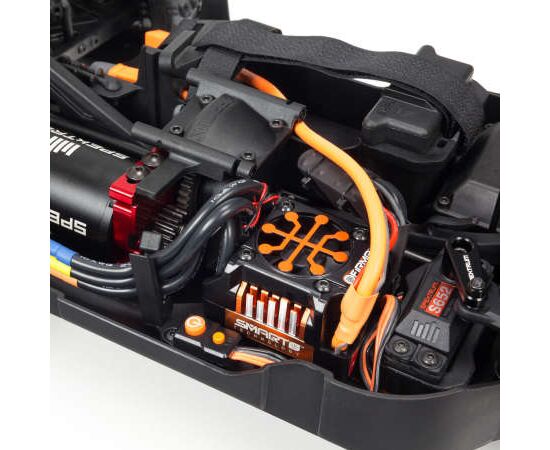

SPEKTRUM<sup>®</sup> SMART TECHNOLOGY INCLUDED

SPEKTRUM® SMART TECHNOLOGY INCLUDED

FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor

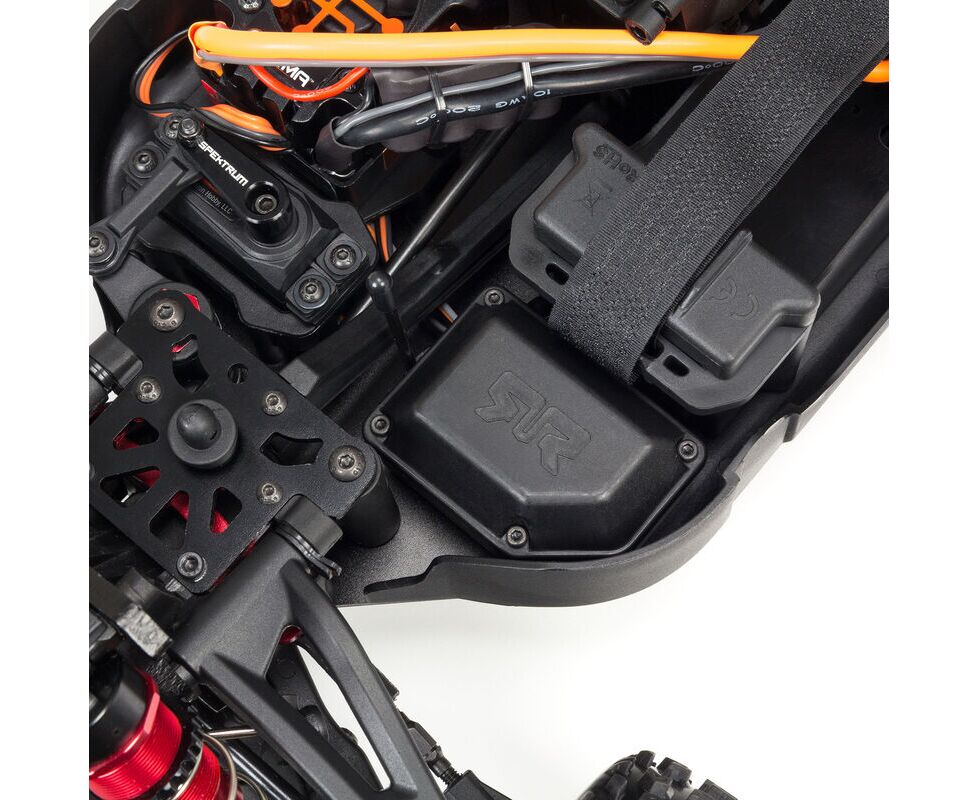

GO LARGE

GO LARGE

Large volume waterproof receiver box



RUBBER SHIELDED BEARINGS

RUBBER SHIELDED BEARINGS

Longer life, less maintenance



OPTIONAL SPEED PINION INCLUDED

OPTIONAL SPEED PINION INCLUDED

Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.



FIRMA 150A SMART Brushless ESC

FIRMA™ 150A SMART Brushless ESC
  • Waterproof* and dustproof design
  • 150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
  • Spektrum® SMART Technology
  • Fitted with reliable IC5® connectors (EC5™ compatible)
  • Integrated fan for reduced heat during extreme running
  • High quality 10awg wires
  • Low voltage cut off and thermal overload protection
  • User programmable punch, brake, BEC, reverse speed and motor timing settings

*For details on waterproof standards, please refer to the product instruction manual

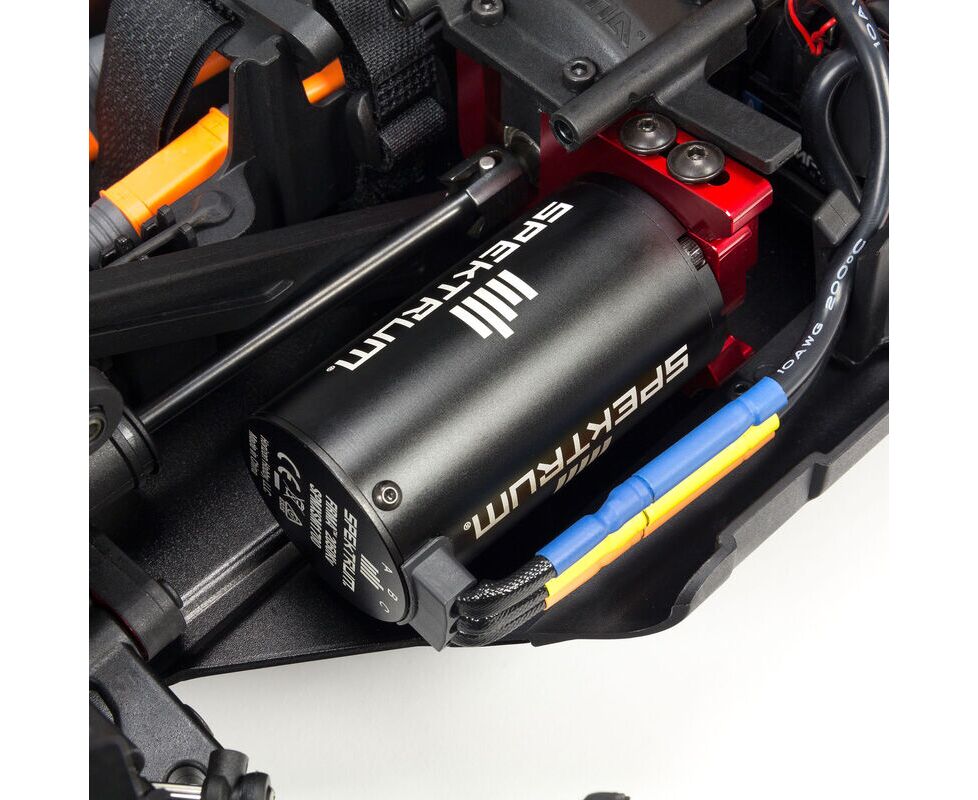

FIRMA 4074 2050Kv Brushless Motor

FIRMA™ 4074 2050Kv Brushless Motor
  • 2050Kv 4074 size 6S brushless motor
  • Beautifully etched aluminum can
  • 4-pole construction for smooth and consistent power
  • 4mm gold bullet connectors for reliable and efficient connection
  • Black anodized aluminum motor can for increased heat dissipation
  • Super strong 5mm shaft
  • Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

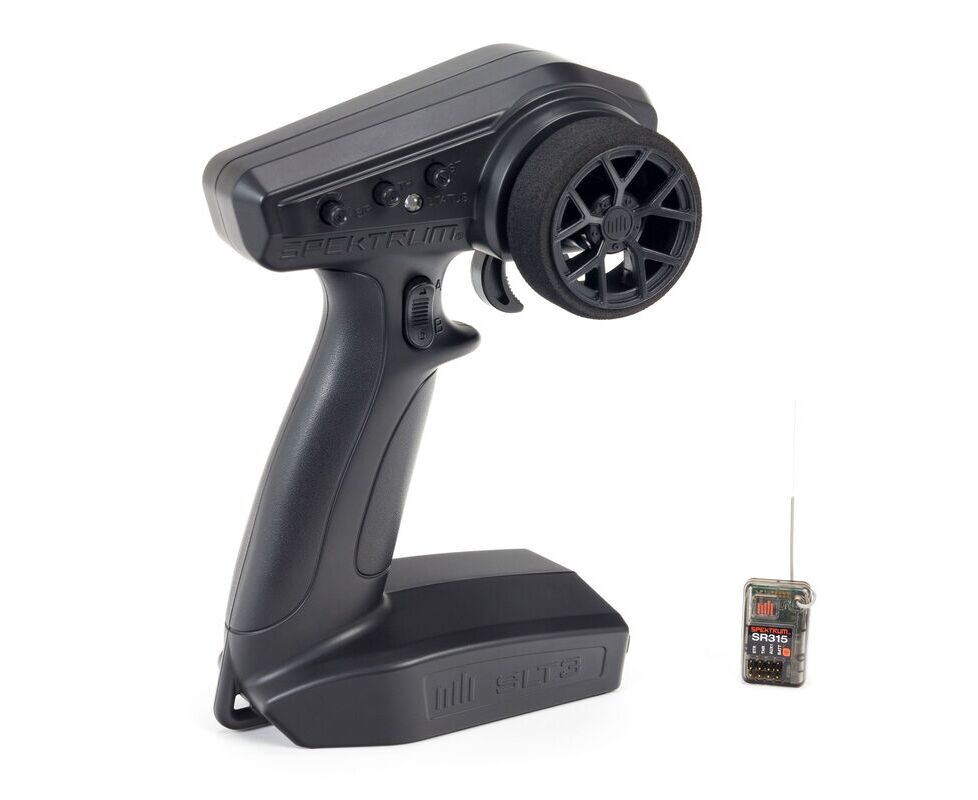

SPEKTRUM SLT3 RADIO

SPEKTRUM® SLT3® RADIO
  • Superb SLT response rate
  • 50% and 75% throttle limited switch - great for beginners
  • Steering & throttle rate & trim adjustments with throttle and steering reversing
  • Foam steering wheel grip
  • Compatible with Tactic Receivers



SPEKTRUM SR315 RECEIVER

SPEKTRUM® SR315 RECEIVER
  • Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters
  • Fast reponse rate and outstanding range
  • No tool binding and protocol switching
  • SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
  • 3-Channels




SPEKTRUM SPMS652 DIGITAL SERVO

SPEKTRUM® SPMS652 DIGITAL SERVO
  • All Steel Gears
  • Waterproof*
  • 19.08kg-cm/265oz-in Torque @7.4V
  • 32% More Torque & 5% Faster than ADS-15M Servo

*For details on waterproof standards, please refer to the product instruction manual


Produkt Eigenschaften

Specs

>td >Drivetrain

Approximate Assembly TimeNo assembly required
Ball BearingsFull set
BatterySold Separately
BodyPainted, decaled and trimmed
BrakesUser programmable
ChargerSold Separately
Chassis0.12" (3mm) 6061-T6 aluminum
Completion LevelReady-To-Run
Differential
4WD
Drive TypeForward/Brake/Reverse
Final Drive Ratio10.31
Front Shock Spring Rate75.5gf/mm
Front Track12.2" (310mm)
Power TypeElectric
Gear Pitch1.0MOD
Internal Gear Ratio3.3
Motor Size4074
Motor TypeBrushless - Sensorless
Pinion16T
Product Height7.48" (190 mm)
Product Length20.08" (510 mm)
Product Weight7.52lbs (3.42kg)
Product Width12.22" (310 mm)
RadioIncluded
Rear Shock Spring Rate56.6gf/mm
Rear Track12.2" (310mm)
Scale1/8
ServosIncluded
Shock TypeAluminum body oil-filled adjustable
Speed ControlIncluded
Spur Gear50T
SuspensionIndependent
Tire TreaddBoots KATAR B
Tire TypeMulti-surface
Vehicle TypeBuggy
Water-ResistantYes
Wheelbase12.91" (328mm)
Wheel Hex Size17mm
Wheel Type1/8 scale Buggy
Wheel Width1.7" (44mm)


General
Massstab:
1:8
Motor / Antrieb:
  • Elektro Brushless-Motor
Einsatz:
  • Off-Road
Anspruch:
  • Anfänger/Einsteiger
Fertigungsgrad:
RTR (ready to run)
Max. Geschwindigkeit:
über 100 km/h
Hersteller:
Arrma
