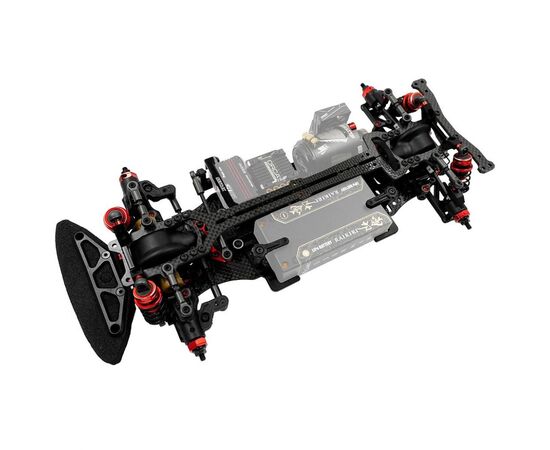

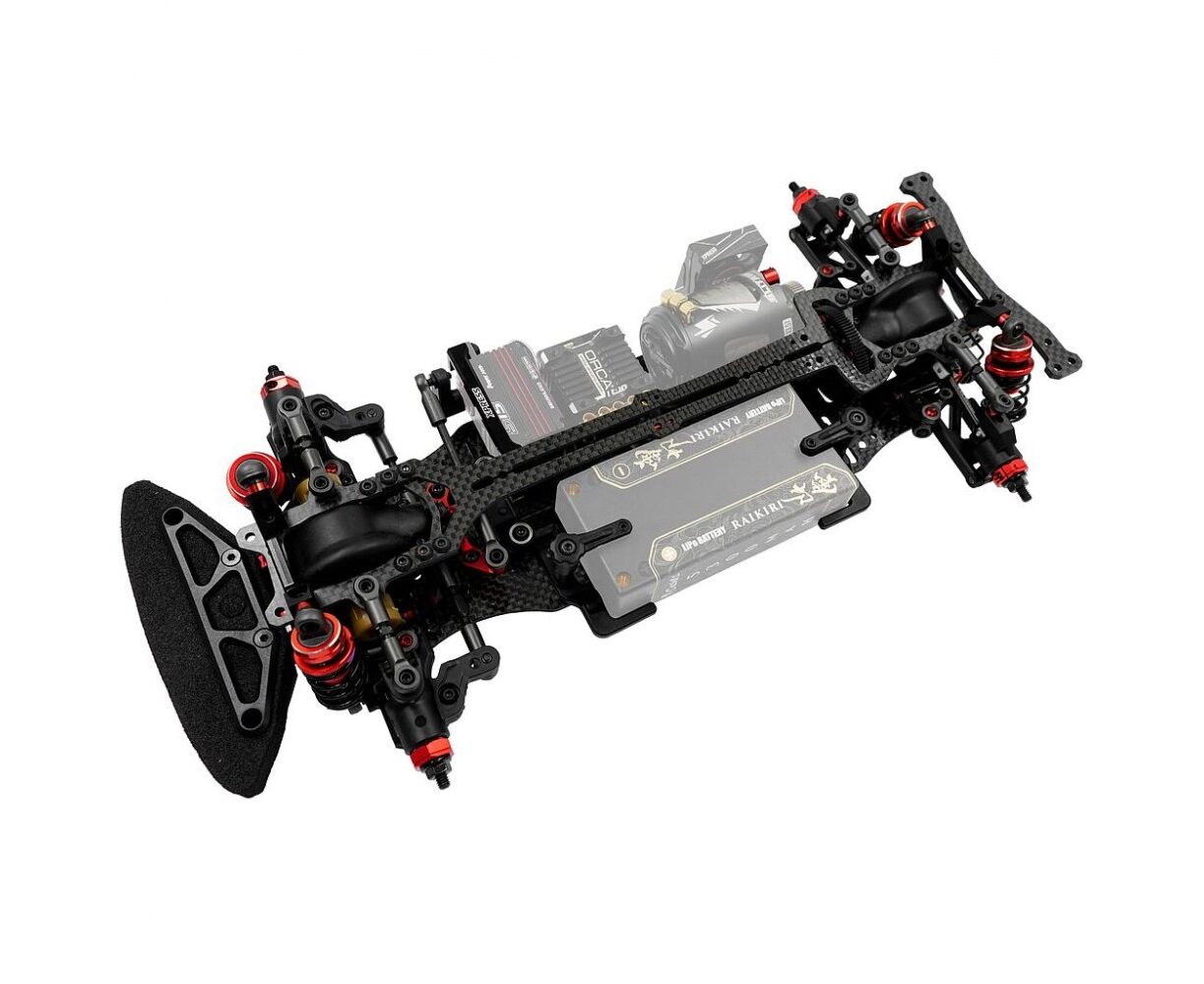

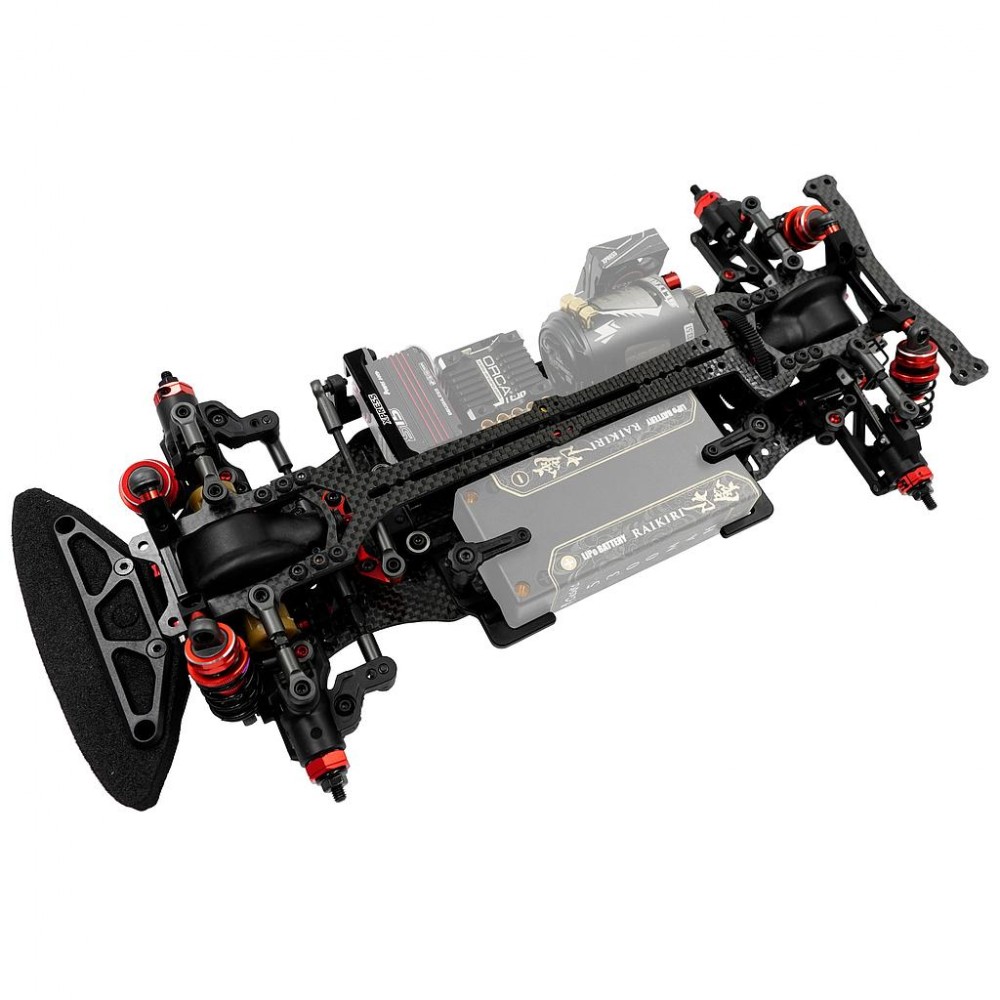

Arrow AM1 1:10 M-Chassis 4WD Shaft Drive Bausatz

Arrow AM1, the M-Chassis version of the full size 1/10 touring Arrow AT1. Sporting all the designs that made the Arrow AT1 a competitive chassis and turned into a M-Chassis platform



Feature:

Internal Gear Ratio: 2.353

4WD Shaft Drive Floating Gear Box System

Sealed Transmission Gear Box

Front Spool & Rear Gear Differential Unit

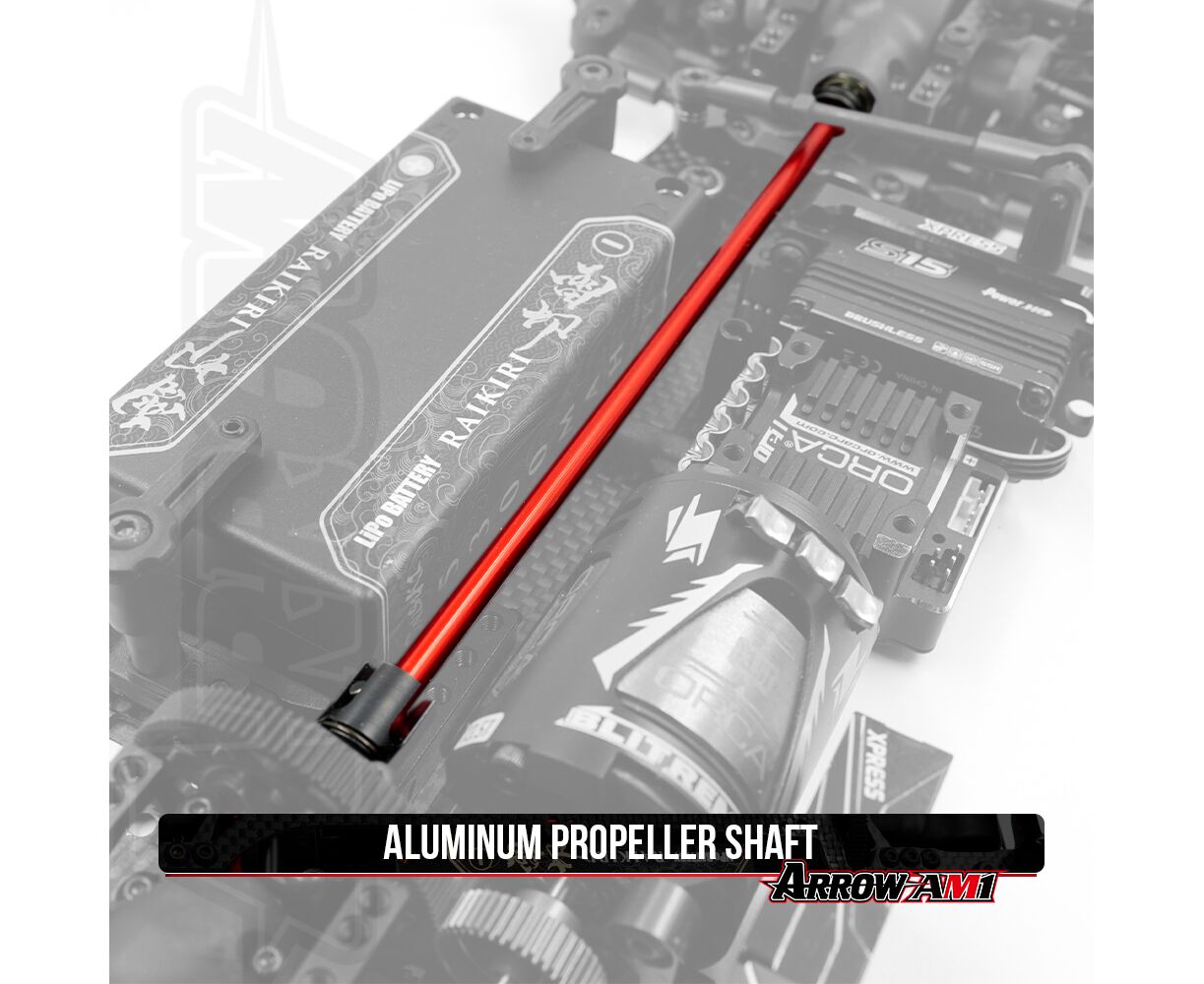

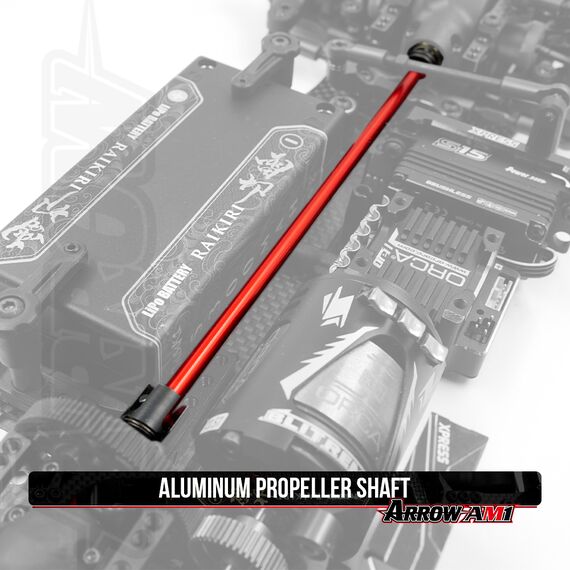

Front & Rear Aluminum Propeller Shaft

Low CG Roll Bar Design

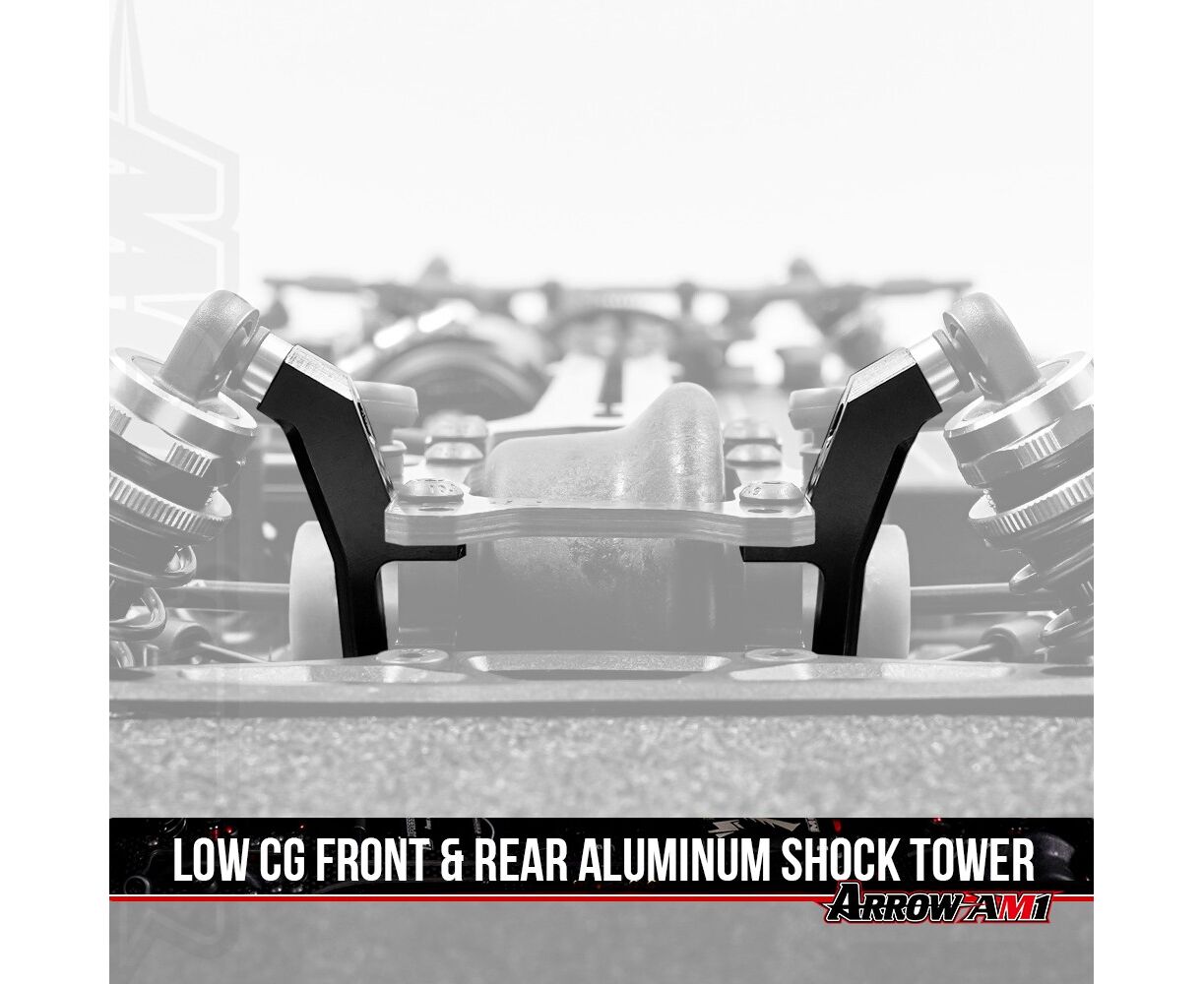

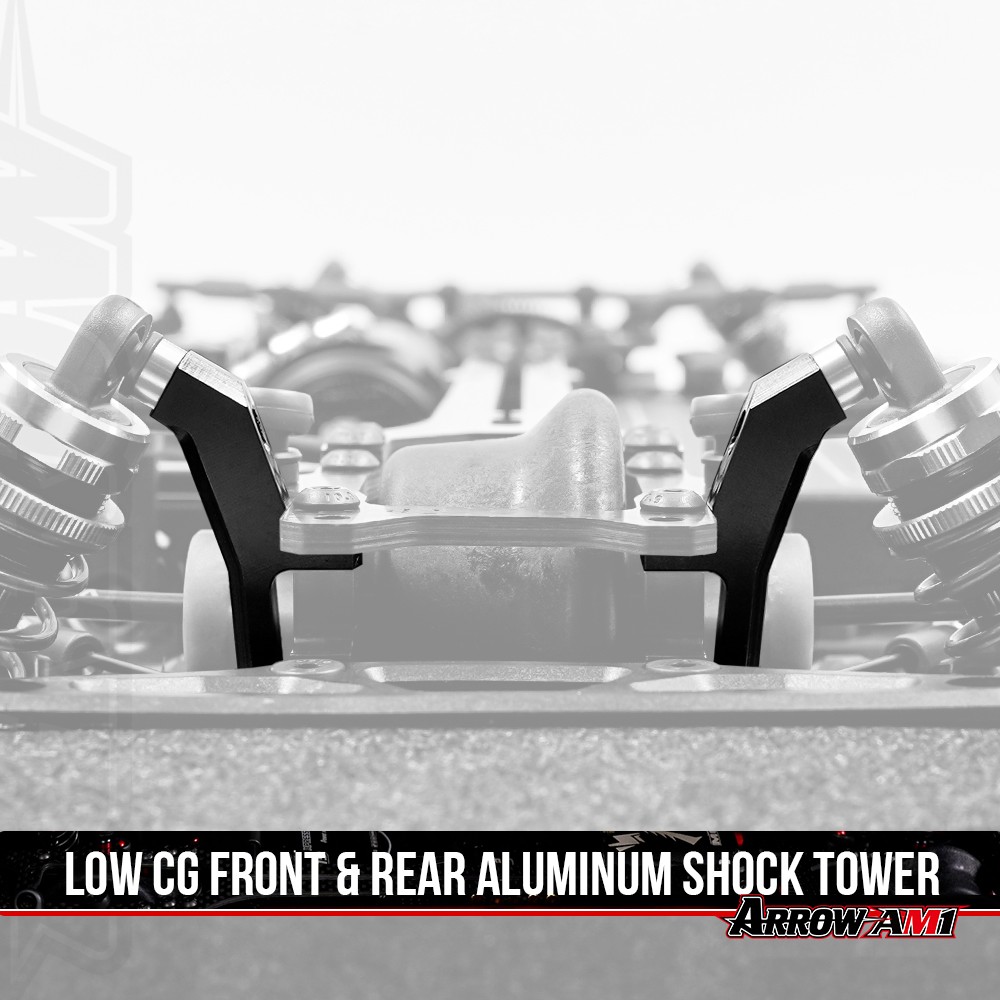

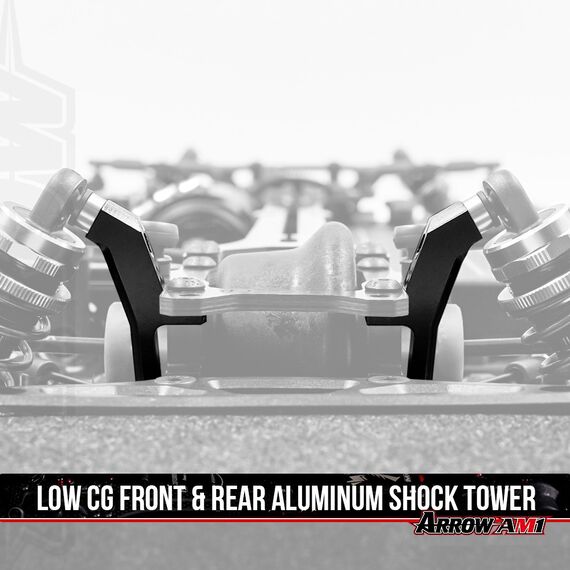

Low CG Front & Rear Aluminum Shock Tower

Low Profile Long Travel Aluminum Short Shocks

Aluminum Insert Adjusted Ackermann Steering Bridge

Front Spring Steel Double Joint Universal Shaft

Full Low Friction Drive Gears

Full Aluminum Suspension Mount

2.25mm Graphite Main Chassis

2.0mm Graphite Top Deck

Full Turnbuckle Linkages

Full Ball Bearing Set

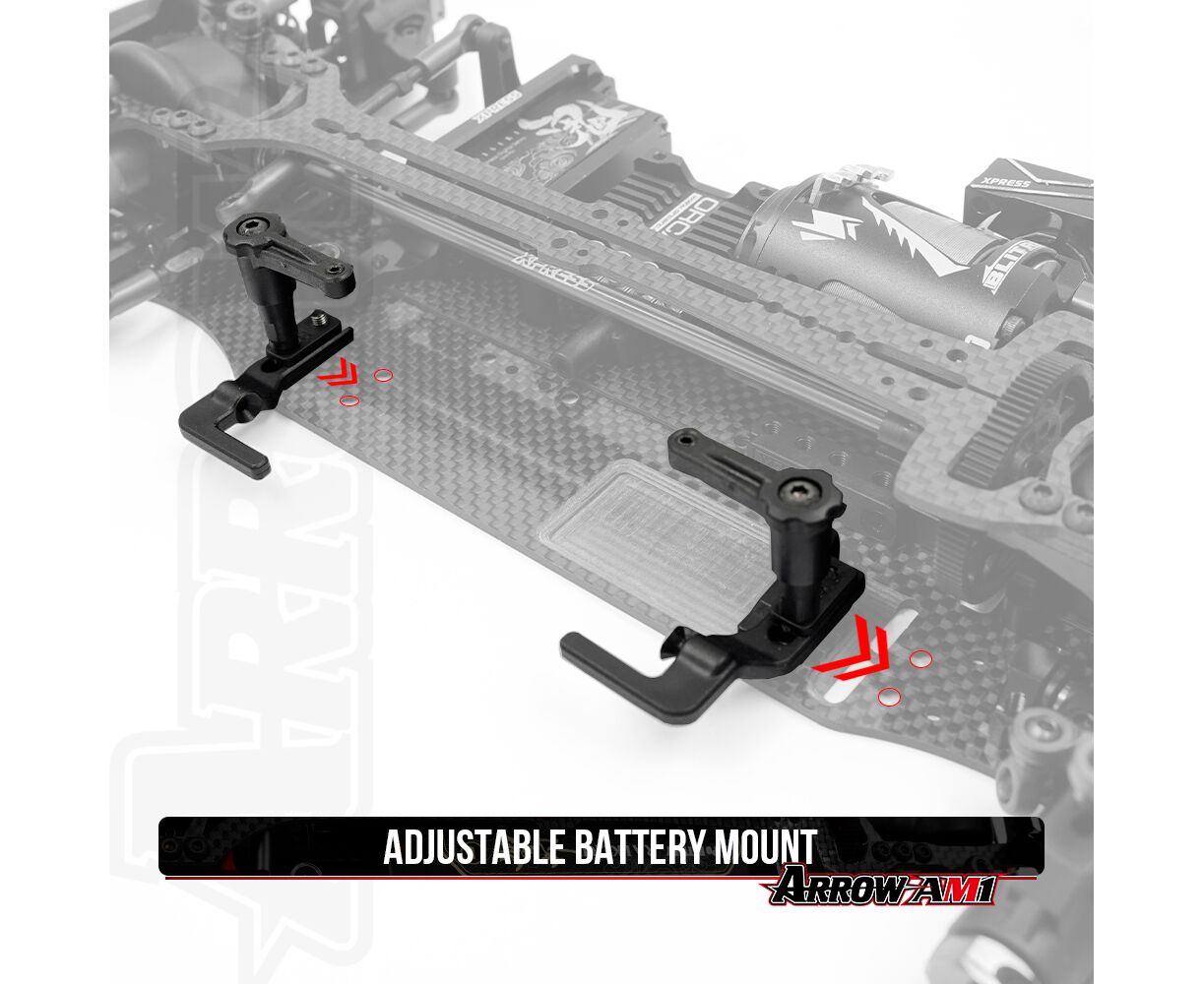

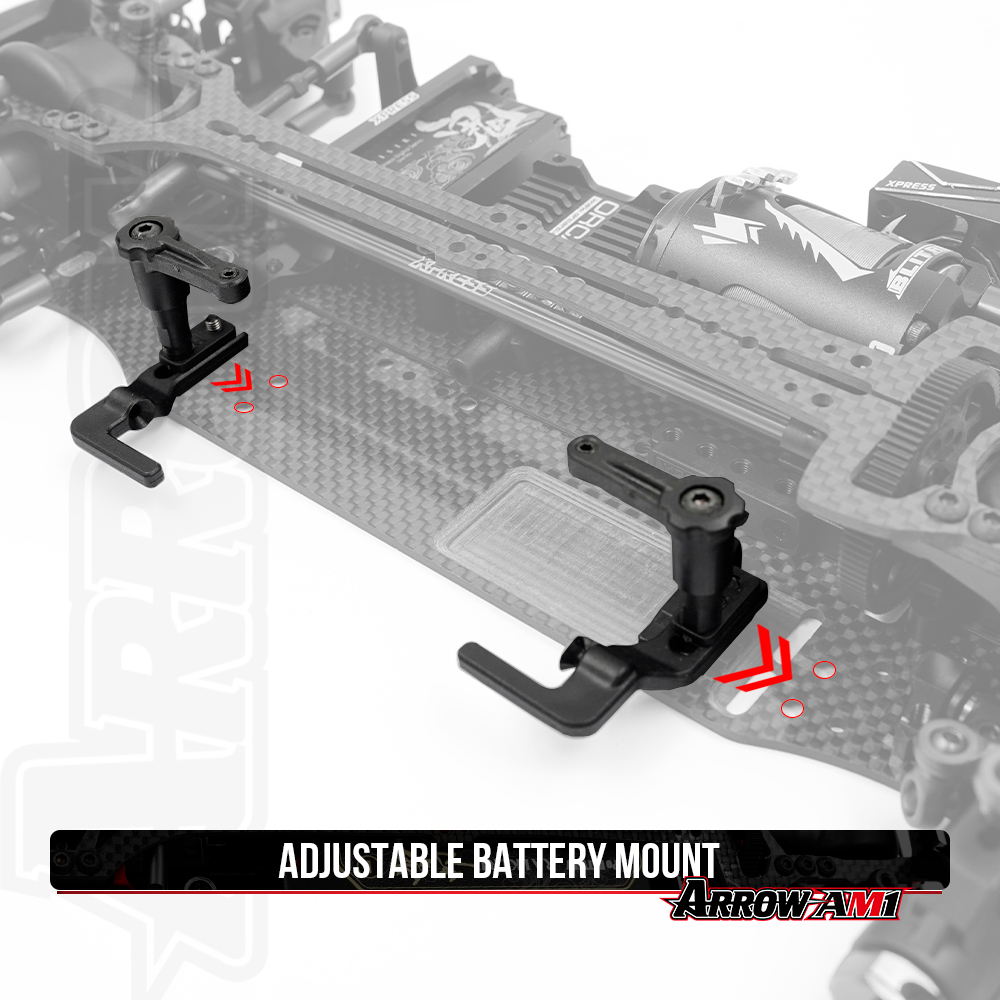

Adjustable Battery Position


Specification:

Type: Competition Grade 1:10 On-road 4WD

Length: 315mm

Wheelbase: 225mm

Track Width: F160mm / R160mm (Approx.)



Required:

Radio system (transmitter and receiver)

Steering servo

Motor

Pinion gear (64p)

Battery pack

Speed controller

Charger

Bodyshell

Wheels, Tires, Inserts
