AXI2217/12 V2 2-3S 1380 U/V 3.17mm
RPM/V 1380 RMP/V
Max. efficiency 86%
Max. efficiency current 15 - 24 A (>75%)
No load current 0,4 A
Current capacity 32 A/60 s
Internal Resistance 61 mohm

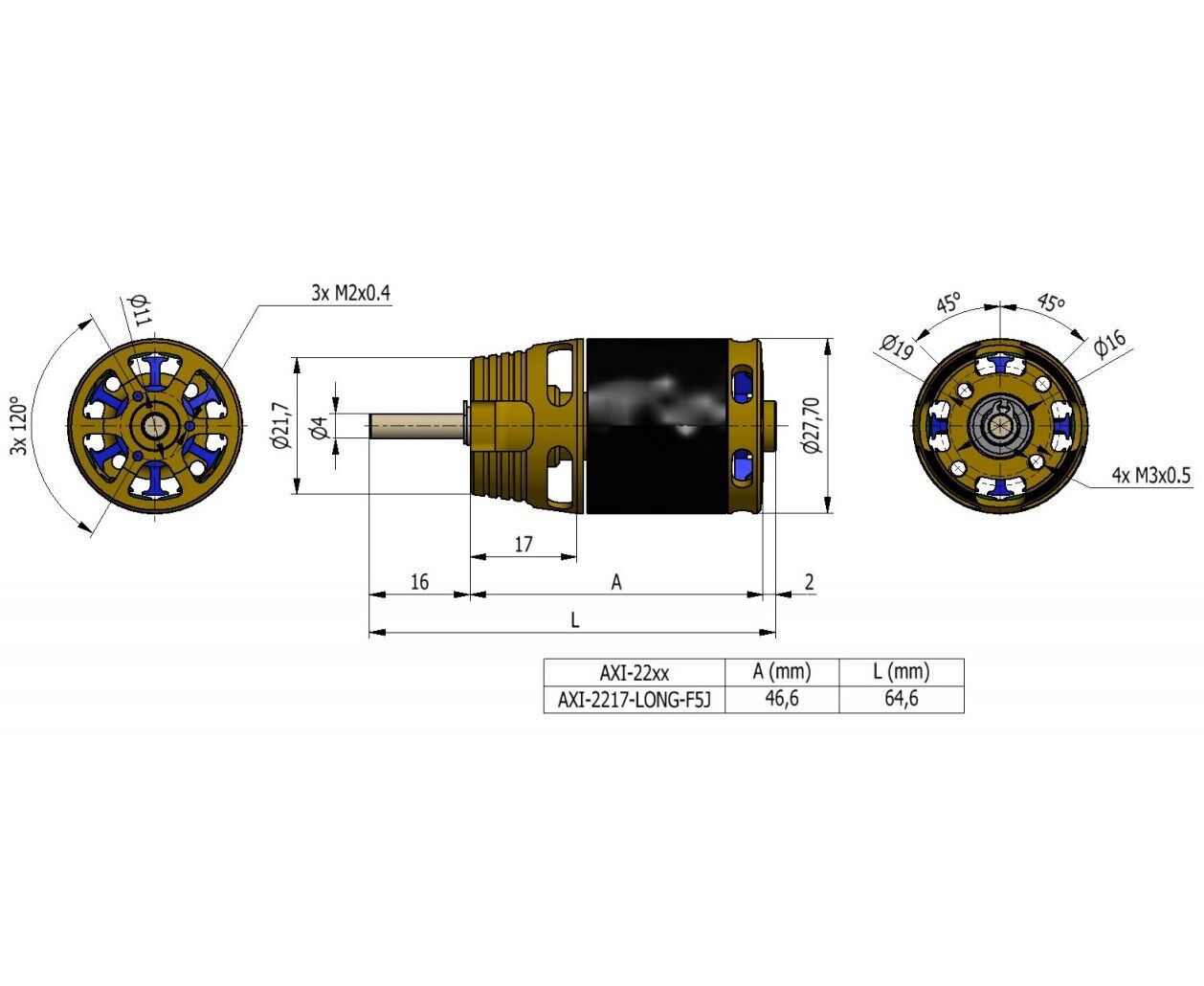

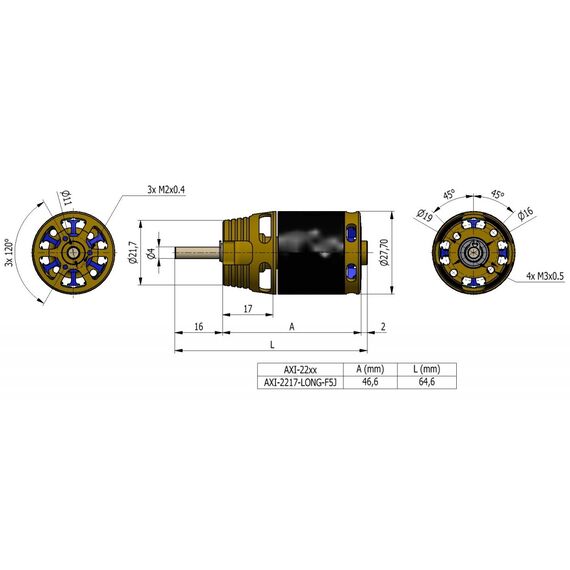

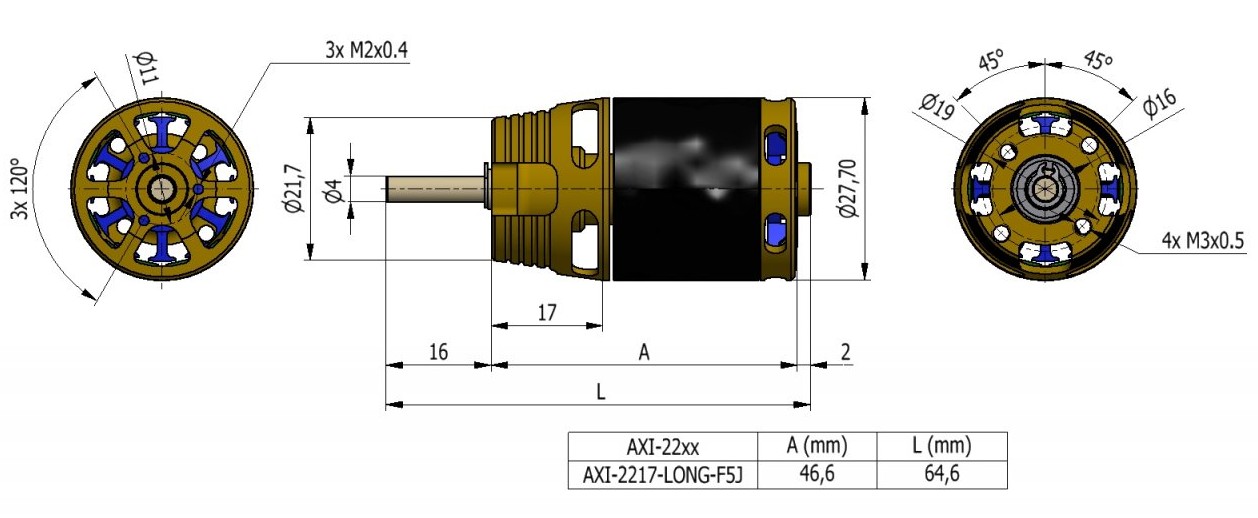

Dimensions (Ø x L) 27,7x44,4 mm
Shaft diameter 3,17 mm
Weight 74 g
Max. Power 330 W

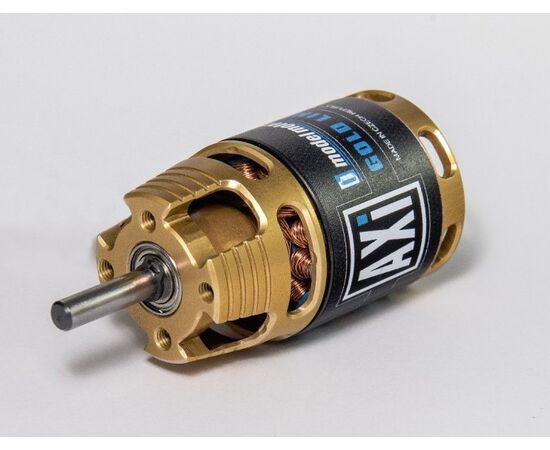

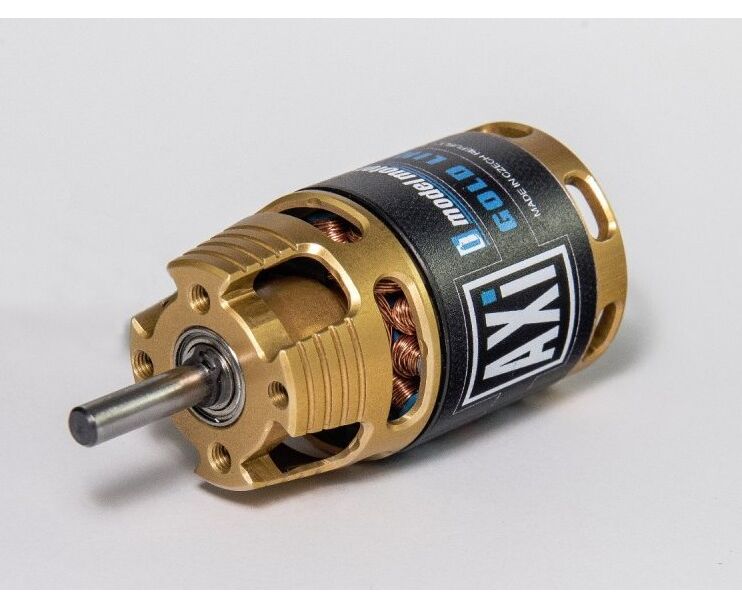

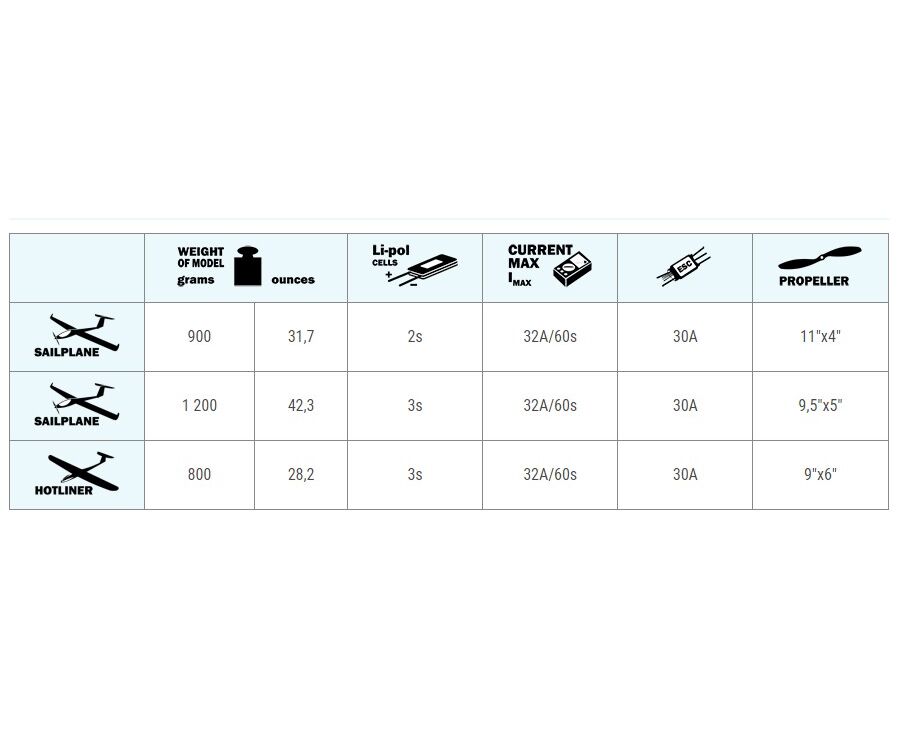

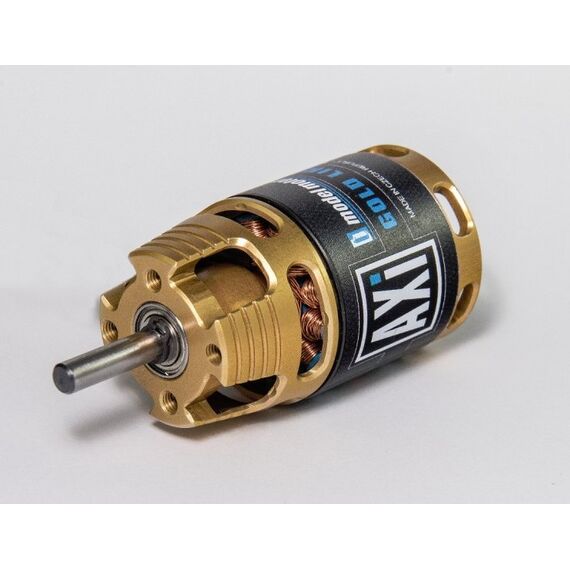

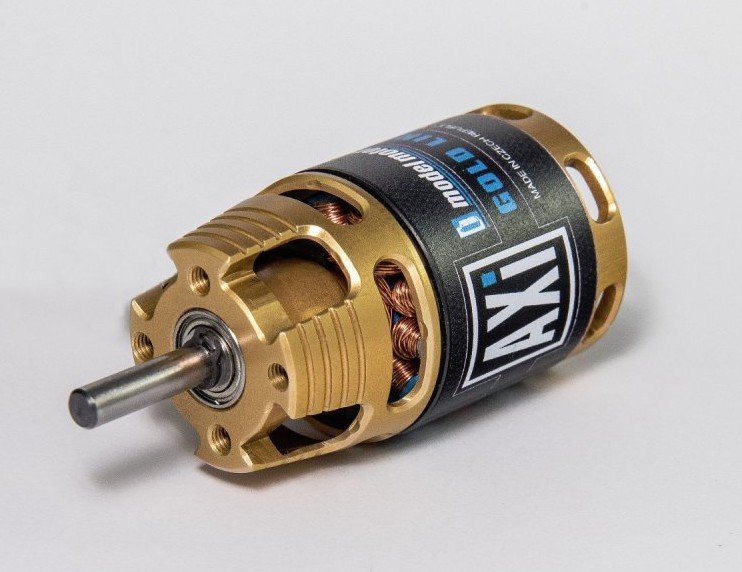

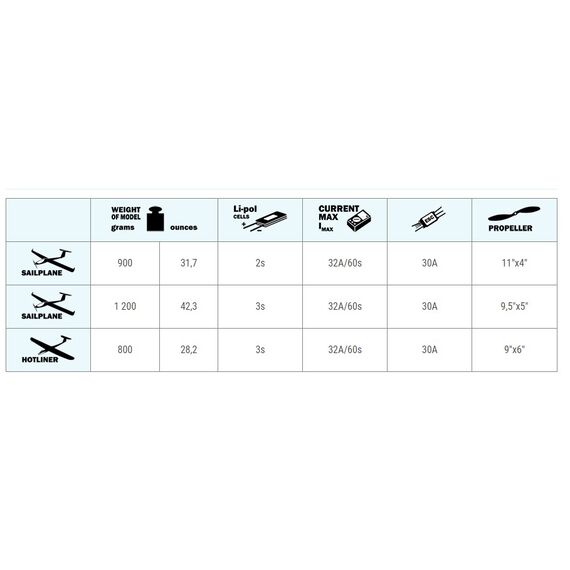

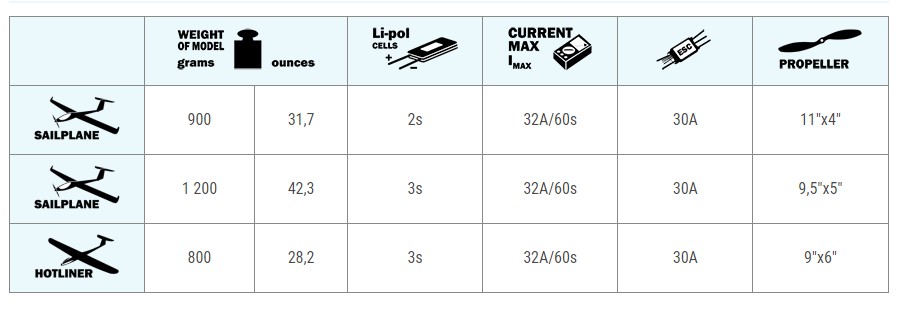

The high quality and performance of AXI 22xx V2 motors meant that they were a perfect base for development of the new AXI 2217/xx GOLD LINE. New small and powerfull motor AXI 2217/12 GOLD LINE V2 with rotating case is suitable for aerobatic models up to 1000g and for light sailplanes up to 1200g. Hardened steel Shaft have 3,17mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.
Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. Delivered without prop. holder and Radial mount set!
- Elektro Brushless-Motor
