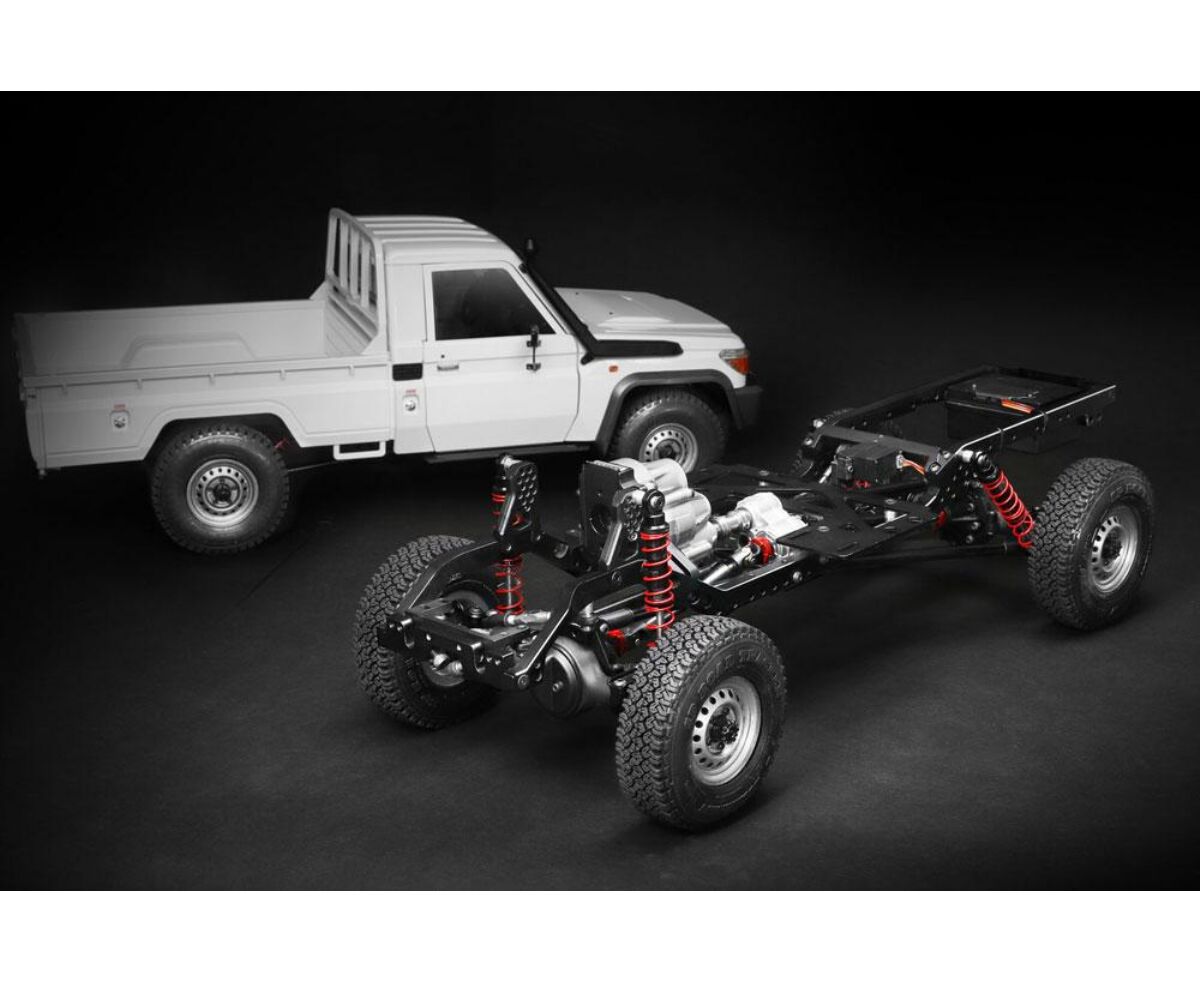

Boom Racing BRX01 1:10 Chassis Kit mit LC70

Im Laufe der Jahre sind R/C-Crawler hinsichtlich Leistung und Scale Features realistischer geworden. Bis heute hat die Crawler-Hobbyindustrie jedoch keinen leistungsstarken „Daily Driver“ gesehen - was die Branchenjunkies als ein 1:1-Fahrzeug beschreiben, das im Autohaus gekauft werden kann, ein Lastwagen ohne High Lift und große Reifen.

Wir haben uns also vorgenommen, diesen Lkw zu produzieren - einen leistungsorientierten „daily Driver“ mit vielen Innovationen. fein genug, um eine Königin im Regal zu sein, und Badass genug, um im Gelände ein Biest zu sein!

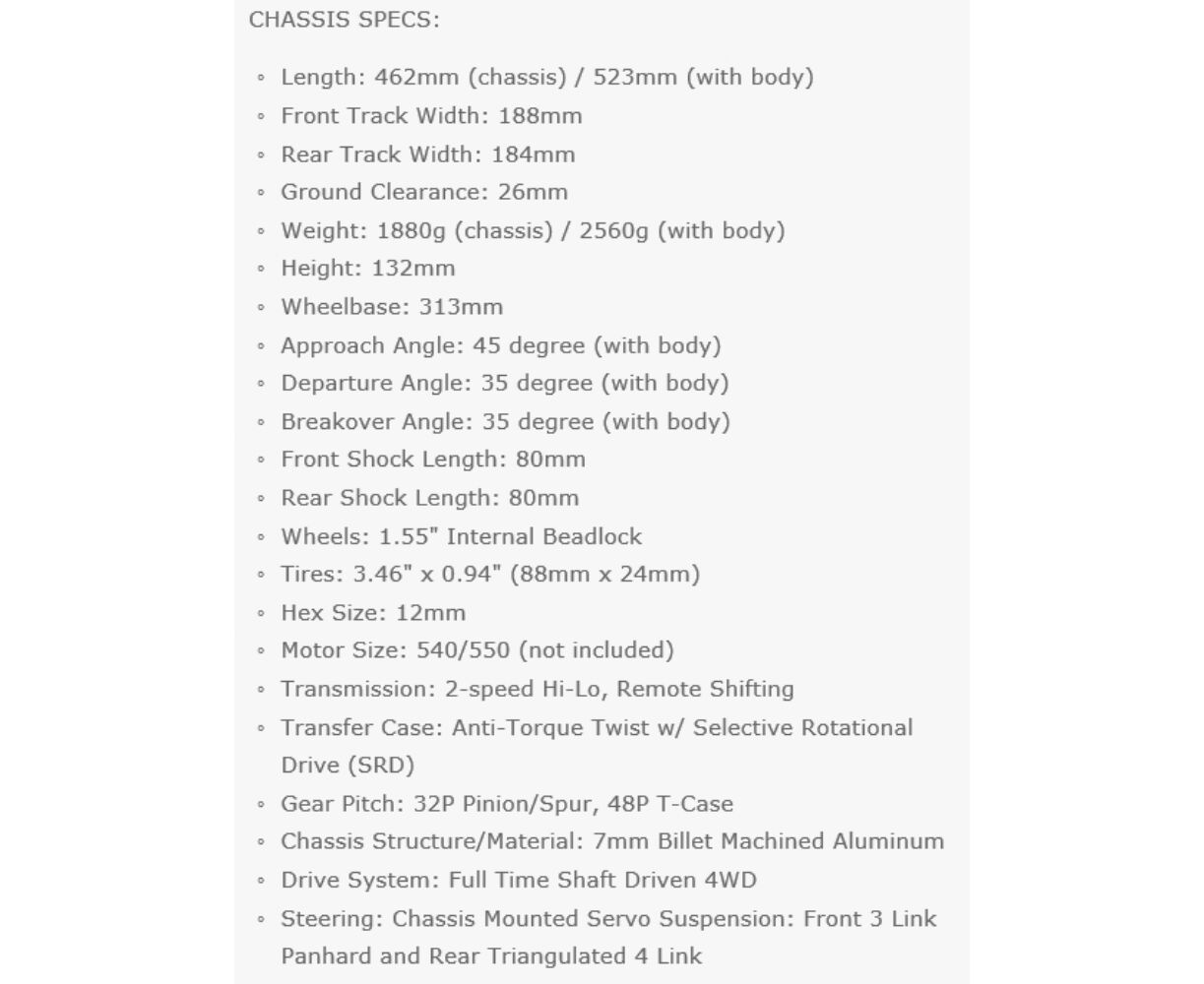

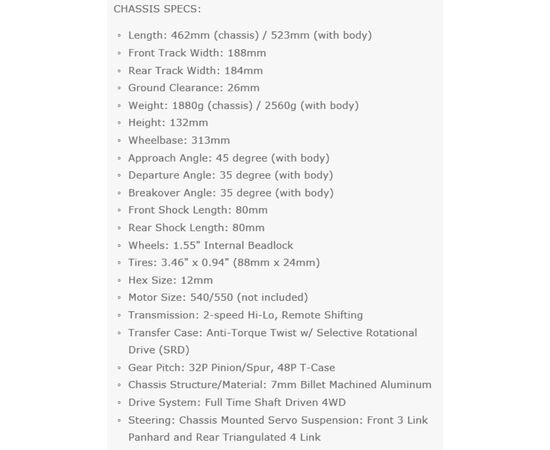

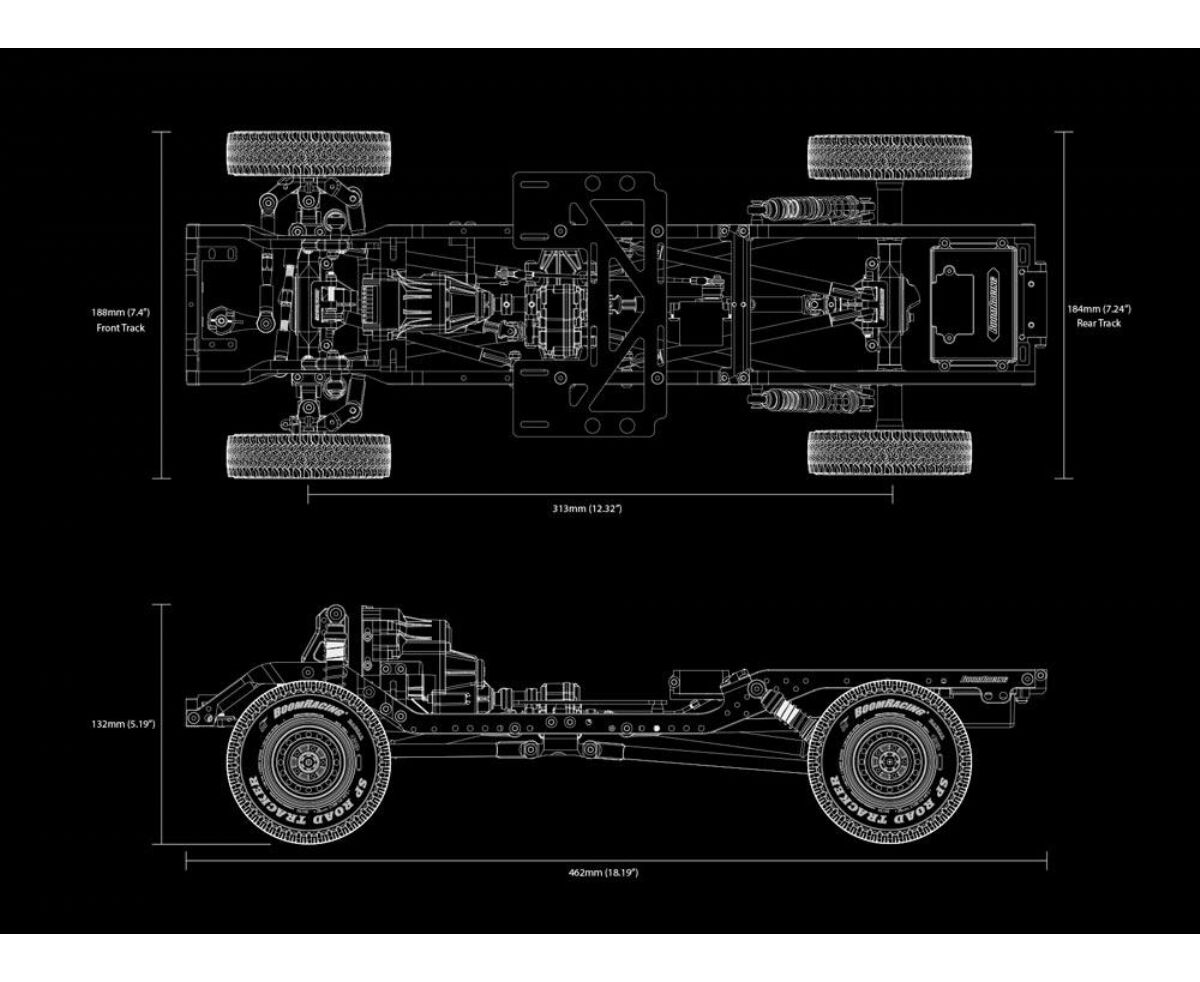

Chassis Specifications:

Length: 462mm (chassis) / 523mm (with body)

Front Track Width: 188mm

Rear Track Width: 184mm

Ground Clearance: 26mm

Weight: 1880g (chassis) / 2560g (with body)

Height: 132mm

Wheelbase: 313mm

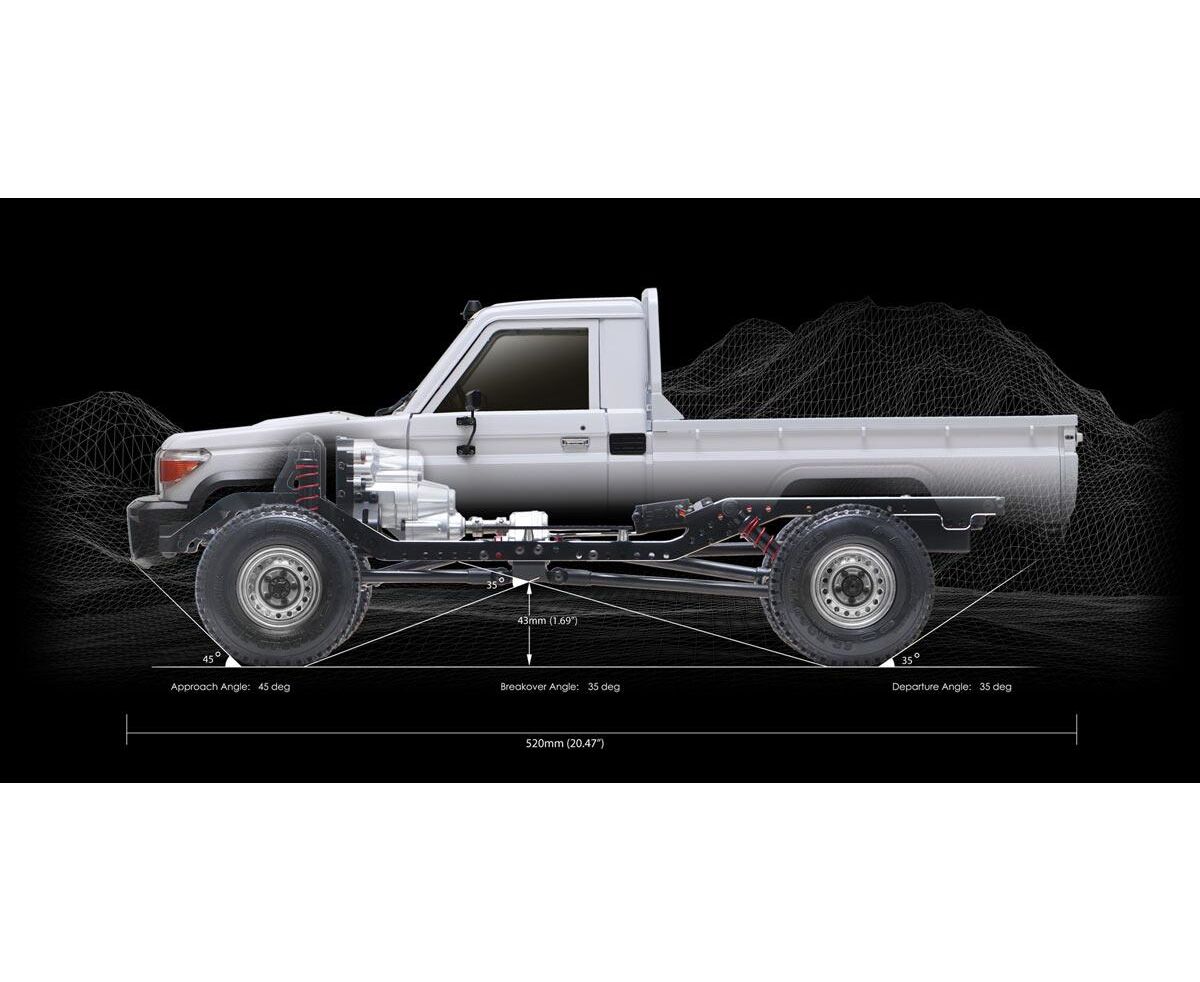

Approach Angle: 45 degree (with body)

Departure Angle: 35 degree (with body)

Breakover Angle: 35 degree (with body)

Front Shock Length: 80mm

Rear Shock Length: 80mm

Wheels: 1.55" Internal Beadlock

Tires: 3.46" x 0.94" (88mm x 24mm)

Hex Size: 12mm

Motor Size: 540/550 (not included)

Transmission: 2-speed Hi-Lo, Remote Shifting

Transfer Case: Anti-Torque Twist w/ Selective Rotational Drive (SRD)

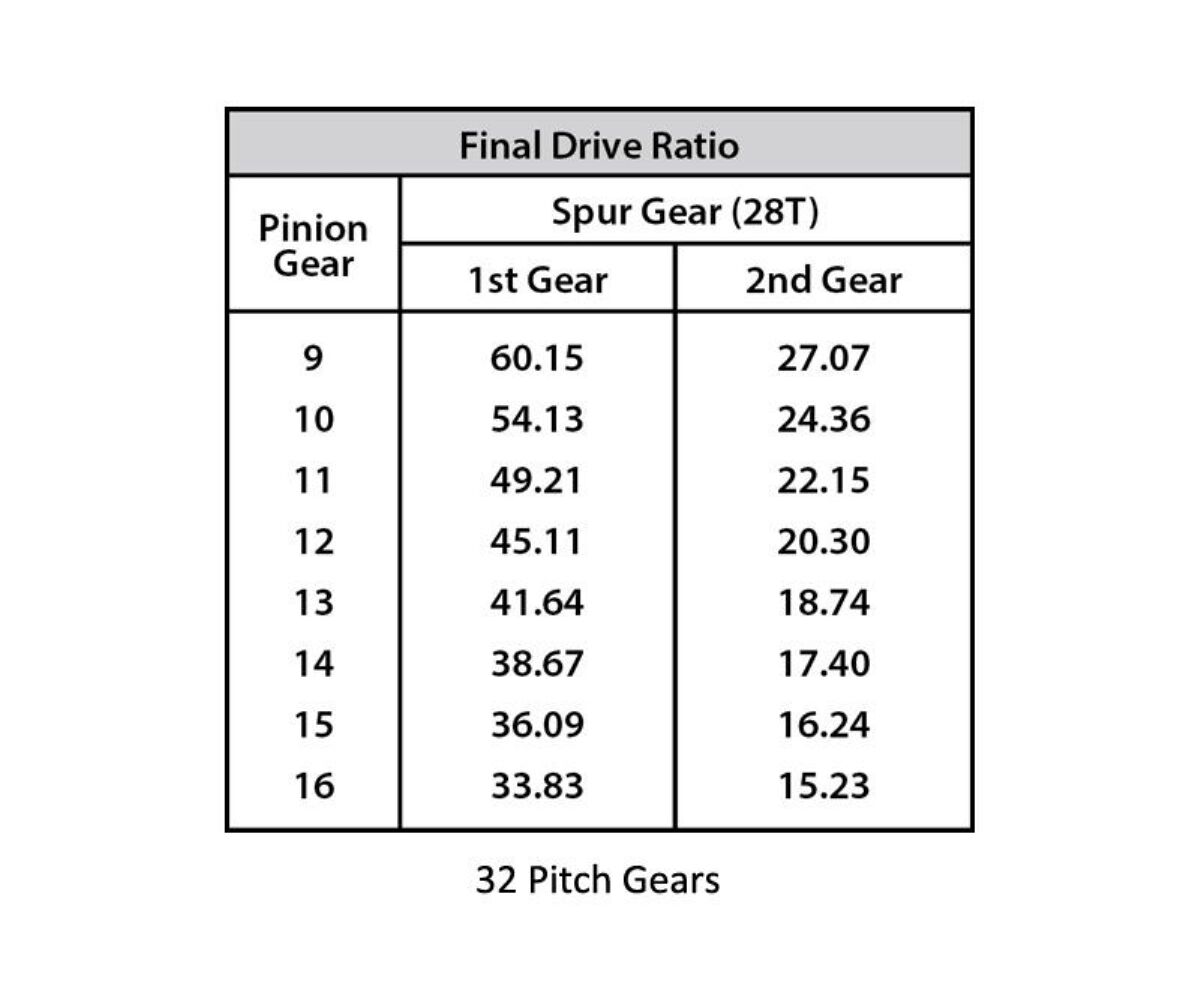

Gear Pitch: 32P Pinion/Spur, 48P T-Case

Chassis Structure/Material: 7mm Billet Machined Aluminum

Drive System: Full Time Shaft Driven 4WD

Steering: Chassis Mounted Servo

Suspension: Front 3 Link Panhard and Rear Triangulated 4 Link

What’s Included:

• BRX01 1/10 4WD Chassis Bolt-On Kit BR8001

• JX Waterproof Mini Servo with Metal Gears

• Quick Release Body Mount and Hinge for LC70 Body

• 32 Pitch 12T Steel Pinion Gear

• 25T Low Profile Aluminum Servo Horn

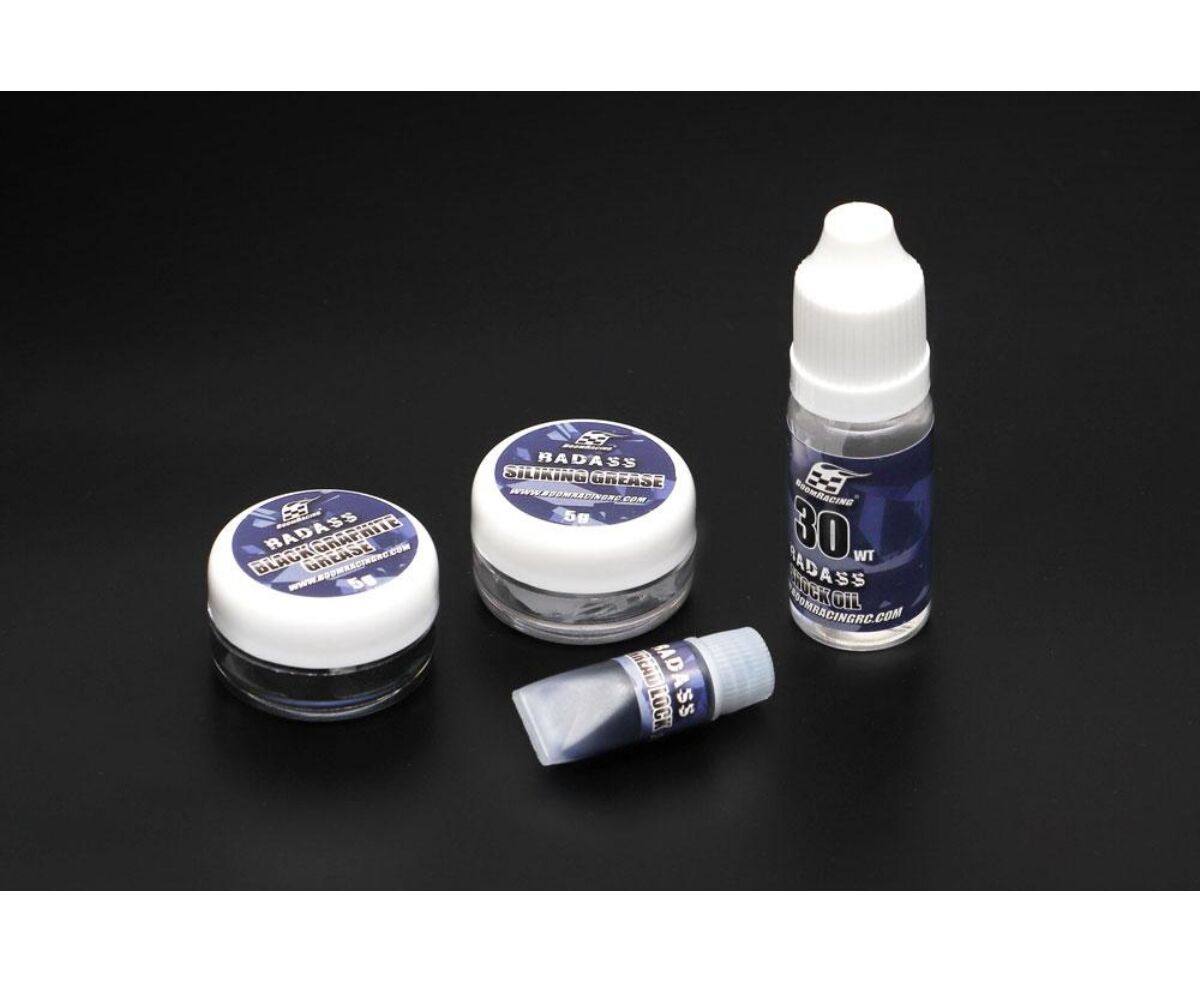

• Maintenance Kit (Shock Oil, Black Grease, Siliking Grease, Thread Lock)

• Cable Wiring Retainer Set (18pcs)

• Killerbody Licensed LC70 Hard Body Kit KB/48601

• BRX01 Owners Card (Numbered) with Chassis VIN#

• Basic Tool Kit

Equipment Required:

1) 3 Channel Radio System

2) ESC (electronic speed control)

3) Steering Servo

4) 540 or 550 Motor (27T for off-road / 35T for crawling matched with provided 12T pinion gear)

5) Battery

6) Charger

7) Tools

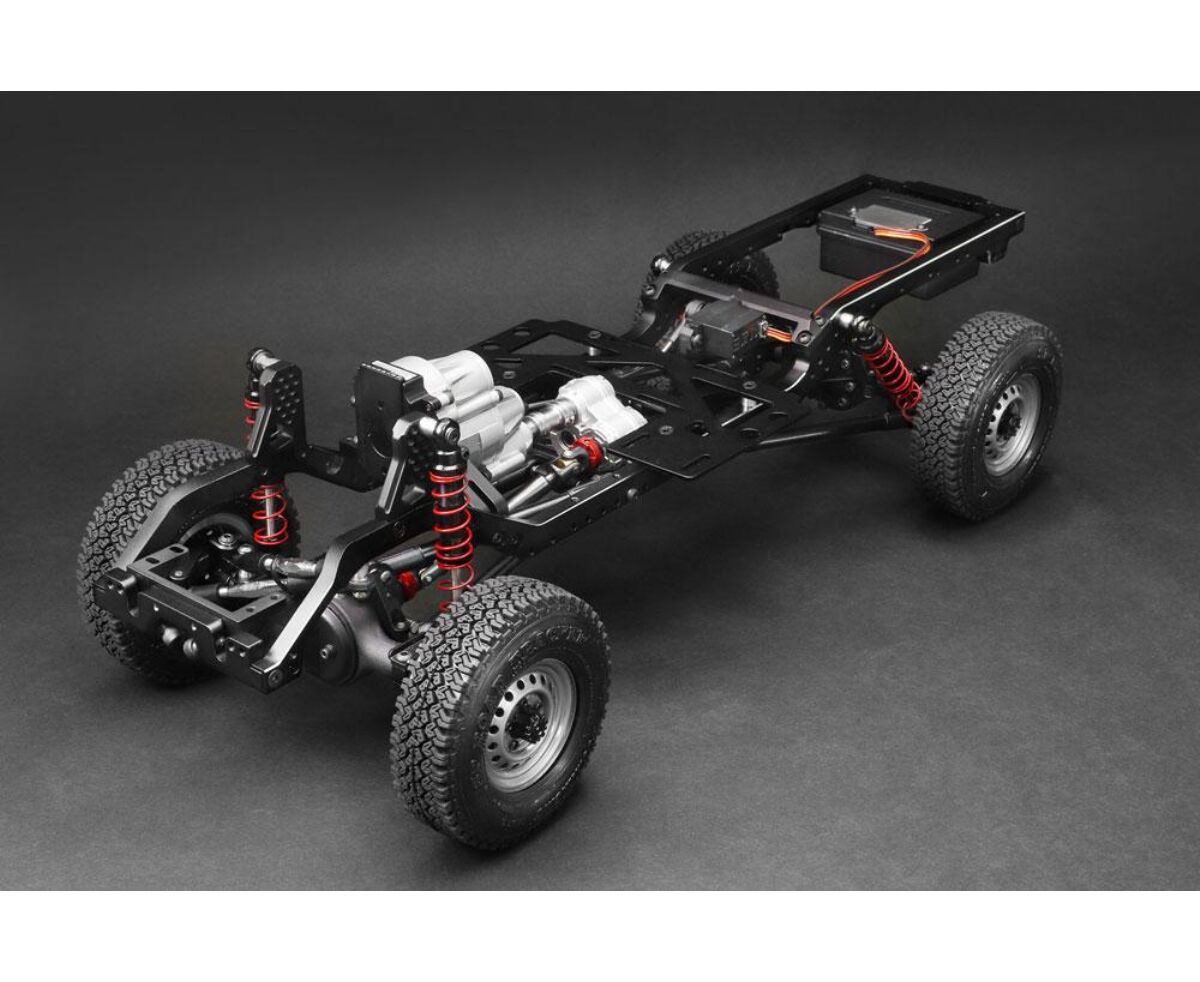

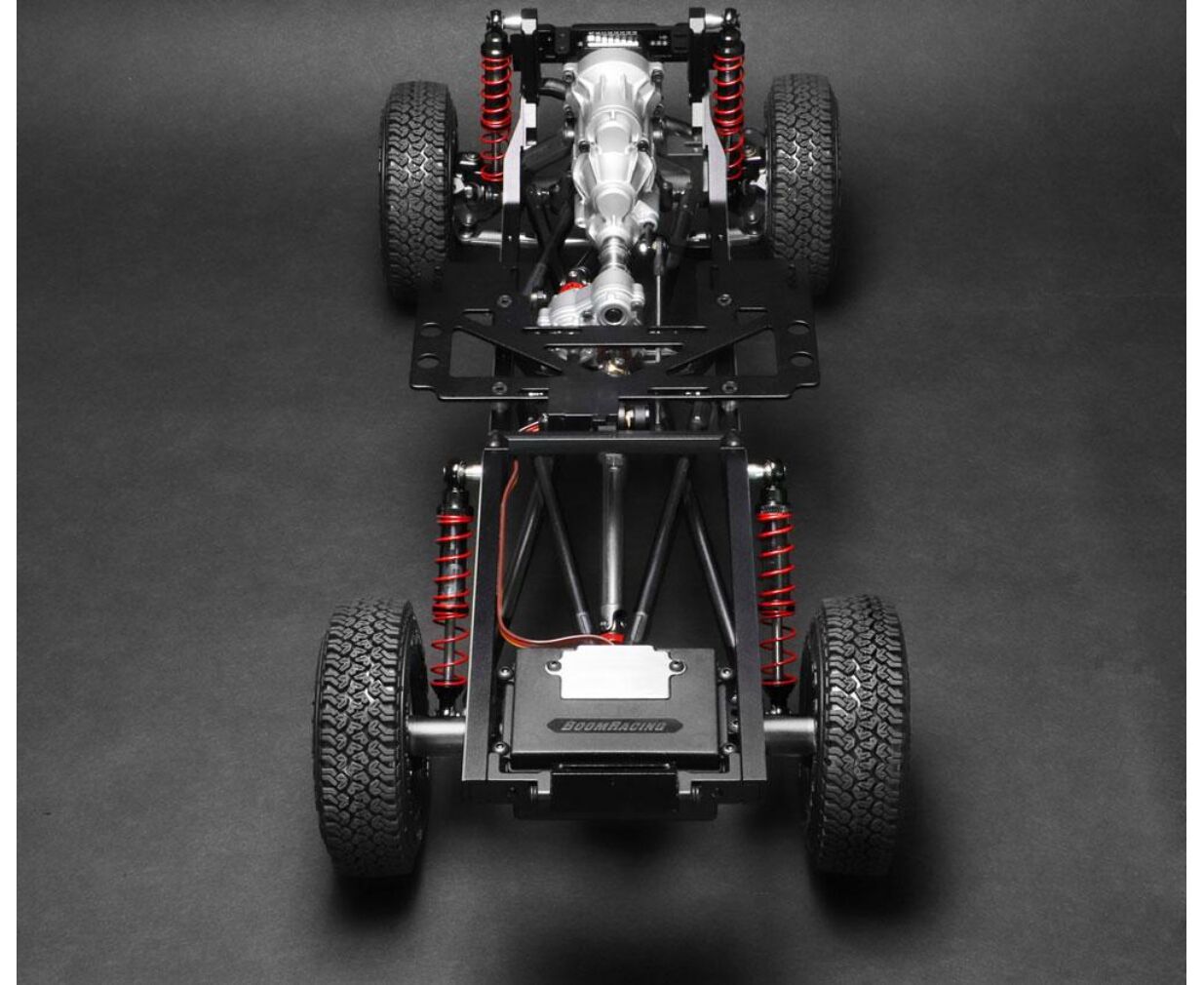

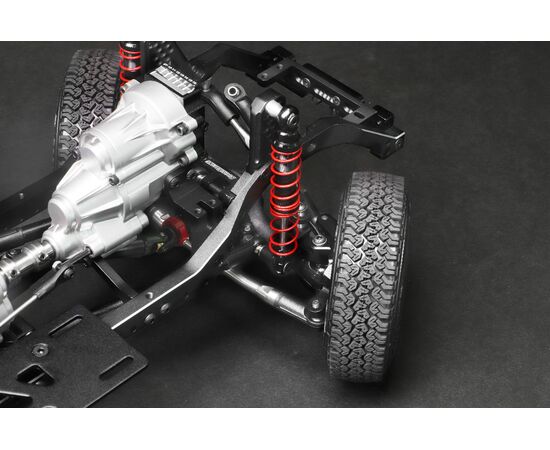

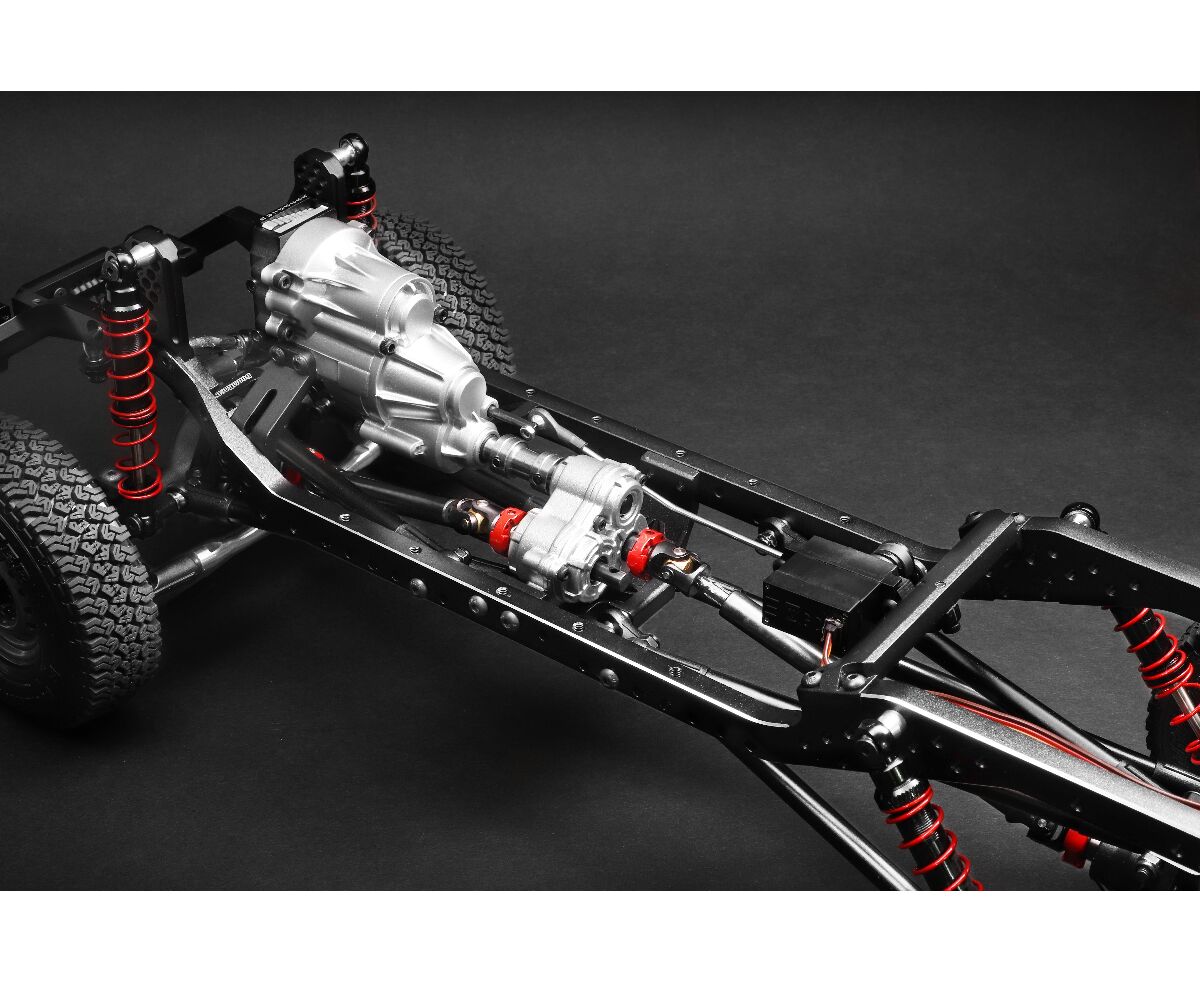

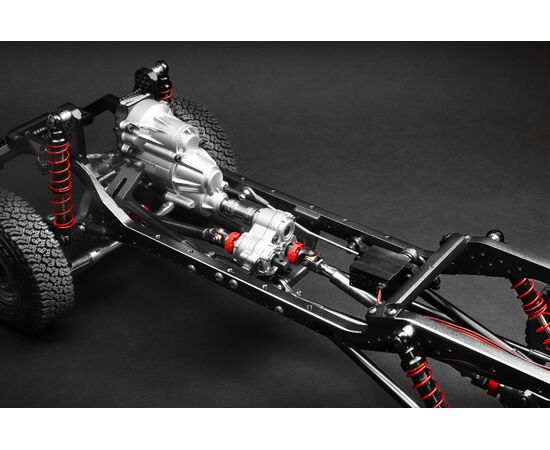

• Chassis:
• • Billet machined 7mm aluminum frame rails
• • Integrated with high-steer design to maximize steering angle
• • Low profile chassis setup for overall low center of gravity
• • High clearance skid plate for superior crawling capability
• • Centralized chassis weight and drivetrain design to keep the left and right side equally balanced
• • Adjustable Chassis Mounted Servo Mount
• • Complete High Performance Rubber Sealed Bearings

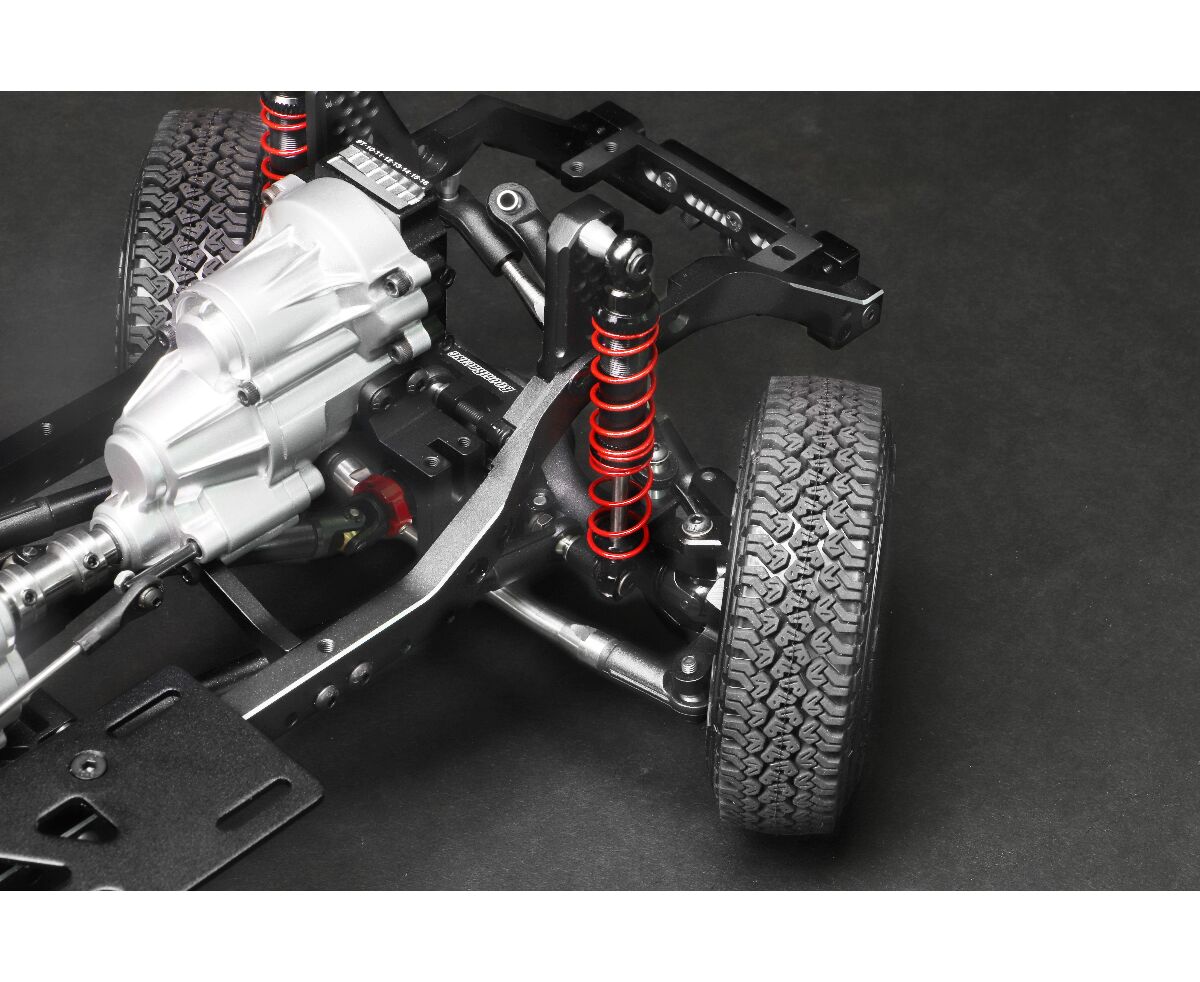

• Axles:

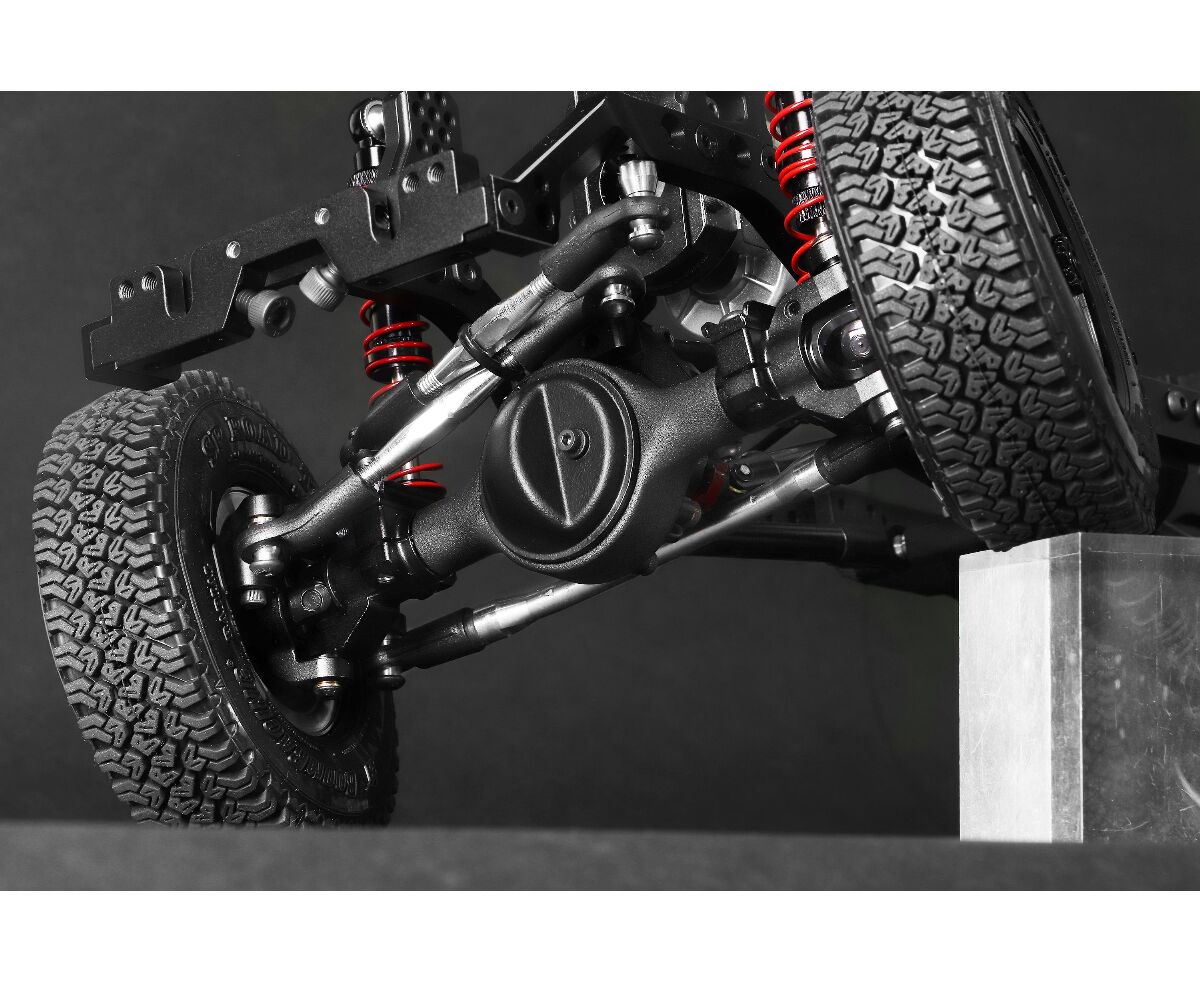

• • BRX70 PHAT™ high pinion heavy duty cast metal axle for increased weight down low
• • BADASS™ heavy duty steel universal shafts with over 45 degree steering angle

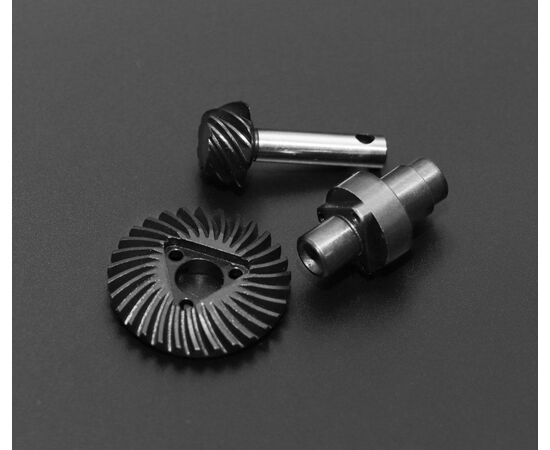

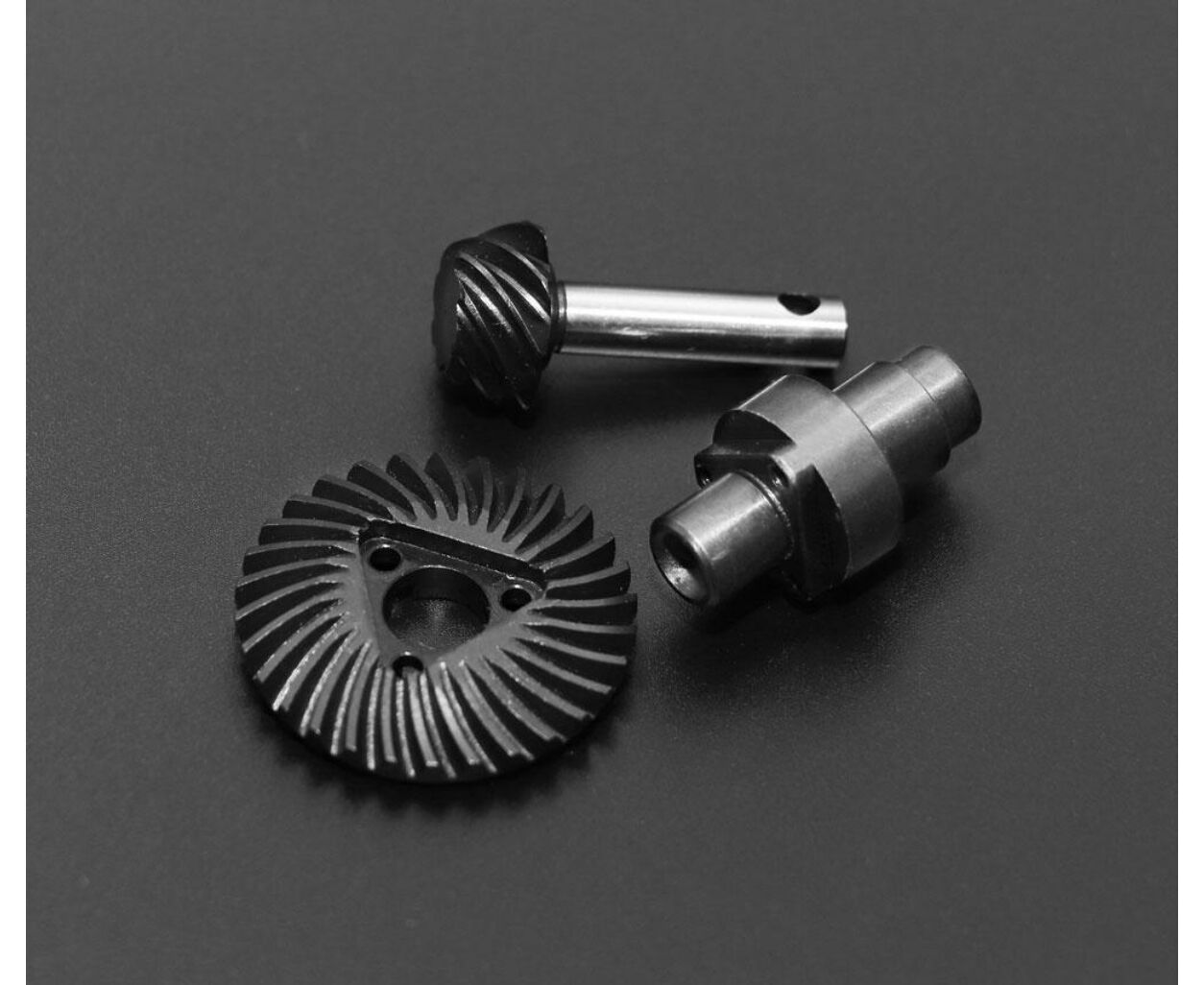

• • AR44 heavy duty keyed steel cut bevel gears for high performance and durability
• • Adjustable caster angle for tuning
• • Knuckles have multiple mounting positions for tuning
• • Reversible axle bevel gear positions
• • Leaf spring over and under axle setup enabled
• • Detachable aluminum CNC truss
• Shocks:

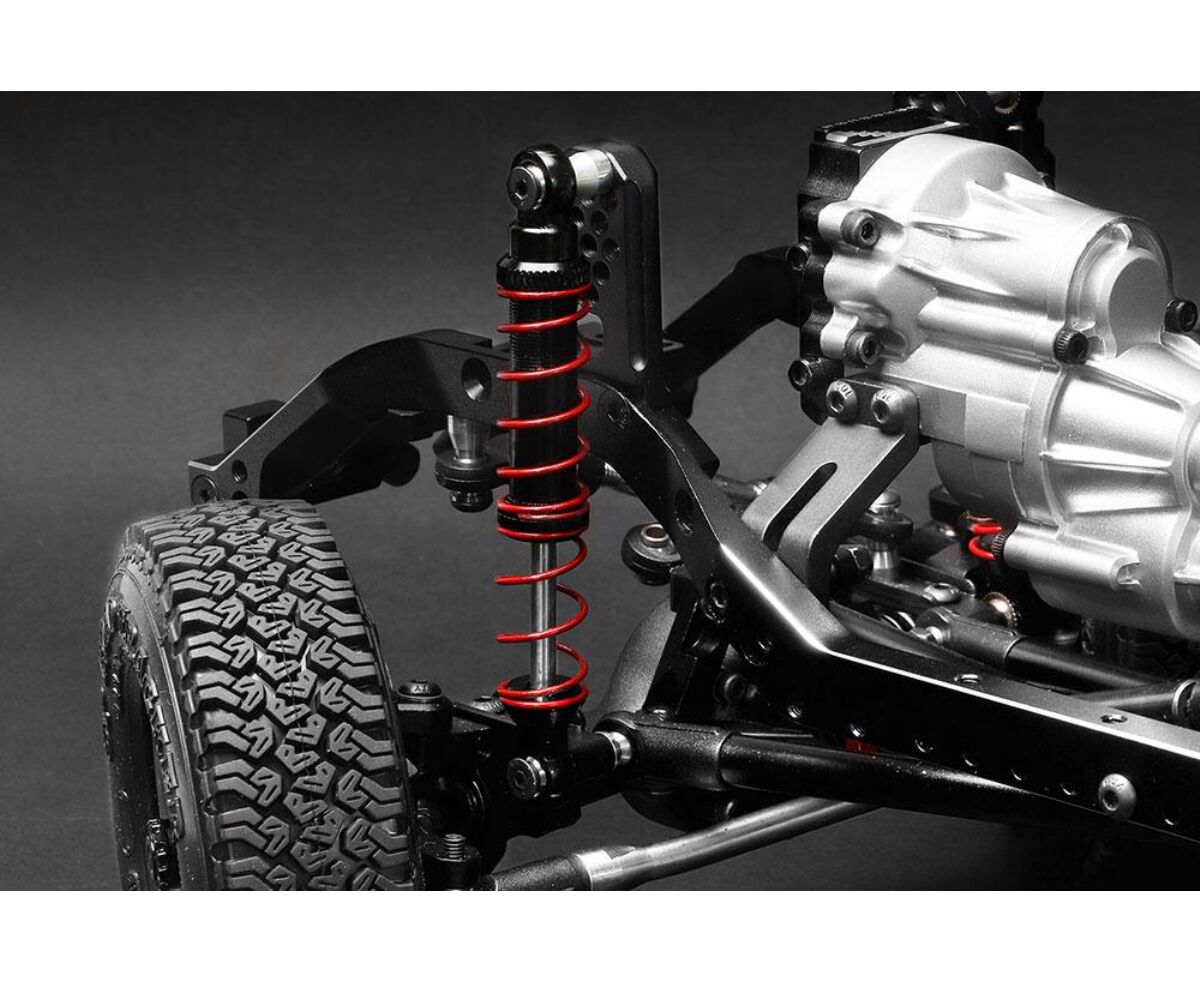

• • Full aluminum 2-Stage spring loaded oil-filled shocks
• • Threaded bodies with adjustment collars
• • Optional soft springs included

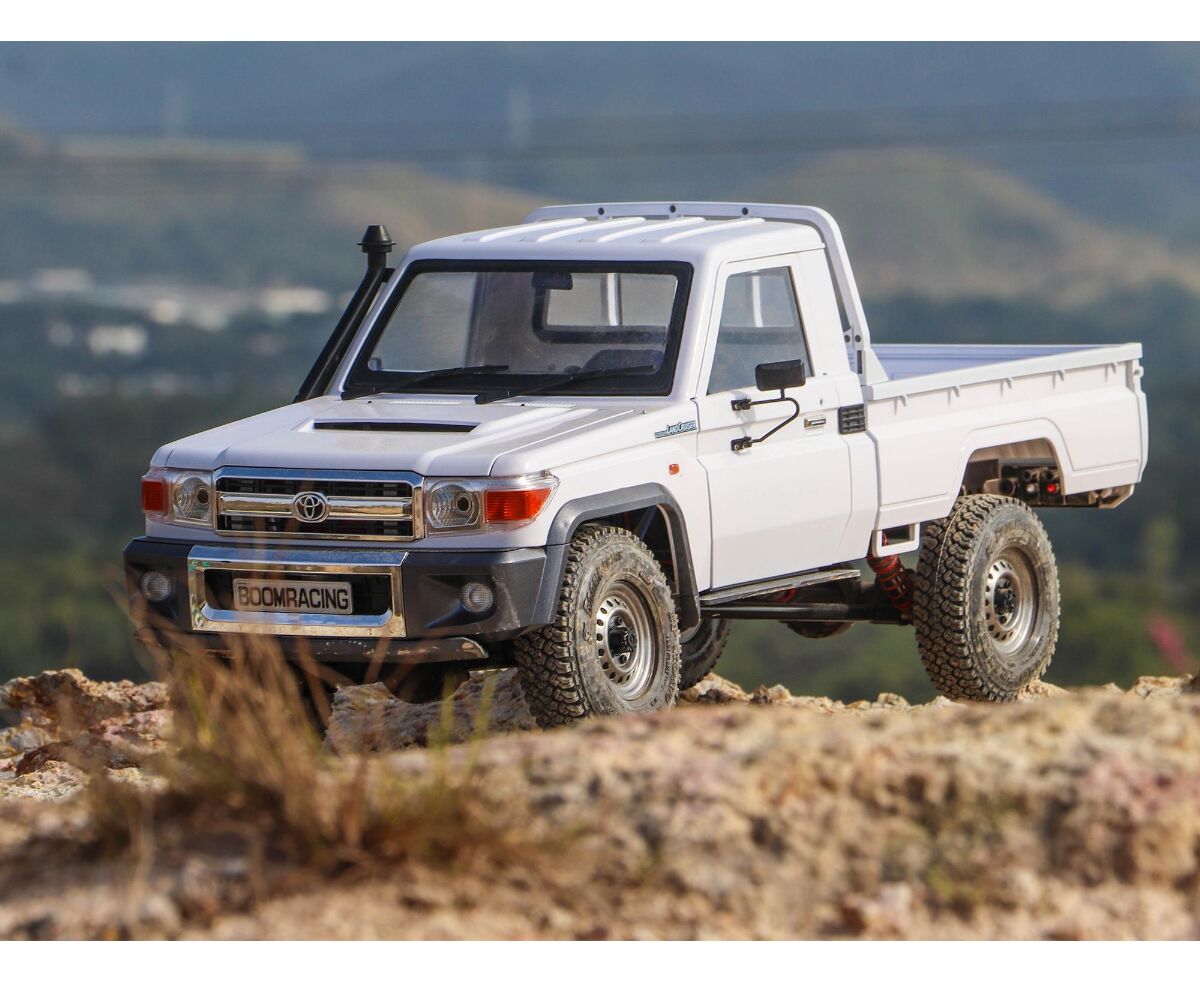

• Body:

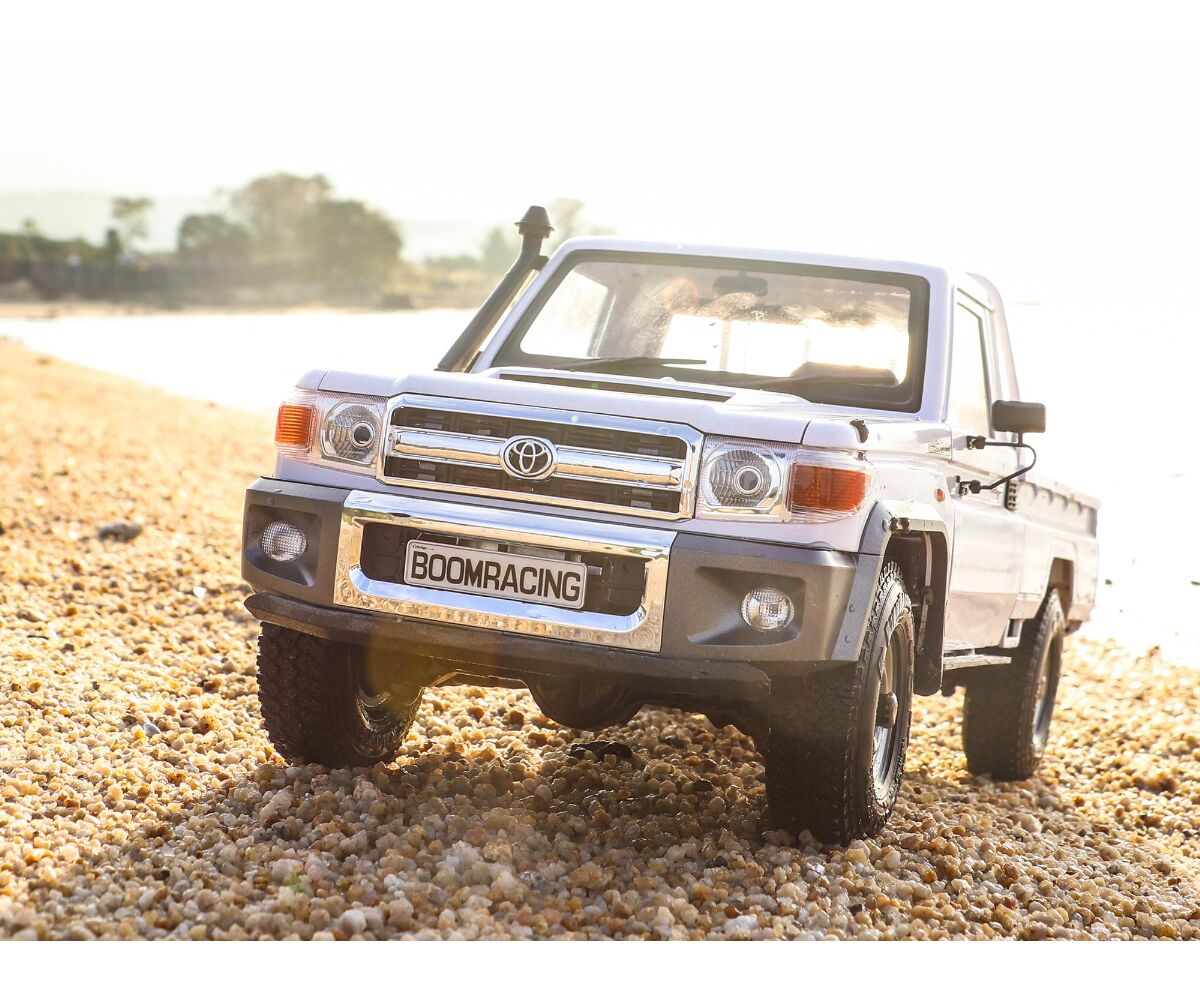

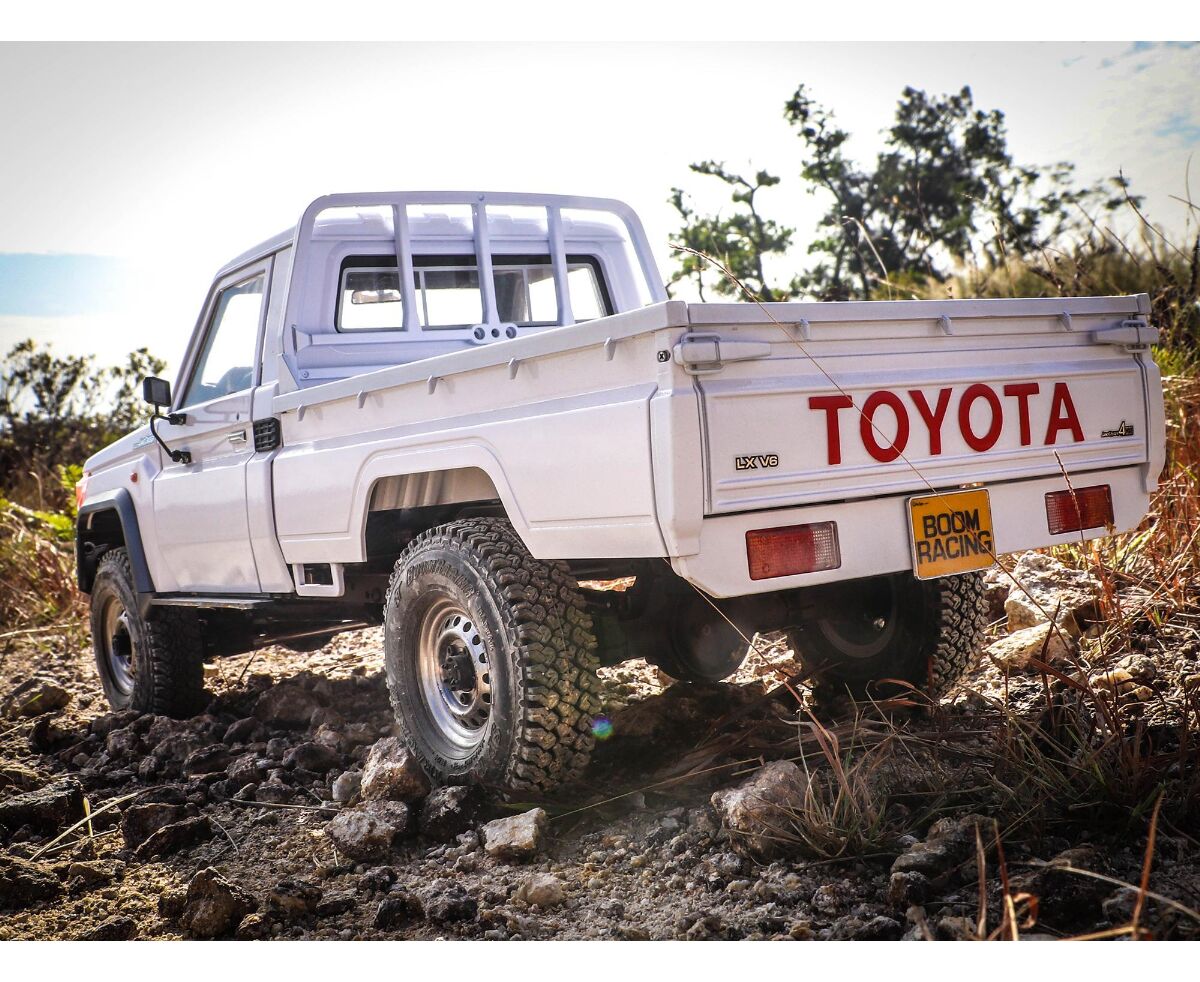

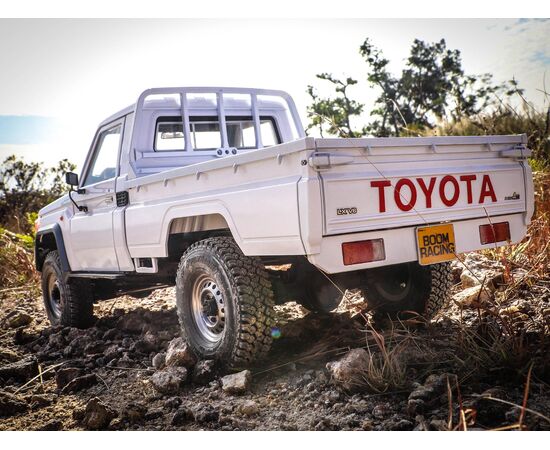

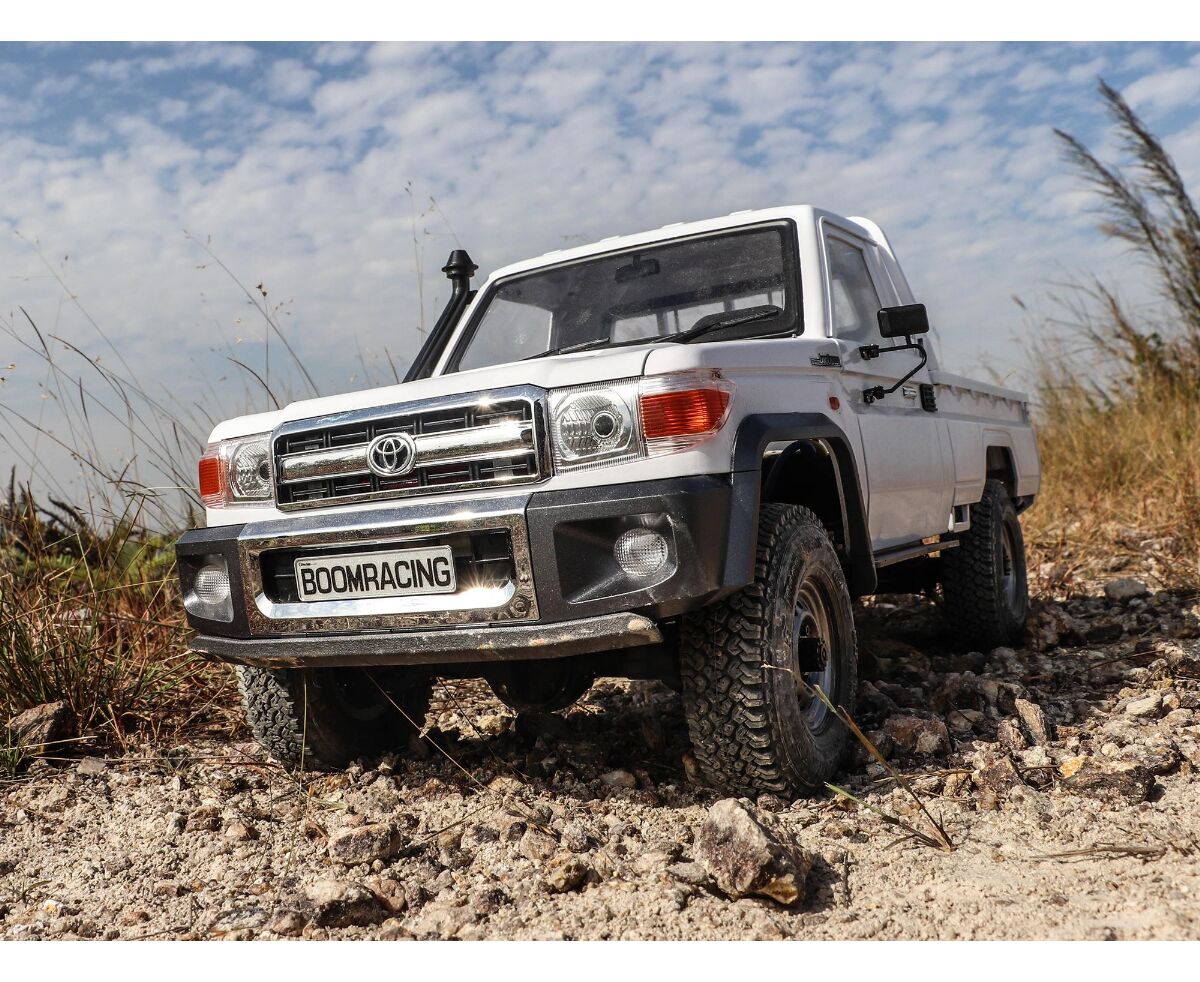

• • Officially licensed Killerbody Toyota Land Cruiser 70 Hard Body kit
• o ABS hard plastic
• o Over 12 highly detailed scale parts (door mirrors, interior mirror, air intake, snorkel, dashboard, steering wheel, window wipers, front wheel arches, chrome radiator grill, antenna, full filler cap, door handles and badges)
• o Ready for LEDs (not included)
• o Optional extras available including full interior, moving windows and other scale details (not included)

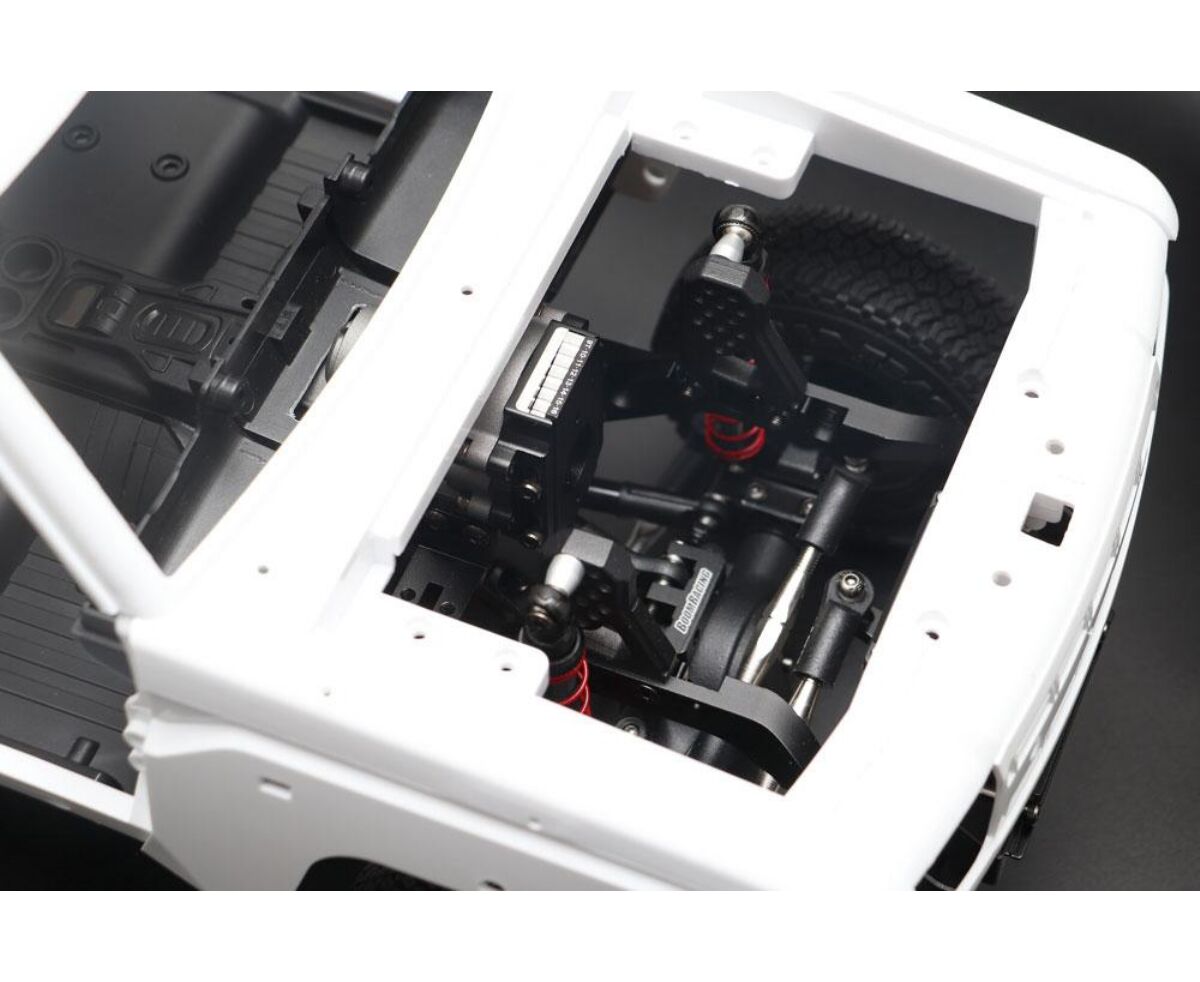

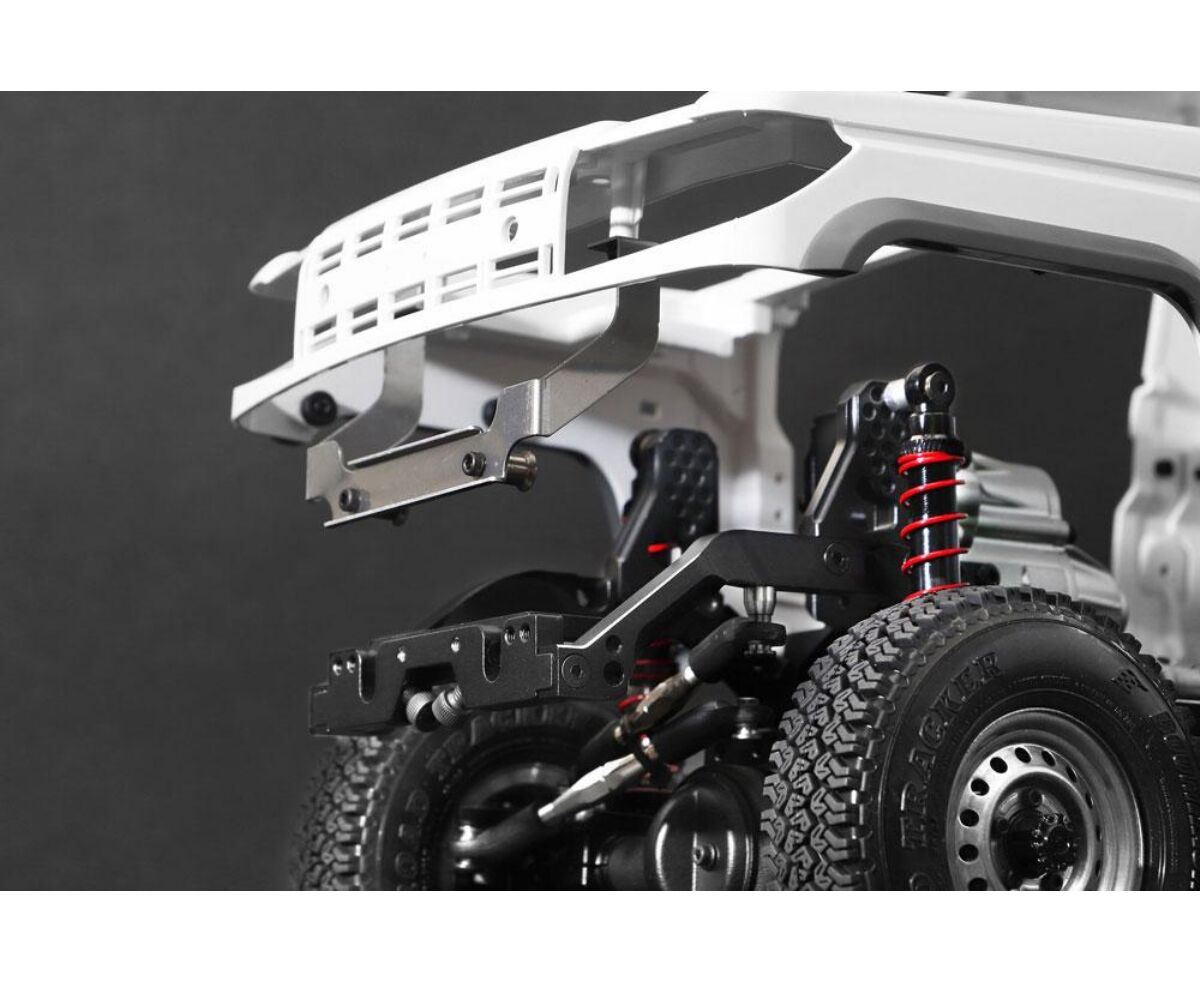

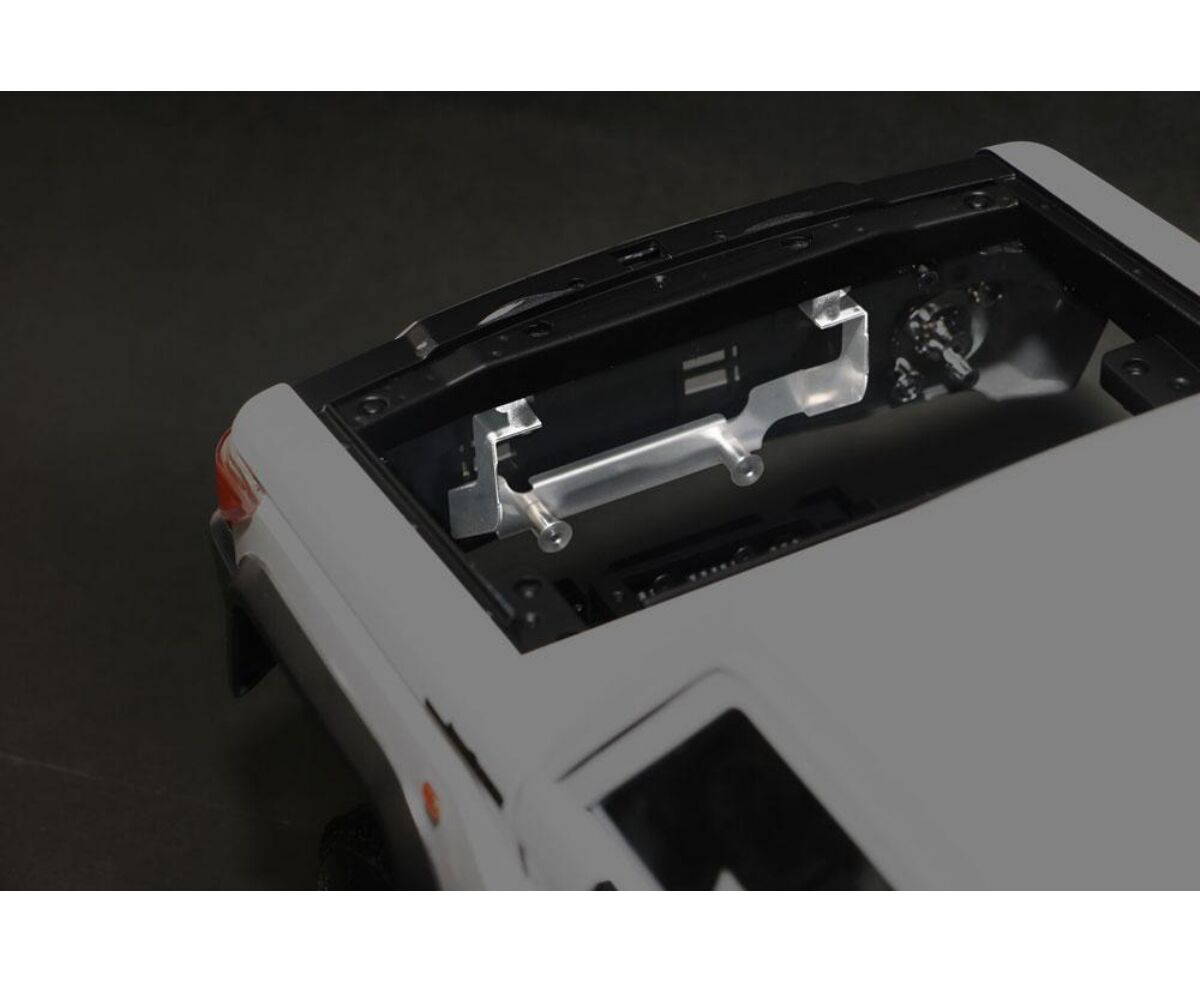

• • Quick release LC70 body hinge and mounts for easy access to chassis components
• • Fits optional Killerbody LC70 body interior (with minimal cutting)
• Drivetrain:
• • Full-time shaft driven 4WD
• • Innovative pinion-spur gear mesh guide for precision setup
• • Heavy duty steel cut gears
• • Anti-Torque Twist T-Case with Selective Rotational Drive™ (SRD) that reduces chassis torque twist under acceleration
• • Voodoo Heavy Duty Steel Center Drive Shafts
• Transmission:
• • Small footprint aluminum gearbox with Hi/Low range 2-speed transmission
• • Adjustable motor positions for low center of gravity and high clearance setup
• • Heavy duty steel cut gears
• • Hard plastic 32 Pitch 28T spur gear for durability
• Steering:
• • Behind-The-Axle steering for superior front axle clearance and realistic scale appearance
• • Stainless steel tie rod, drag link & panhard link
• • Counter threaded drag link and panhard link for quick adjustments

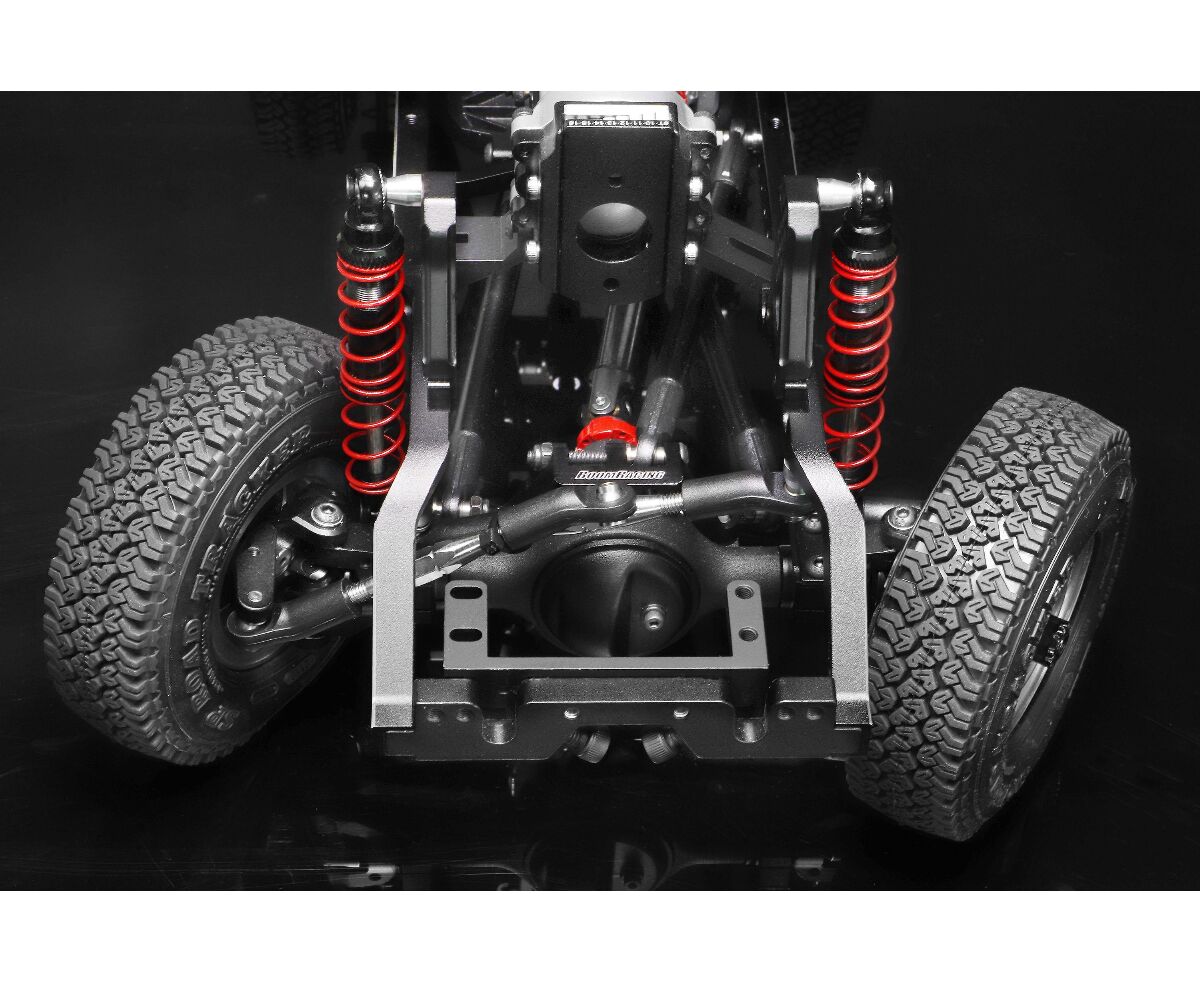

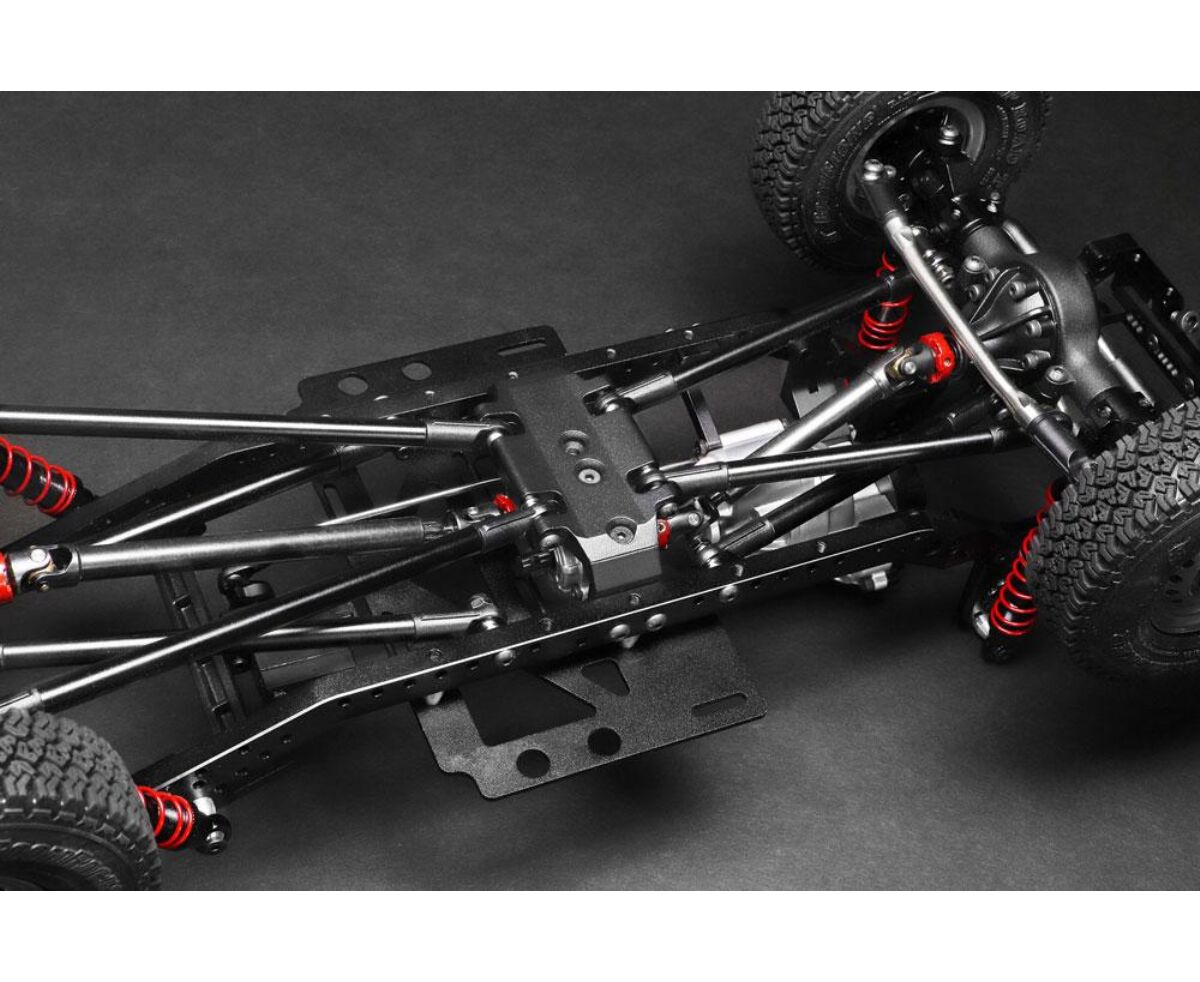

• Suspension:
• • Front: 3-link with panhard (leaf spring enabled)

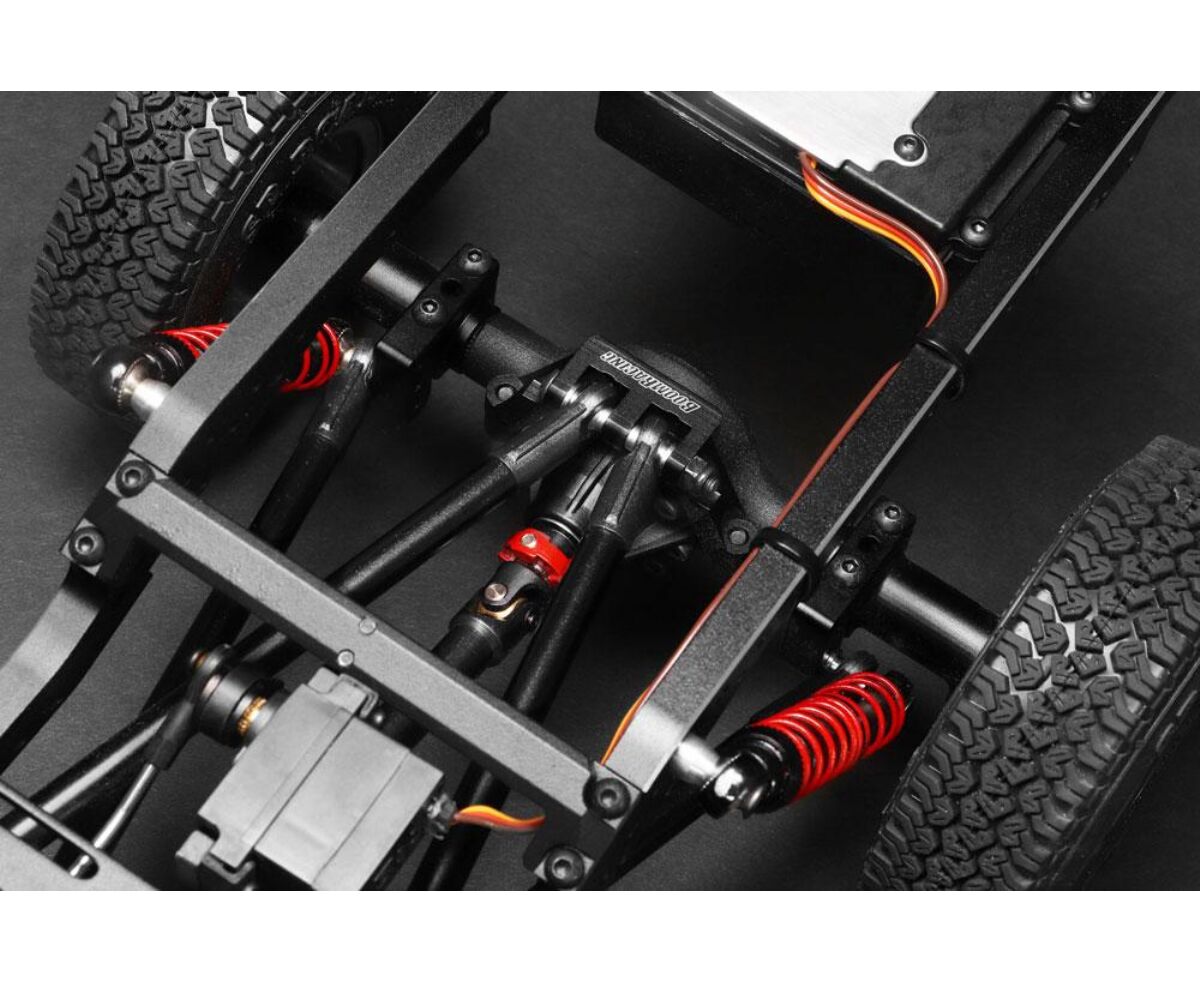

• • Rear: triangulated 4-link (leaf spring enabled)
• • Adjustable panhard link and mount
• • Adjustable front & rear shock positions
• • Hard Anodized 7mm Aluminum Chassis Links
• • BADASS™ Heavy Duty 4mm Rod Ends with Rust-Resistant Stainless Steel Pivot Balls
• Wheels & Tires:
• • 1.55” 16-Hole Stamped Steelie Beadlock Wheels
• • SP Road Tracker (Gekko Compound) Tires 3.46” x 0.94” (88mm x 24mm)
• • Single stage open foam inserts
• Electronics:
• • JX Waterproof Metal Gears Mini Servo for remote 2-speed shifting

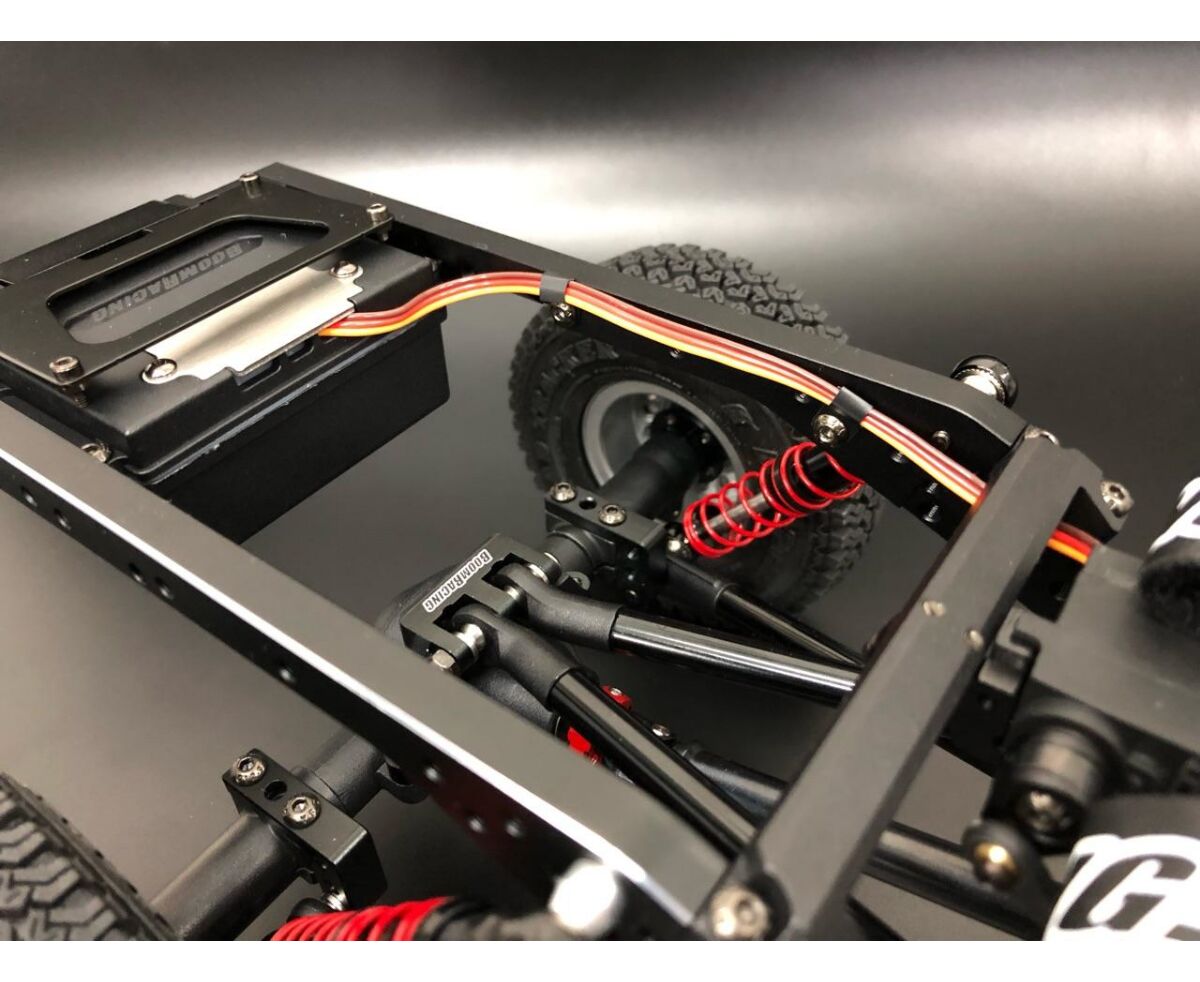

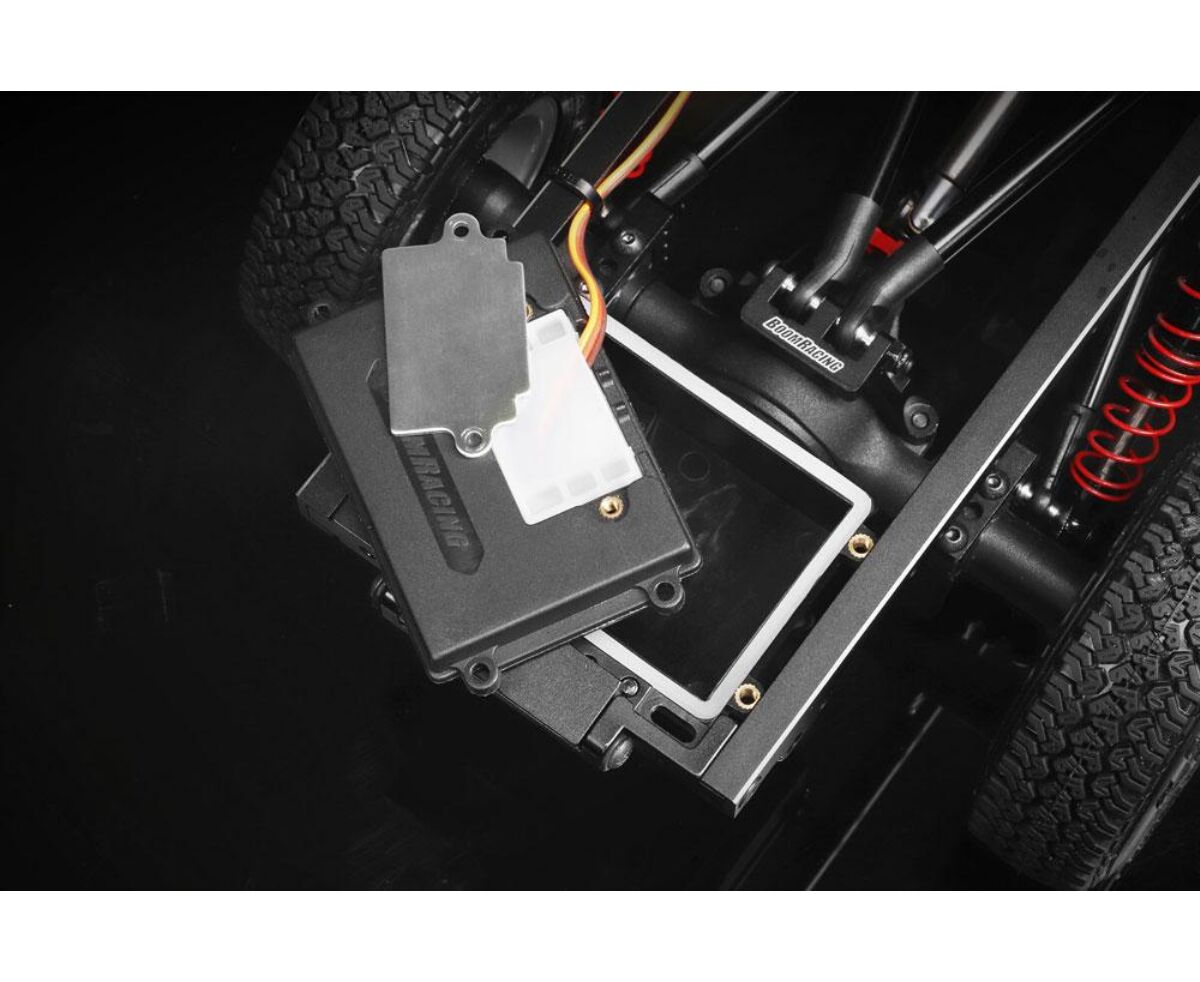

• • Proprietary silicone sealed watertight receiver box keeps the receiver dry
