BoomRacing 1:10 Scale BRX02 Kit Link Version für Team Raffee D110

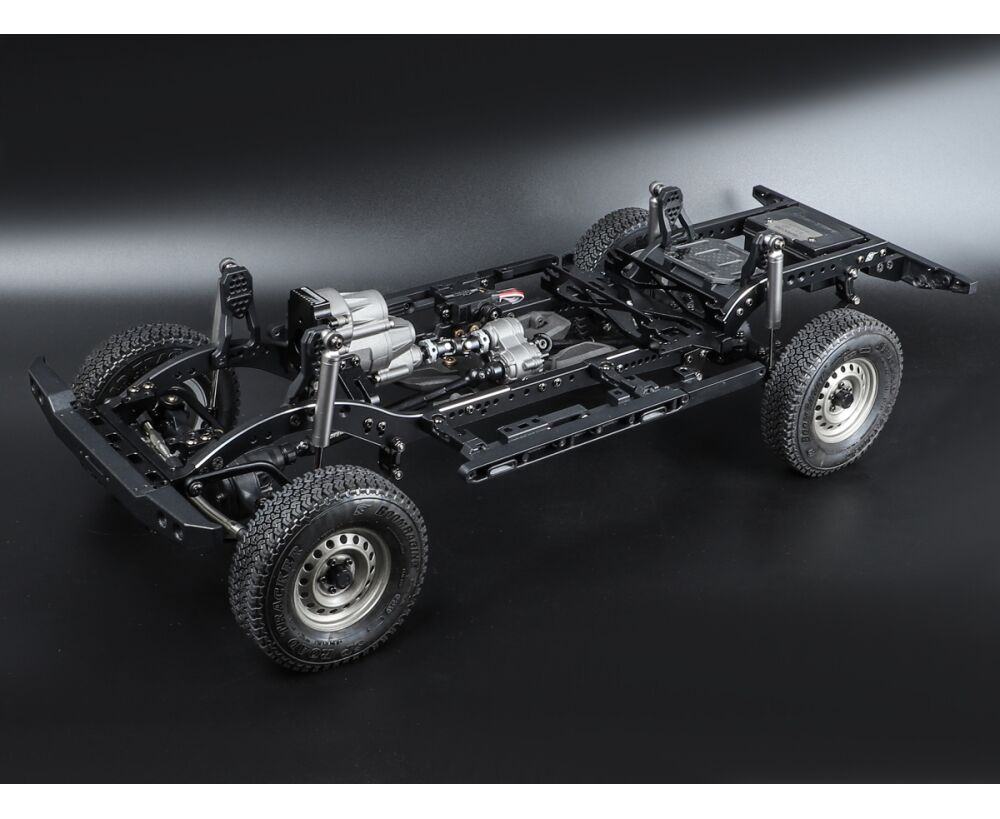

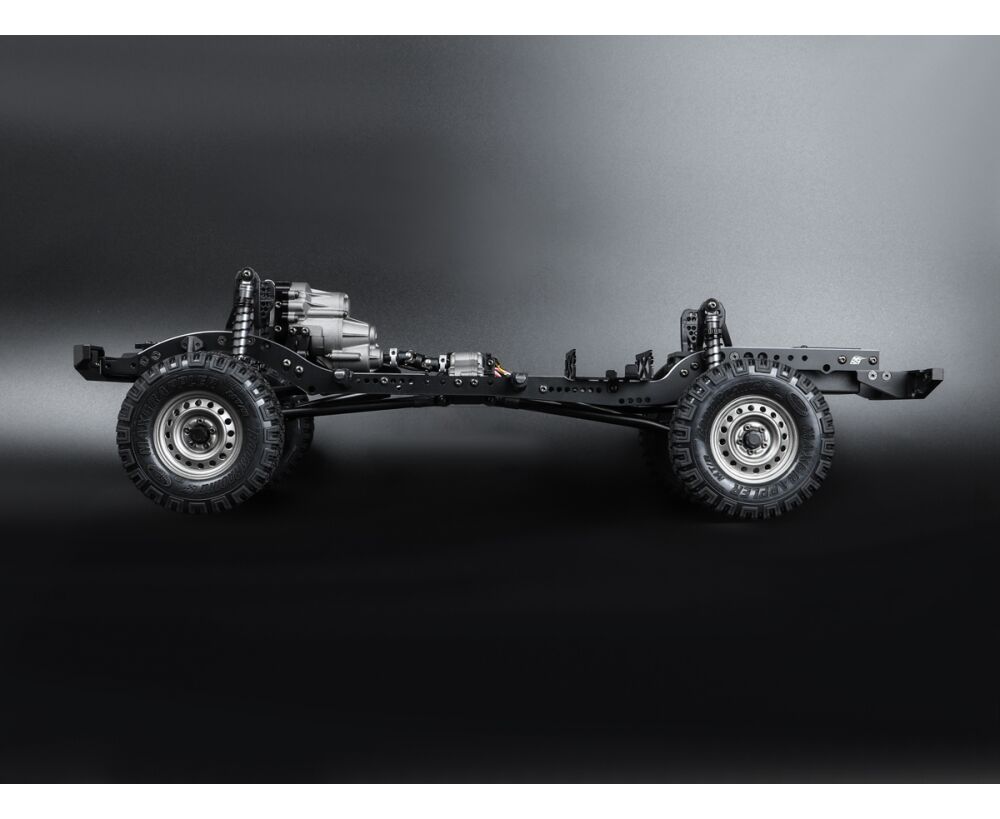

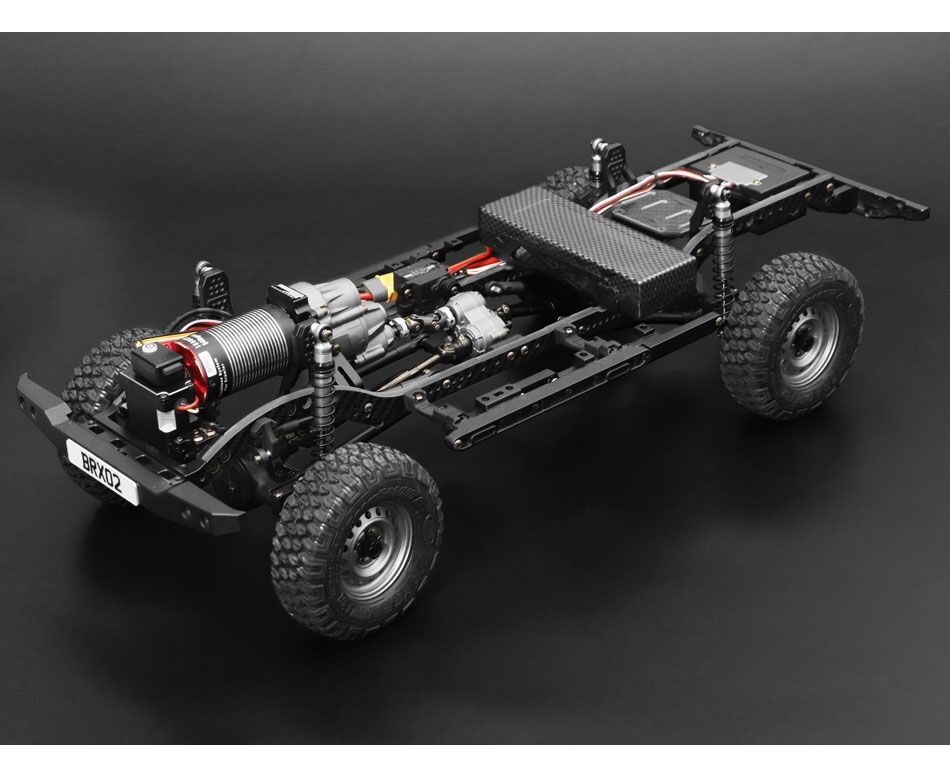

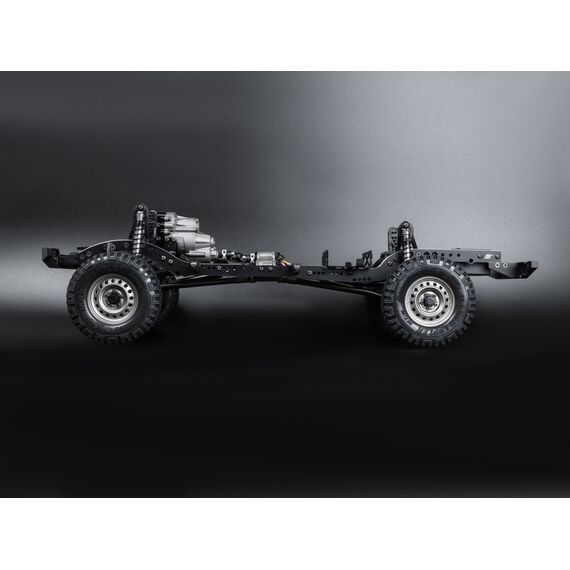

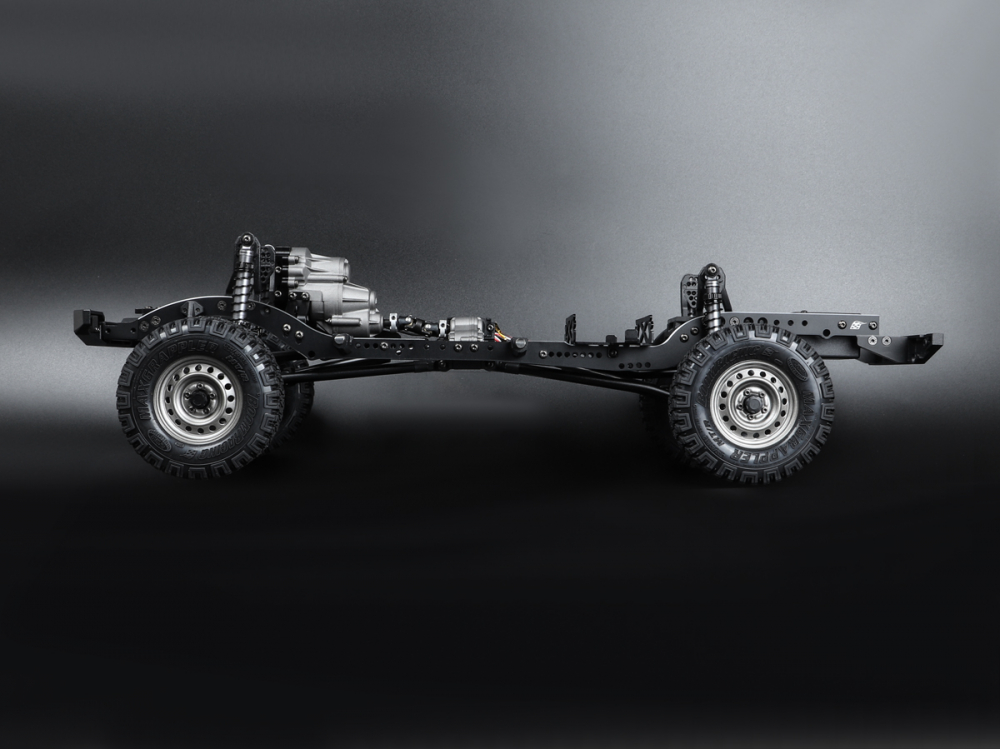

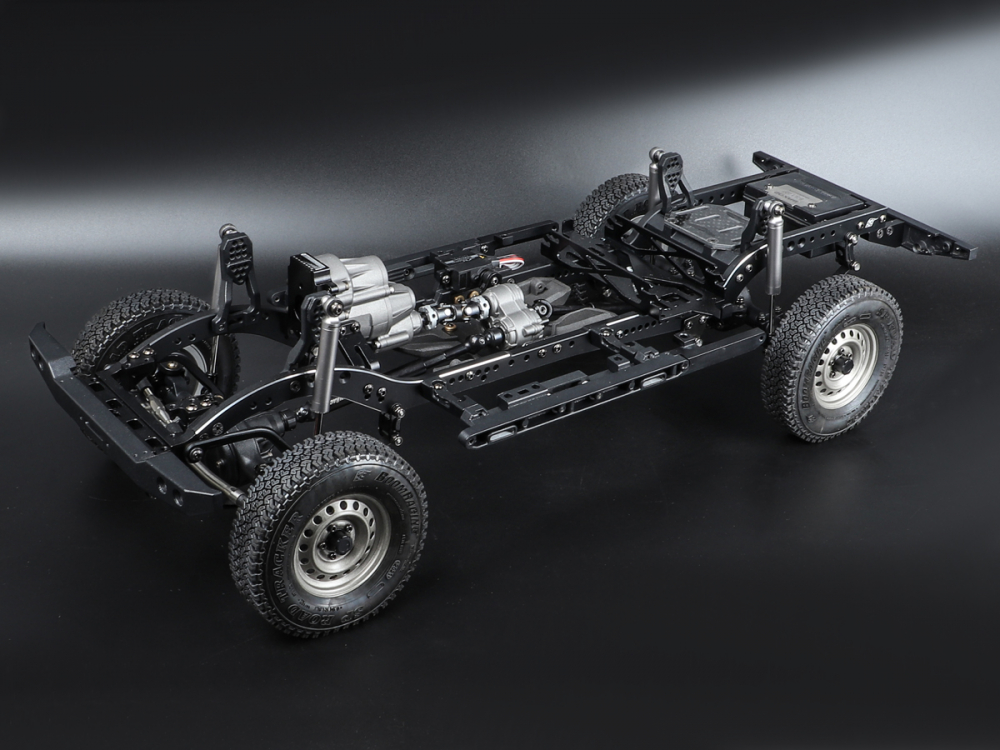

The BRX02 is Boom Racing's latest top-of-the-line scale performance off-road chassis. It is the result of continuous development and improvement of the highly-rated BRX01, developed in close collaboration with many scale hobbyists around the world. With the BRX02, you can expect to build an ultra-realistic R/C model vehicle that gives you great performance straight out of the box.

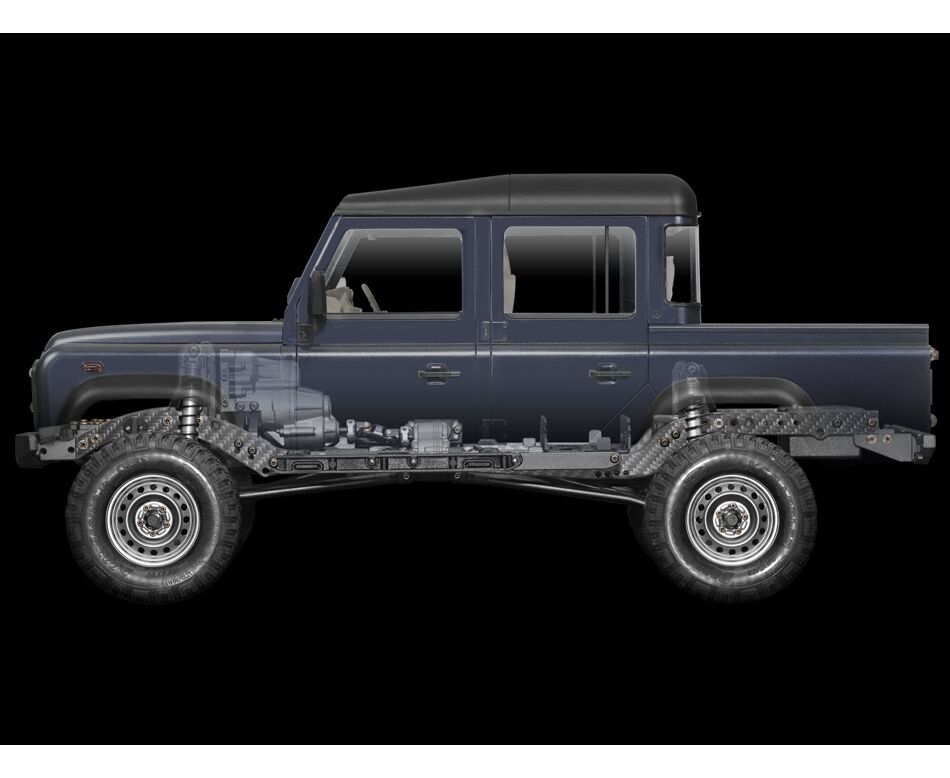

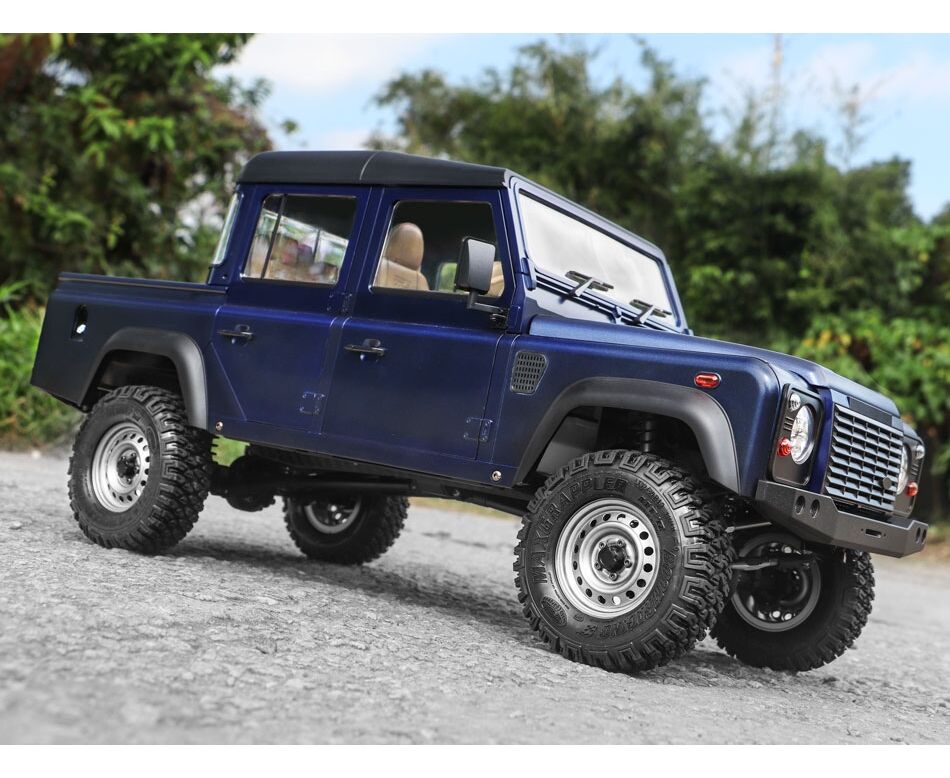

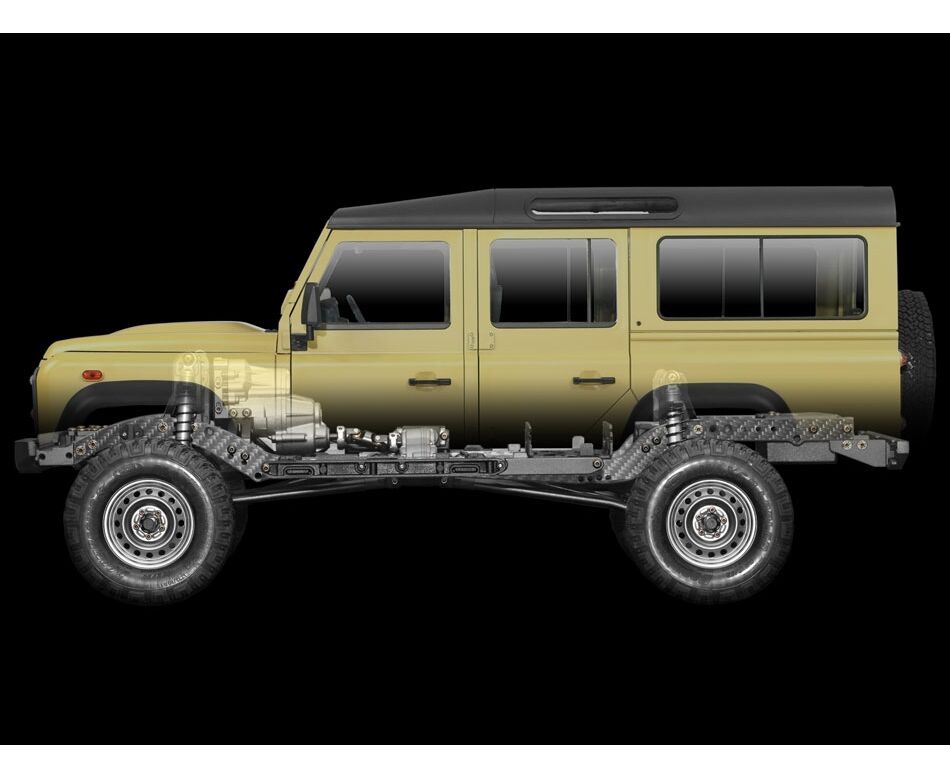

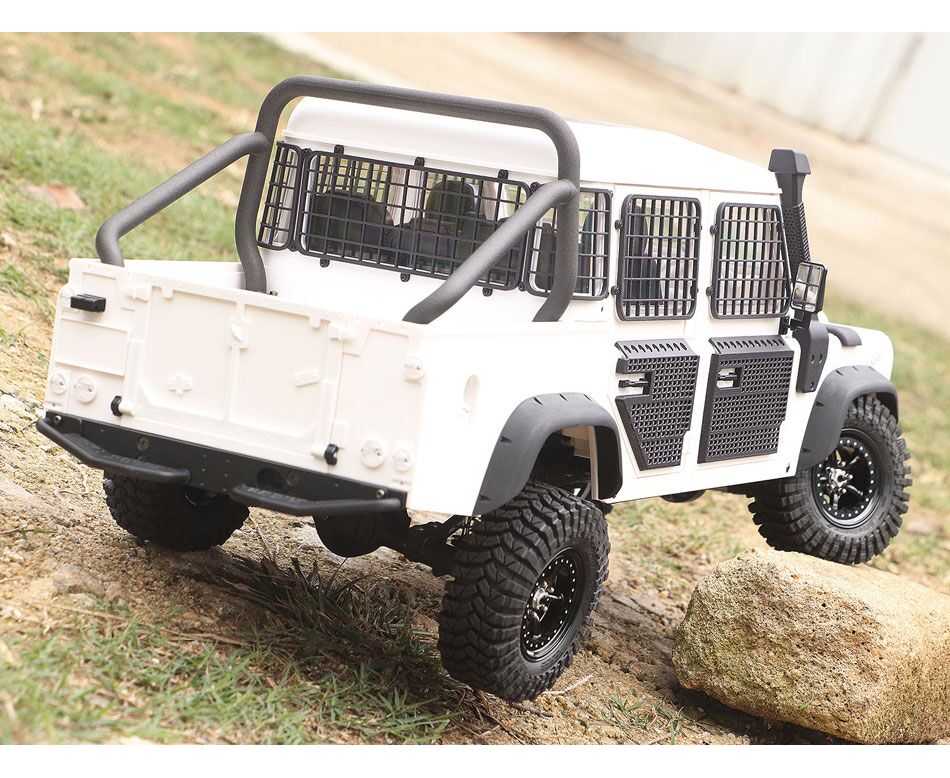

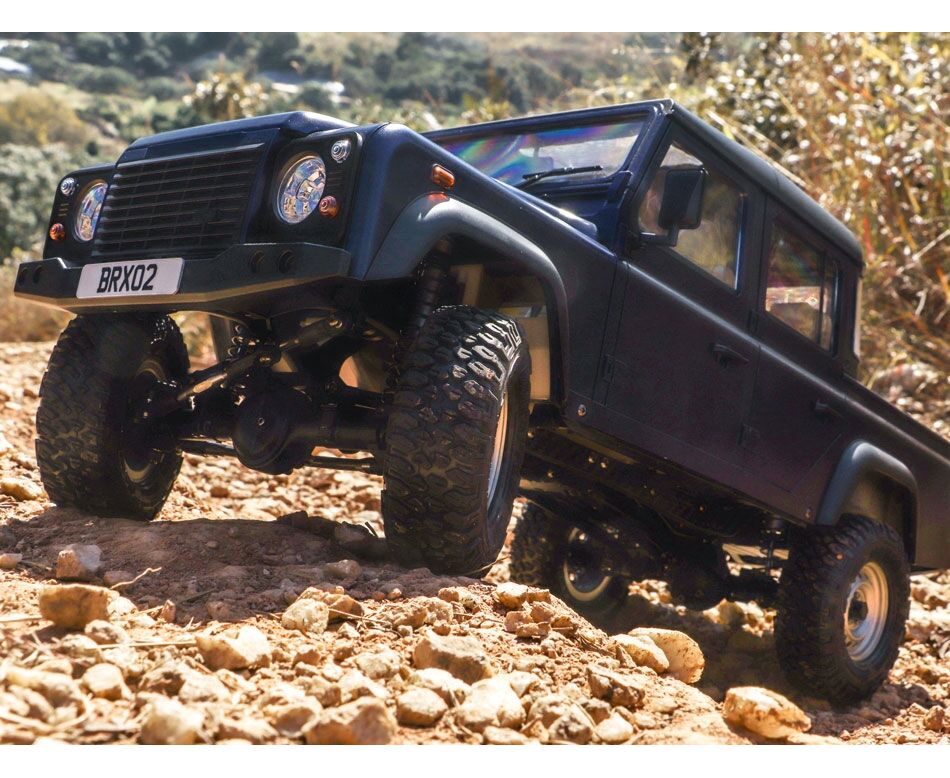

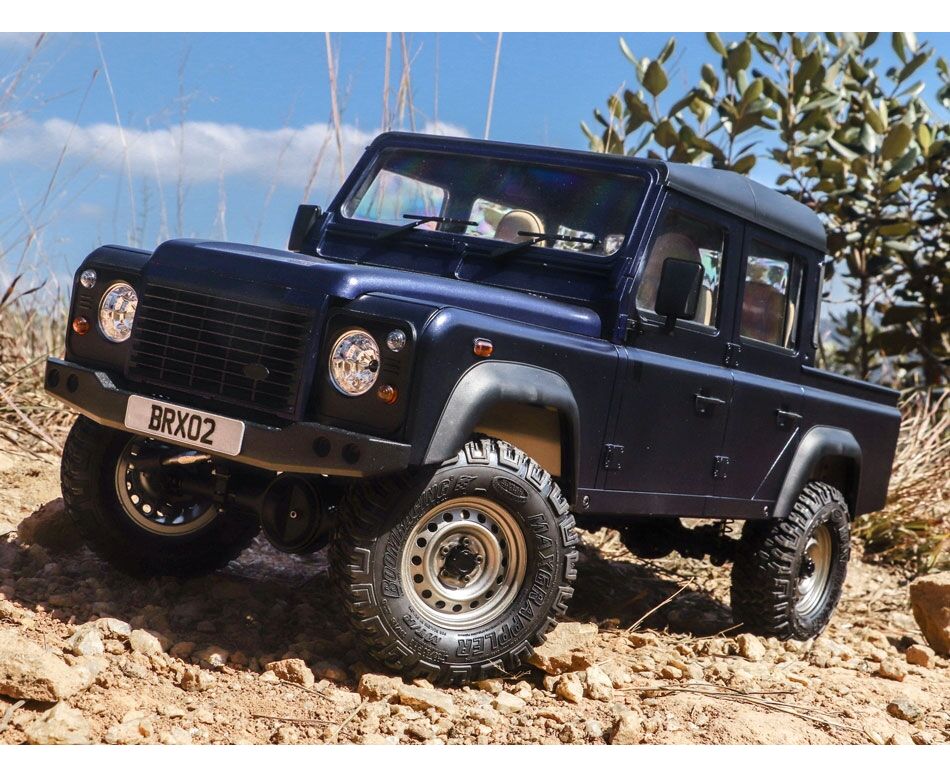

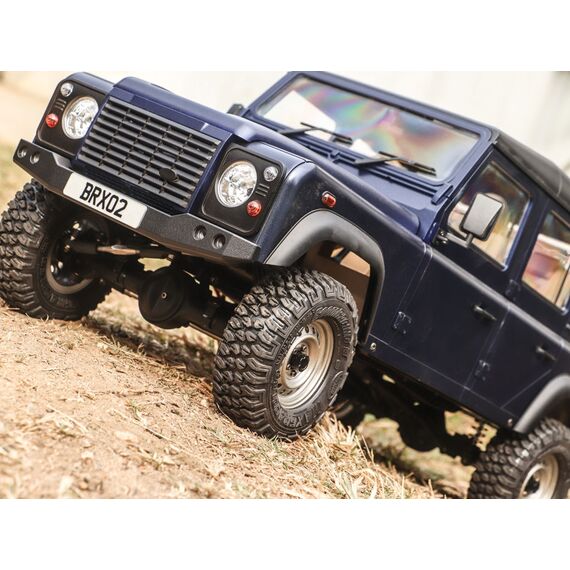

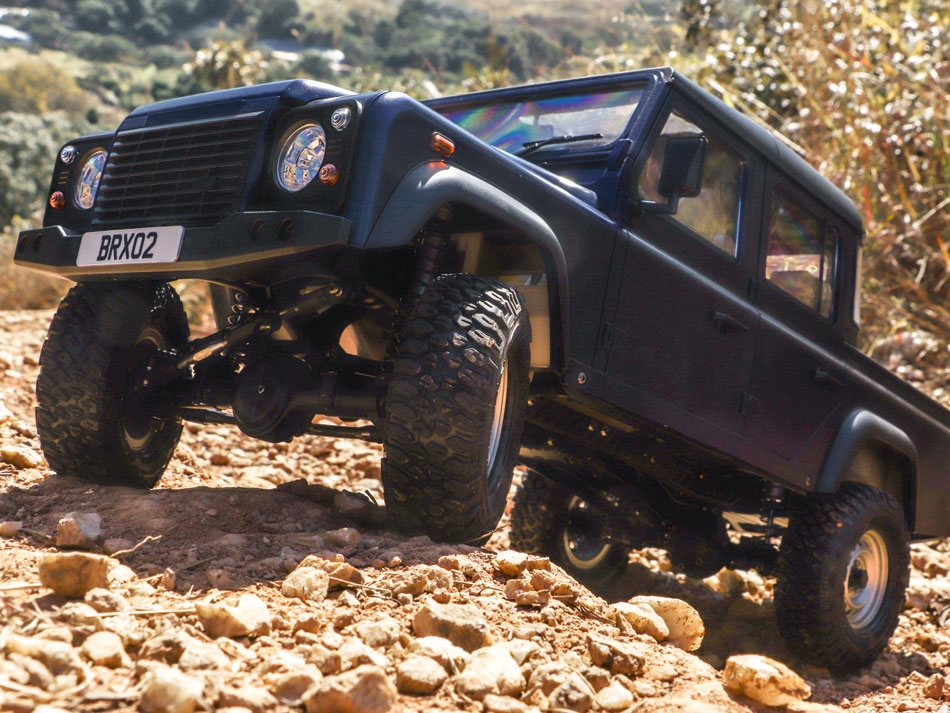

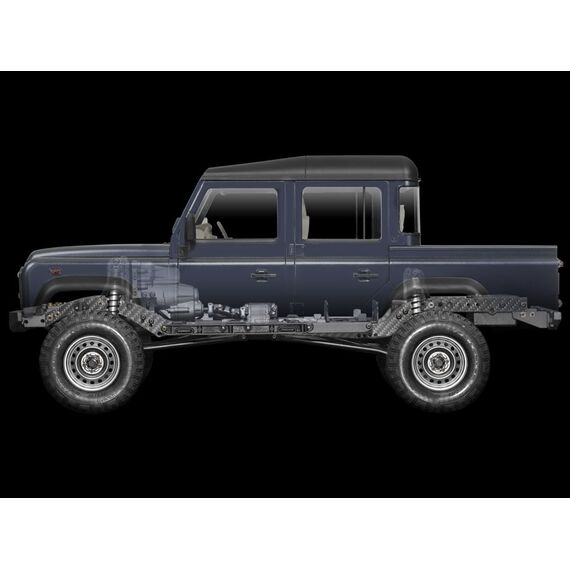

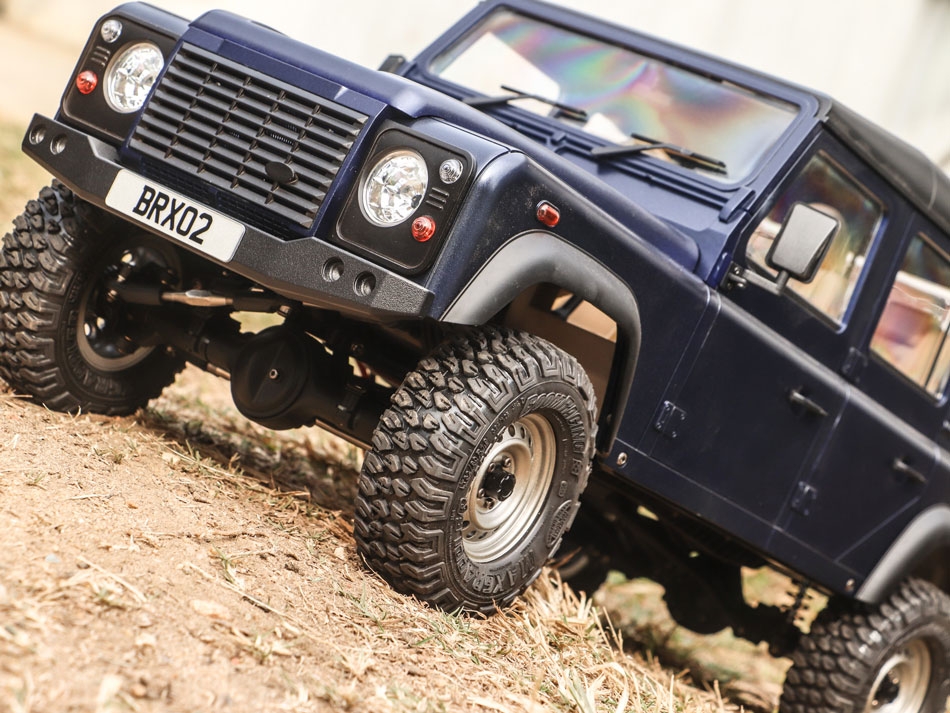

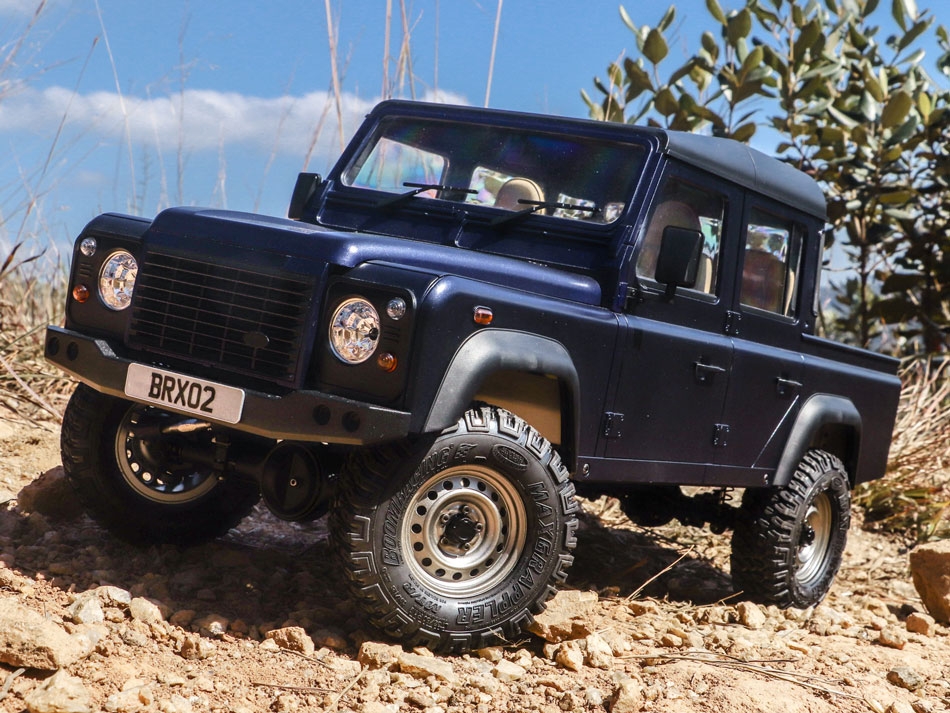

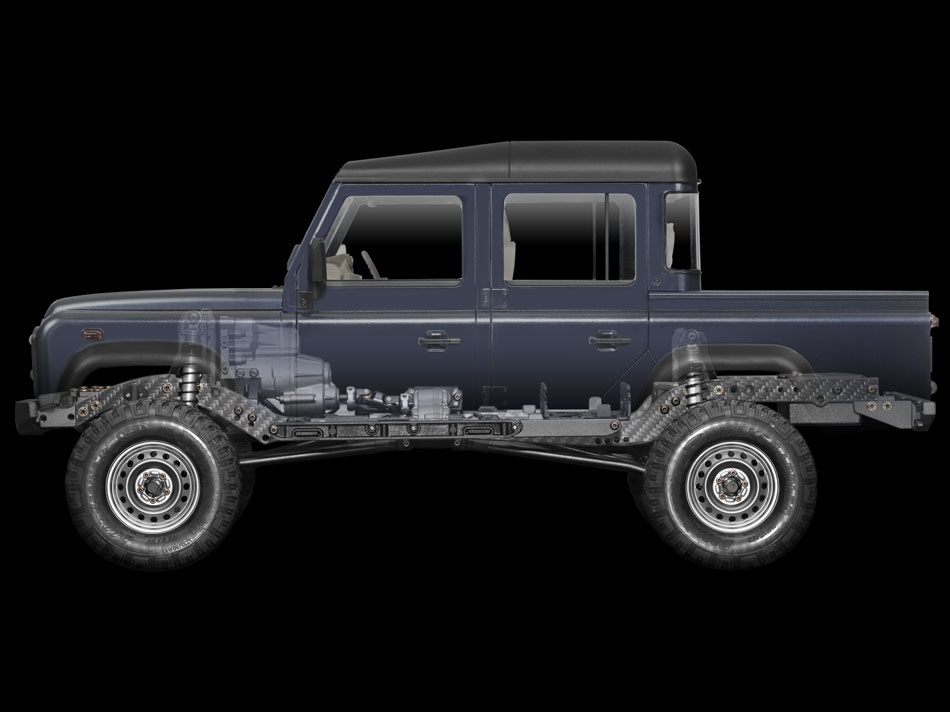

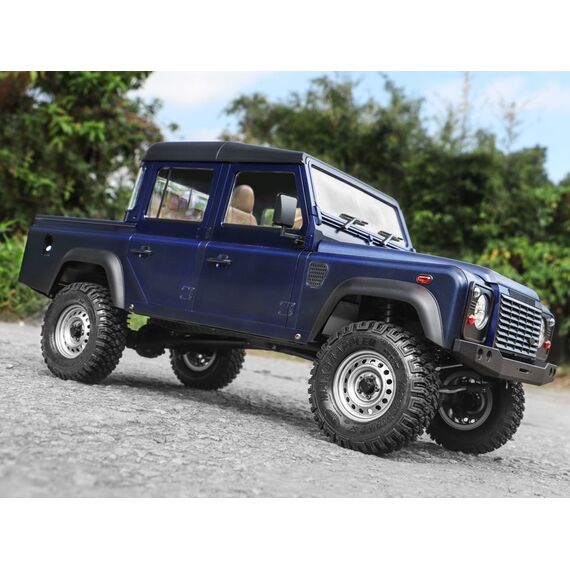

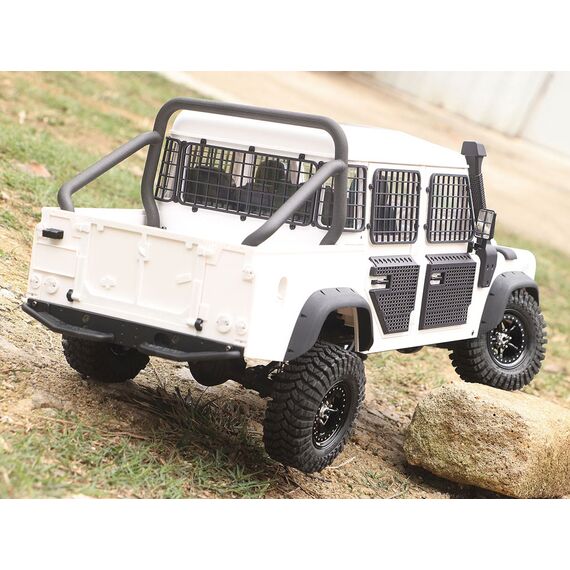

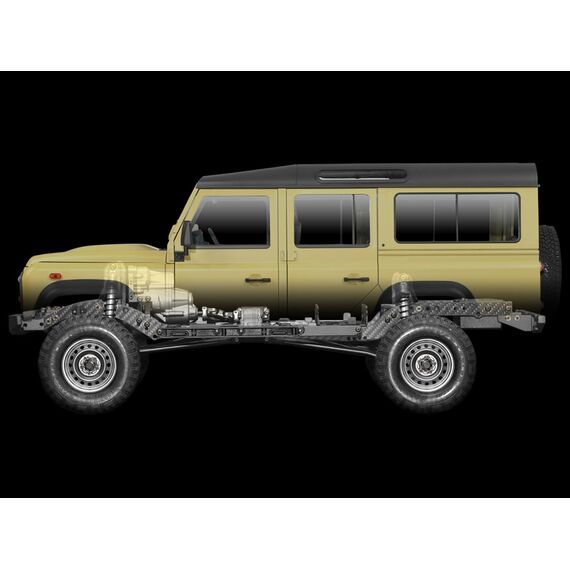

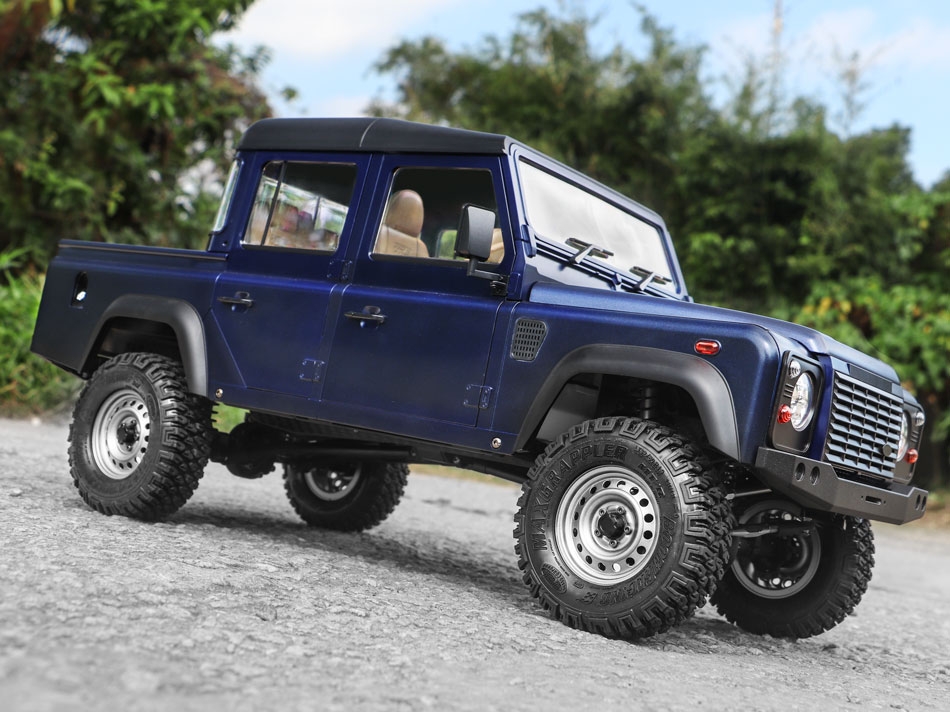

This chassis fits the Team Raffee Co. D110 Station Wagon and Pick-Up hard bodies.

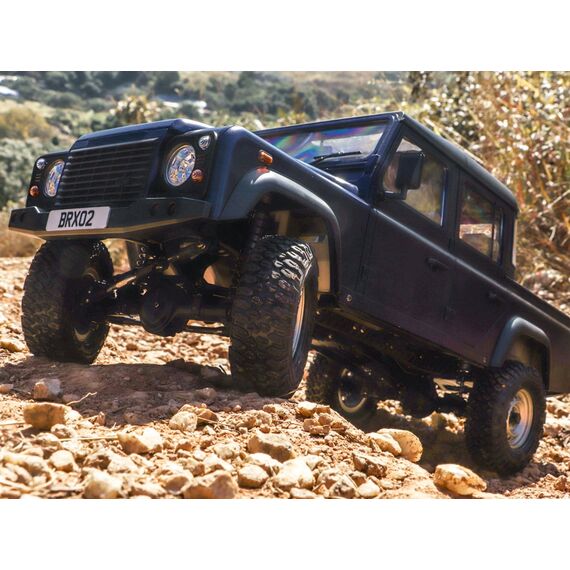

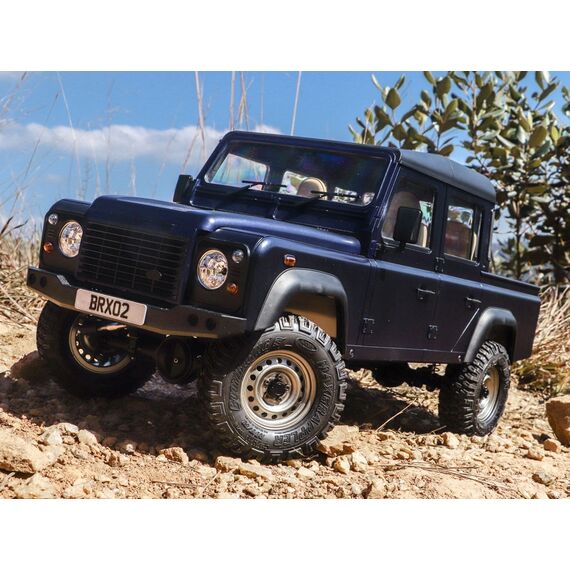

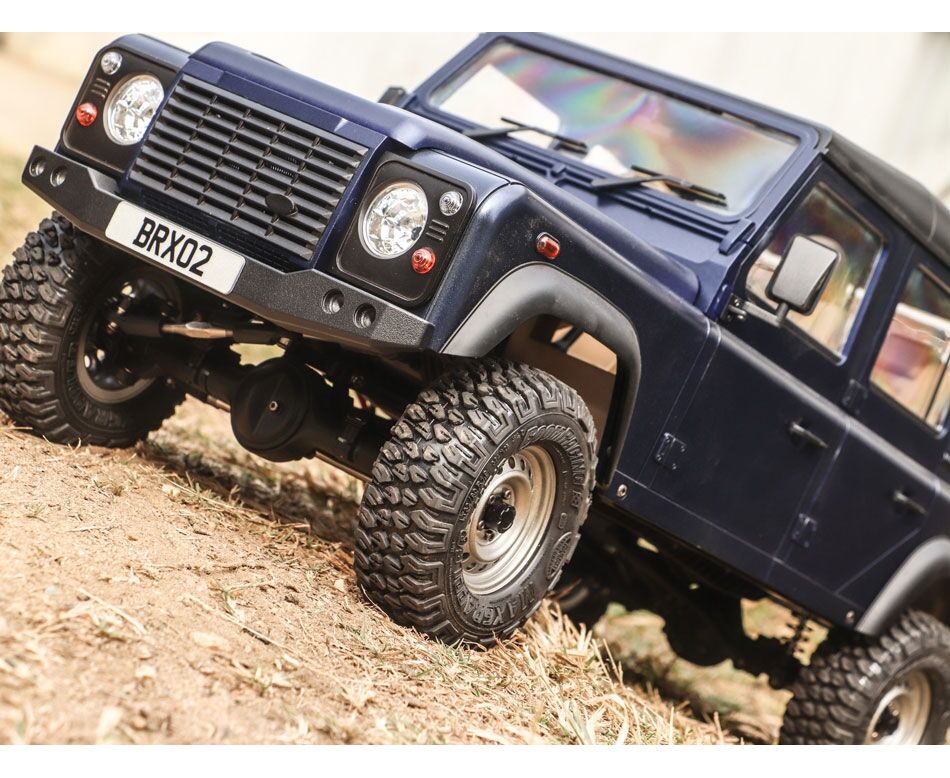

All BRX02 come with a pair of unique UK license plates that are numbered which matches the chassis number, on a first-come-first-served basis.
The BCF2 Transmission and the SRD Transfer Case in the BRX02 require assembly.
Features Highlight:
Transmission: BCF2 2-speed Hi-Lo, Remote Shifting
Transfer Case: SRD Anti-Torque Twist w/ Selective Rotational Drive (SRD)

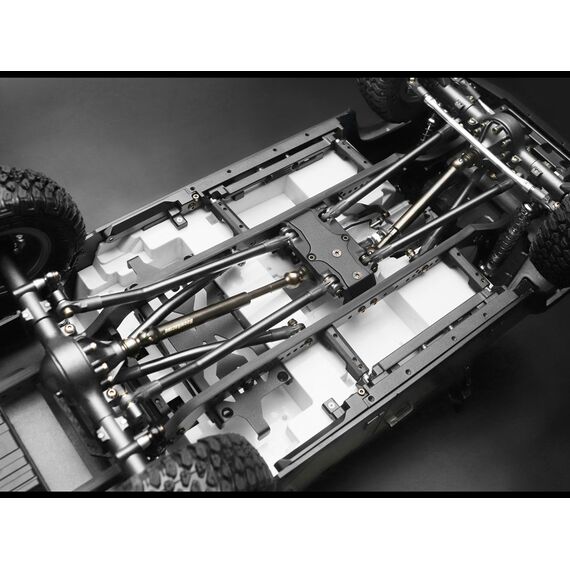

Aluminum 6mm Chassis Rails for strength, and durability
BRX90 High Pinion PHAT Axle w/ AR44 Keyed Helical Cut HD Gears

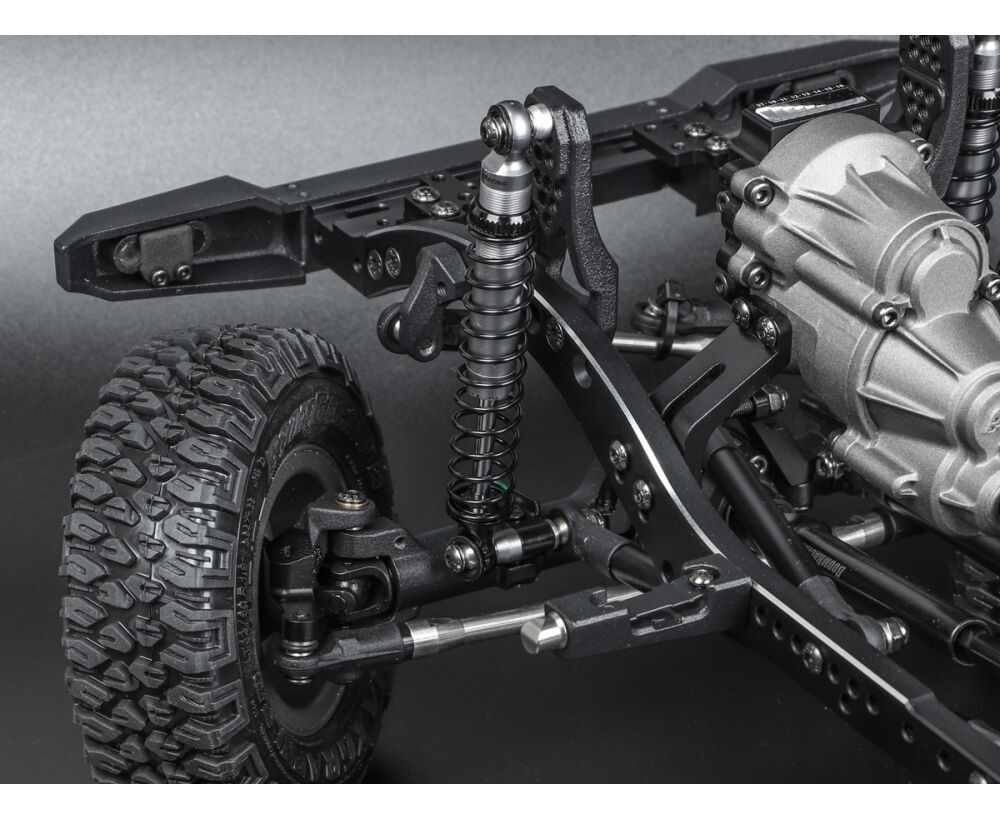

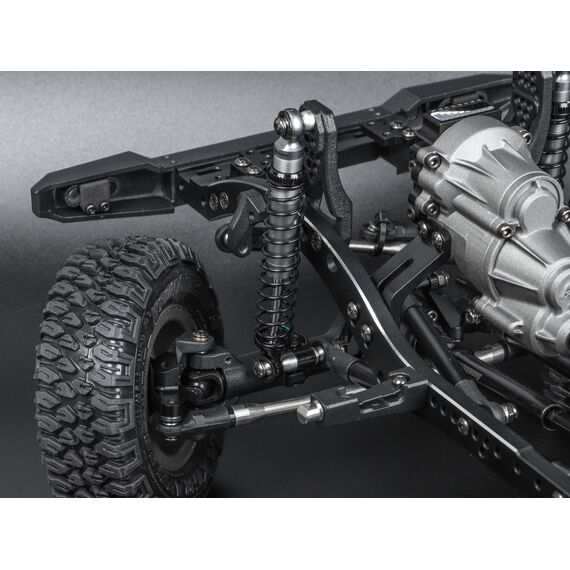

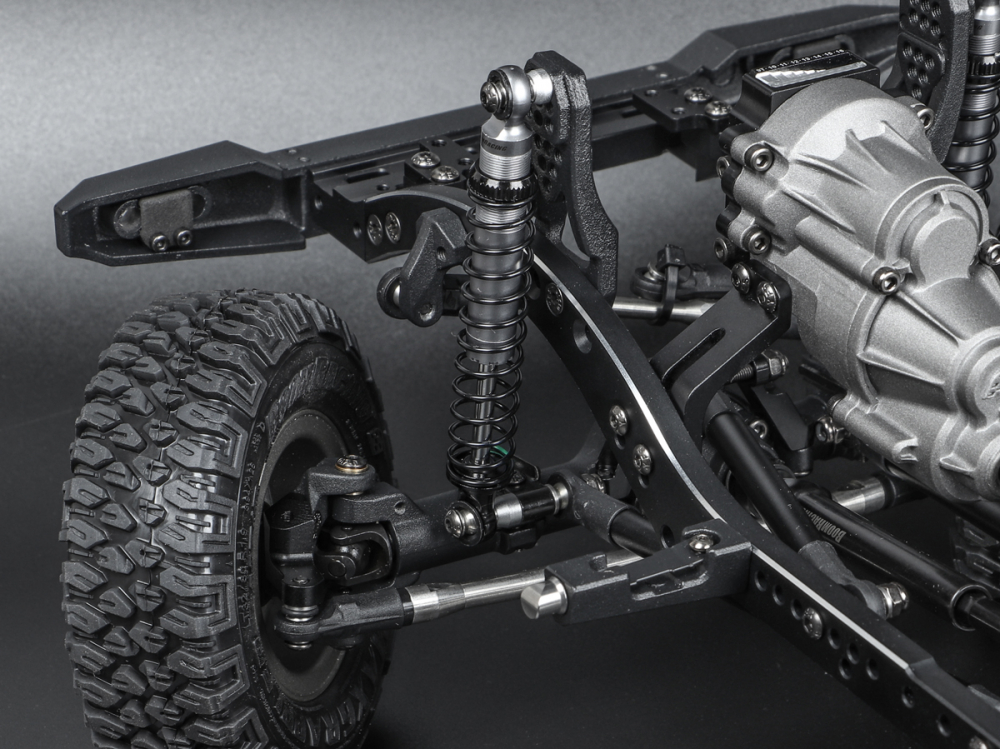

KUDU 90mm Scale Coilover Shock Absorbers
KUDU Heavy-Duty 110-130mm Steel CVD Drive Shafts
Quick-Release System designed for a quick and easy way to attach and detach the body
Design ready for Internal Servo Winch Kit to be mounted

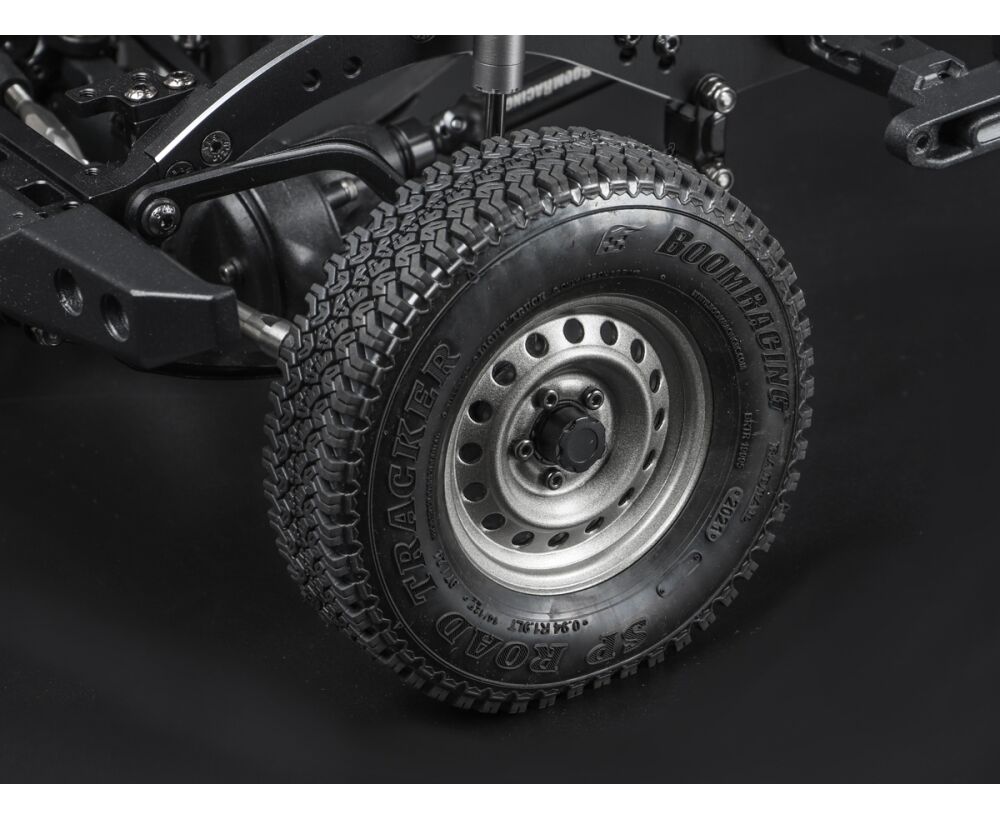

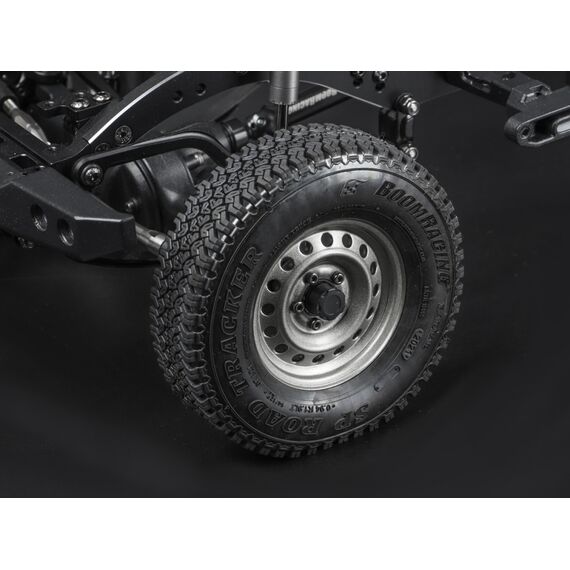

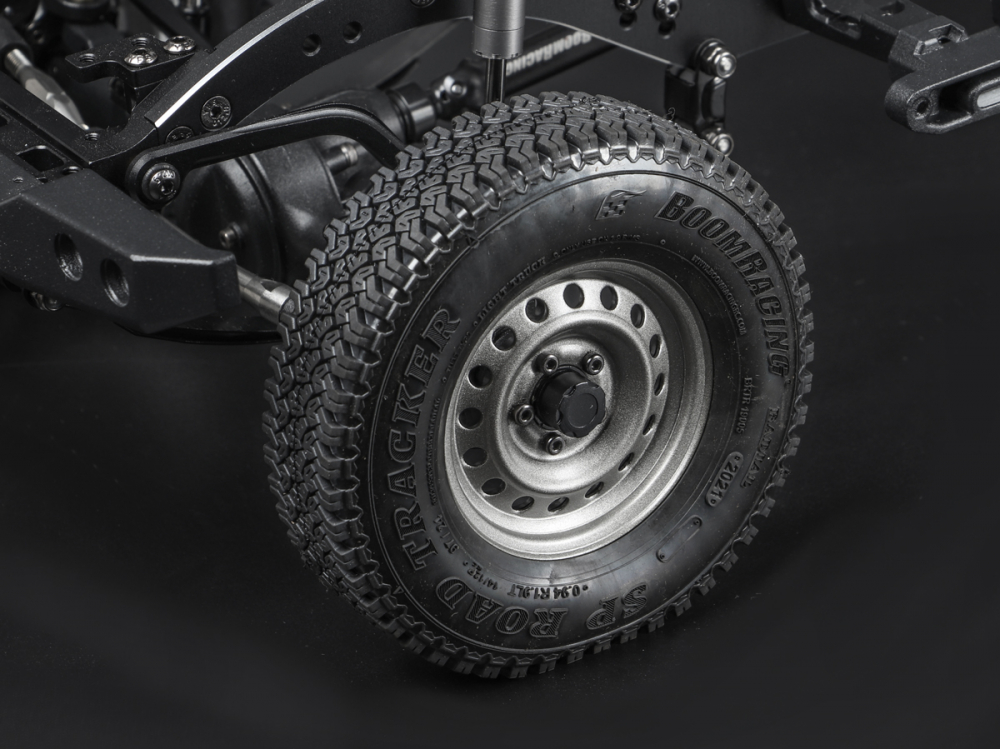

1.9" 16-Hole Steelie Beadlock Wheels
1.9" MAXGRAPPLER 97x32mm GEKKO Compound

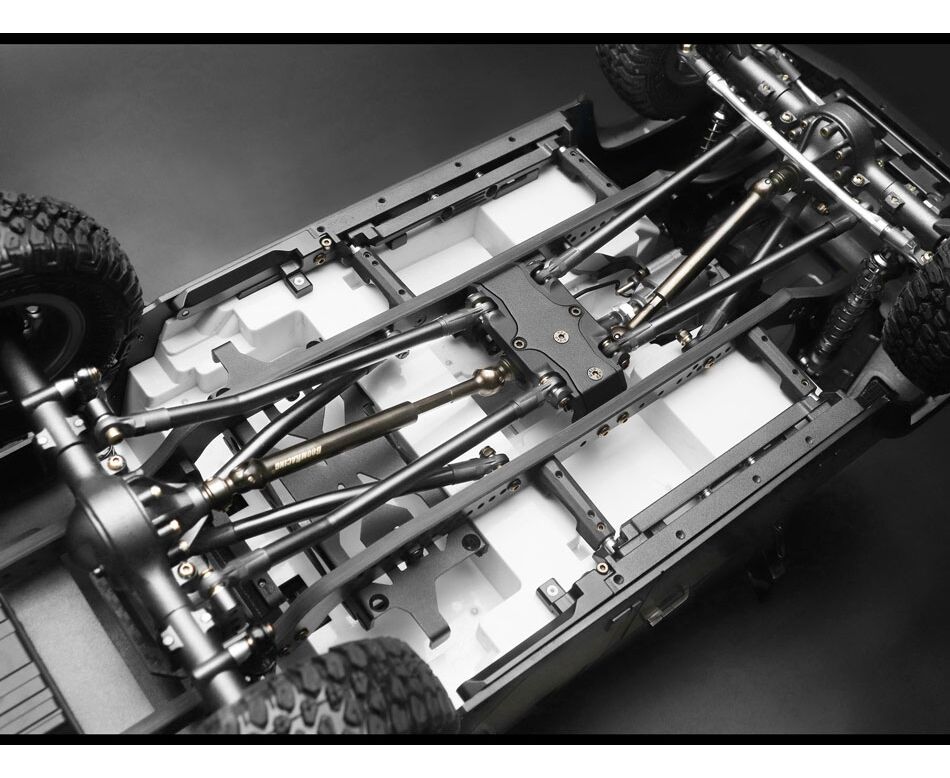

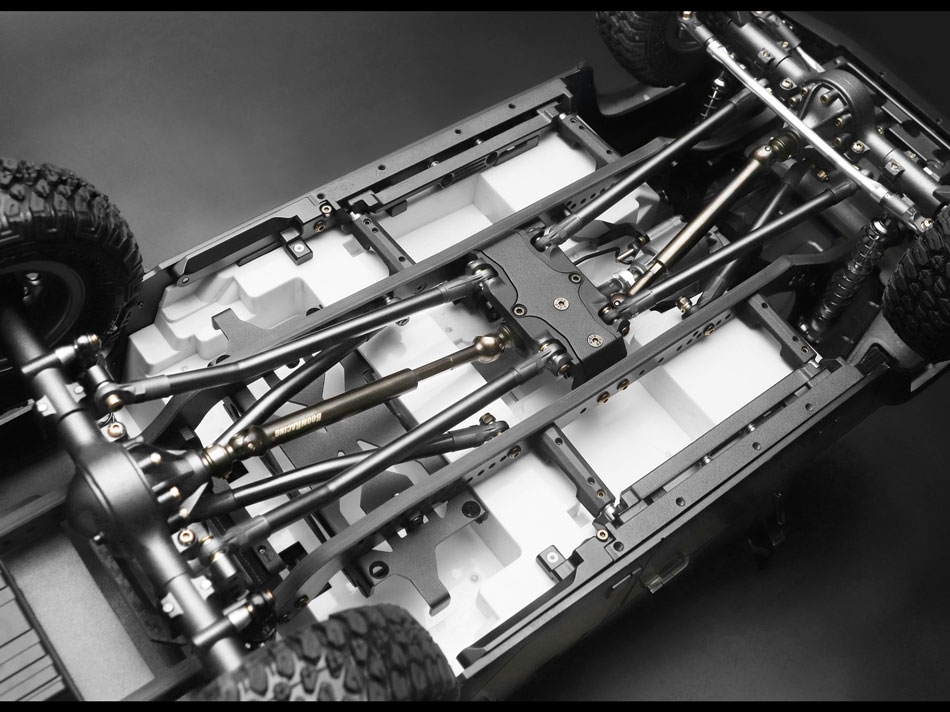

High clearance aluminum links to clear bigger obstacles
High clearance skid plate for superior crawling capability
Centralized chassis weight and drivetrain layout to keep the left and right sides equally balanced
Adjustable Chassis-Mounted-Servo (CMS) Mount
Complete high performance Rubber Sealed Bearings
High Grade 12.9 Alloy Steel Nickel Plated Screws
Specifications:
Length: 528mm / 20.79"
Width: 220mm / 8.66"
Height: 148mm / 5.83"
Wheelbase: 334mm / 13.15"
Track Width: 185mm / 7.28"
Axle Clearance: 28mm / 1.10"
Skid Clearance: 66mm / 2.60"
Weight: 2373g / 5.23lbs
Shock Length: 90mm / 3.54"
Hex Size: 12mm
Motor Size: 540/550 (not included)
Gear Pitch: 32P Pinion/Spur, 48P T-Case
Drive System: Full-Time Shaft Driven 4WD
Steering: Chassis Mounted Servo Suspension: Front 3 Link Panhard and Rear Triangulated 4 Link
Drivetrain:
Full-time shaft driven 4WD
Innovative pinion-spur gear mesh guide for precision setup
Heavy-duty steel cut gears
SRD Anti-Torque Twist T-Case reduces chassis torque twist under acceleration, and choose between counter-rotational setup and standard setup
KUDU Heavy Duty 110-130mm Steel Center Drive Shafts
Mini Servo Specifications:
Brand: JX Servo
Model: JX/PDI-HV1151MG
Working voltage: 6V~8.4V
Working temperature: -20C°~ +60C°
Dead band: 4usec
Motor type: Core Motor
Signal booster type: Digital
Gear material: Metal gear
Operating Speed: 0.12s/60deg (6.0V) | 0.10s/60deg (8.4V)
Stall Torque: 3.5kg/cm (6.0V) | 4.5kg/cm (8.4V)
Idle Current: 150mA (6.0V) | 180mA (8.4V)
Load Current: 260mA (6.0V) | 340mA (8.4V)
Size: 23.2 x 12.5 x 25.6mm
Weight: 15g
Tooth Count: 25
Wire length: 310mm JR plug
Black: Negative Red: Positive White: Signal
What's Included:

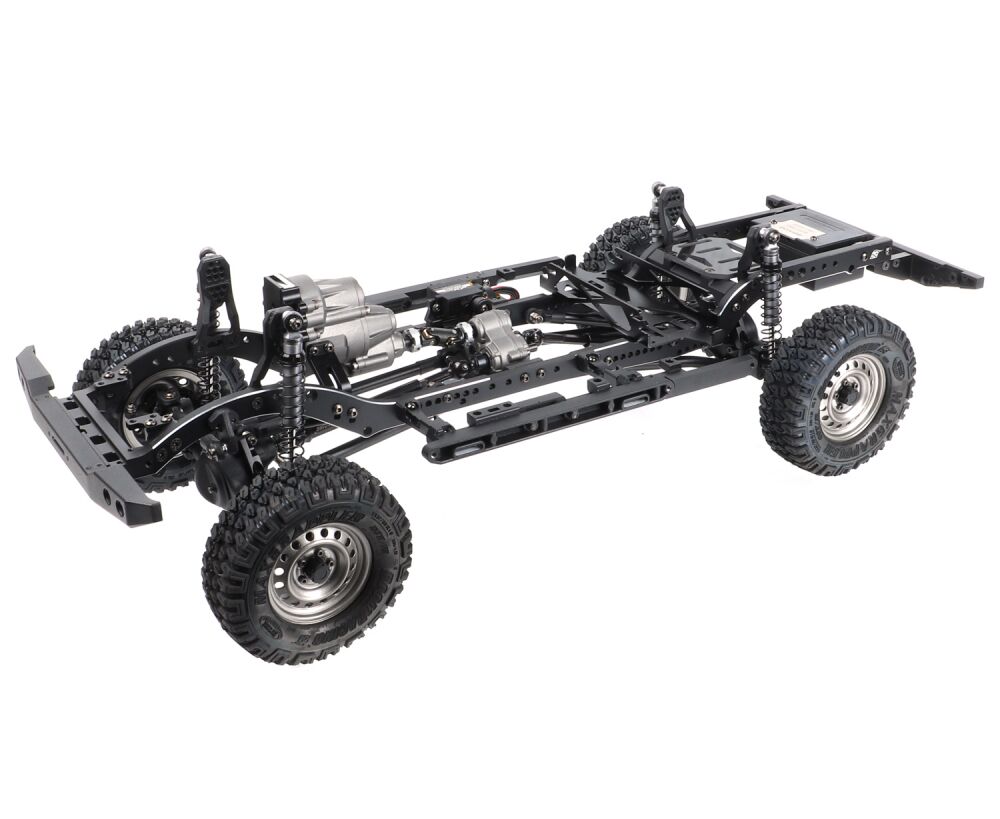

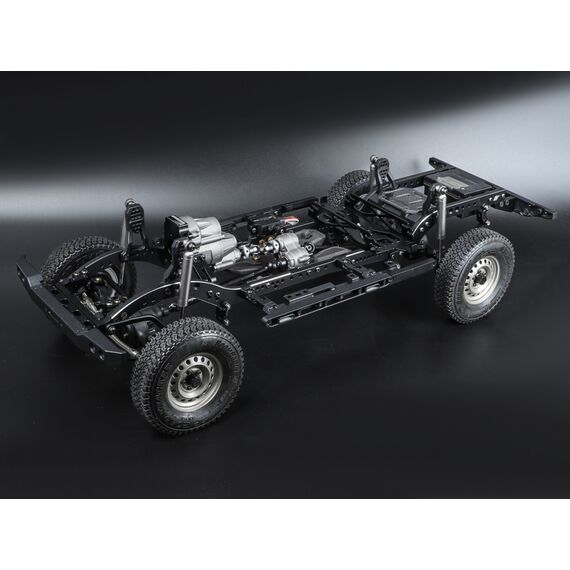

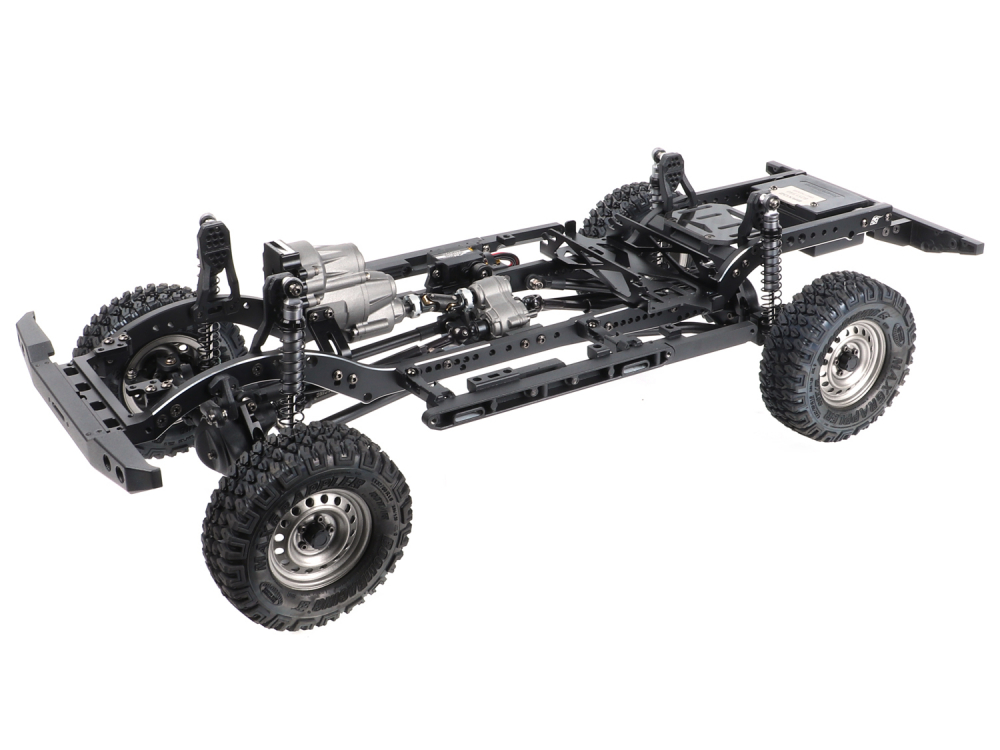

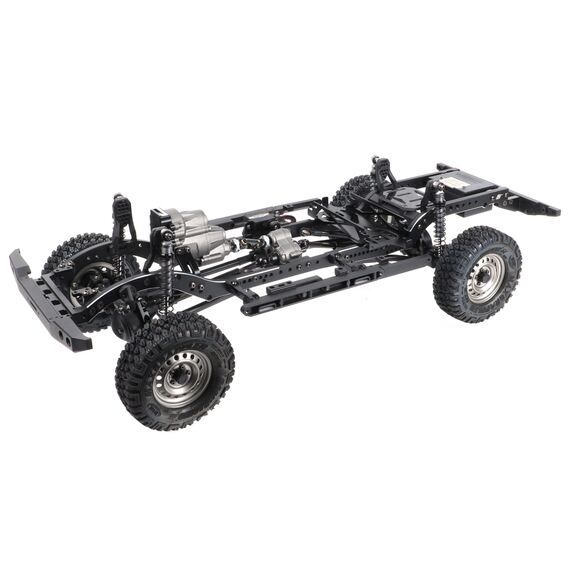

BRX02 1/10 4WD Scale Performance Chassis Kit Link Version BR8004
JX Waterproof Mini Servo with Metal Gears
32 Pitch 12T Steel Pinion Gear
25T Low Profile Aluminum Servo Horn
Maintenance Kit (Shock Oil, Black Grease, Siliking Grease, Thread Lock)
Cable Wiring Retainer Set (18pcs)
BRX02 Custom Unique License Plates (Numbered) with Chassis VIN# Plate
Basic Tool Kit
Equipment Required:
Body (Team Raffee Co. D110 Pick-Up #TRC/302215 or Station Wagon #TRC/302214)
3 Channel Radio System
ESC (electronic speed control)
Steering Servo
540 or 550 Motor (27T for off-road / 35T for crawling matched with provided 12T pinion gear)
Battery
Charger
Tools
What's A Bolt-On Kit?
Parts of the chassis components are pre-assembled. The factory-assembled parts offer convenience for builders eager to get started.
The BRX02 kit includes factory pre-built axles. Shocks require oil to be filled (included).
- Elektro Bürstenmotor
- Crawler/Scaler
- Geübte Piloten
