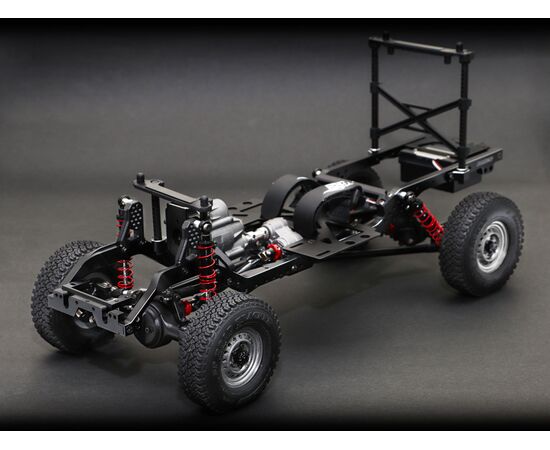

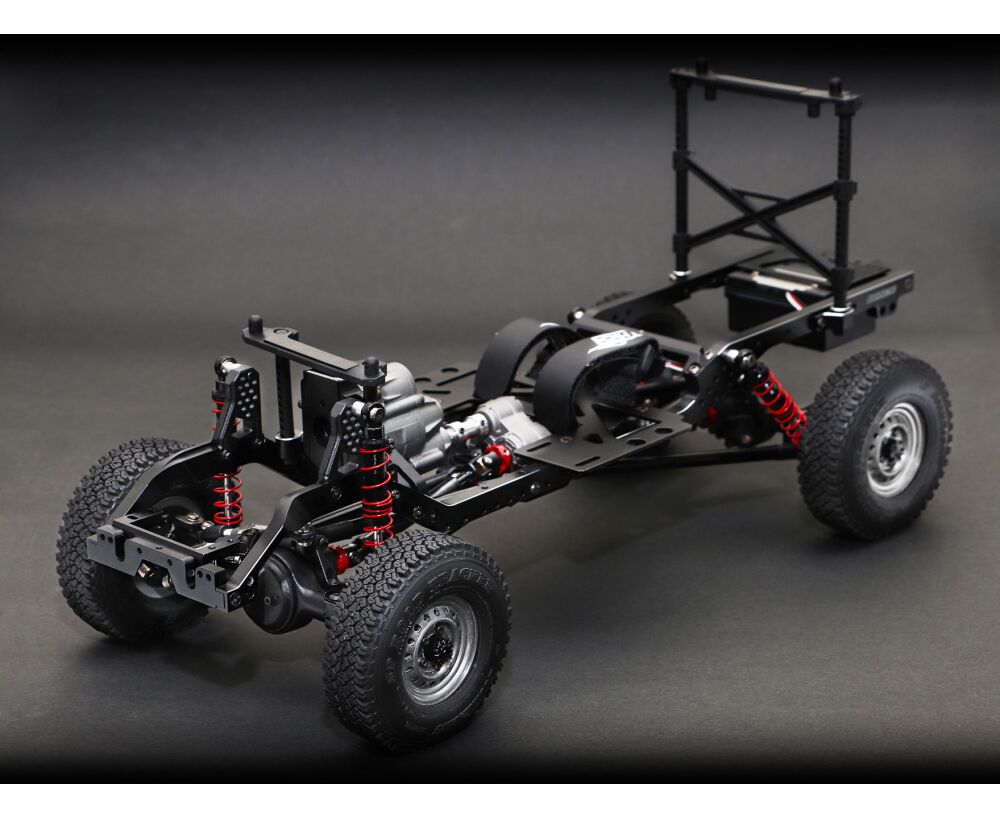

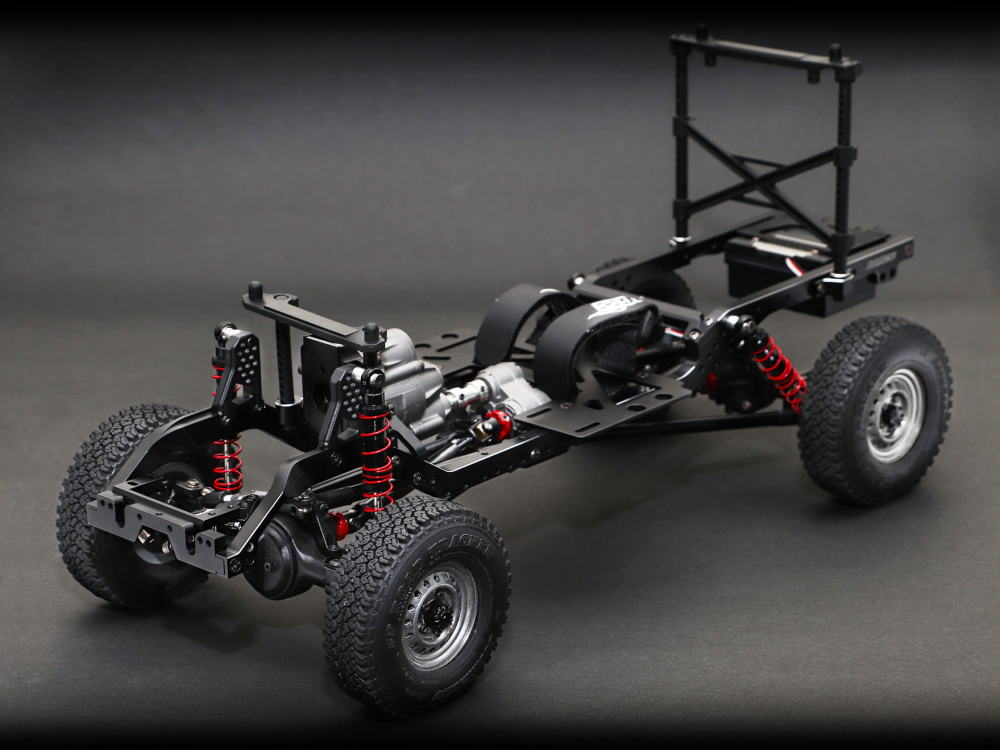

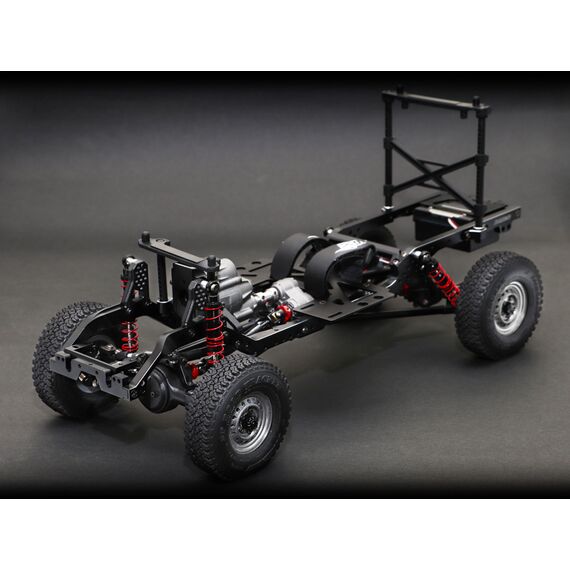

Boomracing BRX01 Chassis Bausatz 1:10
This is a BRX01 kit version with all-new universal body mount set.
The BRX01 DESIGN CONCEPT
Over the years R/C crawlers have become more realistic in terms of performance and scale features. But to date, the crawler hobby industry hasn't seen a high performance "daily driver" what we industry junkies describe as a 1:1 vehicle that can be purchased from the dealership, a truck without a suspension lift and big tires.
So we set out to produce this truck - a performance based "daily driver" packed with innovations fine enough to be a shelf queen and badass enough to be a beast on the trails!
The BRX01 chassis is Recon G6 The Fix certified in Europe in 2019 by Andreas Hahn.
HOW IS THE BRX01 DIFFERENT?
Starting with a clean sheet of paper the 1/10 BRX01 was developed as a performance based R/C crawler chassis with a scale "stock truck" appearance. It combines many performance and scale features into a single ground breaking vehicle.
What makes the BRX01 special is that many of the features on the chassis come from the imaginations of fellow R/C hobbyists. By listening to their ideas and feedback, we are able to include many new and exciting features into the BRX01.
CHASSIS SPECS:
Length: 462mm (chassis)
Front Track Width: 188mm
Rear Track Width: 184mm
Ground Clearance: 26mm
Weight: 1880g (chassis)
Height: 132mm
Wheelbase: 313mm
Approach Angle: 45 degree (with LC70 body)
Departure Angle: 35 degree (with LC70 body)
Breakover Angle: 35 degree (with body)
Front Shock Length: 80mm
Rear Shock Length: 80mm
Wheels: 1.55" Internal Beadlock
Tires: 3.46" x 0.94" (88mm x 24mm)
Hex Size: 12mm
Motor Size: 540/550 (not included)
Transmission: BCF2 2-speed Hi-Lo, Remote Shifting
Transfer Case: SRD Anti-Torque Twist w/ Selective Rotational Drive
Gear Pitch: 32P Pinion/Spur, 48P T-Case
Chassis Structure/Material: 7mm Billet Machined Aluminum
Drive System: Full Time Shaft Driven 4WD
Steering: Chassis Mounted Servo Suspension: Front 3 Link Panhard and Rear Triangulated 4 Link
FEATURE LIST:
Chassis:
Billet machined 7mm aluminum frame rails
Integrated with high-steer design to maximize steering angle
Low profile chassis setup for overall low center of gravity
High clearance skid plate for superior crawling capability
Centralized chassis weight and drivetrain design to keep the left and right sides equally balanced
Adjustable Chassis Mounted Servo Mount
Complete High Performance Rubber Sealed Bearings
Uses High Grade 12.9 Alloy Steel Nickel Plated Screws
Drivetrain:
Full-time shaft driven 4WD
Innovative pinion-spur gear mesh guide for precision setup
Heavy duty steel cut gears
Anti-Torque Twist T-Case reduces chassis torque twist under acceleration
Selective Rotational Drive (SRD) means you can choose between counter rotation setup and standard setup
Voodoo Heavy Duty Steel Center Drive Shafts
Front 90-100mm
Rear: 125-145mm
Transmission:
Small footprint aluminum gearbox with Hi/Low range 2-speed transmission
Adjustable motor positions for low center of gravity and high clearance setup
Heavy duty steel cut gears
Hard plastic 32 Pitch 28T spur gear for durability
Axles:
BRX70 PHAT high pinion heavy duty cast metal axle for increased weight down low
BADASS heavy duty steel universal shafts with over 45 degree steering angle
AR44 heavy duty keyed steel cut bevel gears for high performance and durability
Adjustable caster angle for tuning
Knuckles have multiple mounting positions for tuning
Reversible axle bevel gear positions
Leaf spring over and under axle setup enabled
Servo on axle setup enabled
Detachable aluminum CNC truss
Steering:
Behind-The-Axle steering for superior front axle clearance and realistic scale appearance
Stainless steel tie rod, drag link & panhard link
Counter threaded drag link and panhard link for quick adjustments
Suspension:
Front: 3-link with panhard (leaf spring enabled)
Rear: triangulated 4-link (leaf spring enabled)
Adjustable panhard link and mount
Adjustable front shock tower with 52 possible mounting positions
12 rear suspension mounting positions
Hard Anodized 7mm Aluminum Chassis Links
BADASS Heavy Duty 4mm Rod Ends with Rust-Resistant Stainless Steel Pivot Balls
Shocks:
Full aluminum 2-Stage spring loaded oil-filled shocks
Threaded bodies with adjustment collars
Optional soft springs included
Wheels & Tires:
1.55 16-Hole Stamped Steelie Beadlock Wheels
SP Road Tracker (Gekko Compound) Tires 3.46 x 0.94 (88mm x 24mm)
Single stage open foam inserts
Body:
Officially licensed Killerbody Toyota Land Cruiser 70 Hard Body kit
ABS hard plastic
Over 12 highly detailed scale parts (door mirrors, interior mirror, air intake, snorkel, dashboard, steering wheel, window wipers, front wheel arches, chrome radiator grill, antenna, full filler cap, door handles and badges)
Ready for LEDs (not included)
Optional extras available including full interior, moving windows and other scale details (not included)
Quick release LC70 body hinge and mounts for easy access to chassis components
Fits optional Killerbody body interior (with minimal cutting)
Optional Team Raffee Co. 1/10 Discovery 313mm Body TRC/302836 (requires body mount BRLC7202)
Electronics:
JX Waterproof Metal Gears Mini Servo for remote 2-speed shifting
Proprietary silicone sealed watertight receiver box keeps the receiver dry
SERVO SPECS:
Brand: JX Servo
Model: JX/PDI-HV1151MG
Working voltage: 6V~8.4V
Working temperature: -20C°~ +60C°
Dead band: 4usec
Motor type: Core Motor
Signal booster type: Digital
Gear material: Metal gear
Operating Speed: 0.12s/60deg (6.0V) | 0.10s/60deg (8.4V)
Stall Torque: 3.5kg/cm (6.0V) | 4.5kg/cm (8.4V)
Idle Current: 150mA (6.0V) | 180mA (8.4V)
Load Current: 260mA (6.0V) | 340mA (8.4V)
Size: 23.2 x 12.5 x 25.6mm
Weight: 15g
Tooth Count: 25
Wire length: 310mm JR plug
Black: Negative Red: Positive White: Signal
WHAT'S INCLUDED:
BRX01 1/10 4WD Chassis Bolt-On Kit BR8001
JX Waterproof Mini Servo with Metal Gears
Metal Body Mount and Hinge for Killerbody LC70 Body
32 Pitch 12T Steel Pinion Gear
25T Low Profile Aluminum Servo Horn
Maintenance Kit (Shock Oil, Black Grease, Siliking Grease, Thread Lock)
Cable Wiring Retainer Set (18pcs)
BRX01 Owners Card (Numbered) with Chassis VIN#
Basic Tool Kit
