Brain2 HD flybarless controller
Description
BRAIN2 HD SPECIFICATIONS:
Size (width x length x height):
29,6 x 37,7 x 22,3 mm
Weight:
16,7 g
15 Connections:
9 Gold-plated servo type three pole JR/Futaba male connectors, with 11 signals connections configurable for:
9 output (7 PWM + TX for SYS + TX for on onboard USB), and/or 11 input (6 single PWM from RX, 1 RPM pulses + SAT1 +SAT2 + RX on SYS + RX on onboard USB) and 8 servo power bus connections

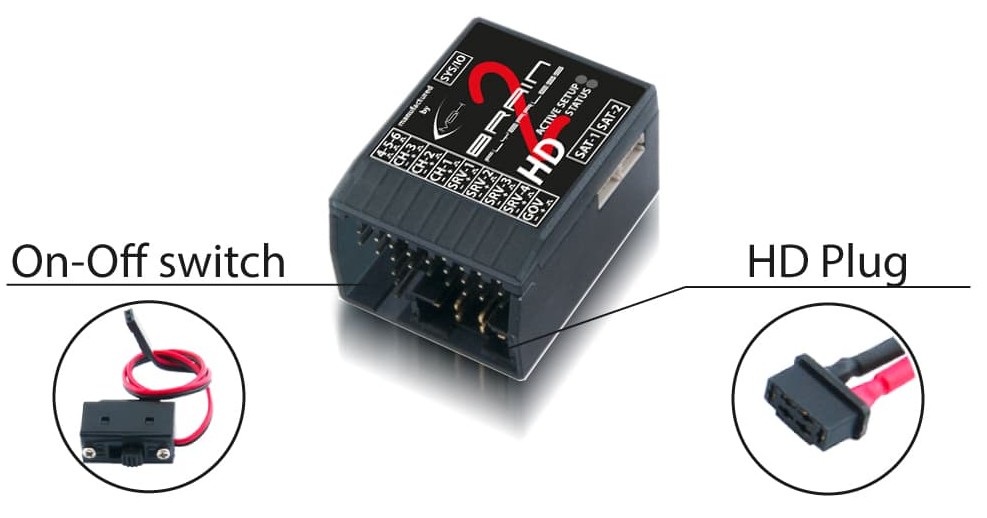

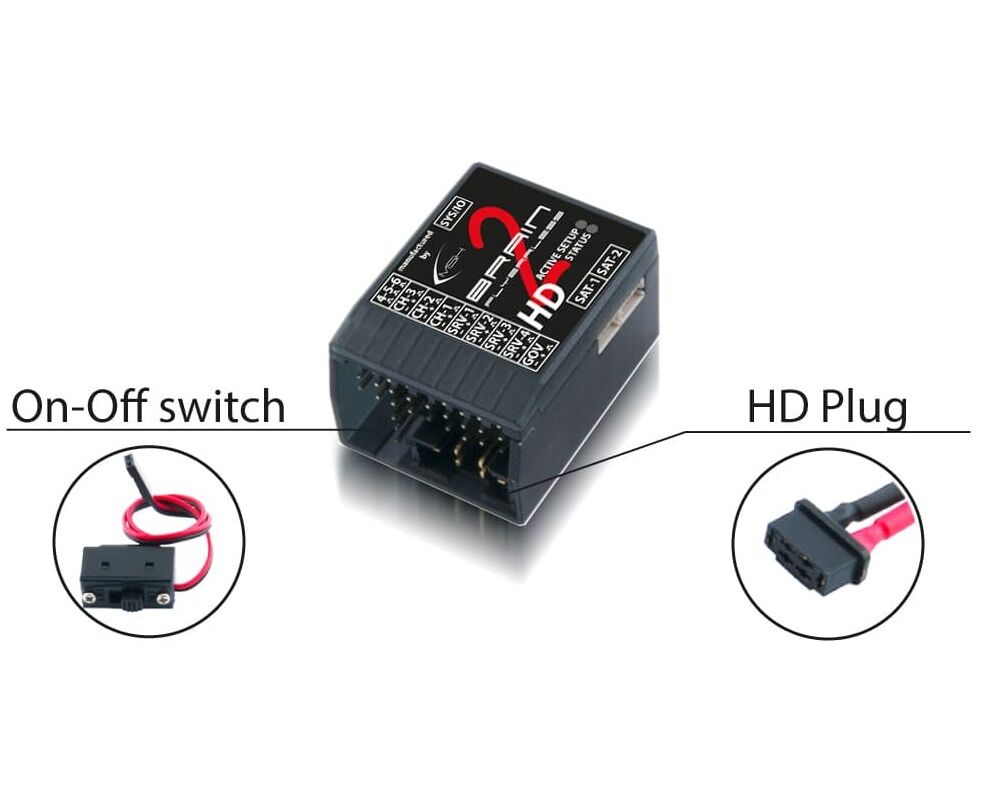

1 Power MPX connector controlled by a switch
1 Gold-plated servo type three pole male JR/Futaba connector for power switch
1 On board micro USB connector capable to power internally the Unit
1 SYS four poles JST connector (GND, TX, RX, +V) capable to power internally the unit or an external accessory (Wireless Dongle)
2 SAT three pole JST connectors with 3,3V output (2 input and/or 2 output)
Serial input for every receiver Brand with very low latency method:
Spektrum: New bidirectional SRXL v2 (with telemetry) / Bidirectional SRXL (with telemetry) / Unidirectional SRXL / DSM2 22mS / DSM2 11mS / DSMX 11mS / PPM / Remote RX
Futaba: S.Bus2 (with telemetry) / S.Bus / PPM
Jeti: EX-BUS (with telemetry) / UDI / PPM+ / PPM-
Graupner: SUMD (with telemetry) / SUMO
Multiplex: SRXL + MSB (with telemetry)
FrSky: S.Bus + Smart.Port (with telemetry) / F.Port (with telemetry) / F.Port2 (with telemetry) / F.Bus (with telemetry) / S.Bus
JR: X-Bus B
Hitec: S.Bus
RadioLink: S.Bus
TBS: Crossfire (with telemetry) / S.Bus / PPM
ELRS: Crossfire (with telemetry)
FlySky: i-Bus (with telemetry)
Governor:
For Electric, Nitro, Gasser
Autorotation Bailout function (fast RPM recovery from a failed autorotation manoeuvre)
Telemetry input:
From ESC on electric models:
Castle Creation
Hobbywing
Align
Scorpion
Kontronik
YGE
Spektrum
FrSky
From Temperature sensors on Nitro / Gasser / Turbine models:
Jeti
Futaba
From RPM Sensors:
All sensor brand
Possibility to monitor separately also the RPM of the tail motor
From Variometer (Altitude, Vertical Speed):
Jeti on SAT2 connector
FrSky, Futaba, Robbe, Graupner sensors on Bus
Quality Of Signal (QOS) received:
For all receivers brand
Quality of Servo Voltage input:
For all kind of Power input: ESC BEC, external/separate BEC, 2S Lipos/Li-Ion/Li-Fe/NiCd/NiMh, Backup Power Systems
Telemetry output:
Spektrum, Futaba, Jeti, Graupner, Multiplex, OpenTX, EdgeTX, Ethos, Crossfire, FlySky
Power input:
Between 4,5V to 15V with one or two (redundant) lines from BEC or 2S Li-Po (7.4V) or 2S Li-Ion (7.4V) or 2S Li-Fe (6.6V) or 5/6/7 NiCd -NiMh
The direct current managed by the electronic switch located downstream of the MPX connector is 20A with short-term peaks up to 50A
Outputs:
6 full programmable servo outputs / ESC outputs. From 50 to 560Hz
Auto Diagnosis at each power on:
With result by LED flashes
With result by initial Swashplate movements
Diagnostic logs:
More than 50 different parameters can be recorded during flights
Vibrations are also logged during flights
More than 50 different types of Events are monitored and automatically logged during flights
Already included "on board":
Status LED
USB on board
Parameters setup / regulation:
Via apps in English, Deutsch, François, Russian, Chinese, Italian, Spanish (with the possibility to add, edit, share other languages):
Windows
MAC (with emulators)
Android
iOS
Via "Integrations" menu:
Spektrum
Jeti
Graupner
OpenTX
EdgeTX
Ethos
Via dedicated transmitters channels (dials):
In addition to the radio channel dedicated to tail gain, up to three other radio channels can be assigned to one of the 48 internal parameters of the unit
Swashplates:
90°
120°
135°
140°
4 servos
Tandem rotors

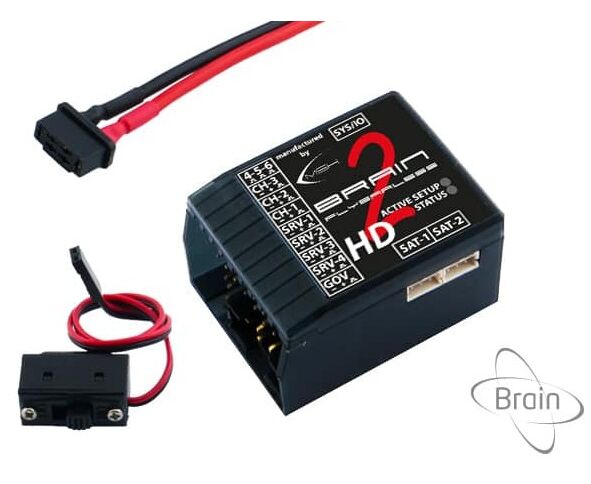

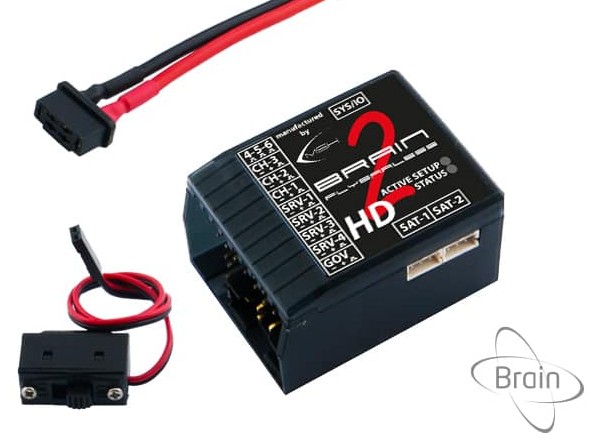

Included in the package:
1x Brain2 HD
1x Servo cable for serial RX connection
1x Cable red/black + plug MPX
1x Switch black + cable + plug
2x Double-sided adhesive
1x 'Safety Notes' leaflet
