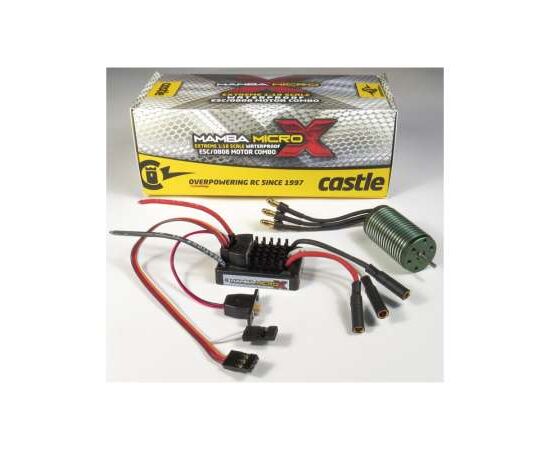

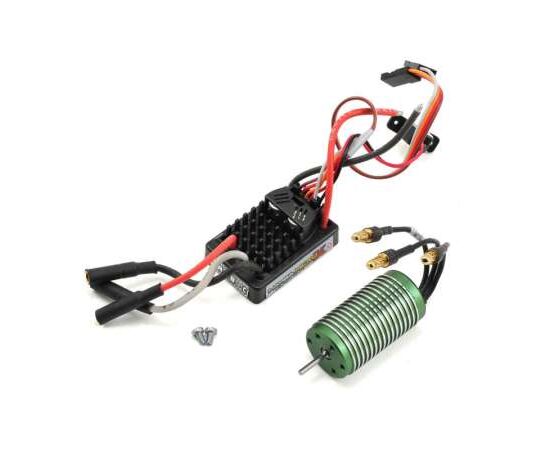

Castle Mamba Micro X ESC with Castle 0808-8200Kv B
MAX: 3S LiPo, 12.6V
BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment. (See Product Use Statements)
Reversible: Yes - with lockout
On/Off Switch: Yes, waterproof
ESC Cooling Fan: No
Size: 1.61"in x 0.75"in x 1.10" inches (4.1 x 1.9 x 2.8 cm)
Weight (w/o battery connector soldered to ESC): 1.20 oz (34.01 g)
Items Needed for Operation: Battery Connector required, 4mm Castle Connectors are recommended.
Product Use Statements:
*Applying voltages higher than 12.6 volts will cause irreparable damage to your controller, voiding your warranty.
*Recommended battery capacity for 1:18th scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
*The Mamba Micro X has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
Application Guidelines: 1:18th scale RC hobby vehicles weighing up to 2.25lbs.
- Elektro Brushless-Motor
