CAYOTE X5 2-Force Ladegerät 2-Kanal mit Ladekabel
CYEG1021
Engineered to Win

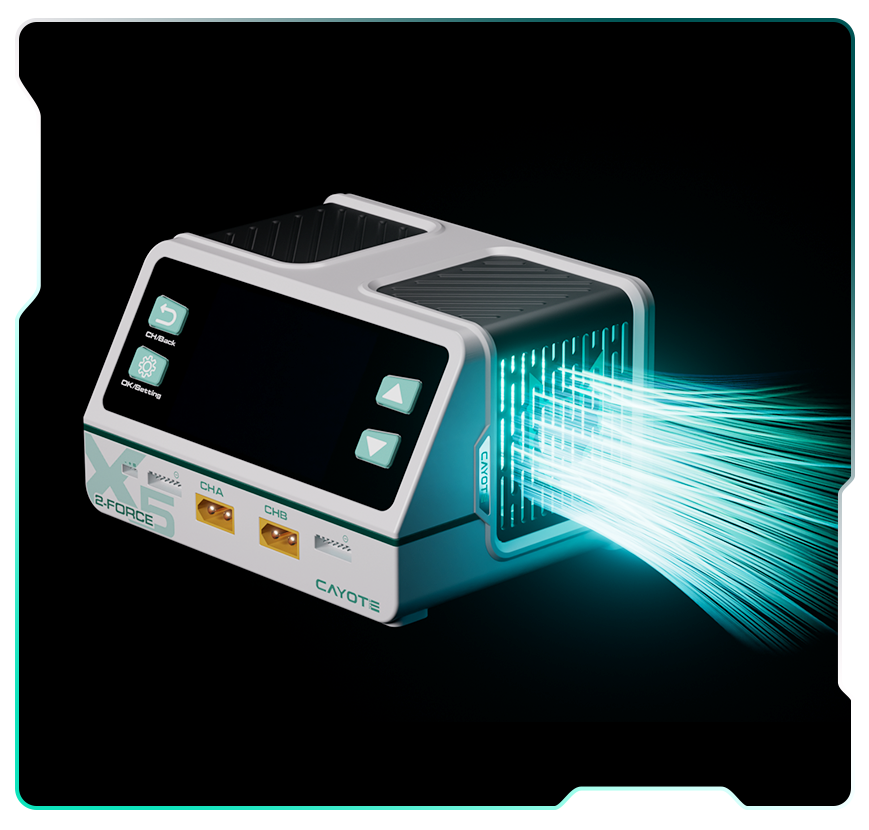

2-Force X5 is a dual-channel smart charger designed for professional RC model racing users, combining high-performance power management technology, exceptional user interaction, and a variety of operational modes.
Whether for battery activation before high-intensity races or multi-task power support on-site, the 2-Force X5 delivers robust power and stable performance, ensuring reliable support for every RC racer.
| Model | Cayote 2-Force X5 |
| Input Voltage | AC 100-240V 50/60Hz 6.5A (Max)DC 12-30V 65A (Max) |
| Output Voltage | DC 5-30V |
| Max Charging Power | AC 500W / DC 700W × 2(AC charging limited to 400W when DC 12V output is active) |
| Max Charging Current | 40A (normal), 55A (Synchronous) |
| Max Discharge Power | 70W × 2 (internal), 500W (external) |
| Max Discharge Current | 8A |
| Balancing Current | 2A / Cell Max |

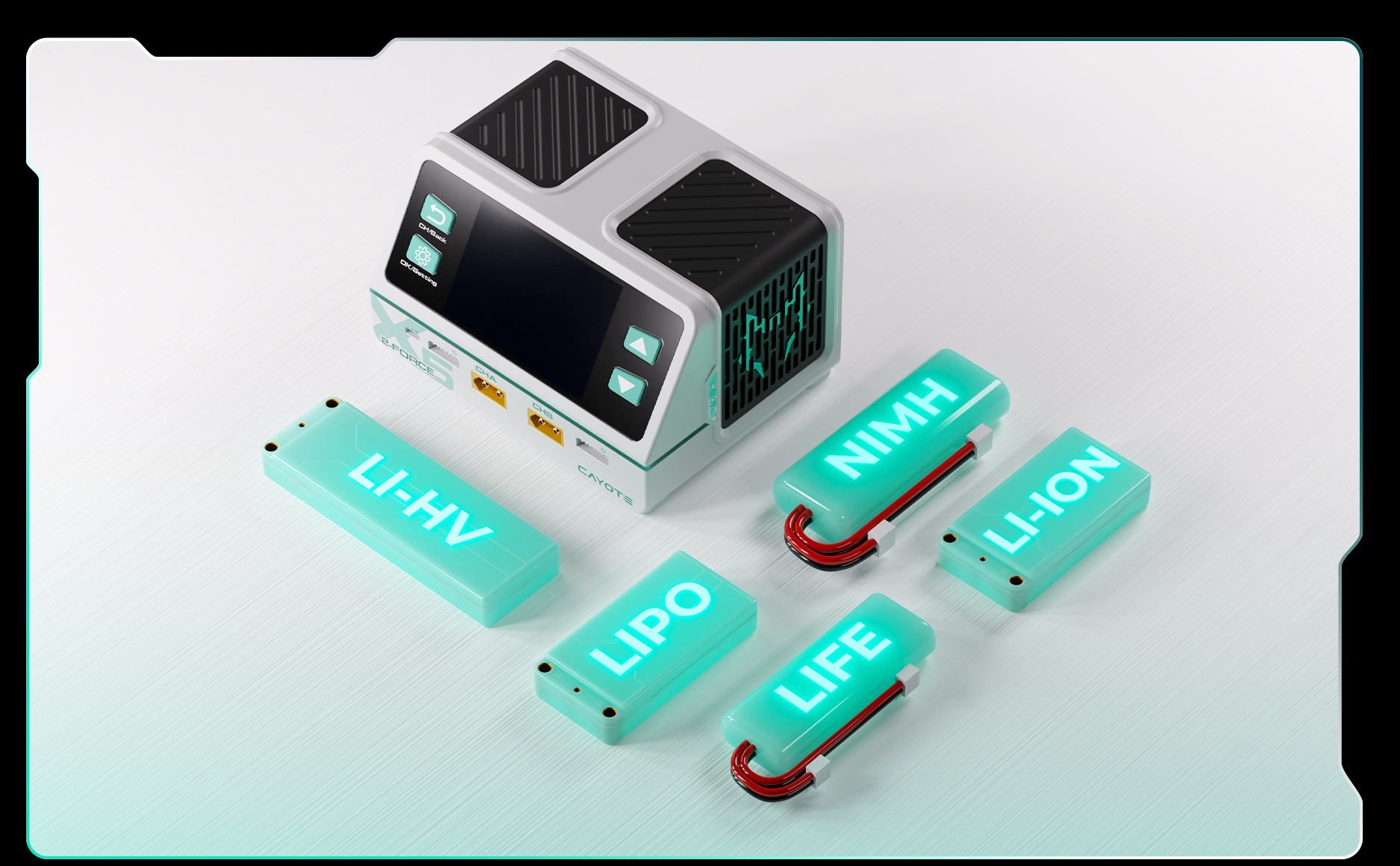

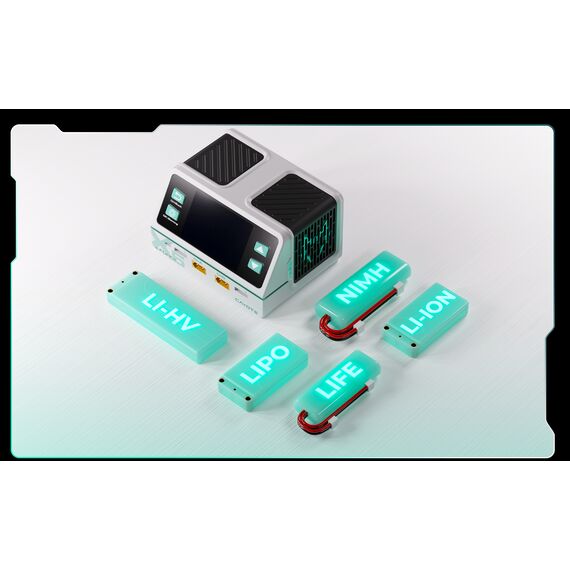

| Supported Battery Types | 1-6S LiPo / LiFe / LiIon / LiHV1-18S NiMH |
| USB-C Output | 5V / 2A (10W) |
| XT60 DC Output | 12V / 100W |
| Servo Test Port Output | 5V / 0.5A (2.5W) |

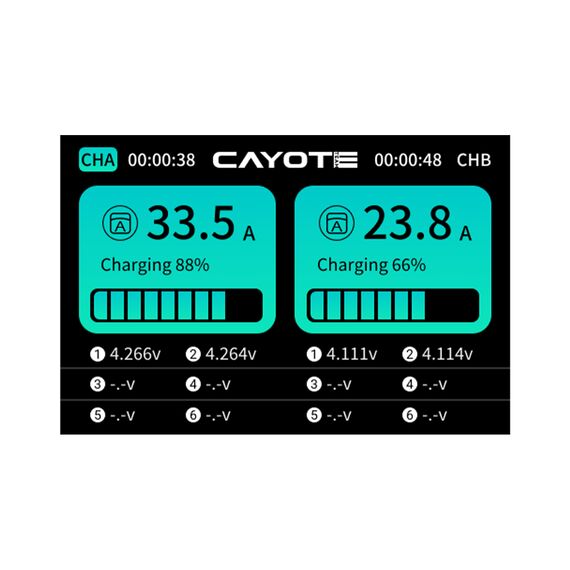

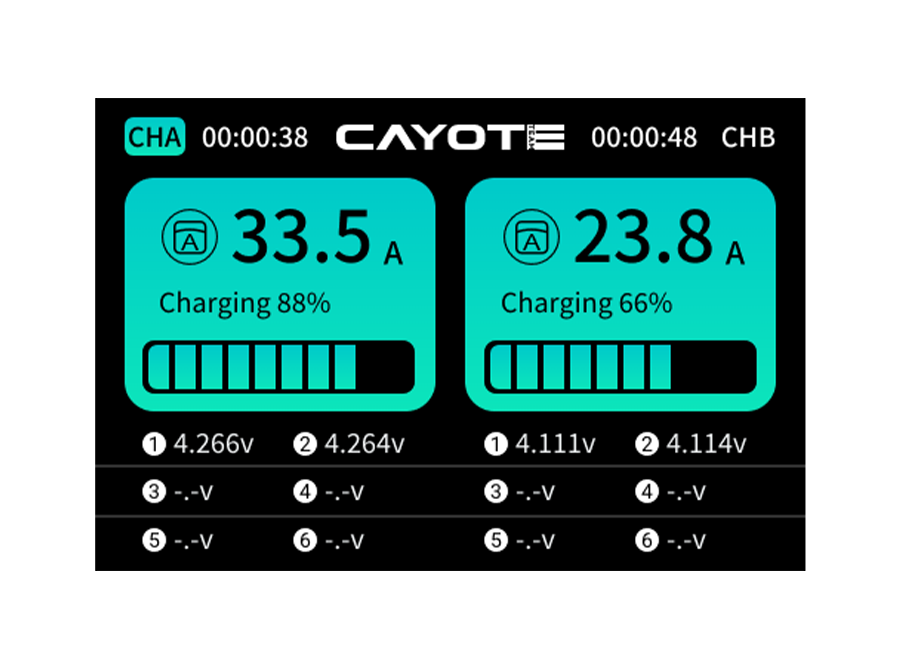

| LCD Screen | 3.5-inch IPS sunlight-readable display |
| Operating Temperature | -10℃ ~ 45℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Weight | 1.5kg |
| Dimensions | L:172mm W:130mm H:101mm |
Package List
| Servo Port Dust Cover | 1 pc |
| Balance Port Dust Cover | 1 pc |
| Power Cable | 1 pc |
| USB Upgrade Cable | 1 pc |
| Dust Cover Installation Guide Card | 1 pc |
| Team Cayote Sticker | 1 pc |
| User Manual | 1 pc |

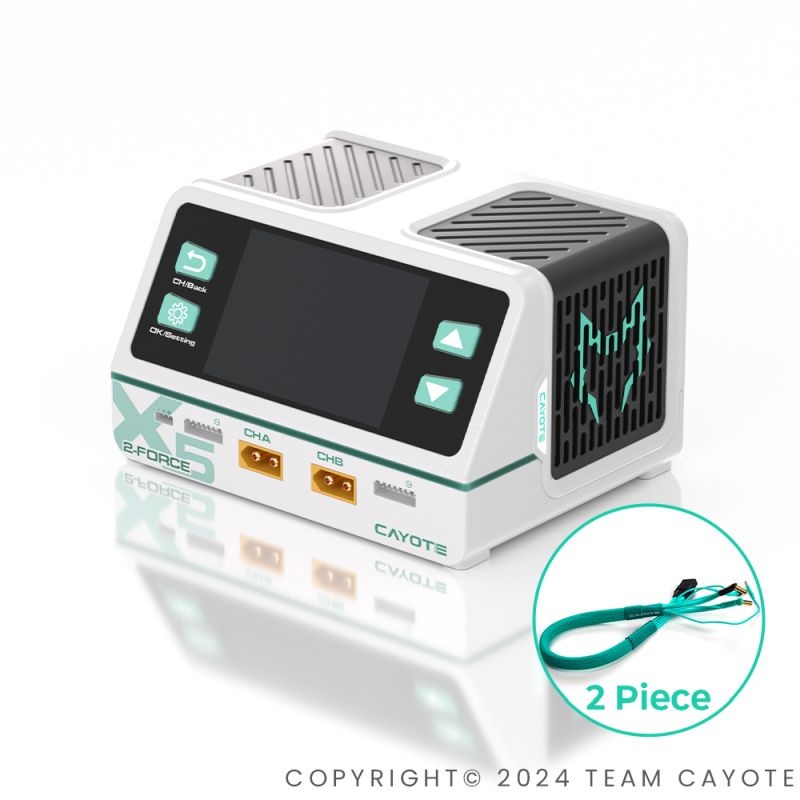

| Team Cayote Custom Green Adapter Cables (Wired Version Only) | 2 pcs |
