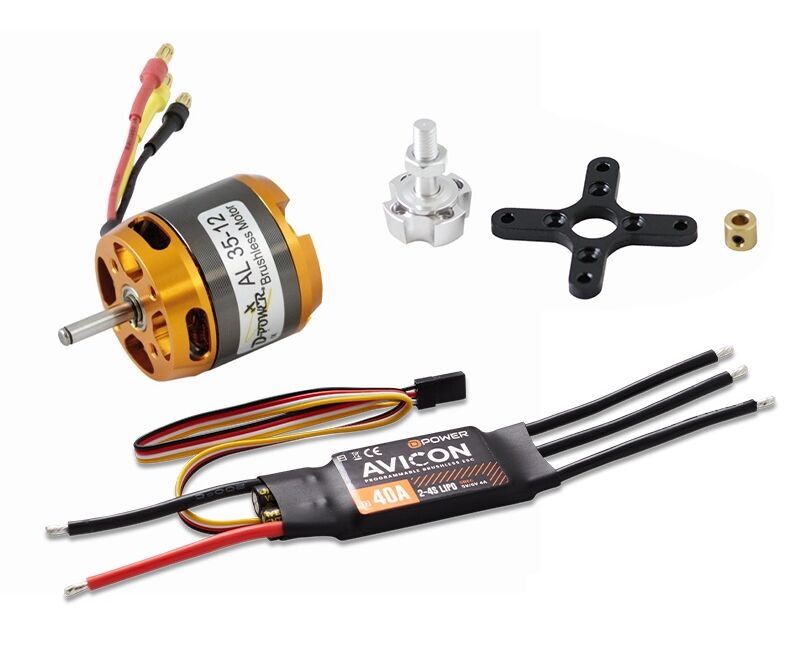

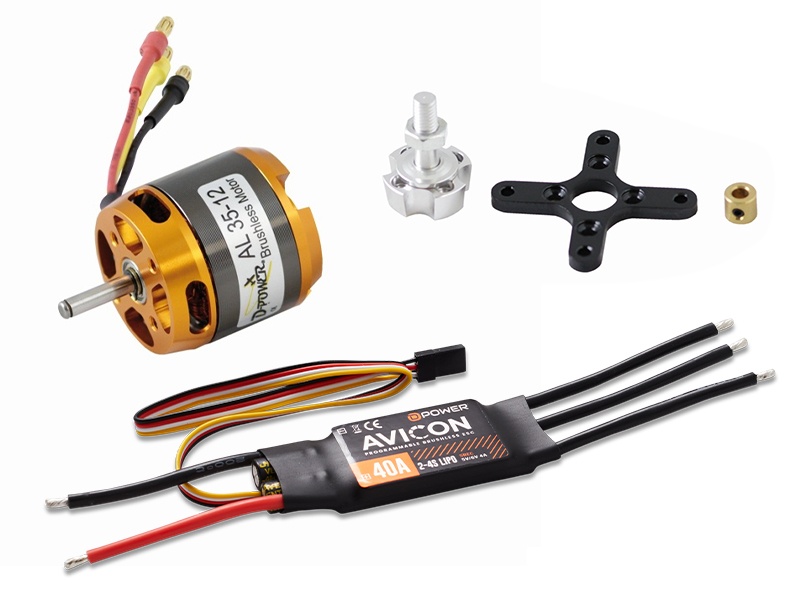

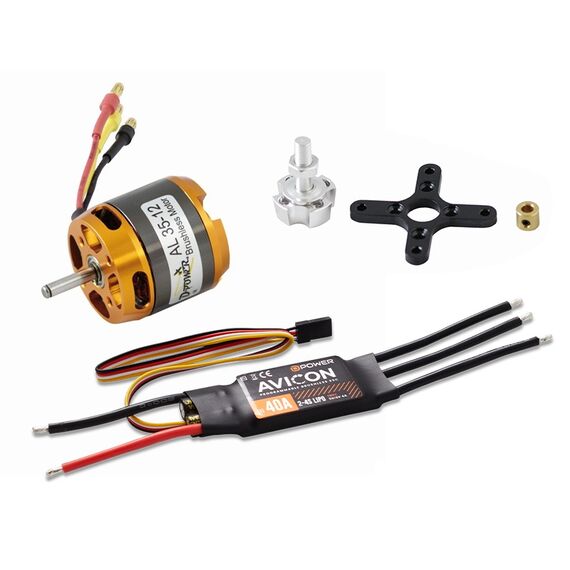

D-Power Brushless SET AL35-12 & AVICON 40A Regler
D-Power Brushless SET AL35-12 & AVICON 40A Regler
bestehend aus:
- D-Power Brushless Motor AL35-12
- AVICON 40A S-BEC Regler
Technische Daten:
| Eigenschaften | Motor AL35-12 |
|---|---|
| Abmessungen: | 35 x 35,2 mm |
| Welle Ø: | 4,0 |
| Lipo / NC Zellen: | 2 - 4 / 8 - 10 |
| Leerlaufstrom: | 1,8A |
| empfohlener Strom: | 32A |
| Strom kurzzeitig: | 38A |
| Leerlaufdrehzahl: | 1270 U/min/V |
| Gewicht: | 95g |
| Schubkraft: | ca. 1200g |
Technische Daten:
| Eigenschaften | AVICON 40A S-BEC |
|---|---|
| Strom: | 40A Dauer, 55A kurz |
| Anzahl Lipo / NiXX: | 2-4 / 5-12 |
| BEC: | 5V/6V 4A |
| Gewicht: | 37 g |
| Abmessungen (L x B x H): | 68 x 25 x 10 mm |
Luftschrauben Empfehlung:
| Zellenanzahl | Luftschraube - Strom |
|---|---|
| 2S Lipo | 12 x 6 - 35A |
| 3S Lipo: | 10 x 5 / 9 x 7,5 - 36A |
| 4S Lipo: | 8 x 4 - 37A |
General
Motor / Antrieb
- Elektro Brushless-Motor
Hersteller
D-Power
