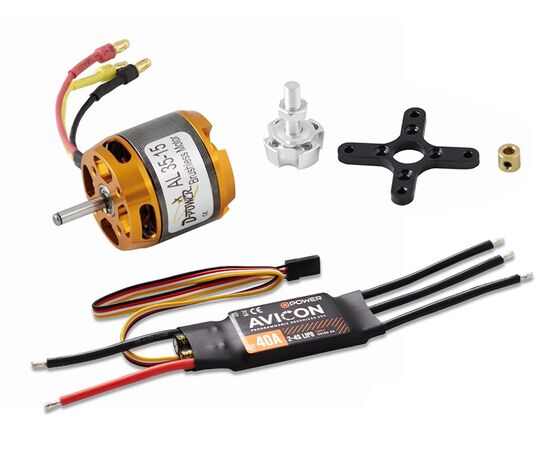

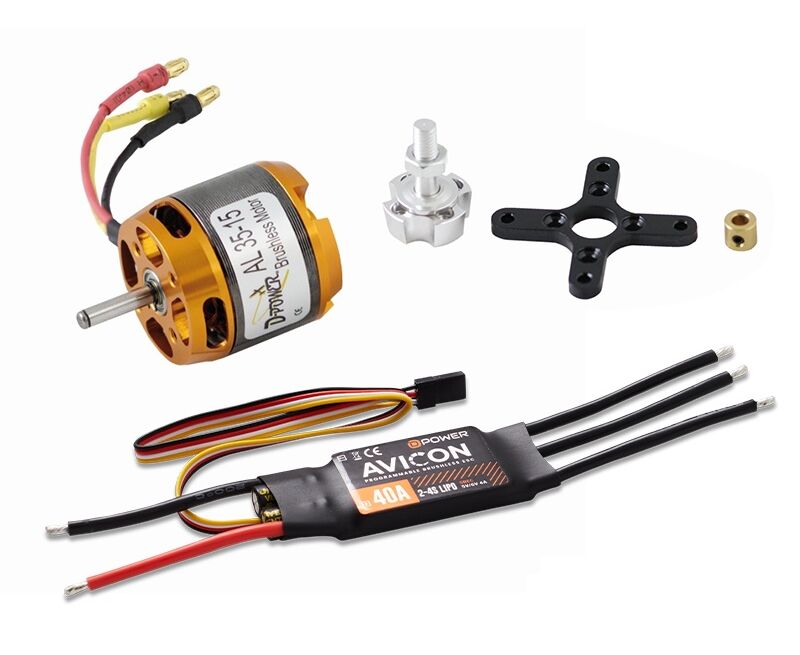

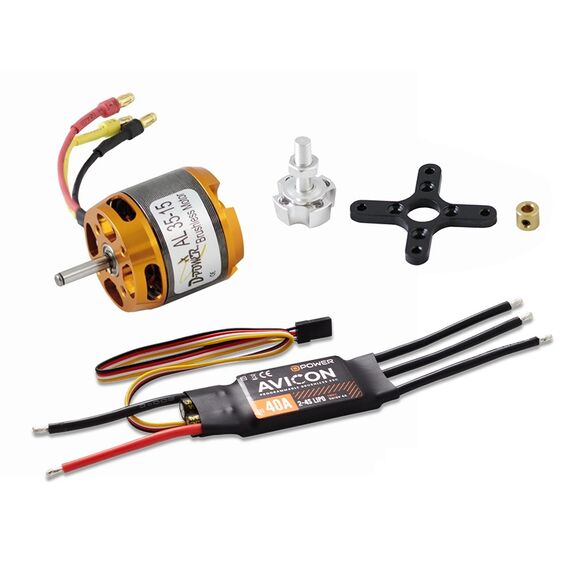

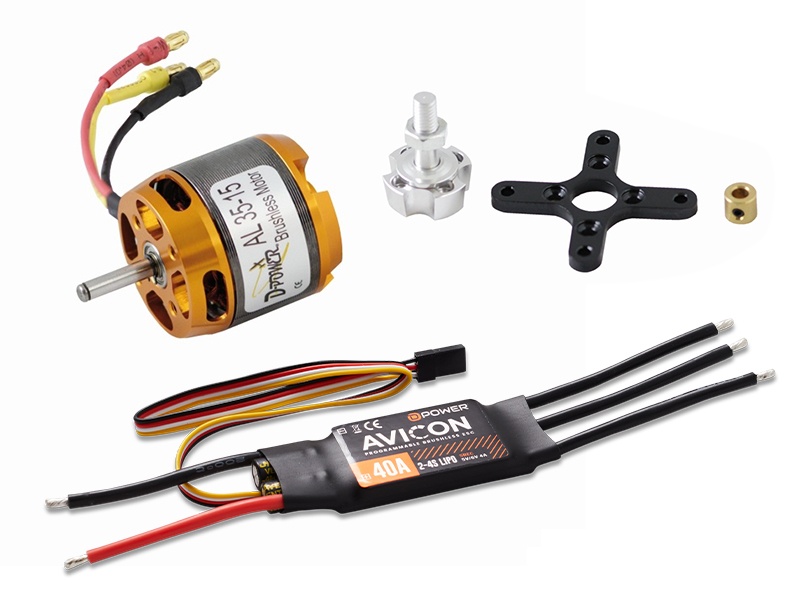

D-Power Brushless SET AL35-15 & AVICON 40A Regler
D-Power Brushless SET AL35-15 & AVICON 40A Regler
bestehend aus:
- D-Power Brushless Motor AL35-15
- AVICON 40A S-BEC Regler
Technische Daten:
| Eigenschaften | Motor AL35-15 |
|---|---|
| Abmessungen: | 35 x 35,2 mm |
| Welle Ø: | 4,0 |
| Lipo / NC Zellen: | 2 - 4 / 6 - 9 |
| Leerlaufstrom: | 2,2A |
| empfohlener Strom: | 38A |
| Strom kurzzeitig: | 42A |
| Leerlaufdrehzahl: | 1520 U/min/V |
| Gewicht: | 95g |
| Schubkraft: | ca. 1300g |
Technische Daten:
| Eigenschaften | AVICON 40A S-BEC |
|---|---|
| Strom: | 40A Dauer, 55A kurz |
| Anzahl Lipo / NiXX: | 2-4 / 5-12 |
| BEC: | 5V/6V 4A |
| Gewicht: | 37 g |
| Abmessungen (L x B x H): | 68 x 25 x 10 mm |
Luftschrauben Empfehlung:
| Zellenanzahl | Luftschraube - Strom |
|---|---|
| 2S Lipo | 11 x 7 – 45A |
| 3S Lipo: | 9 x 4,5 – 43A |
| 4S Lipo: | 8 x 4 - 44A |
General
Motor / Antrieb
- Elektro Brushless-Motor
Hersteller
D-Power
