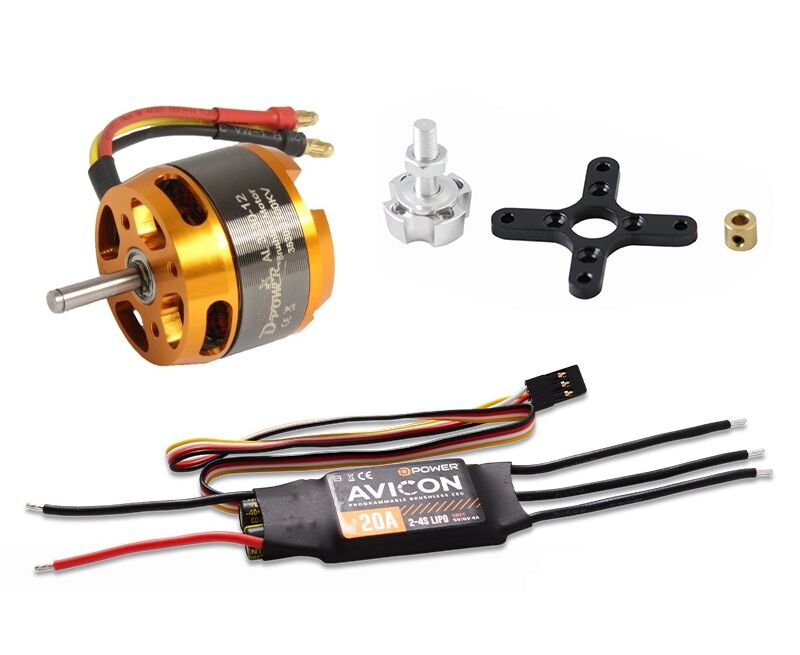

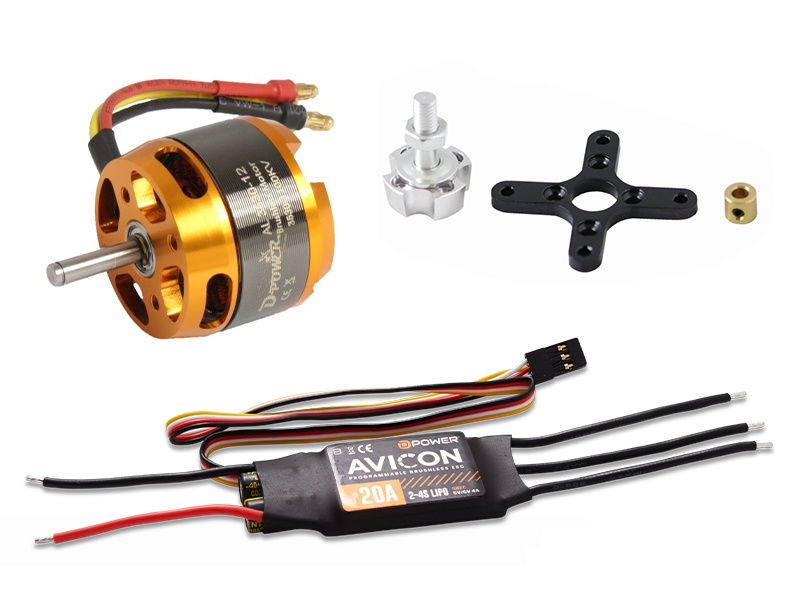

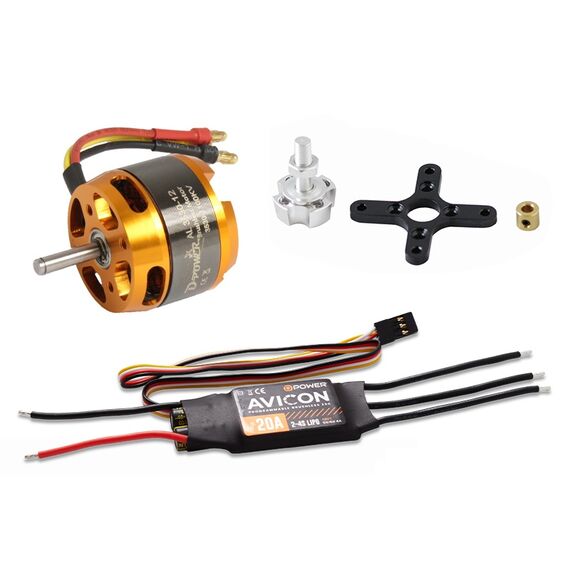

D-Power Brushless Set AL3530-12 & AVICON 20A Regler
D-Power Brushless Set AL3530-12 & AVICON 20A Regler
bestehend aus:
- D-Power Brushless Motor AL AL3530-12
- AVICON 20A S-BEC Regler
Technische Daten:
| Eigenschaften | Motor AL 3530-12 |
|---|---|
| Abmessungen: | 35 x 29,2 mm |
| Welle Ø: | 4,0 |
| Lipo / NC Zellen: | 3 – 4 / 8 - 10 |
| Leerlaufstrom: | 0,7A |
| empfohlener Strom: | 15A |
| Strom kurzzeitig: | 20A |
| Leerlaufdrehzahl: | 1150 U/min/V |
| Gewicht: | 75g |
| Schubkraft: | ca. 1050g |
Technische Daten:
| Eigenschaften | AVICON 20A S-BEC |
|---|---|
| Strom: | 20A Dauer, 30A kurz |
| Anzahl Lipo / NiXX: | 2-4 / 5-12 |
| BEC: | 5V/6V 4A |
| Gewicht: | 25 g |
| Abmessungen (L x B x H): | 60 x 25 x 10 mm |
Luftschrauben Empfehlung:
| Zellenanzahl | Luftschraube - Strom |
|---|---|
| 2S Lipo | --- |
| 3S Lipo: | 8 x 6 / 9 x 4.5 |
| 4S Lipo: | 7 x 6 / 8 x 4 |
| 5S Lipo: | --- |
| 6S Lipo: | --- |
General
Motor / Antrieb
- Elektro Brushless-Motor
Hersteller
D-Power
