D-Power Brushless Set AL3542-7 & AVICON 30A Regler
D-Power Brushless Set AL3542-7 & AVICON 30A Regler

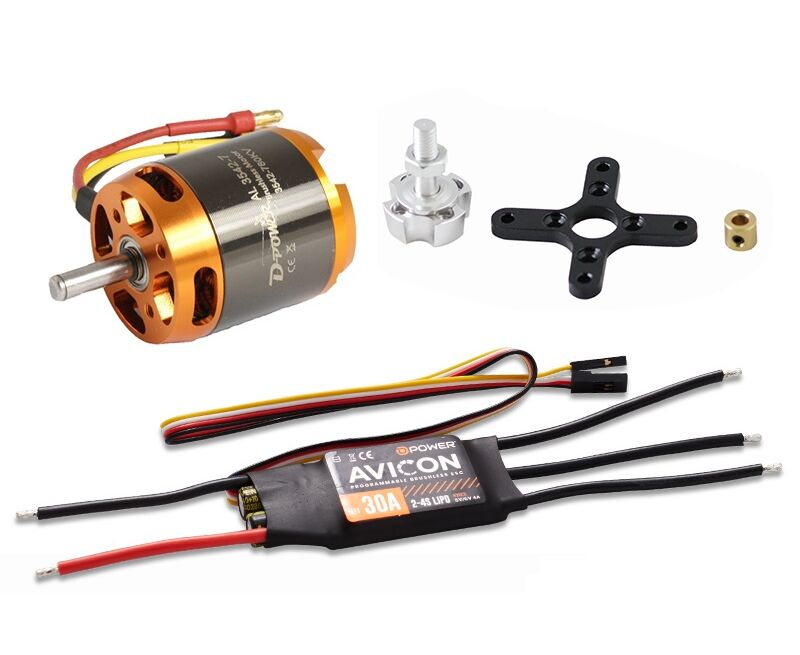

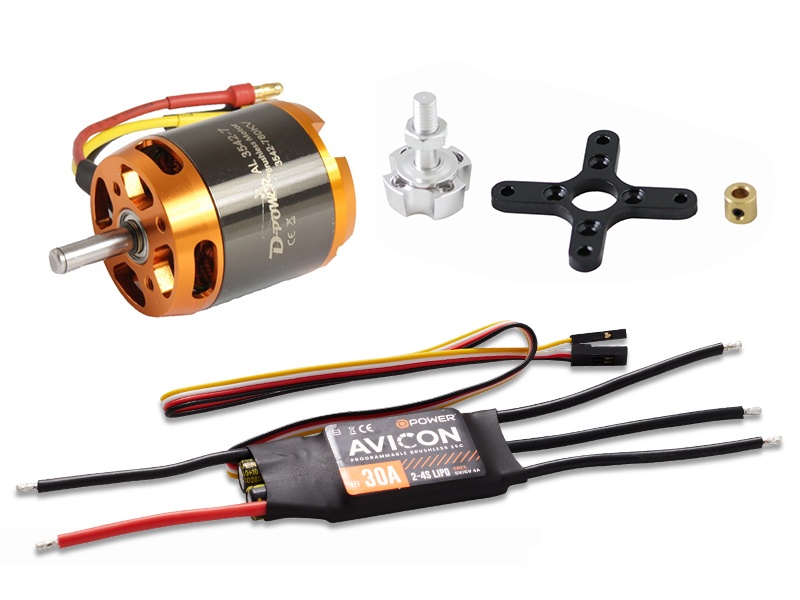

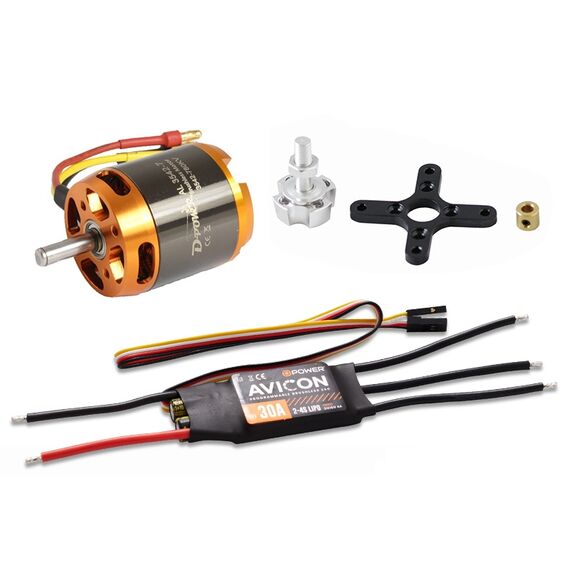

bestehend aus:
- D-Power Brushless Motor AL AL3542-7
- AVICON 30A S-BEC Regler
Technische Daten:
| Eigenschaften | Motor AL 3542-7 |
|---|---|
| Abmessungen: | 35 x 41,2 mm |
| Welle Ø: | 5,0 |
| Lipo / NC Zellen: | 3 – 5 / 8 - 15 |
| Leerlaufstrom: | 1,2A |
| empfohlener Strom: | 25A |
| Strom kurzzeitig: | 30A |
| Leerlaufdrehzahl: | 810 U/min/V |
| Gewicht: | 135g |
| Schubkraft: | ca. 2000g |
Technische Daten:
| Eigenschaften | AVICON 30A S-BEC |
|---|---|
| Strom: | 30A Dauer, 40A kurz |
| Anzahl Lipo / NiXX: | 2-4 / 5-12 |
| BEC: | 5V/6V 4A |
| Gewicht: | 25 g |
| Abmessungen (L x B x H): | 60 x 25 x 10 mm |
Luftschrauben Empfehlung:
| Zellenanzahl | Luftschraube - Strom |
|---|---|
| 2S Lipo | --- |
| 3S Lipo: | 12 x 8 / 13x 6 |
| 4S Lipo: | 11 x 5.5 / 10 x 7 |
| 5S Lipo: | 8 x 7 |
| 6S Lipo: | --- |
General
Motor / Antrieb
- Elektro Brushless-Motor
Hersteller
D-Power
