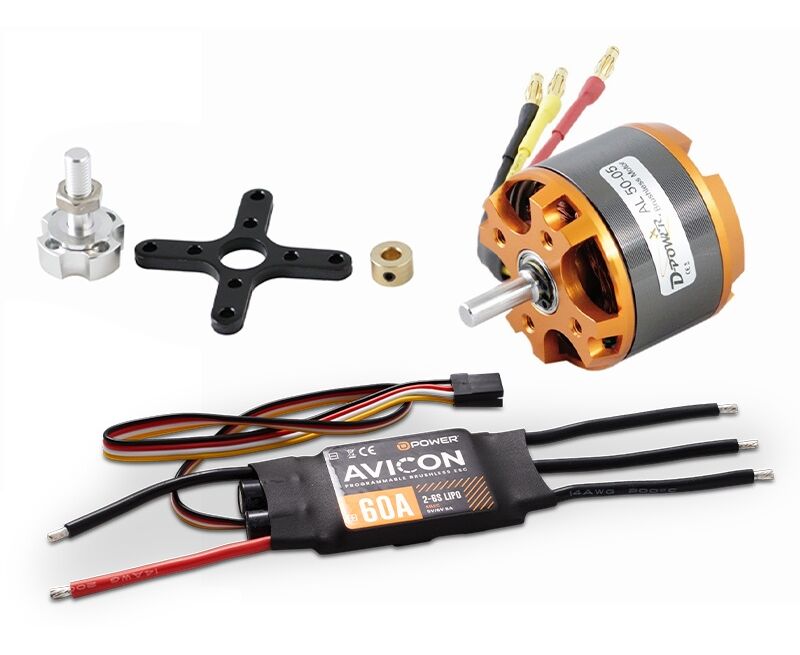

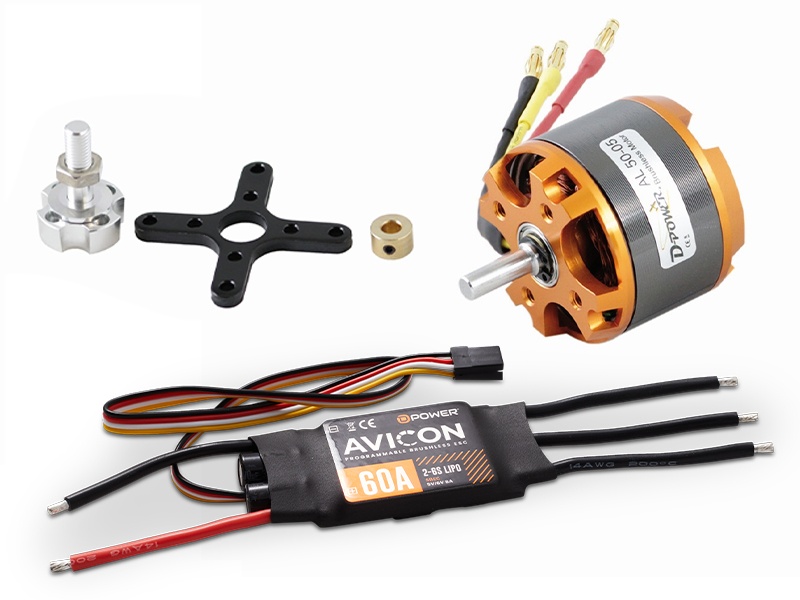

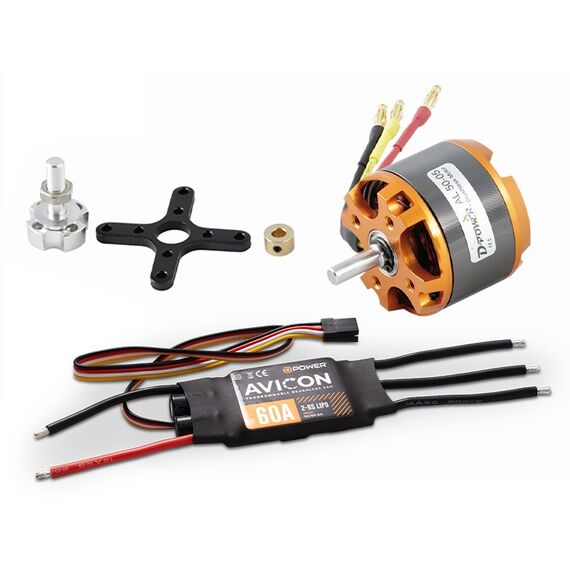

D-Power Brushless SET AL50-05 & AVICON 60A Regler
D-Power Brushless SET AL50-05 & AVICON 60A Regler
bestehend aus:
- D-Power Brushless Motor AL50-05
- AVICON 60A S-BEC Regler
Technische Daten:
| Eigenschaften | Motor AL50-05 |
|---|---|
| Abmessungen: | 49,2 x 42,5 mm |
| Welle Ø: | 6,0 |
| Lipo / NC Zellen: | 4 - 6 / 14 - 18 |
| Leerlaufstrom: | 2,2A |
| empfohlener Strom: | 52A |
| Strom kurzzeitig: | 55A |
| Leerlaufdrehzahl: | 560 U/min/V |
| Gewicht: | 271g |
| Schubkraft: | ca. 4100g |
Technische Daten:
| Eigenschaften | AVICON 60A S-BEC |
|---|---|
| Strom: | 60A Dauer, 80A kurz |
| Anzahl Lipo / NiXX: | 2-6 / 5-18 |
| BEC: | 5V/6V 8A |
| Gewicht: | 50 g |
| Abmessungen (L x B x H): | 70 x 34 x 10 mm |
Luftschrauben Empfehlung:
| Zellenanzahl | Luftschraube - Strom |
|---|---|
| 4S Lipo: | 17 x 10 / 18 x 8 - 50A |
| 5S Lipo: | 15 x 10 / 16 x 8 - 55A |
| 6S Lipo: | 13 x 8 / 14 x 7 - 52A |
General
Motor / Antrieb
- Elektro Brushless-Motor
Hersteller
D-Power
