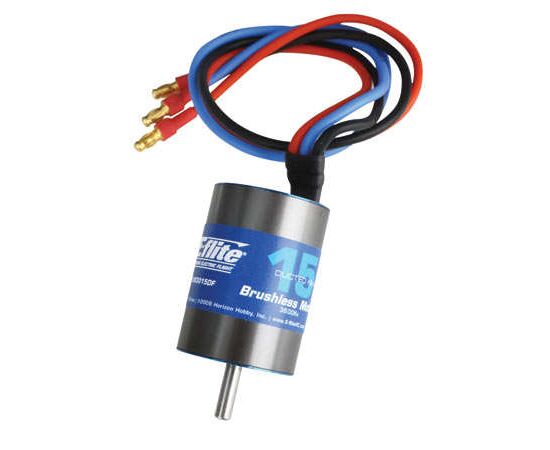

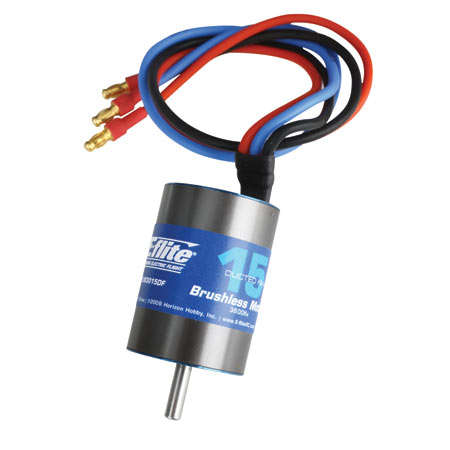

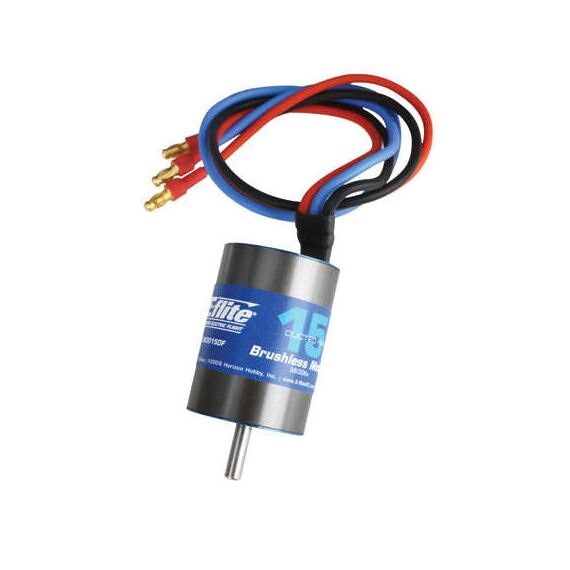

MOTOR Park 15 Out.Brushless3600Kv
Purpose-built for the Delta-V 15 69mm EDF (EFLDF15)
Ideal for 68-70mm EDF units requiring a 28mm diameter inrunner motor
Ideal for up to 850 input watts
Recommended Ducted Fan Unit: Delta-V 15 69mm EDF (EFLDF15)
Static Thrust: 1.7 lb on 3S (11.1V)-using recommended Delta-V 15
2.8 lb on 4S (14.8V)-using recommended Delta-V 15
RPM: 31,000 on 3S (11.1V)-using recommended Delta-V 15
40,000 on 4S (14.8V)-using recommended Delta-V 15
Brushless ESC: 50A-60A
Type: 6-pole Inrunner Brushless
Size: 15-size for Ducted Fans
Bearings or Bushings: Two 4 x 10 x 4mm Bearings
Voltage: 11.1-16.8V
RPM/Volt (Kv): 3600
Resistance (Ri): .02 ohms
Idle Current (Io): 2.80A @ 10V
Continuous Current: 46A
Maximum Burst Current: 55A (15 sec)
Cells: 3S-4S LiPo power 10-14 Ni-MH/Ni-Cd battery
Speed Control: 60A brushless
Weight: 106 g (3.7 oz)
Overall Diameter: 28mm (1.10 in)
Shaft Diameter: 4mm (0.16 in)
Overall Length: 40mm (1.56 in)
Ideal for 68-70mm EDF units requiring a 28mm diameter inrunner motor
Ideal for up to 850 input watts
Recommended Ducted Fan Unit: Delta-V 15 69mm EDF (EFLDF15)
Static Thrust: 1.7 lb on 3S (11.1V)-using recommended Delta-V 15
2.8 lb on 4S (14.8V)-using recommended Delta-V 15
RPM: 31,000 on 3S (11.1V)-using recommended Delta-V 15
40,000 on 4S (14.8V)-using recommended Delta-V 15
Brushless ESC: 50A-60A
Type: 6-pole Inrunner Brushless
Size: 15-size for Ducted Fans
Bearings or Bushings: Two 4 x 10 x 4mm Bearings
Voltage: 11.1-16.8V
RPM/Volt (Kv): 3600
Resistance (Ri): .02 ohms
Idle Current (Io): 2.80A @ 10V
Continuous Current: 46A
Maximum Burst Current: 55A (15 sec)
Cells: 3S-4S LiPo power 10-14 Ni-MH/Ni-Cd battery
Speed Control: 60A brushless
Weight: 106 g (3.7 oz)
Overall Diameter: 28mm (1.10 in)
Shaft Diameter: 4mm (0.16 in)
Overall Length: 40mm (1.56 in)
General
Hersteller
E-flite
