Digital Servo 6V 3.9kg
Digital Servo 6V 3.9kg
Abmessungen: 22,8 x 12 x 29,4

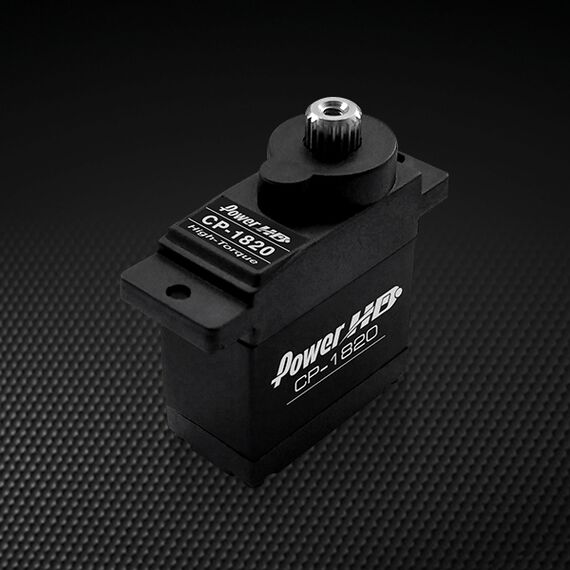

CP-1820
Torque(4.8V): 3.10 kg-cm (43.05 oz/in)
Torque(6.0V): 3.90 kg-cm (54.16 oz/in)
Speed: 0.16 sec (4.8V) │ 0.13 sec (6.0V)
Operating Voltage：4.8 ~ 6.0 DC Volts
Weight: 15.8 g (0.56 oz)
Bearing Type：Ball Bearing x 1
Motor Type：DC Motor
Gear Type：Metal
Connector wire length:JR 350 mm
Operating Temperature：-10℃~50℃
Working frequency：1520μs / 250hz
Size：22.8 x 12.0 x 29.4 mm ( 0.90 x 0.47 x 1.16 in)
Torque(6.0V): 3.90 kg-cm (54.16 oz/in)
Speed: 0.16 sec (4.8V) │ 0.13 sec (6.0V)
Operating Voltage：4.8 ~ 6.0 DC Volts
Weight: 15.8 g (0.56 oz)
Bearing Type：Ball Bearing x 1
Motor Type：DC Motor
Gear Type：Metal
Connector wire length:JR 350 mm
Operating Temperature：-10℃~50℃
Working frequency：1520μs / 250hz
Size：22.8 x 12.0 x 29.4 mm ( 0.90 x 0.47 x 1.16 in)
General
Abmessungen
Mini
Getriebe
Metall
Servo Breite
- bis 12mm
Servo-Typ
- Analog
Servogewicht (g)
15.8g
Hersteller
Power HD
Betriebsspannung
4.8-6V
