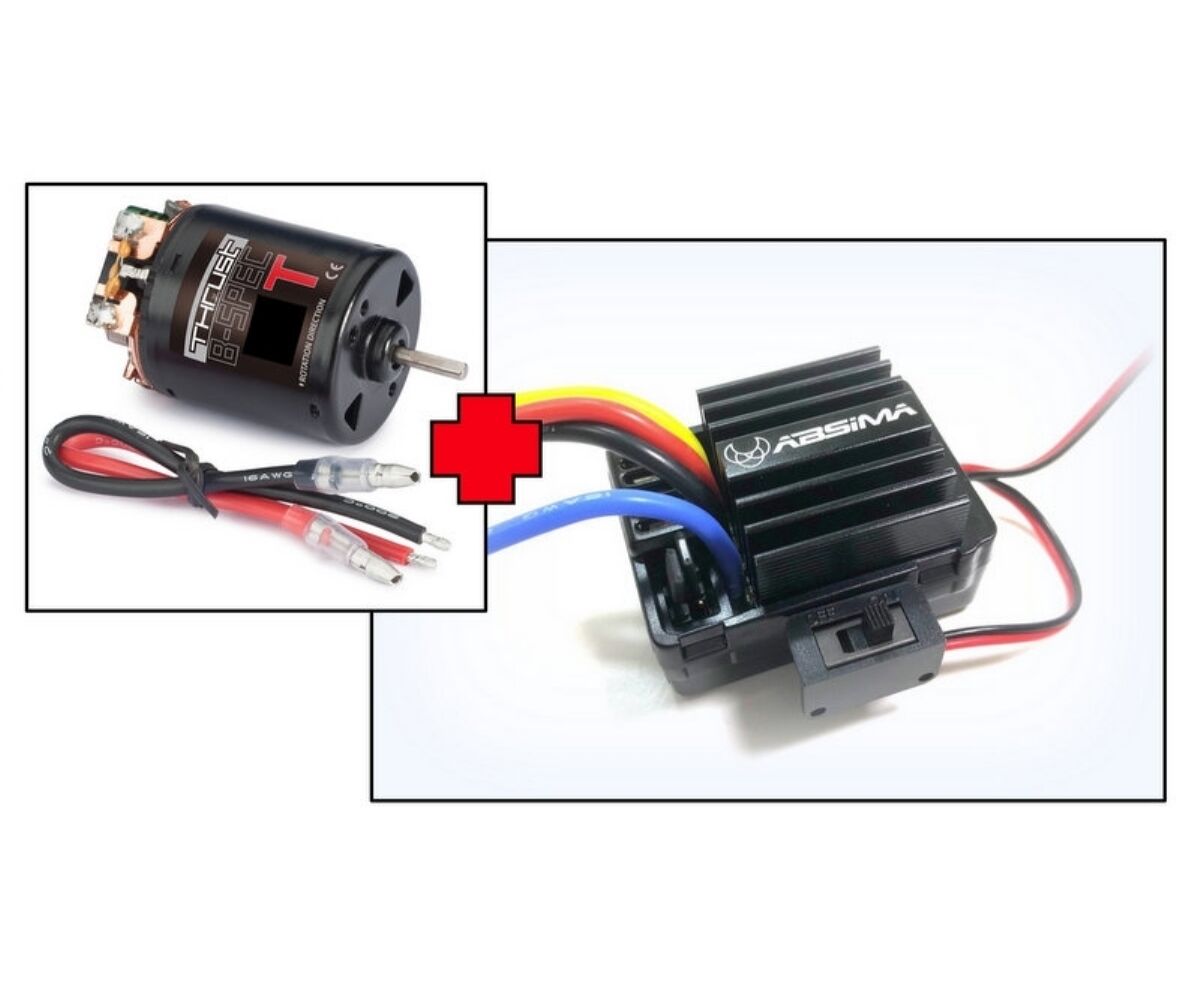

Electric Motor Thrust B-Spec 17T + 1:10 Brushed Regler 40A

AB2100014
CHF49.00
In warehouse stock
Order will be shipped in 3 days
+
"This set is specially designed for new beginners and intermediate modelers. It not only carries for
"This set is specially designed for new beginners and intermediate modelers. It not only carries forward the outstanding quality of ABSIMA (powered by HOBBYWING) products but simplifies the operation. FEATURES: Water-proof and dust-proof for all weather races Small size with built-in capacitor module Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection Easily programmed with “jumpers” SPECIFICATION: Application: On-road/Off-road Cont. / Burst Current - forward: 40A / 180A Cont. / Burst Current - reverse: 20A / 90A Input: 2-3S LiPo / 5-9 Cells NiMH Battery ""Low-Power"" Cut-off: NiMH 4.5V / 2S LiPo 6.5V / 3S LiPo 9.75V Motor Limit 2S LiPo/5-6 Cells NiMH: 540 or 550 Motor =12T or RPM <30.000 @ 7.2V Motor Limit 3S LiPo/7-9 Cells NiMH: 540 or 550 Motor =18T or RPM <20.000 @ 7.2V Maximum Reverse Force: 50% Overheat Protection: 100° Resistance: Fwd: 0.002 Ohm, Bwd: 0.004 Ohm Built-in BEC: 2A/6V (Linear Mode BEC) Plug System: Tamiya Plug & Drive System: yes On/Off Switch: yes Dimmension (L/W/H): 46.5*34.0*28*5 mm Weight: 70g SPECIFICATION MOTOR: Turns: 17x2T RPM: 26.300 Continuous Current: 155W Operation V: 7.2V-7.4V Motor size: 540 Shaft length: 12,3mm Shaft Ø: 3,19mm Motor length: 53,2mm Motor Ø: 35,7mm Brushess & Springs changeable: yes SCOPE OF DELIVERY: WP1040 Brushed ESC 17T Electric Motor Manual"
General
Motor / Antrieb:
  • Elektro Brushless-Motor
Hersteller:
Absima
