EMPFÄNGER AIR AR9030T 9CH DSMX Integrated Telemetry
OVERVIEW

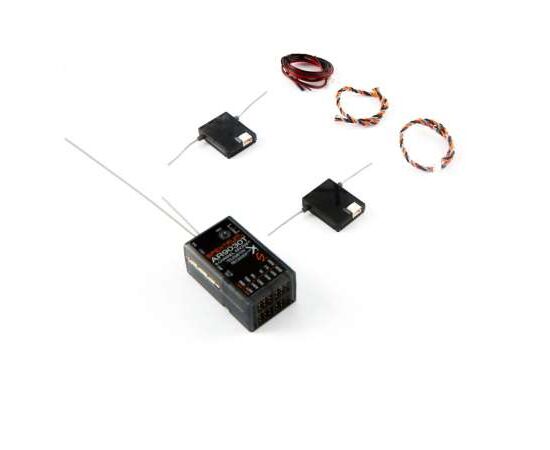

The AR9030T receiver is a feature-packed, 9-channel receiver with integrated full-range telemetry. The AR9030T features built-in connection ports for RPM, Flight Pack Voltage, and Temperature sensors as well as an X-Bus port for additional telemetry options. No sensor is required to receive flight log or receiver pack voltage telemetry data. If you have a DSMX/DSM2® transmitter capable of 11ms frame rates, the AR9030T receiver will deliver lightning-fast input-to-output response that is perfect for high-performance applications like 3D helis and airplanes. The AR9030T includes 2 DSMX remote receivers that allows you take advantage of Spektrum™ MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.
KEY FEATURES
- Compatible with all Spektrum DSMX transmitters
- Compact design fits most parkflyer size and larger aircraft
- Capable of 11ms frame rates
- Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
- Receiver pack voltage and flight log data available without the need for additional sensors
- Dual antennas for optimal RF performance
PRODUCT SPECIFICATIONS
- Type:
- AR9030T 9 Channel Air Telemetry Receiver
- # of Channels:
- 9
- Modulation:
- DSM2/DSMX
- Band:
- 2.4GHz
- Length:
- 1.91 in (48.5 mm)
- Width:
- 1.11 in (28.3 mm)
- Height:
- 0.82 in (20.9 mm)
- Weight:
- 0.63 oz (17.83 g)
- Voltage Range:
- 3.5-9V
- Experience Level:
- Intermediate
