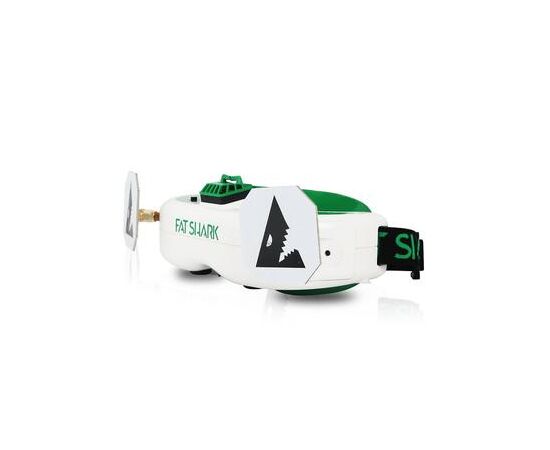

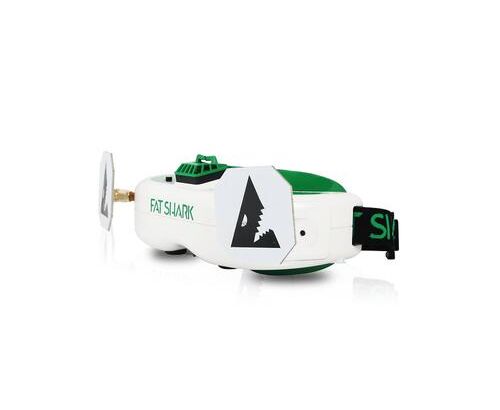

Fatshark FPV Brille Attitude V6
SPECIFICATIONS
OPTICS:
FOV (field of view): 39 degrees diagonal
IPD (interpupillary distance): 54 to 74 mm (adjustable)
Focus: +2 to -6 diopters (adjustable)
DISPLAY:
Two citizen 0.4" LCOS displays
Resolution 1280 X 960
NTCS/PAL auto selecting
AV Mode 4:3
AV Mode 16:9
HDMI Mode 16:9
AUDIO:
Stereo
USER CONTROLS:
Channel Selection
Volume Control
Mode Selection
Display Control (Brightness and Contrast)
DVR Control
Power Button / Fan Control
ELECTRICAL:
Power Supply: 7 - 13V input voltage (2S - 3S Supply)
Power Consumption: 320mA @ 7.5V input power (no RX module)
Analog DVR:MicroSD support to 32 GB
Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
File playback (native recording, no codec support)
Upgradeable via SD card
BATTERY:
7.4V, 1.8A 18650 Battery Case
INTERFACE:
3.5mm AV in/out port
Power input port
3.5mm 3p earphone port
MicroSD
RF Module Bay
HT connector 3 pin internal connection
Power Button
INCLUDES
1x Fat Shark Attitude V6 FPV Goggles
1x Carry Case
1x 18650 Headset Battery Case (batteries not included)
1x True Diversity OLED Receiver already installed in the headset
2x Patch Antennas
