Fazer MK2 Ford Mustang GT-R 2005 Drift T1 1:10 Rea

Genießen Sie aufregendes Drift-Fahren mit dem Ford Mustang GT-R 2005 in innovativer Farbgebung!

Für den puren Genuss des R/C-Car-Fahrens ist die Kombination einer wunderschön reproduzierten Karosserie mit dem Chassis der FAZER-Serie unschlagbar. Kyosho hat sein Standard-Tourenwagen-Chassis genommen und ihm eine vollständige Modellüberarbeitung verpasst, die die Leistung auf ein neues Niveau gehoben hat. Ein vereinfachtes Design mit weniger Teilen hat die Wartungseffizienz verbessert und das Gewicht reduziert, während die Kernfestigkeit und Steifigkeit durch neue Materialien und Rippen und Versteifungen vorne und hinten erhöht wurden. Darüber hinaus synergiert das symmetrische Chassis-Design eine hervorragende Front-Heck-Balance durch die Aufhängung mit reaktionsschneller Steuerung, unabhängig von der Antriebsquelle. Mit Rutschkupplung, vorderen und hinteren Getriebedifferentialen, Ölstoßdämpfern und vollständigen Kugellagerspezifikationen ermöglicht die hohe Haltbarkeit und Stoßfestigkeit den Fahrern, das volle Potenzial des Chassis auszuschöpfen. Bremsscheiben-Radnaben mit zwei verschiedenen Versätzen (0 mm, +5 mm) bieten Kompatibilität mit 190 mm und 200 mm breiten Karosserievarianten und ermöglichen die Anpassung des Radstands auf 274 mm, indem einige Teile (separat erhältlich) ausgetauscht werden, um die Kompatibilität mit anderen Karosserievarianten im Maßstab 1:10 zu gewährleisten , zusätzlich der Körper enthalten. Das Readyset-Paket wird komplett montiert geliefert und enthält alles außer Ladegerät und Akku für das Chassis und Akkus für den Sender.

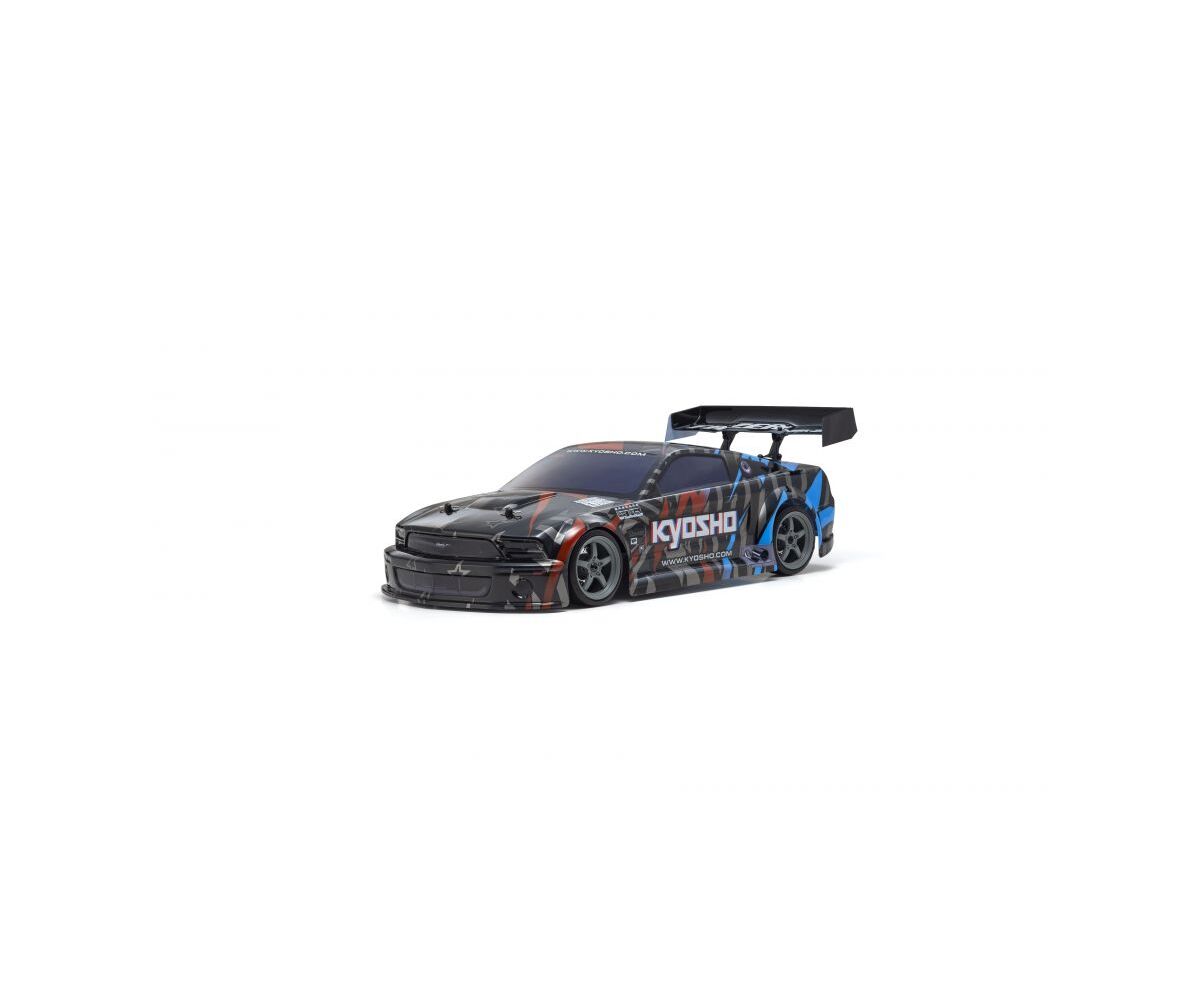

-It will be a finished printed body with flashy Kyosho original coloring on Ford Mustang, a classic American pony car.

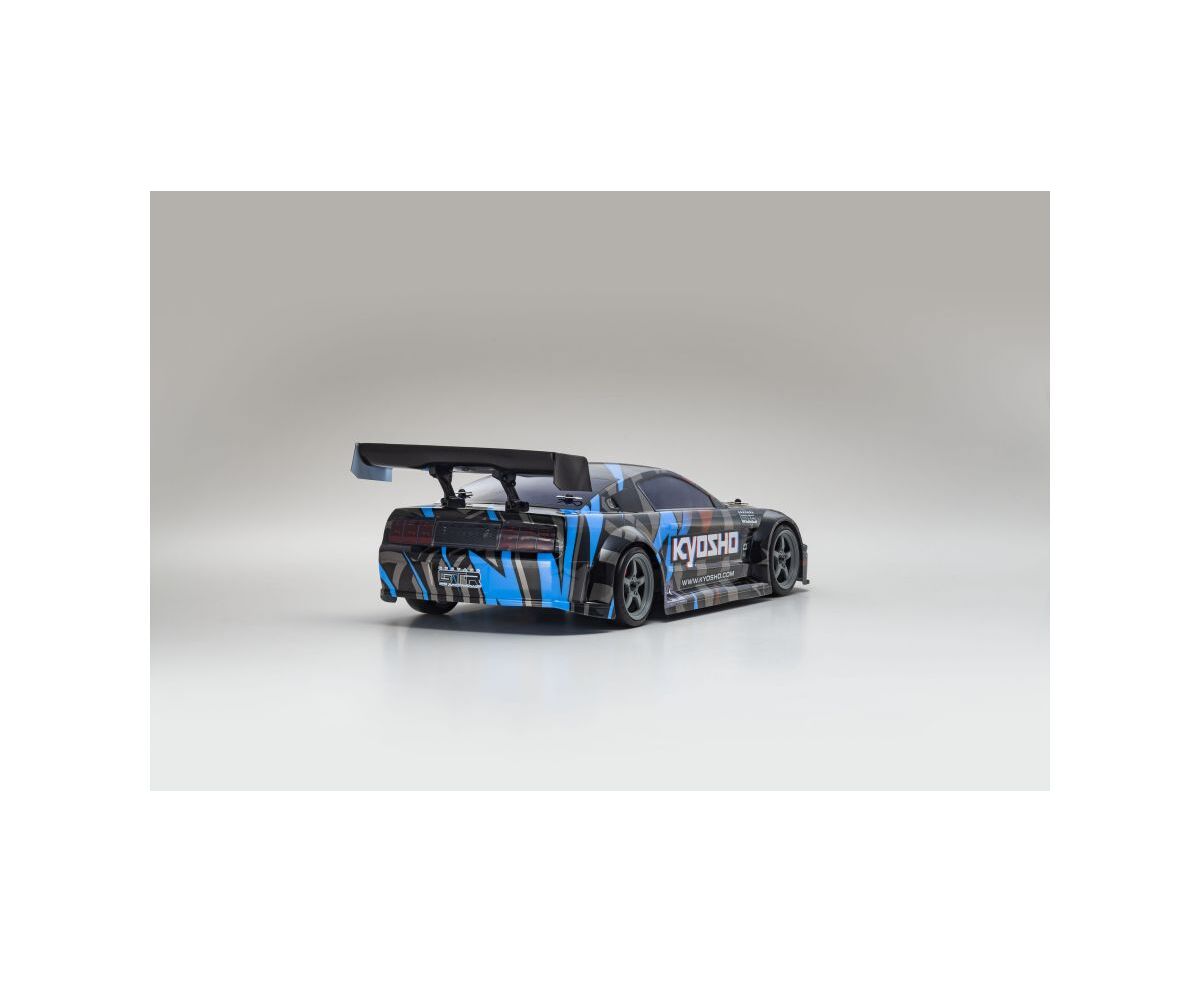

●Adopted a rear wing stay whose angle can be adjusted with a screw hole.
●In the initial settings, the vehicle height is raised to avoid problems caused by gaps.
●A factory-assembled readyset that can be driven by purchasing 4 AA batteries for the transmitter, a battery for driving, and a battery charger for driving.
- Full ball bearing specification equipped with bearings that reduce drive loss in all drive parts.
●Waterproof steering servo KS202W is standard equipment.
●Differential & transmission of sealed type that is highly reliable even in dusty parking lots.
●Shaft-driven full-time 4WD touring chassis that is easy for anyone to handle and enjoy driving.
- Equipped with plated dummy brake discs and painted brake calipers to enhance the scale.
● Use button screws with hexagon sockets for each part. Reliable tightening torque can be applied, and maintenance can be done with fewer tools.
●The motor mount has mounting holes according to the pinion gear, so troublesome backlash adjustment is unnecessary. Compatible with 29T to 37T.
●Driving performance can be improved by installing various optional parts.

A special model produced to commemorate the 40th anniversary of Ford's high-power machine Mustang. The tires are wider to accommodate the 5.0-liter V8 engine that generates 440 horsepower, and the body is also overfendered to increase power. The large rear wing claims high performance.

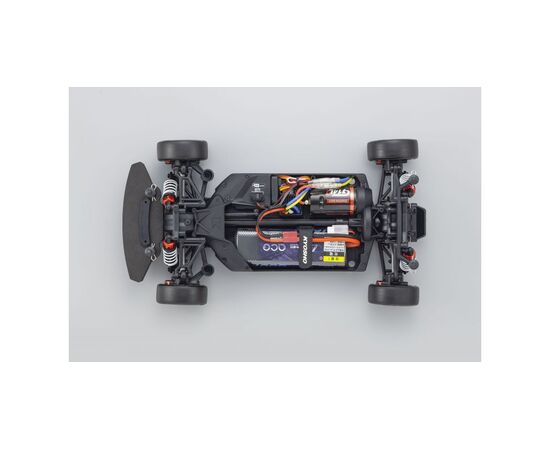

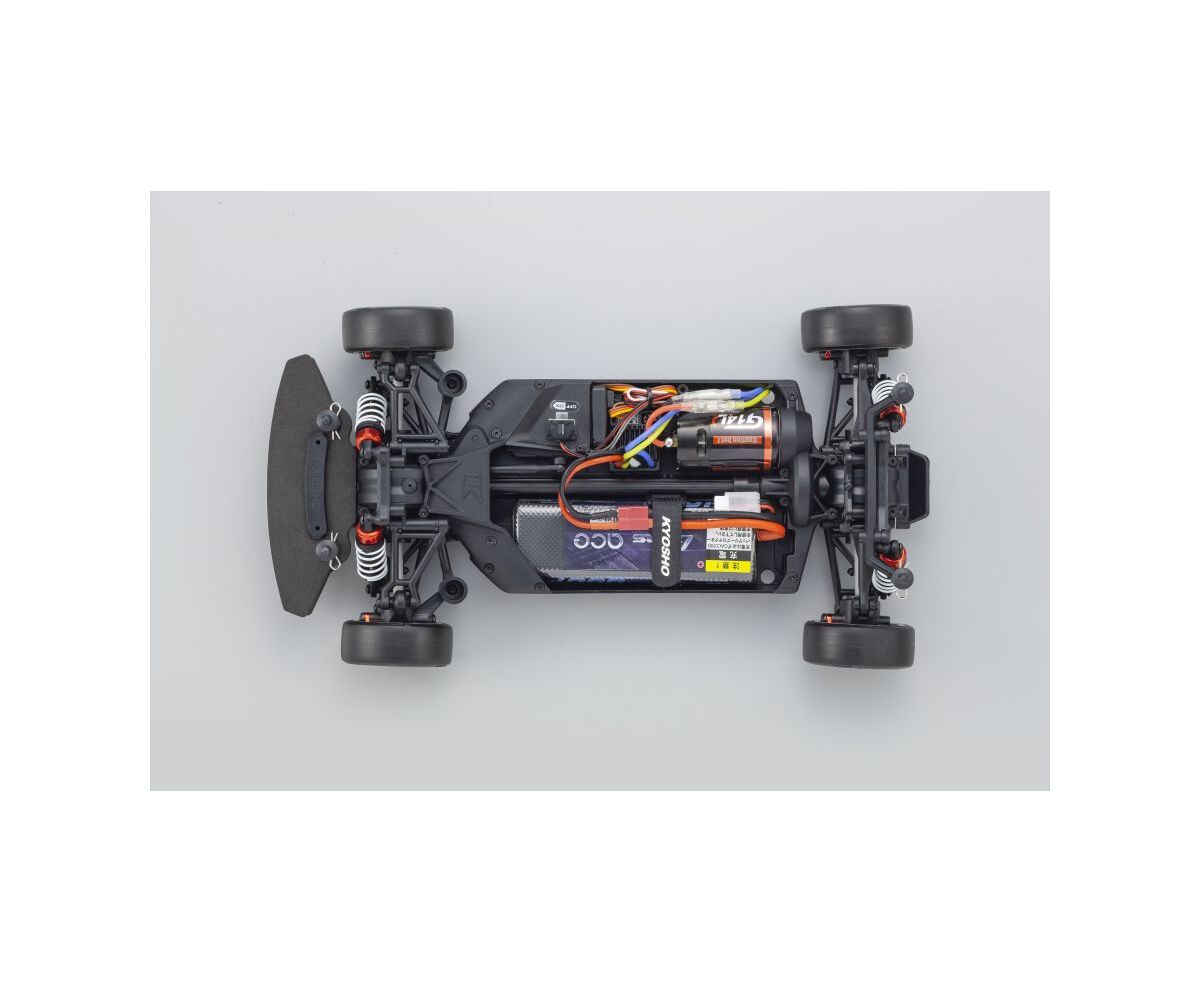

A simple, functional chassis with a low center of gravity. The main chassis has an integrated gearbox that optimizes torsional rigidity, and lightweight shock-resistant nylon is used to reduce weight. An upper deckless design has been achieved with a simple yet strong design.

In addition to reducing the number and type of parts and screws used, we also standardize screws of the same size for parts that are likely to be removed frequently. A flat head screw that can be removed with a 2.0mm hex wrench is used to pursue ease of disassembly and assembly.

A front suspension that optimizes factors that affect handling, such as bumpsteer and scrub radius. One of the features is the adoption of a simple ball-connect type steering knuckle that promises reliable operation. In addition, the front and rear hub carriers are shared on the left and right to minimize the number of spare parts on hand and improve maintainability.

Along with the dummy caliper, the brake disc type wheel hub, which greatly contributes to the visual improvement, comes with two types with different offsets to support both 190mm and 200mm width bodies.

Equipped with an oil damper as standard. By optimizing the front/rear geometry and front/rear balance, both nimble handling and steering stability are achieved. It is possible to change damping and vehicle height with the included setting change parts.

The spur gear and pinion gear are standard settings of 68T and 32T respectively, but the pinion gear can be used in all 9 types from 29T to 37T to suit various motors, allowing a wide range of gear ratio settings. In addition, by directly fixing the motor at the position corresponding to the number of teeth of the pinion gear used, the trouble of backlash adjustment is reduced.

The resin drift tires, which have both control performance and slide performance, are equipped with 5-spoke racing wheels with deep rims that are conscious of the drift scene.

Equipped with a new long size (550 size) 14-turn brush motor "G14L" as standard equipment. Equipped with a steel plate ring to generate powerful torque and support powerful driving.

TECHNICAL DATA

■Overall length 460mm
■Overall width (body width) 200mm (210mm)
■Overall height 142mm
■Wheelbase 260mm
■Tread (F/
R): 174mm ■Tires (F/R): φ63.2×24.2mm
■Gear ratio 6.54:1
■ Fully equipped Weight Approx. 1650g
■Propo used Syncro KT-231P+
■Motor G14L
■Mountable battery size 145x47x25mm

KIT CONTENTS

<Kit Contents>

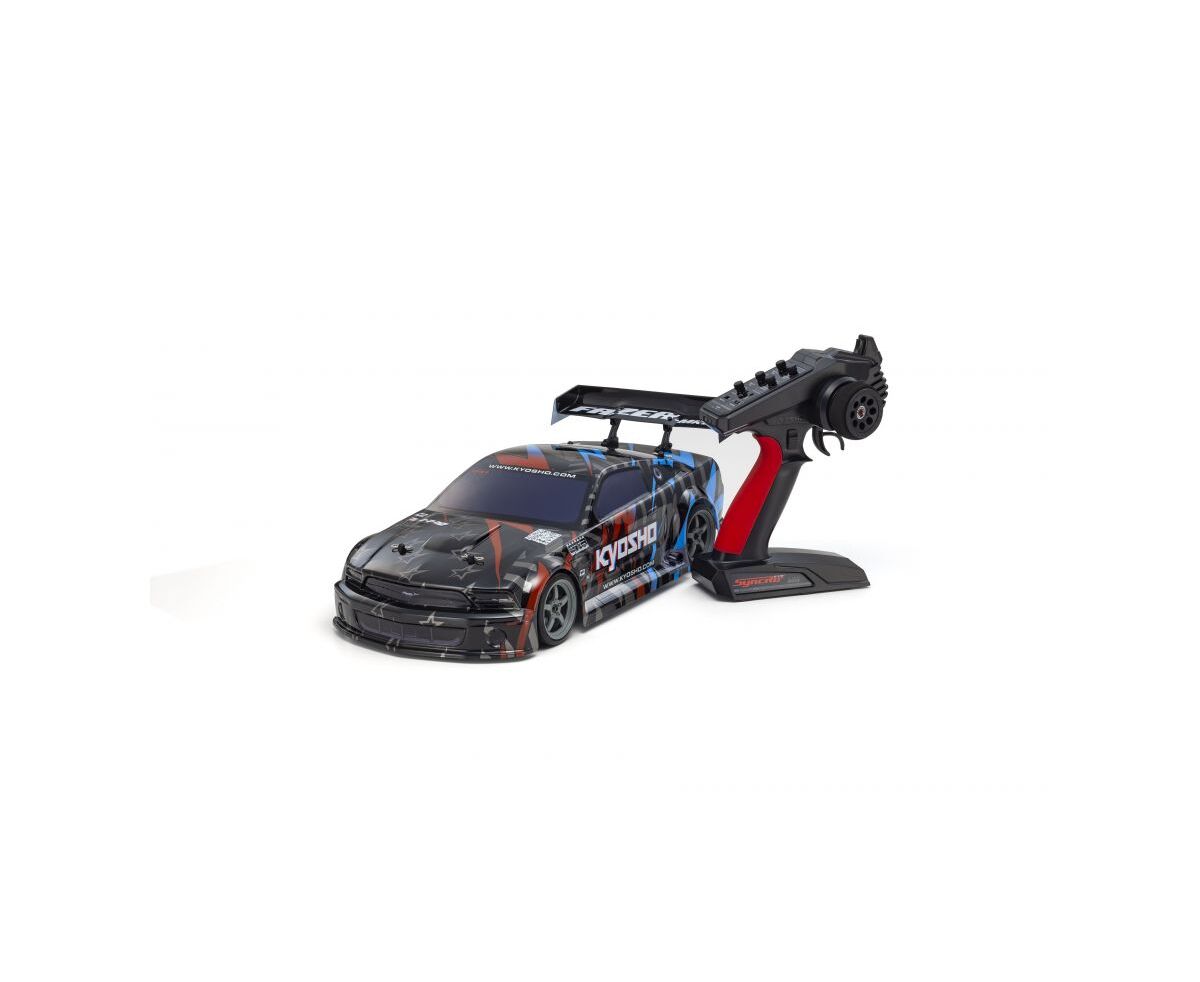

●Factory assembled chassis with R/C unit installed
●Coloring, decals, pre-assembled body
●Syncro KT-231P+ transmitter
●Hex wrench
●Spanner
●Setting change parts

WHAT YOU NEED BEFORE RUNNING

●4 AA batteries for transmitter
●Battery
　  recommended for driving: KYOSHO SPEED HOUSE 7.2V 22HV Ni-MH battery  71322
　　　　  KYOSHO SPEED HOUSE 7.2V 36HV Ni-MH battery  71324
　　　　  Gens ace LiPo 4000 straight pack (45C/7.4V) GAB4202
●Recommended battery charger for running battery
　  : KYOSHO SPEED HOUSE C-02B AC peak charger 72002B  *Ni-MH charger 7.2V
　　　　  NiMH USB charger  72203  *Ni-MH charger
●Various tools
