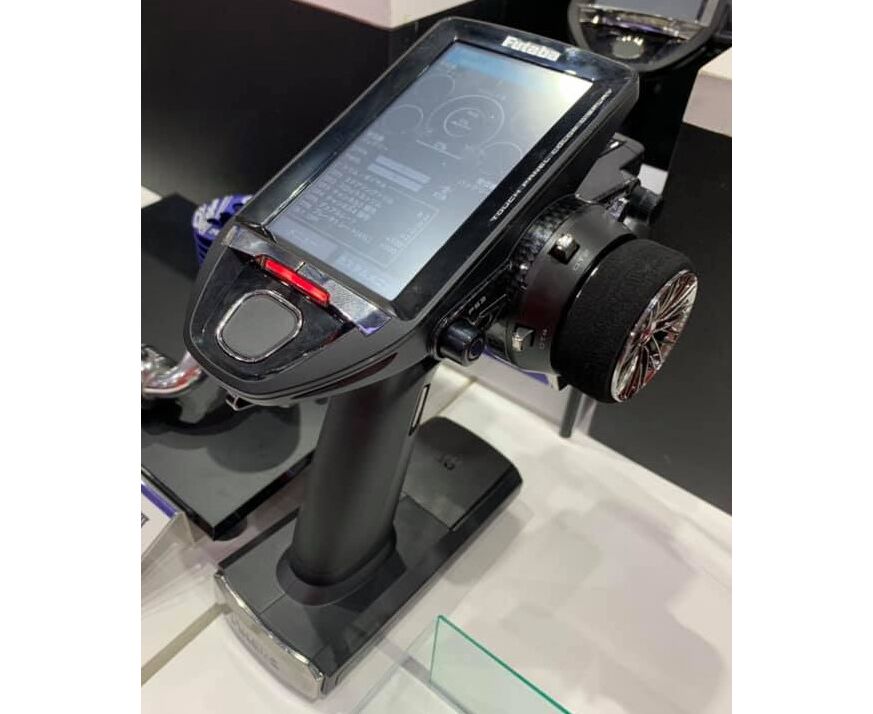

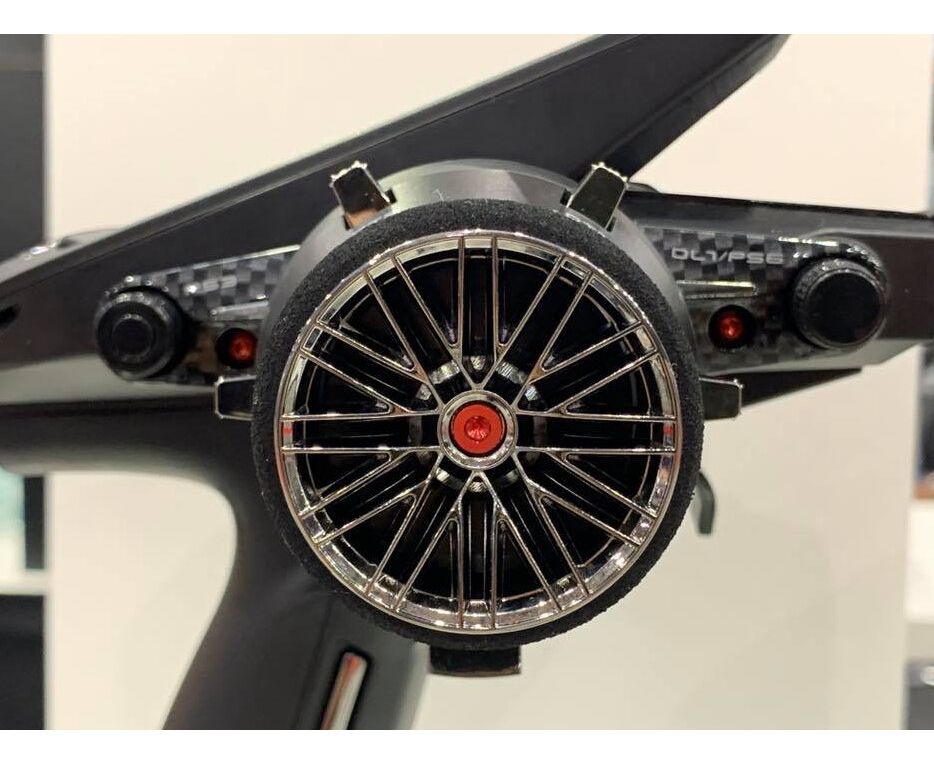

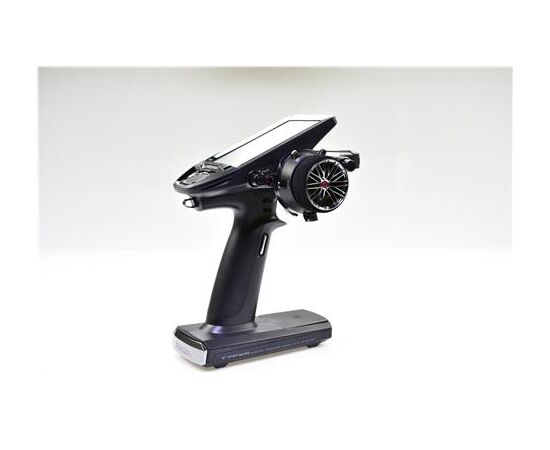

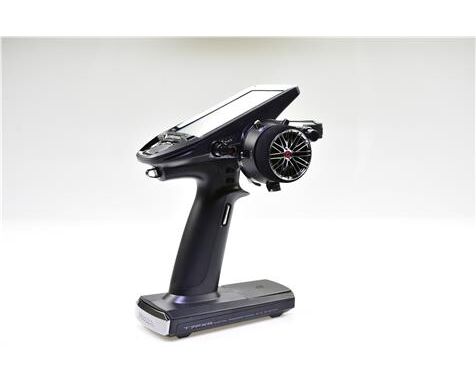

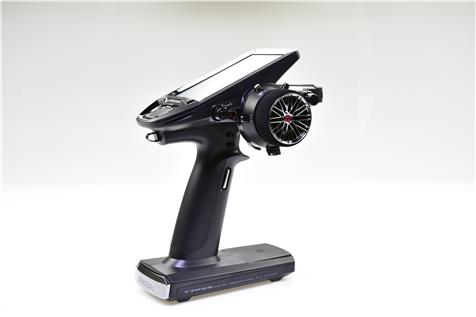

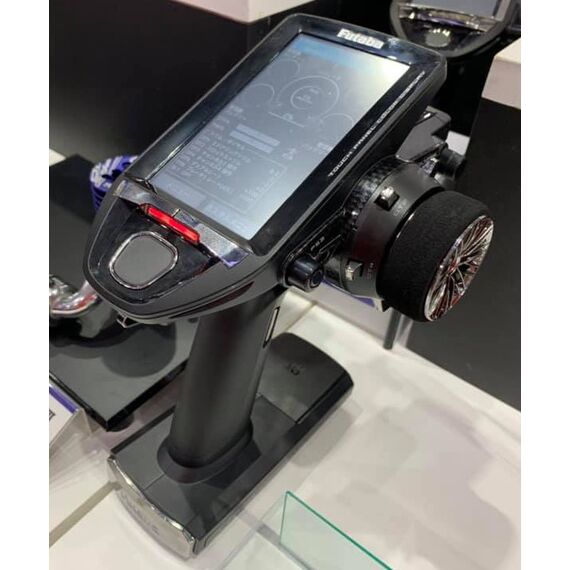

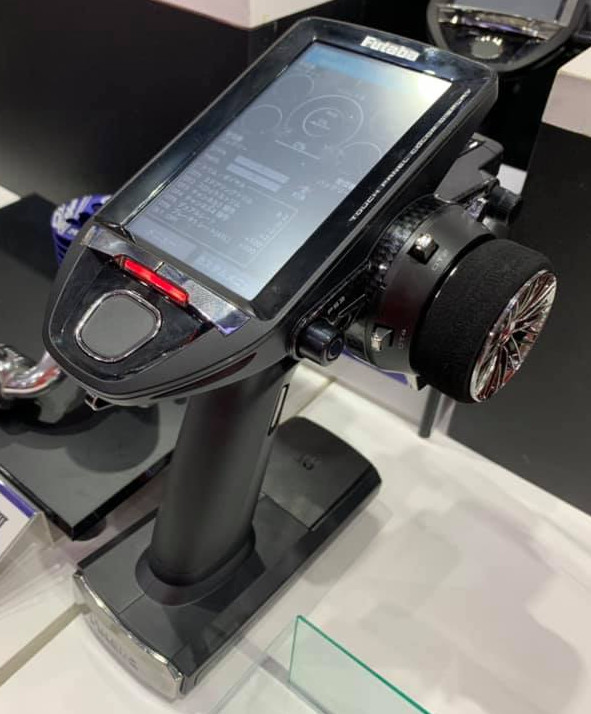

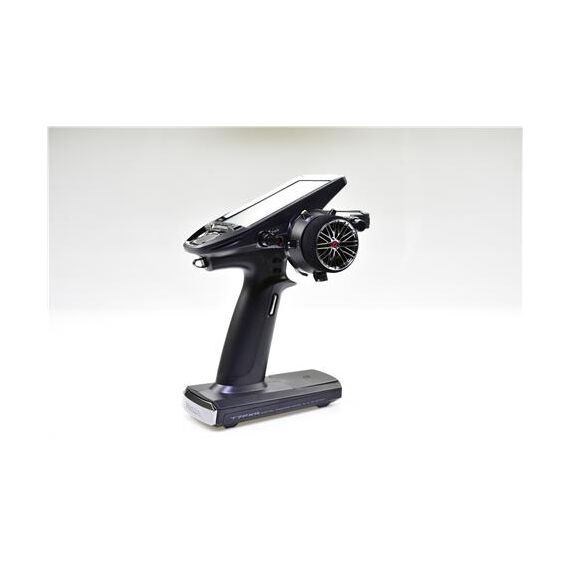

Futaba T7PXR 2.4Ghz T-FHSS SR+ R334SBS
Die T7PXR ist die spezielle "Racing"- Variante des HighEnd-Carsenders T7PX und zeichnet sich durch die folgenden Unterscheidungsmerkmale aus:
Redesign der Tastenkombination

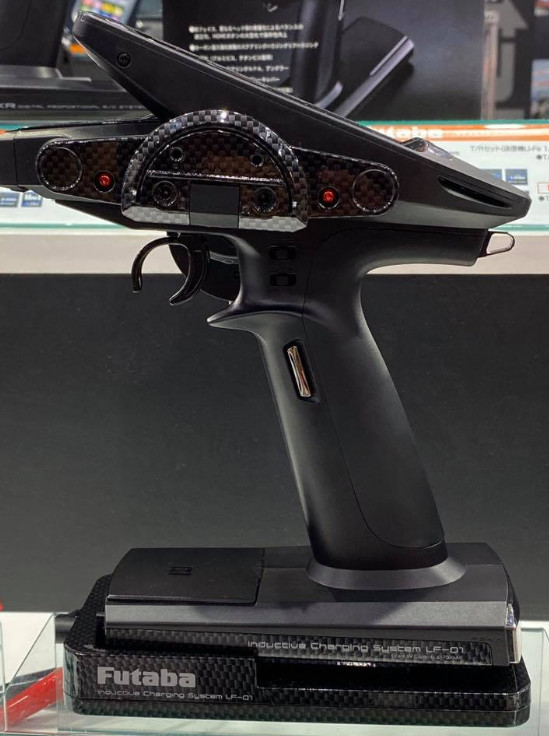

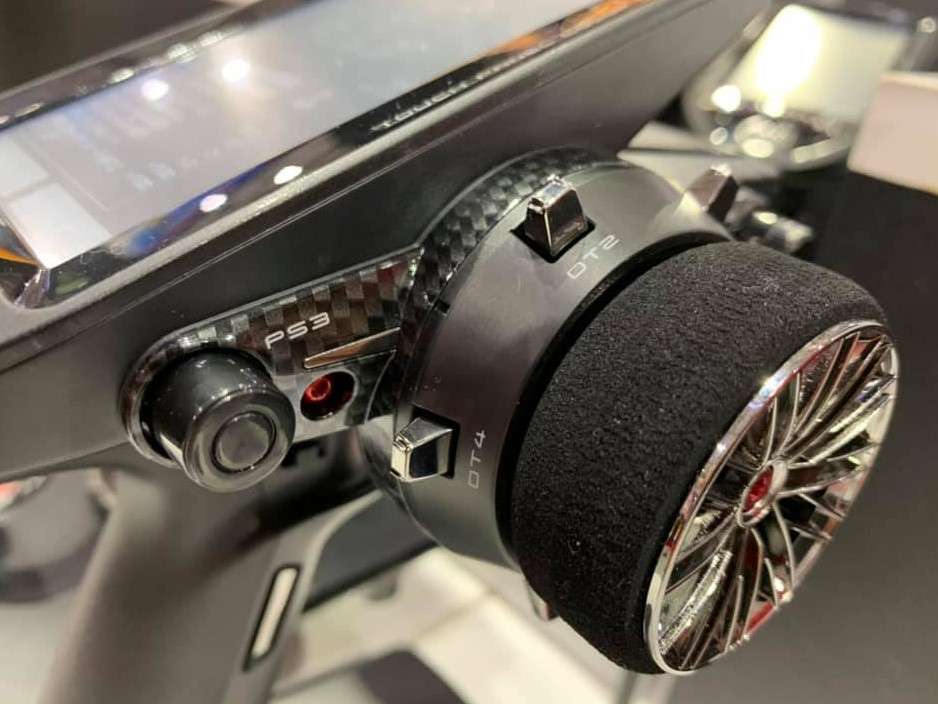

Gehäuse mit partieller Carbon-Akzentuierung
Verwendung von rot eloxierten Aluminium / Titanschrauben
LED- Beleuchtung in rot
Hintergrundbeleuchtung Menueführung aus 7 Farben wählbar
Ergonomisch angepasster Gaszug
Steiffere Lenkradaufnahme durch Verwendung von verstärktem Kunststoff
Der Lieferumfang umfasst
1x Sender 7PXR
1x Empfänger R334SBS
Core Features
Super Response
Amazing reaction speed is realized by the combination of the corresponding receiver and servo.
Wireless Settings
Corresponding servo and motor controller parameters can be changed wirelessly while mounted on the body
Optimal Feeling

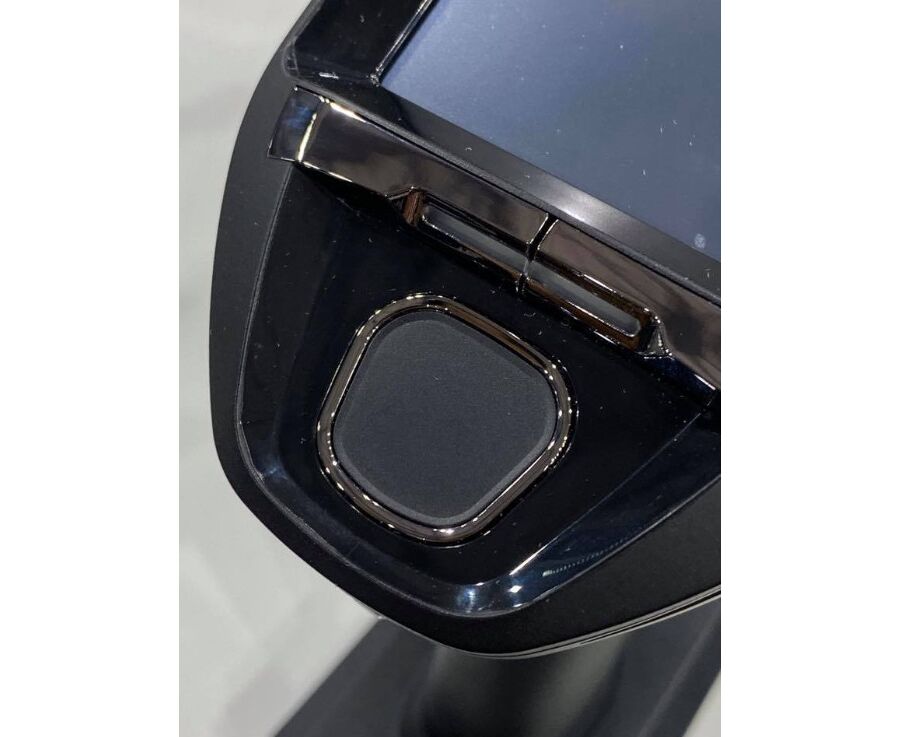

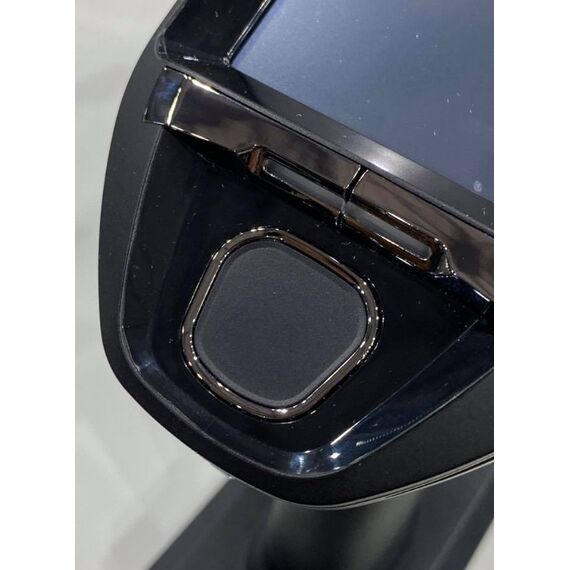

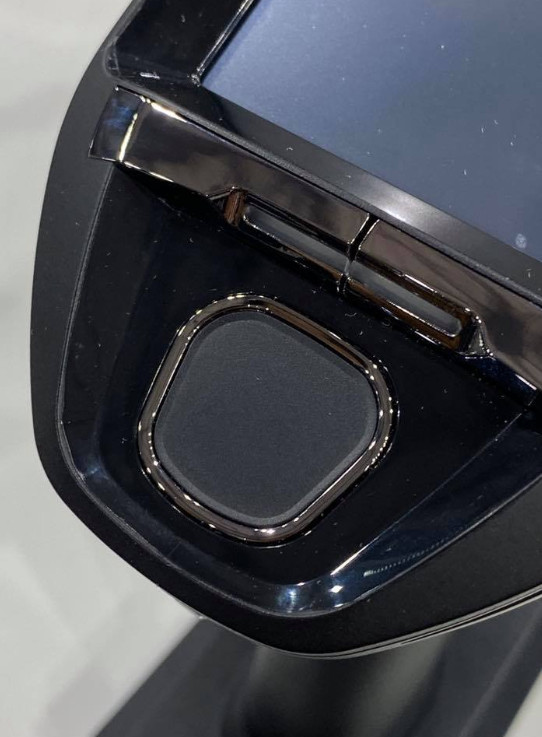

Improve balance by reducing head weight and improve operability by increasing home button size
Reinforced Housing
Adopt carbon-reinforced resin for housing material

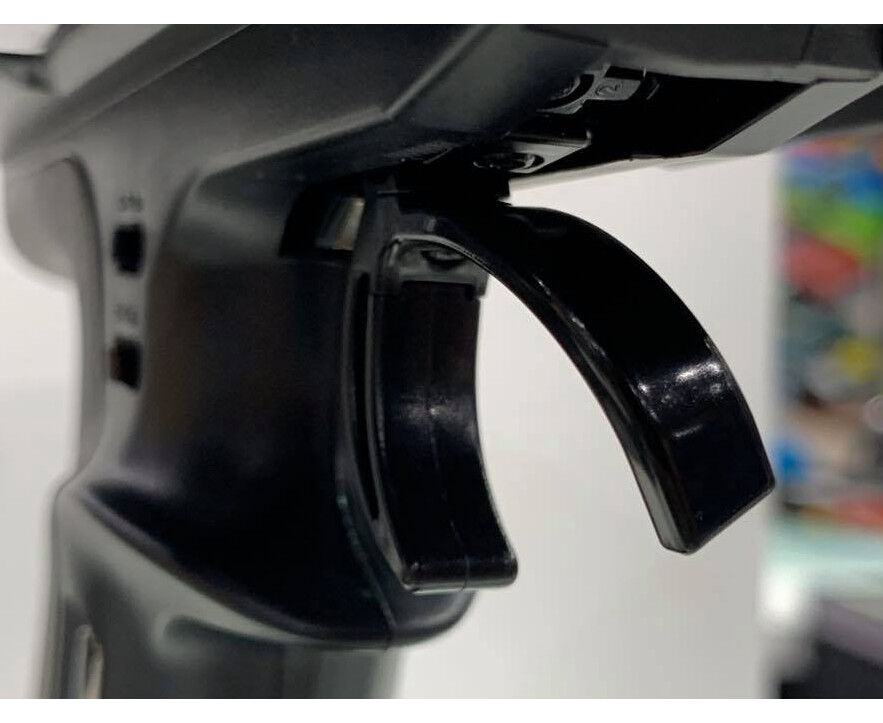

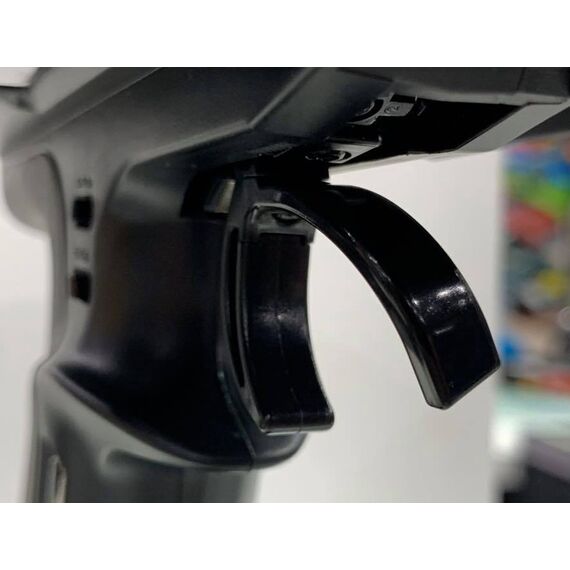

Curved Throttle Trigger
The trigger lever adopts a new design that gives a more natural operation feeling based on ergonomics.
Luxurious Design

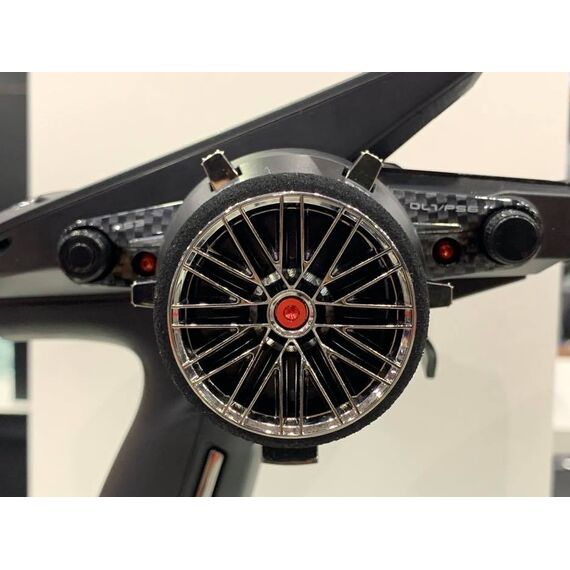

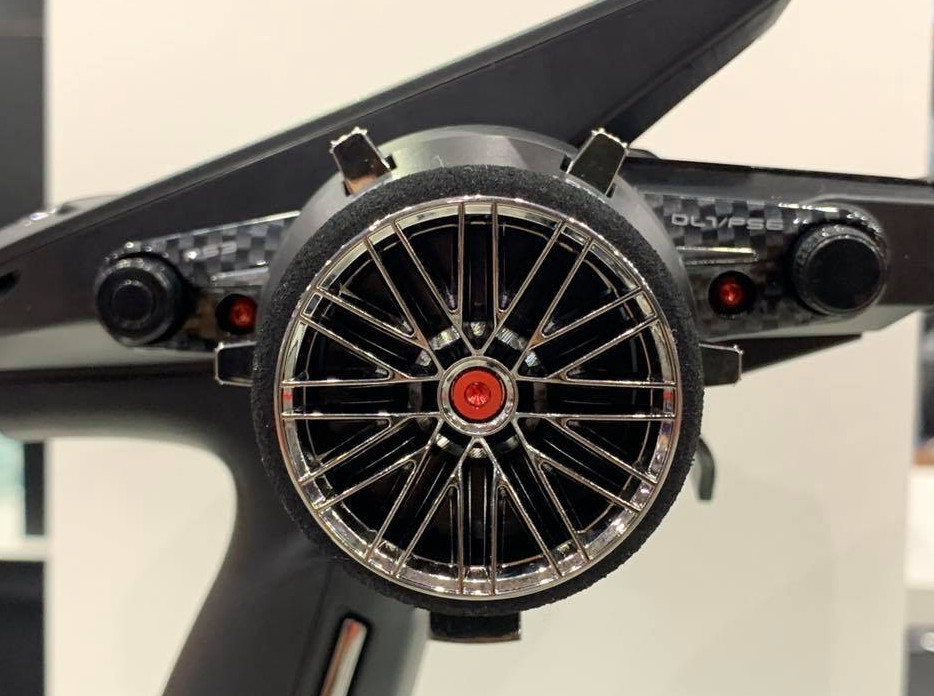

The hooks are black anodized with diamond cutting, and titanium screws are used in various places.
Wireless Setting
![T-FHSS SR](https://rc.futaba.co.jp/english/radio/img/wirelessset.png)
7PXR has a wireless setting function.
In the conventional method, rewriting the parameters of the S.BUS servo required a wired connection between the transmitter and the servo. This wireless setting function allows you to quickly change settings wirelessly while the S.BUS servo is mounted on your car.
Specifications
System Compatibility | T-FHSS SR, T-FHSS, T-FHSS MINI-Z mode, S-FHSS, FASST-C2 |
Power Requirement | Ni-MH battery : NT5F1800B LiFe Battery : FT2F1100B, FT2F1700Bv2, FT2F2100Bv2 |
Display | 4.3-inch full color touch screen LCD |
Left-handed support | The wheel can be installed on either side. |
External memory | microSD |
Software Update | Available using microSD card |
Model Memory | 40 models. A model copy function can create a model memory with different setups. |

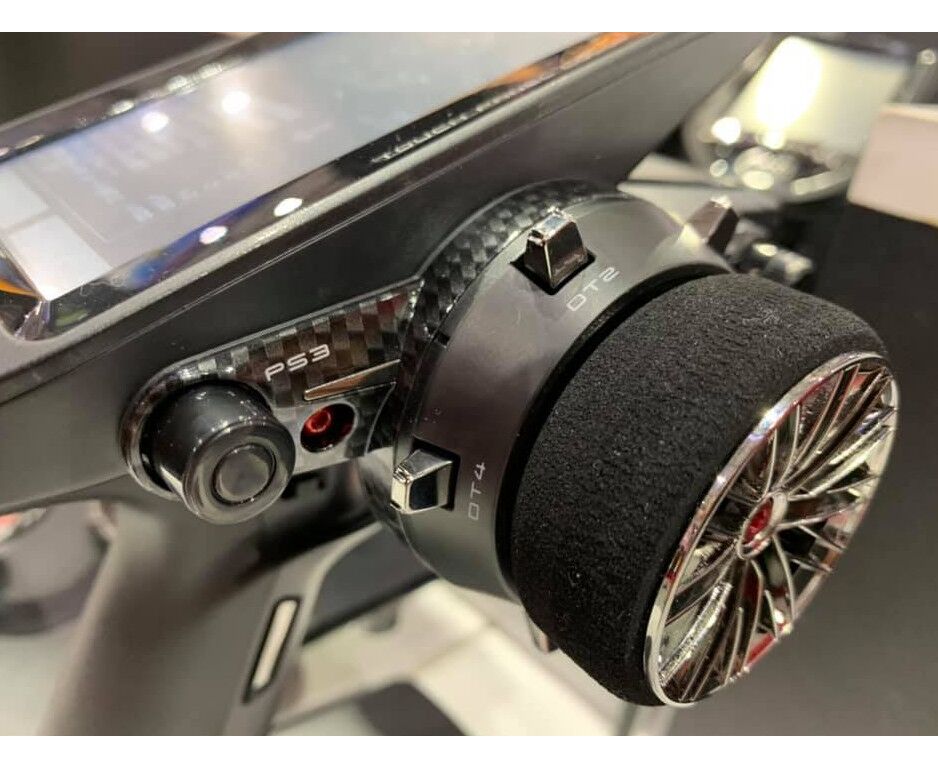

Integral type dial switch | Adopted a switch with both dial(DL1) and push switch(PS6) functions. |
Brake mixing for large cars | Brake mixing of the front and rear wheels of 1/5 GP and the other large cars can be adjusted independently. |
Steering mixing | Smooth cornering is possible by the independent left and right steering servo setting. |
4WS mixing | Used for crawlers and other four-wheel steering type vehicles. |
Dual ESCs mixing | The front and rear ESC can be controlled independently. |
Gyro mixing | The sensitivity of Futaba car gyros can be adjusted from the 7PXR. |
Tank mixing | This function is intended for vehicles such as tanks. |
CPS mixing | LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by a switch. |
Wireless S.BUS servo setting | Futaba S.BUS servo parameters can be set wirelessly. |
Throttle speed | Excessive triggering on slippery surfaces does not accelerate smoothly, just spin the tires. By setting the throttle speed function,smooth acceleration can achieve easily. |
Steering speed | If you feel that the speed of the steering servo is too fast,you can adjust it to reduce the maximum operating speed of the servo. |
Non-telemetry LED | This LED allows you to check the ON / OFF status of the telemetry function for tournaments where the telemetry function is prohibited. |

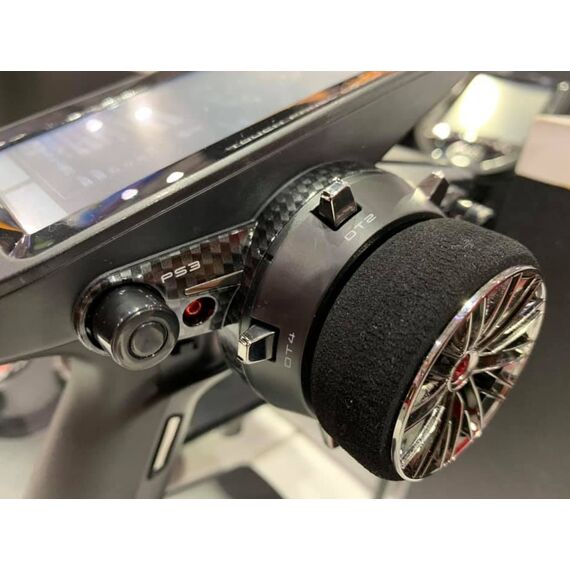

Dial select function | Functions can be assigned to digital trims,grip dials, and knobs. The step amount and operation direction can also be adjusted. |
Swith select function | Functions can be assigned to the five switches. You can also set the operation direction. |
Wheel & Trigger position can be changed | The wheel position can be offset by using an APA wheel position offset adapter. The wheel angle can also be adjusted. The position of the throttle trigger can be moved forward and backward. |
Trigger brake lever replacement | Trigger brake lever can be selected from narrow type and wide type. |
Trim/dial lock functions | Trim and dial settings and operation can be locked. |
Vibrator built in to the grip | The vibrator can be operated at racing timer lap navigation, time-up, and low battery, telemetry alarm. |
Manual and Software
Corresponding Receivers
![Receiver R334SBS](https://rc.futaba.co.jp/english/radio/img/r334sbs.jpg)
R334SBS
![Receiver R334SBS-E](https://rc.futaba.co.jp/english/radio/img/r334sbs-e.jpg)
R334SBS-E
Corresponding
Telemetry Sensors
Futaba telemetry system can check various data in real time.
The temperature sensor that measures the temperature around the cylinder in the needle set and the temperature of the power battery, and various types of rotation sensors that monitor the engine speed can be used.
![](https://rc.futaba.co.jp/english/radio/img/sbs-01rb.jpg)
SBS-01RB
Brushless Rotation Sensor
Connect to brushless motor or amplifier.
Measurement range : 360 to 300,000 rpm.
FUTABA CODE : EBB1138
![](https://rc.futaba.co.jp/english/radio/img/sbs-01rm.jpg)
SBS-01RM
Magnetic Rotation Sensor
Measurement range : 360 to 300,000 rpm.
FUTABA CODE : EBB1106
![](https://rc.futaba.co.jp/english/radio/img/sbs-01t.jpg)
SBS-01T
Temperature Sensor
Ideal for measuring engine head temperature
Measurement temperature range: -20 to 200 degrees
FUTABA CODE : EBB1107
![](https://rc.futaba.co.jp/english/radio/img/sbs-01te.jpg)
SBS-01TE
Temperature Sensor
It is a type to be attached to motors.
Measurement temperature range: 0 to 125 degrees
FUTABA CODE : EBB1108
![](https://rc.futaba.co.jp/english/radio/img/sbs-01v.jpg)
SBS-01V
Voltage Sensor
Measurement temperature range: 0 degrees to 125 degrees
Measuring range: 0 to 100V
FUTABA CODE : EBB1104
![](https://rc.futaba.co.jp/english/radio/img/sbs-01c.jpg)
SBS-01C
Current Sensor
Measurement voltage: 0 to 70 volts
Measurement current: 0 to 150 amps
The current and voltage consumption of the power battery during running can be measured.
FUTABA CODE : EBB1164
![](https://rc.futaba.co.jp/english/radio/img/sbs-02g.jpg)
SBS-02G
GPS Sensor
Detects the position, speed and altitude of the vehicle body by GPS.
Cannot be used indoors.
FUTABA CODE : 05102647-1
Optional Parts
![](https://rc.futaba.co.jp/english/radio/img/ebb1156.jpg)
BRAKE TRIGGER SS(13MM)
EBB1156
![](https://rc.futaba.co.jp/english/radio/img/ebb1155.jpg)
BRAKE TRIGGER S(15MM)
EBB1155
![](https://rc.futaba.co.jp/english/radio/img/ebt3352.jpg)
BRAKE LEVER SET
EBT3352
![](https://rc.futaba.co.jp/english/radio/img/ebt3351.jpg)
CARBON STYLE HARD STEERING HOUSING
EBT3351
![](https://rc.futaba.co.jp/english/radio/img/ebt3335.jpg)
WHEEL SET(PHI41)
EBT3335
![](https://rc.futaba.co.jp/english/radio/img/ebt3336.jpg)
WHEEL SET(PHI46)
EBT3336
![](https://rc.futaba.co.jp/english/radio/img/ebt2312.jpg)
COMBINATION GRIP
EBT2312
![](https://rc.futaba.co.jp/english/radio/img/ebb1135.jpg)
STEERING WHEEL ADAPTER 10ー
EBB1135
![](https://rc.futaba.co.jp/english/radio/img/ebt3354.jpg)
STEERING WHEEL ADAPTER 5ー
EBT3354
![](https://rc.futaba.co.jp/english/radio/img/ebt3332.jpg)
WHEEL APA ADAPTER 25MM
EBT3332
![](https://rc.futaba.co.jp/english/radio/img/ebt3353.jpg)
WHEEL APA ADAPTER 17MM
EBT3353
![](https://rc.futaba.co.jp/english/radio/img/ebt3334.jpg)
CARBON HANDLE
EBT3334
![](https://rc.futaba.co.jp/english/radio/img/ebt3345.jpg)
WHITE GRIP RUBBER S
EBT3345
![](https://rc.futaba.co.jp/english/radio/img/ebt3346.jpg)
WHITE GRIP RUBBER L
EBT3346
![](https://rc.futaba.co.jp/english/radio/img/ebt3330.jpg)
BLACK GRIP RUBBER L
EBB1156
![](https://rc.futaba.co.jp/english/radio/img/ebb1172.jpg)
CARRYING CASE
EBB1172
![](https://rc.futaba.co.jp/english/radio/img/ebt3338.jpg)
PROTECTION SHEET
EBT3338
![](https://rc.futaba.co.jp/english/radio/img/ebb1173.jpg)

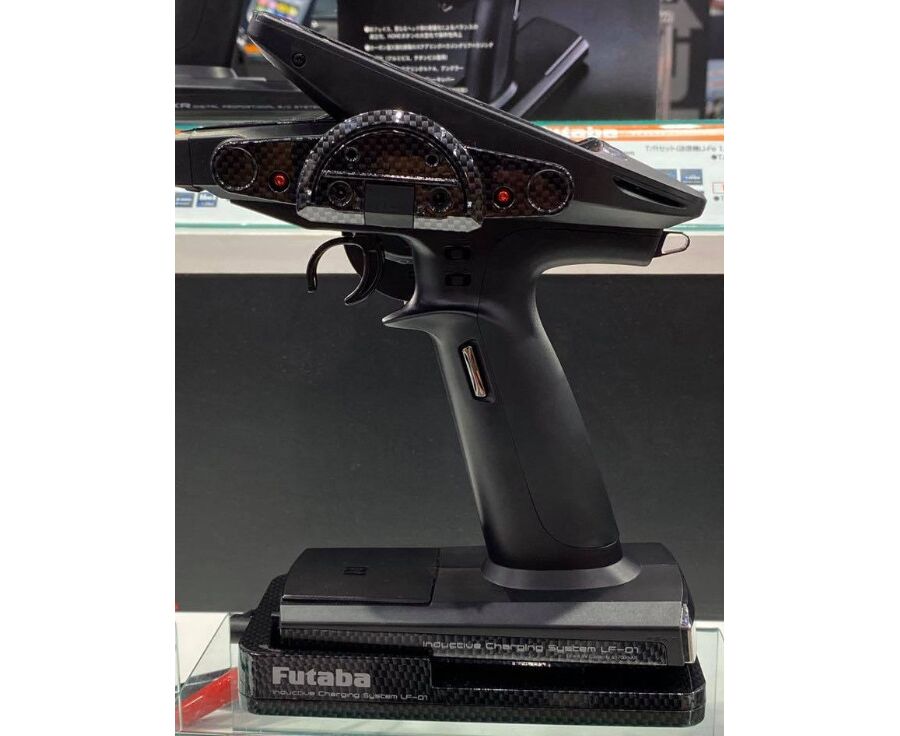

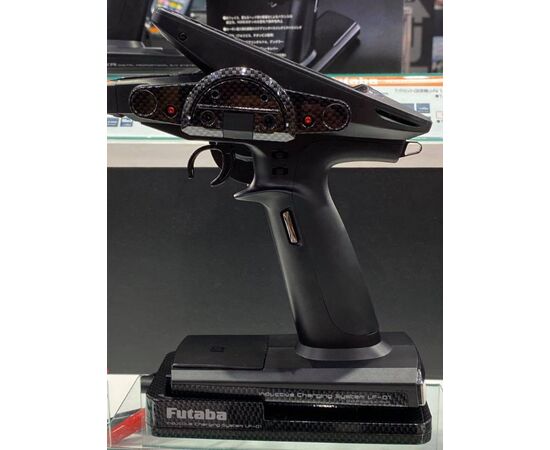

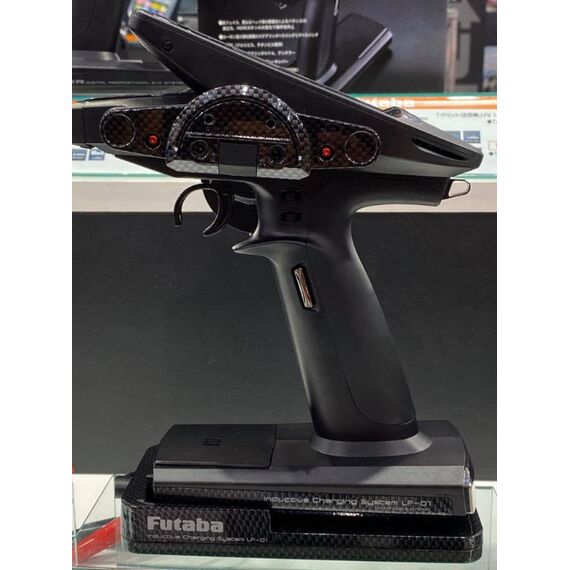

INDUCTIVE CHARGER
ICS LF-01
EBB1173
![](https://rc.futaba.co.jp/english/radio/img/eba0142.jpg)
NI-MH BATTERY
NT5F1800B
EBA0142
![](https://rc.futaba.co.jp/english/radio/img/eba0135.jpg)
LIFE BATTERY
FT2F2100BV2
EBA0135
![](https://rc.futaba.co.jp/english/radio/img/eba0140.jpg)
LIFE BATTERY
FT2F1700BV2
EBA0140
![](https://rc.futaba.co.jp/english/radio/img/eba0148.jpg)
LIFE BATTERY
FT2F1100B
EBA0148
