Gmade 1/10 GS02F BOM TC KIT

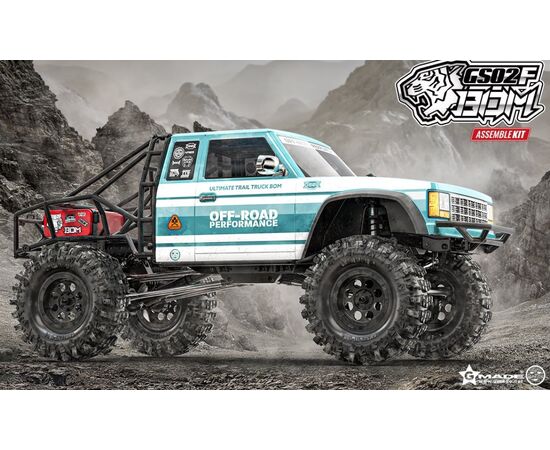

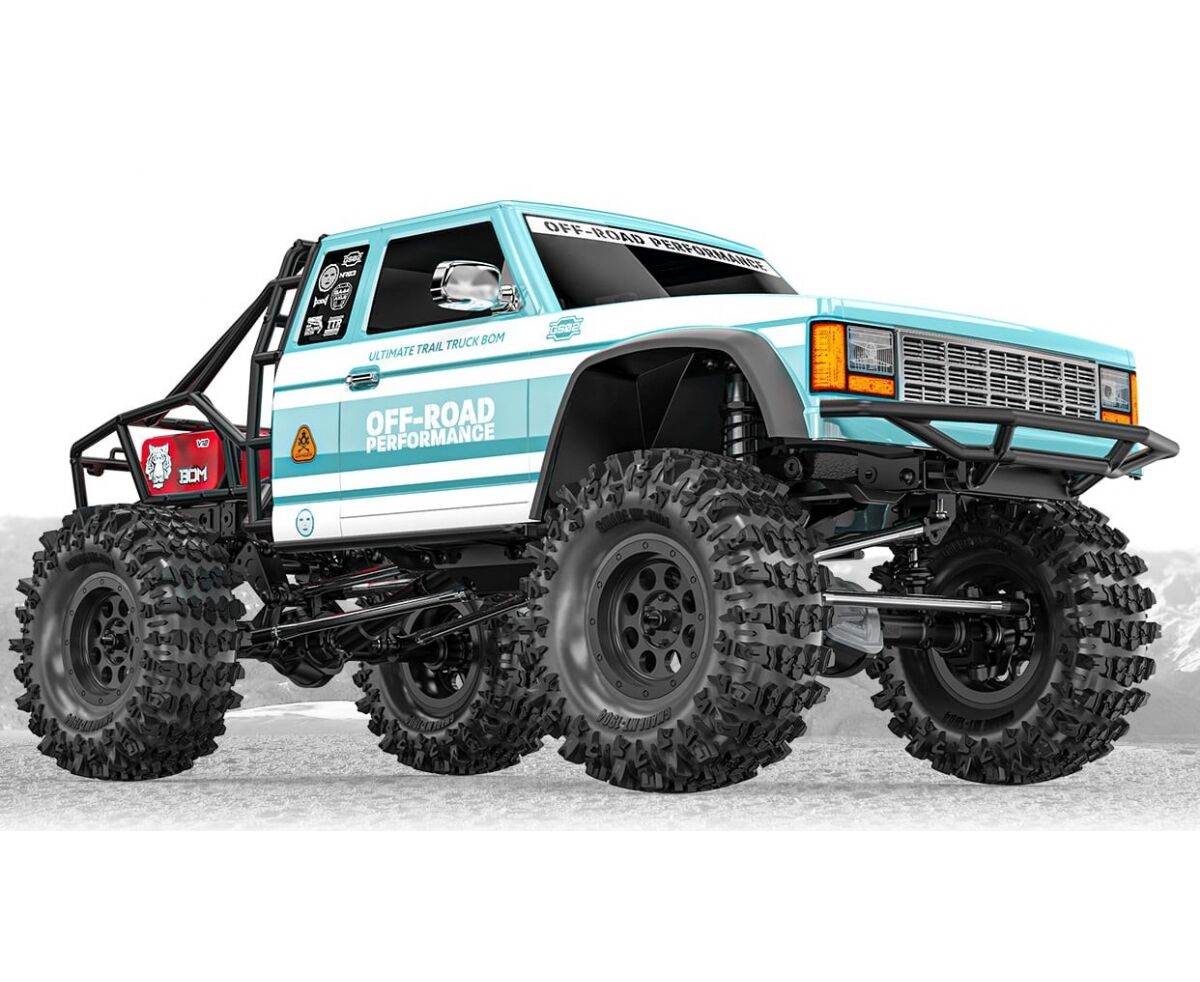

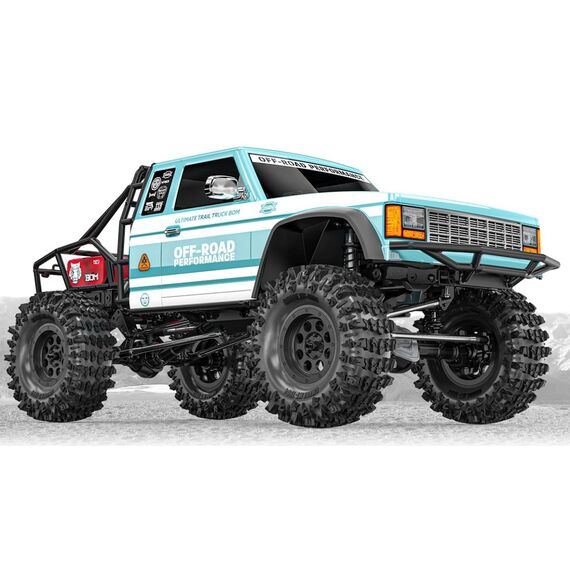

Shown with custom painted body. Included body is clear.
EQUIPMENT NEEDED (Not included)
Steel Ladder Frame
GS02F frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting or wraping. Also, steel parts are black powder coated finish to prevent rust.
The inner fender is directly fixed to the frame to reduce the flex and bending of the chassis and parts, it also reduces external objects to entering to the chassis during driving.
GS02F chassis allows three type of easy adjustment of wheelbase convert kit to use any type of 313 and 324mm custom bodies. (optional link kits are sold separately)
Front Weight Balance
GS02F's weight balance designed to be placed on the forward of the chassis. This will increase the tire tracktion to the front wheel to provide better crawling on ahigh tilt angle rocks and better driving performance when hill climbing and this will help minimizing the vehicle's rolling over when climbing.
Front Mounted Motor
Able to use 540 or 550 size motor with cooling fan with option. The motor is designed to mounted in front of thechassis, so it can increases more tire traction to the front side.
Adjustable Battery Tray
GS02F can use all sizes of lipo batteries and Ni-MH batteries.
Chassis Mounted Servo System with Panhard Bar
GS02F steering system has a steering servo on the frame just like a 1:1 real car. It is designed to make it as closed to the zero bump steer so bump steer movement does not appear by front wheel suspension movements, so we ended up with maximizing the steering performance of the vehicle. In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.
The drive lines of the front and rear axles are arranged in straight-line to reduce the fatigue stress of the universal shaft and reduce the loss of driving power by providing efficient driving lines.
The GS02F transmission is designed to look as a real 1:1 scale vehicle, and provides the best performance according to the driving situation.
Overdrive means, front and rear wheels rotate at the different speeds. The GS02F transmission is designed to rotate the front wheel faster than the rear wheel.
Better Steering Radius
Vehicles with overdrive on the front axle has an improved steering radius compared to non-overdrive vehicles, making it easier to control when driving on the rough surfaces.
Increasing of the tire traction allows the vehicle to pass through steep slopes and obstacles without lifting the front of the body upward.
2-Speed HI/LO Transmission
The 1st gear is for hardcore rock crawling and the 2nd gearis for hill climb or high-speed driving.
Torque Twist Reduce Transmission
GS02F transmission is designed to drive in a stable position without pulling the balance of power transmitted to the axle. The front and rear universal shafts based on the transmitter each rotates clockwise and counterclockwise, this compensates for the forces acting on the opposite rotational forces due to the action(torque) and reaction(reverse torque) because of that this vehicle can run in a super stable conditions.
Easy Adjust Motor Mount
You can easily replace and install the motor pinion gear to changing the gear ratio.
GA44 axle is designed with the hardcore rock crawler in mind. Axles are made of high-strength meterials, and it will look and perform optimum off-road perfermance as real 1:1 vehicle when 4-Link suspensions added. The GA44 axle housing is a durable one-piece type. The angle of the differential cover is designed to reduce the risk of damage due to frontal impact and is therefore very suitable for off-road driving.
Keeping the scrub radius to a minimum to let your steering servo work at it's full potential and increases the steering efficiency.
Hi Steer knuckle Arm
By increasing the approach angle, you can over climb the obstacles more easily than a typical trial trucks.
The GA44 front axle can be adjusted to the steering style to have a smooth and short turn angle depending on the driving style or to adjust to improve straight stability by changing the caster angle.
Zero Ackerman Steering
The GA44 axle is using Zero-ackerman steering system with CVA to ensure maximum performance with a short turn radius and smooth motion even on rough off-road terrain.
SD Scaler Shock Absorber
SD Scaler Shock is a Coil-over styled oil shock absorber optimized for the scale trucks. The oil filled inside the shock minimizes splash when the vehicle is driven, and provides a high-durability aluminum shock body with 3.5mm heavy duty shock shafts are added, these will help you to drive roughly on rough surfaces. Beginners also can easily assemble this shock and change setups, and the adjustable nut makes it easy to adjust the ride-hight so you can quickly change your car setup even when driving condition changes.
Rear Cantilever Suspension System
The GS02 rear cantilever suspension system is designed for efficiently use of custom flat beds, full drop beds and the interiors. It also provides smooth motion of the shock and big wheel travel.
WHEELS & TYRES
MT-1904 1.9 Inch M/T Off-Road Tire
MT 1904 off-road tire made of super soft compound material provides high traction to the surface. The treads of tire pattern are suitable for off-road driving and are designed with large diameter that enables to run smoothly on any uneven road surface.
Tire Height: 121mm Tire Width: 45mm Inner Diameter: 48mm (1.9")
1.9Inch NR03 Wheel
Width: 23mm Diameter: 48mm (1.9") Offset: 0.5mm positive offset Hex mount: 12mm
BOM Lexan Body
The BOM body is made of high quality Lexan, which impact-resistant and it’s very detailed. Includes Front Grill, Light Buckets, Side Mirrors, Door Handles, and rear cage to add body details, allowing to tune in realistic off-road trucks. The accessory parts are made of high-strength plastic so they are resistant to impact and contain real detailing decals.
Rear Cage & Rear Cage Hinge
The three-dimensionally connected rear cage structure effectively counteracts external impacts and the dustproof electronic box protects various electronic equipment from foreign objects. Also, the rear cage is designed as a hinge type so that the connected body can be easily attached and detached from the chassis.
