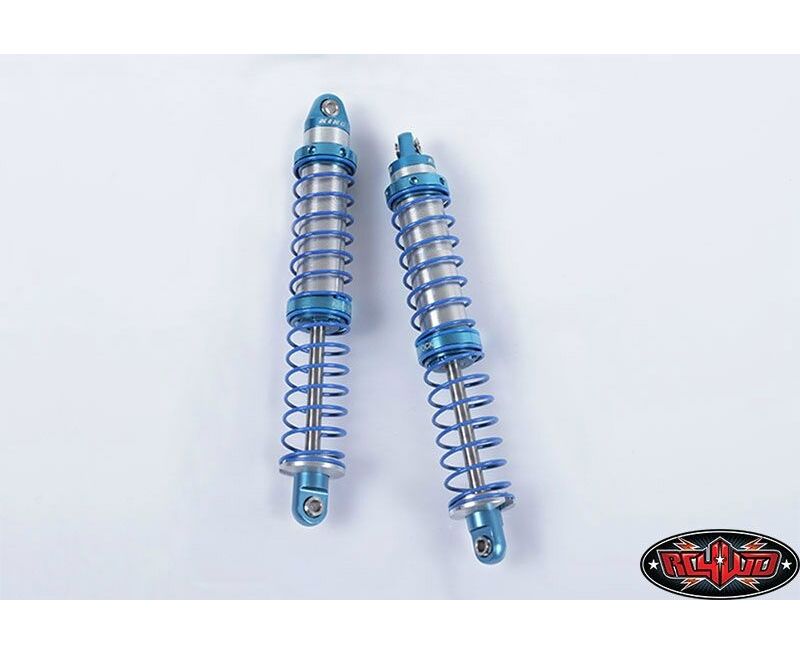

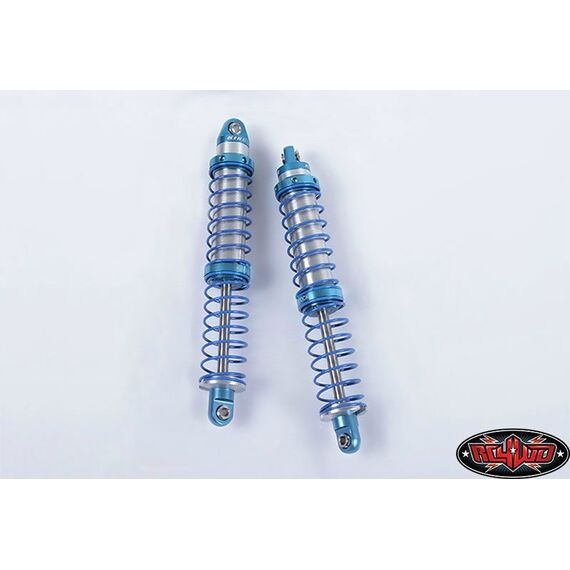

King Off Road Dual Stossdämpfer 110mm

RC4WD-Z-D0065
CHF53.00
Auf Lager bei Lieferant
Produkt wird in ca. 3 Werktagen an sie versendet
+
Merken Vergleichen
These are the all new Licensed Dual Spring Shocks to hit the market and are officially Licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!

Specifications:

  • Machined Billet Aluminum
  • King on Top and Retainer Ring
  • Dual Spring Design
  • Steel Rod End Ball
  • Ball Width: 0.25in / 6.3mm
  • Ball Lip Diameter: 0.19in / 4.8mm
  • Ball ID: 0.12im / 3mm
  • Hole to Hole (Compressed): 2.95in / 75mm
  • Hole to Hole (Uncompressed): 4.33in /110mm
  • Overall Length: 4.7in / 119.44mm
  • Travel Length: 0.98in / 25mm
  • Shock Body OD: 0.49in / 12.6mm
  • Shaft OD: 0.15in / 3.97mm
  • Spring Body OD: 0.66in / 16.8mm
  • Spring Body ID: 0.58in / 14.8mm
  • Each Weight: 0.98oz / 28g

What's Included:

  • 2x RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD)
  • 1x King Decal Sheet


Optional Parts:

  • RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)
  • RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
  • RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
  • RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD) (Z-D0067)


Replacement Parts:

  • Rebuild Kit for King Off-Road Dual Spring Shocks (Z-S1263)
  • Replacement Shock Shafts for King Dual Spring Shocks (110mm) (Z-S1281)
  • RC4WD Shock Cap for Top of King Offroad Shocks (Z-S1280)
  • RC4WD Lower, Center and Threaded Spring Retainer for King Offroad Shocks (Z-S1282)
  • RC4WD 110mm King Off-Road Dual Spring Shocks Spring Assortment (Z-S1291)


Notes:

  • Fits RC4WD Timberwolf Scale Crawler Kit (Bolted Chrome) (Z-K0016 "Disc") (Front / Rear)
  • Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.


King Off-Road is a registered trademark of the King Off-Road Shock company. The King Off-Road logo is property of King Off-Road Shocks and used under license by RC4WD.
