LED System for Tamiya 1/14 Truck, ready for Tamiya MFC01, MFC03
V3.1MFC / V3.1S Wireless (Bluetooth) Professional LED System by ob1-RC dedicated for Tamiya 1/14 RC Tractor Truck's MFC-01 / MFC-03 Multi-function Control Unit

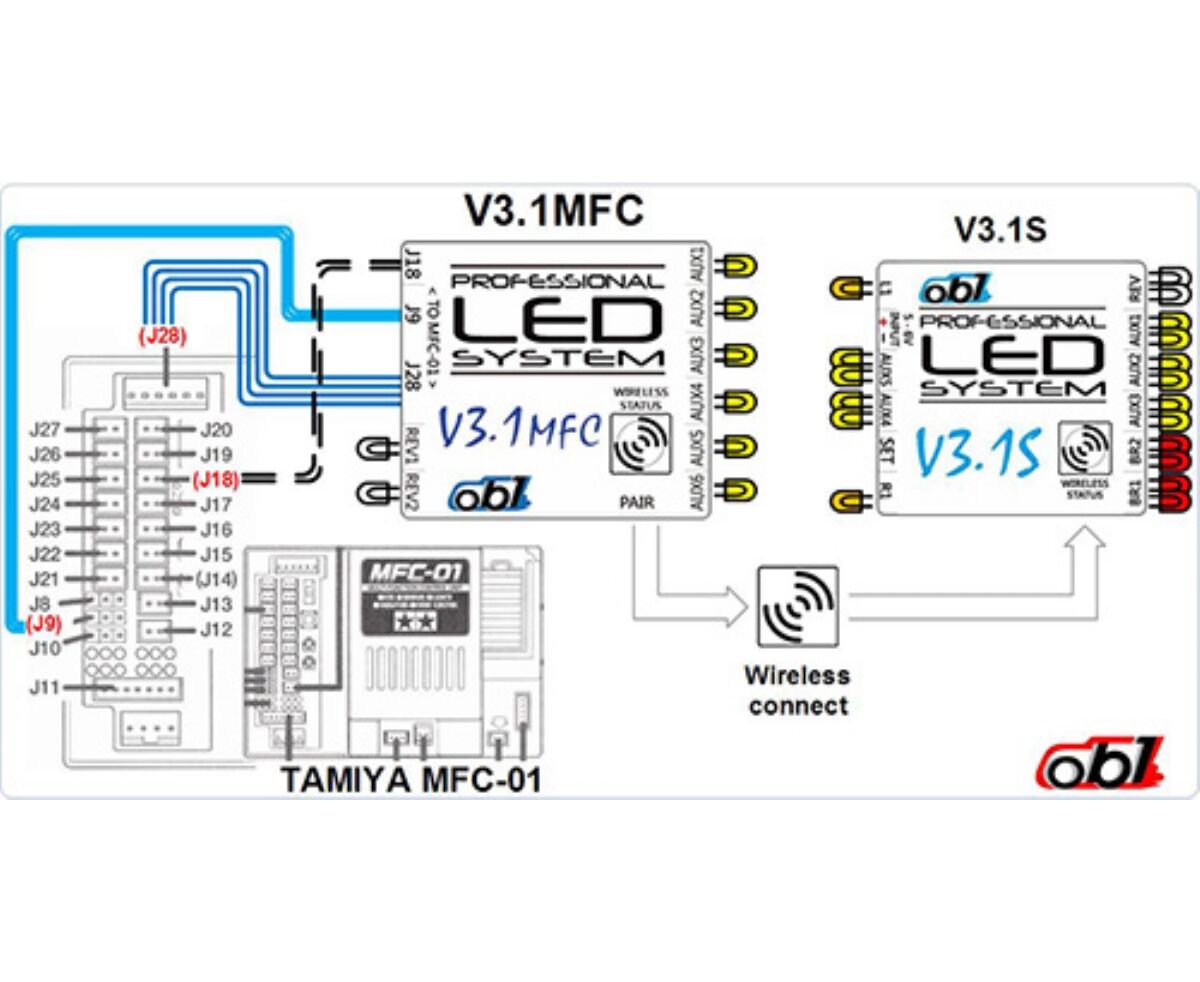

V3.1MFC connects directly to Tamiya MFC-01 (#56511) / MFC-03 (#56523), Plug & Play
V3.1MFC wireless connects V3.1S, becomes Wireless Tractor Truck LED System
They're NOT just replaces Tamiya Semi-Trailer Light Set (#56502), but adds following Additional functions:
Internal Bluetooth (v2.0), Press "PAIR" once to connect Tractor Truck and Trailer
Support UP / DOWN Detection (If installed Tamiya Support Legs #56505)
V3.1MFC has 6 independent AUX LED, works together with MFC-01 / 03's AUX LED
3 Flash modes added (Similar to MFC-02)
Additional 1 plug for Back lamp (Total 2)
V3.1MFC - Standard Kit (9 LED cables)
Install on Tractor Truck, internal Bluetooth wireless connects V3.1S
8 LED Connectors
AUX1-6 (AUX lamp) / REV1, 2 (Reverse lamp)

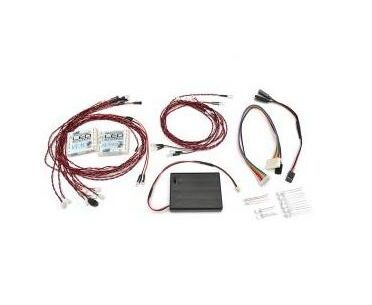

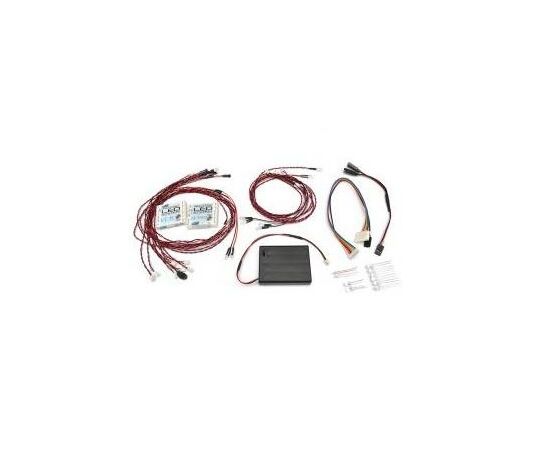

Kit includes:
Main unit x 1
MFC Main Harness (J9, J28) x 1
REV Harness (J18) x 1
SET / PAIR switch Harness x 1
Y-Harness x 1
Extend LED cable x 1
3mm WHITE LED cable (BL-R3CW1X) x 1
3mm YELLOW LED cable x 2
LED cable (DIY, 60cm) x 6
5mm high brightness WHITE LED x 6
User Manual (English / Traditional Chinese) x 1
Product total weight: 111.00 grams
Factory description: ob1-RC V3.1 MFC / V3.1S Professional LED System For 1/14 Truck
Manufactured by ob1-RC
Manufacturer number: OB1/BL-V31MFC
