MOTOR/REGLER COBRA 8 1/8 1512 2200kv V2/COBRA 8 SENSOR. 25.2V LIMITED EDITION GO

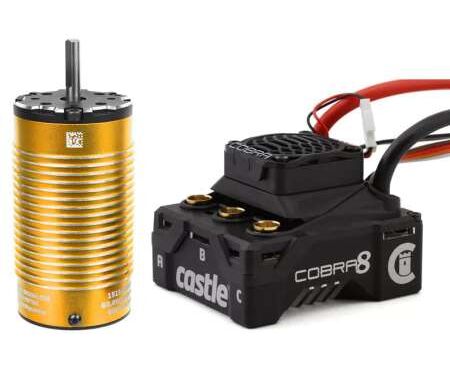

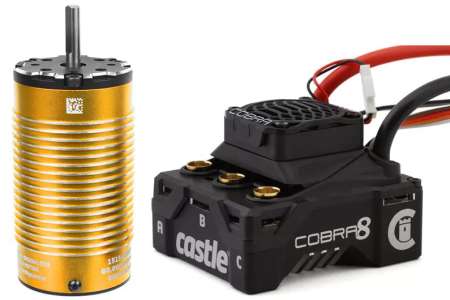

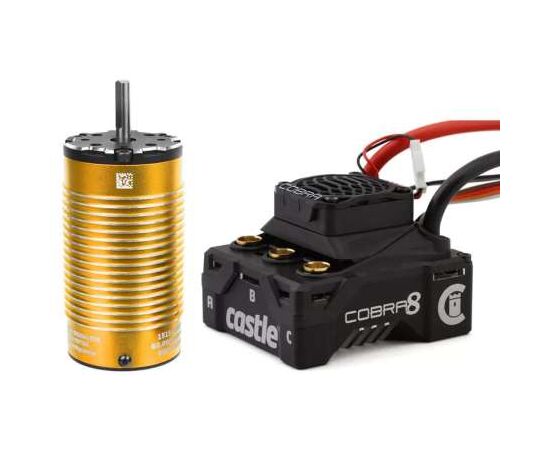

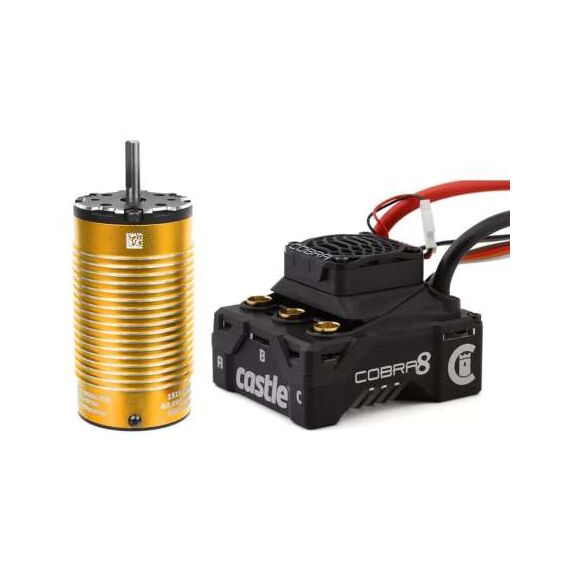

Castle Creations - COBRA 8, 25.2V ESC WITH LIMITED EDITION GOLD 1515-2200KV V2 SENSORED MOTOR
The gold 1515-2200Kv V2 motor, meticulously engineered for precision and power, pairs seamlessly with the Cobra 8 ESC, delivering an unmatched level of speed, control, and style.
Cobra 8 Key Features:
• 32-Bit Processing power for smoother motor control and improved response time.
• Improved thermal performance with CRYO-DRIVE™ technology.
• Enhanced Data Logging includes:
o Double the maximum sample frequency of older generations.
o 8x increased logging time of older generations.
o Data point for ESC electrical motor timing.
o Data point for acceleration via onboard accelerometer.
o Looping feature prevents interruptions in data log recording.
• Additional tuning features include:
o Improved braking adjustability
o Separate brake and reverse curves
o Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
• Auxiliary wire functionality for "on-the-fly" adjustments using transmitter.
• Sensored Only, Brushed and SmartSense™ Running Modes
• Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
• Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
• ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer.
• Mounting holes located in bottom of aluminum case for installation into vehicle.
• The COBRA 8 is proudly designed and manufactured in Olathe, Kansas USA and backed by the Castle Creations one-year warranty.
Cobra 8 Technical Specifications:
Input Voltage ESC: MIN: 2s LiPo, MAX: 6sLiPo 25.2V
Size: 2.36” x 2.04” x 1.69”
Weight: 165.6 g / 5.84 oz
BEC Voltage: 5.0V - 8.0V adjustable in 0.1V increments; (8A Peak); default 5.5V
Wire and Connectors: 6.5mm female bullets; matching 6.5mm male bullets required.
Running Modes: SmartSense™ Brushless, Sensored Only, Brushed
Cooling Fan: Yes, temperature controlled
Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
Product Use Statements: Remove cooling fan prior to driving in wet conditions, it is not waterproof.
Application Guidelines: For 1:8th scale vehicles weighing up to 15lbs. Not intended for drag racing applications.
Cobra 8 Purchase Includes: Cobra 8 ESC with 300mm direct connect sensor wire, Cobra Decals, Castle Link V4 USB Adapter, Cobra Quick Start Guide
