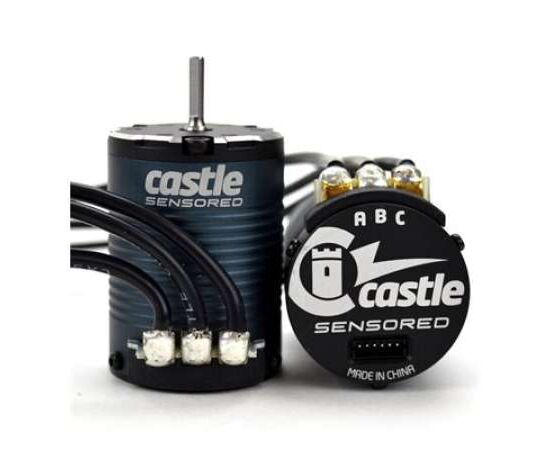

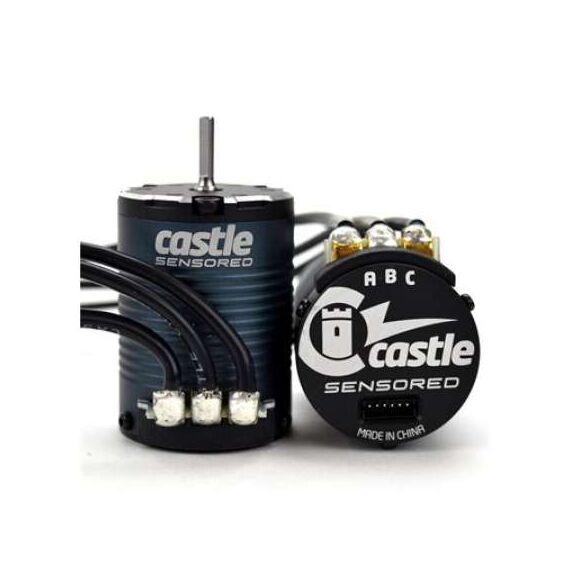

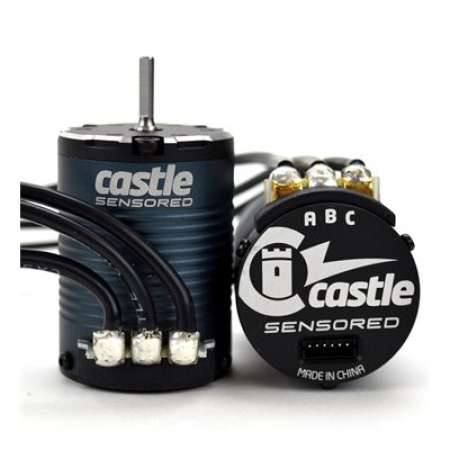

You asked. We listened. For more than a decade Castle has been providing award winningbrushless sensorless motors to R/C enthusiasts worldwide. In responseto overwhelming requests by our customers, we have brought technologicaladvancements together that will deliver unprecedented performance inour new SENSORED motor Line. Our latest additions are the 1406 series in a "SLATE" color, in 1900KV, 2280KV, 2850KV and 3800KV. These motors are ROCK READY and we have the startup on low RPMs under control. Castle now has you covered if you are looking for ultimate control out on the trails or on your Ultra 4 track days. Technical Specs Input Voltage Range: 3S-4S LiPo Kv: 1900 Max. RPM: 100,000 Size: Length: 49.5mm Diameter: 36mm Weight (w/wires): 197 g / 6.9oz Shaft Size: Length: 15mm Diameter: 1/8" (3.17mm) Optional 5mm rotor replacement available. Mounting Hole Specifications: M3 @ 25mm Cooling Fan: Optional - Coming Soon Connectors: 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire
includes 210mm length sensored wire. Items Needed for Operation: Compatible Electronic Speed Control (ESC) Application Guidelines: Ideal for 1:10 scale low speed rock crawlers/trail runners on 3S-4S weighing less than 8lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs. Recommended ESC(s): Mamba Max Pro, Mamba X, Mamba Micro X Max. Recommended Vehicle Weight: 8lbs when used for low speed/moderate driving style like rock crawling and trail running
5lbs for more racing and aggressive driving styles. Tech Notes: Running modes: SMARTSENSET, Sensored, Sensorless with Castle sensored capable ESCs. Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant
water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
Produkttyp Motor Best.-Nr. 060006800 Hersteller Castle Creations Motor / Antrieb Elektro Brushless-Motor
