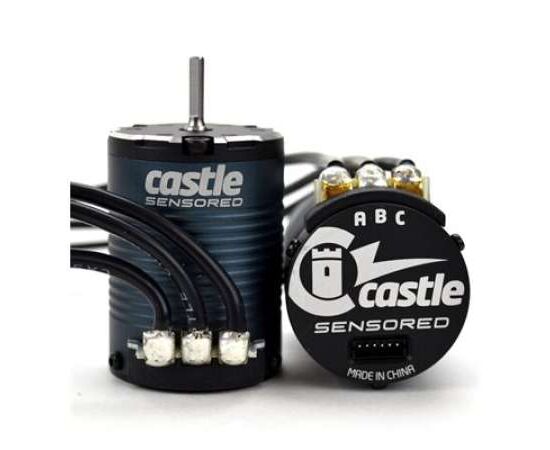

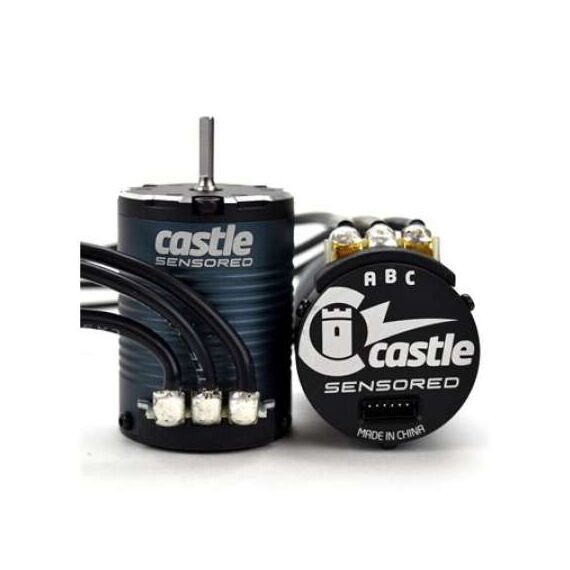

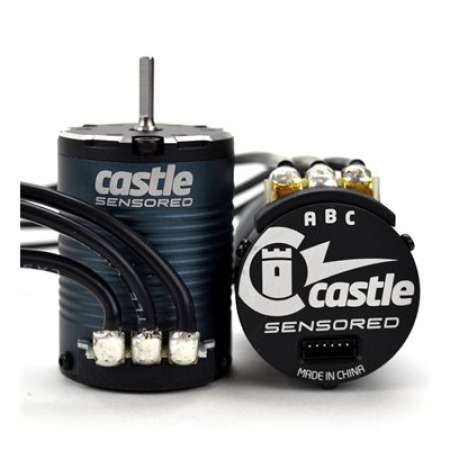

MOTOR SENSORED 1406 2280KV BL Crawler - 060006900

Alle Ansichten

MOTOR SENSORED 1406 2280KV BL Crawler - 060006900

Lagerstatus: Bis 16.00 Uhr bestellt - Versand noch heute

For more than a decade Castle has been providing award winningbrushless sensorless motors to R/C enthusiasts worldwide.
Fr. 115.00
Beschreibung

Details

In responseto overwhelming requests by our customers, we have brought technologicaladvancements together that will deliver unprecedented performance inour new SENSORED motor Line.  Our latest additions are the 1406 series in a "SLATE" color, in 1900KV, 2280KV, 2850KV and 3800KV. These motors are ROCK READY and we have the startup on low RPMs under control. Castle now has you covered if you are looking for ultimate control out on the trails or on your Ultra 4 track days.



Minimum Input Voltage : 2S

Maximum Input Voltage : 4S

Sensored Capable : Yes



Technical Specs

Input Voltage Range: 2S-4S LiPo

Kv: 2280

Max. RPM: 100,000

Size: Length: 49.5mm

Diameter: 36mm

Weight (w/wires): 197 g / 6.9oz

Shaft Size: Length: 15mm

Diameter: 1/8" (3.17mm)

Mounting Hole Specifications: M3 @ 25mm

Cooling Fan: Optional - Coming Soon

Connectors: 4mm male Castle Bullet Connectors

Items Needed for Operation: Compatible Electronic Speed Control (ESC)

Application Guidelines: Ideal for 1:10 scale rock crawlers on 3S-4S and low speed setups on 1:10 scale touring cars, stadium trucks or buggies.

Recommended ESC(s): Mamba Max Pro, Mamba X, Mamba Micro X

Max. Recommended Vehicle Weight:

Tech Notes:

Running modes: SMARTSENSET, Sensored, Sensorless with Castle sensored capable ESCs.

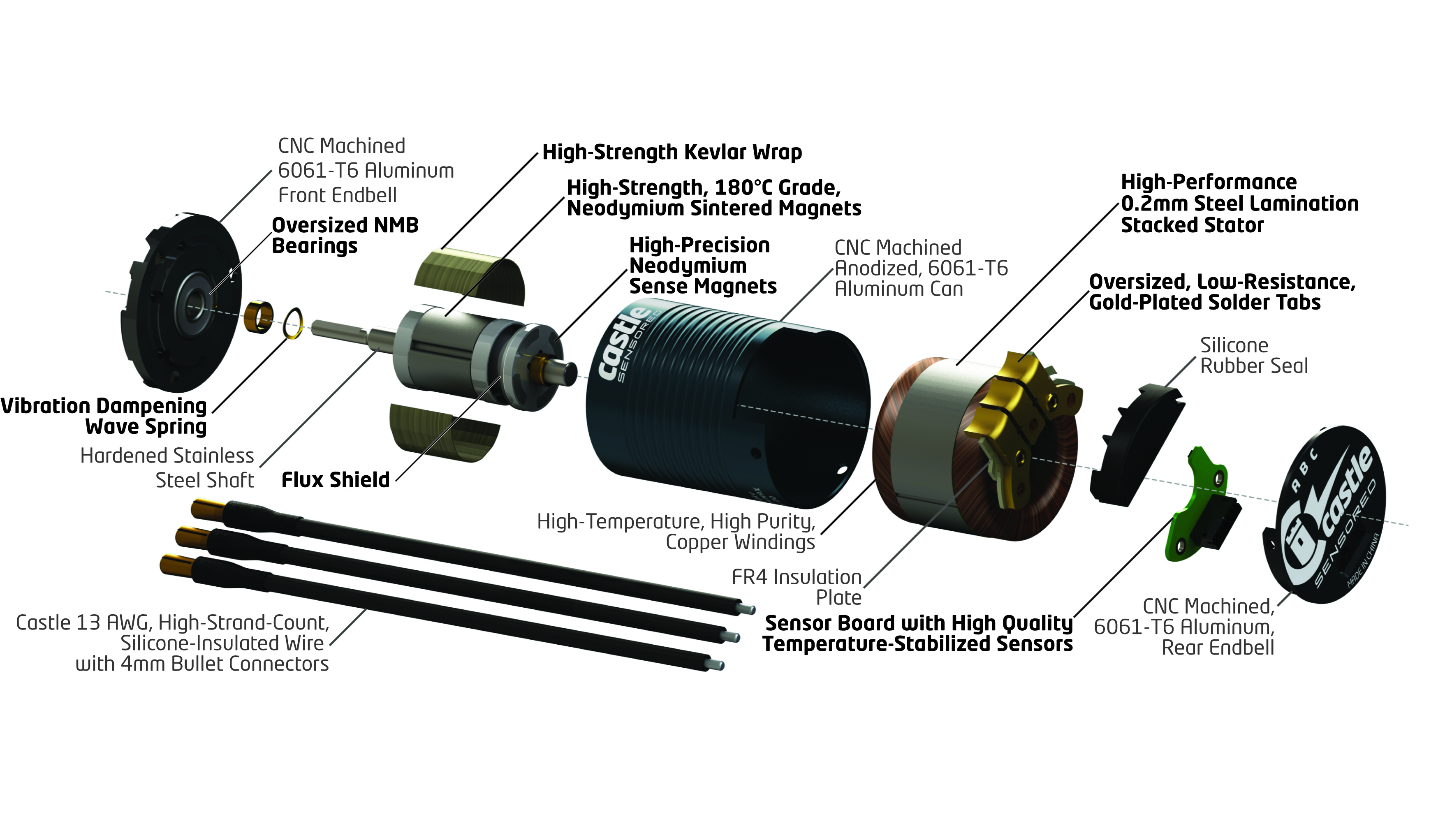

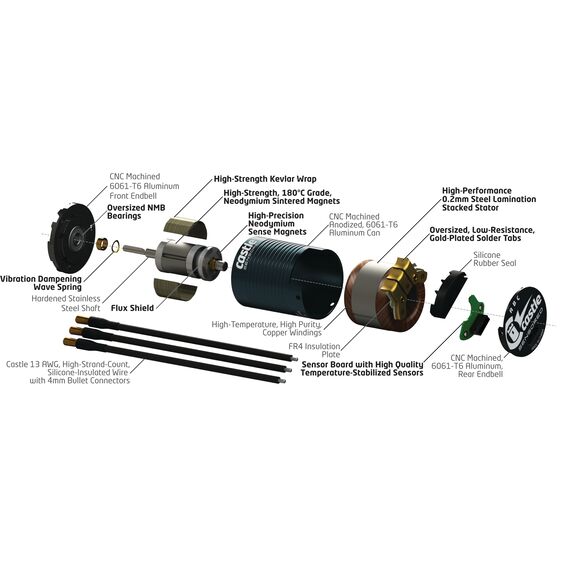

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant
water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.

Details

Details

Produkttyp Motor
Best.-Nr. 060006900
Hersteller Castle Creations
Motor / Antrieb Elektro Brushless-Motor
