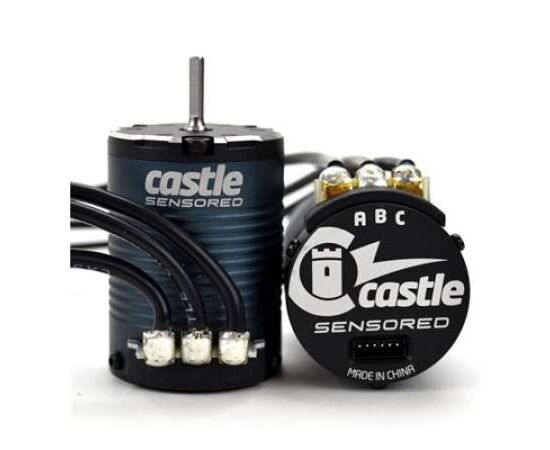

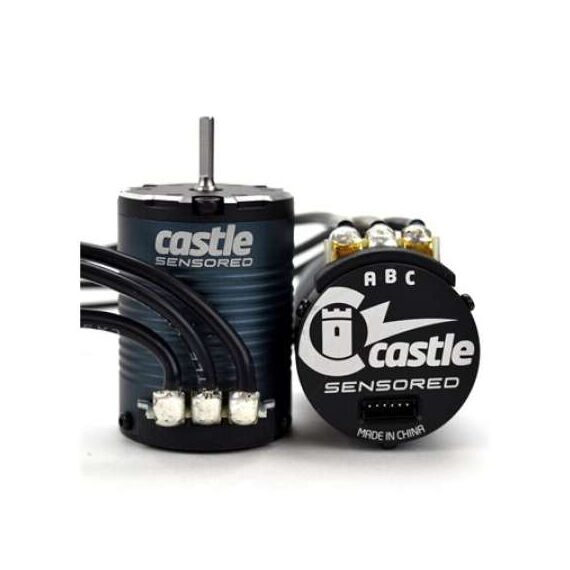

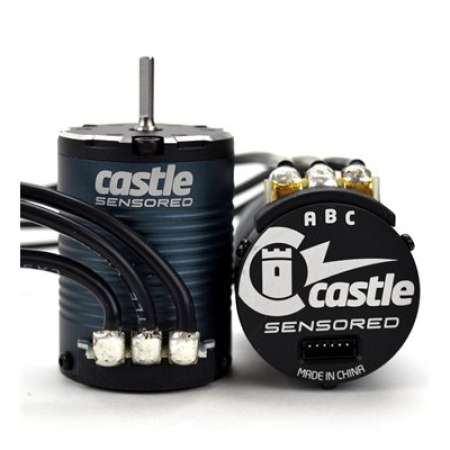

Castle Motor Sensored 1406 3800KV BL Crawler

060007100
CHF115.00
In stock
+

For more than a decade Castle has been providing award winningbrushless sensorless motors to R/C enthusiasts worldwide.

In responseto overwhelming requests by our customers, we have brought technologicaladvancements together that will deliver unprecedented performance inour new SENSORED motor Line. Our latest additions are the 1406 series in a "SLATE" color, in 1900KV, 2280KV, 2850KV and 3800KV. These motors are ROCK READY and we have the startup on low RPMs under control. Castle now has you covered if you are looking for ultimate control out on the trails or on your Ultra 4 track days.


Minimum Input Voltage : 2S
Maximum Input Voltage : 4S
Sensored Capable : Yes


Technical Specs
Input Voltage Range: 2S-4S LiPo
Kv: 3800
Max. RPM: 100,000
Size: Length: 49.5mm
Diameter: 36mm
Weight (w/wires): 197 g / 6.9oz
Shaft Size: Length: 15mm
Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional - Coming Soon
Connectors: 4mm male Castle Bullet Connectors
Items Needed for Operation: Compatible Electronic Speed Control (ESC)
Application Guidelines: Ideal for 1:10 scale rock crawlers on 3S-4S and low speed setups on 1:10 scale touring cars, stadium trucks or buggies.
Recommended ESC(s): Mamba Max Pro, Mamba X, Mamba Micro X
Max. Recommended Vehicle Weight:
Tech Notes:
Running modes: SMARTSENSET, Sensored, Sensorless with Castle sensored capable ESCs.

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.

General
Motor / Antrieb:
  • Elektro Brushless-Motor
Hersteller:
Castle Creations

36_060007100_INFO_E.pdf (36_060007100_INFO_E.pdf, 298 Kb) [Download]

36_060007100_INFO_E.pdf (36_060007100_INFO_E_p915-lb.pdf, 298 Kb) [Download]
