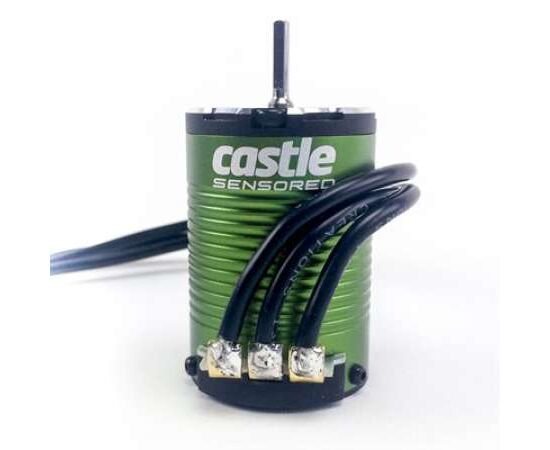

MOTOR SENSORED 1410 3800KV BL
Technical Specs
Input Voltage Range: 2-3S LiPo
Kv: 3800
Max. RPM: 100,000
Size: Length: 52.7mm
Diameter: 36mm
Weight (w/wires): 237g / 8.4oz
Shaft Size: Length: 15.5mm
Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional, coming soon!
Connectors: 4mm male Castle Bullet Connectors
Items Needed for Operation: Compatible Electronic Speed Control (ESC)
Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SCT up to 6.5lb (2S) as well as 1:10 scale buggies and stadium trucks up to 4lbs (2S-3S).
Recommended ESC(s): Mamba Max Pro, Mamba Monster X, Mamba X
Max. Recommended Vehicle Weight: See application guidelines
Tech Notes:
Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.
Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire.
General
Motor / Antrieb
- Elektro Brushless-Motor
Hersteller
Castle Creations
