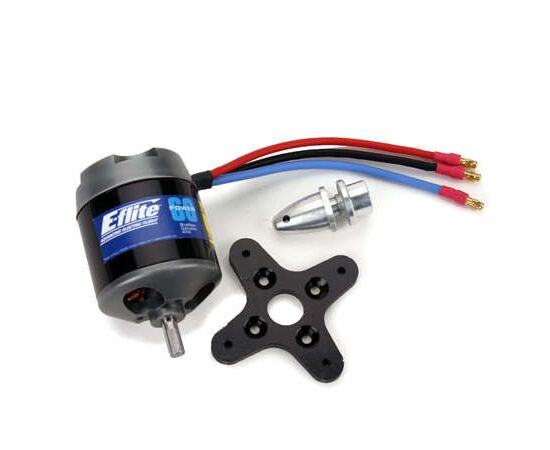

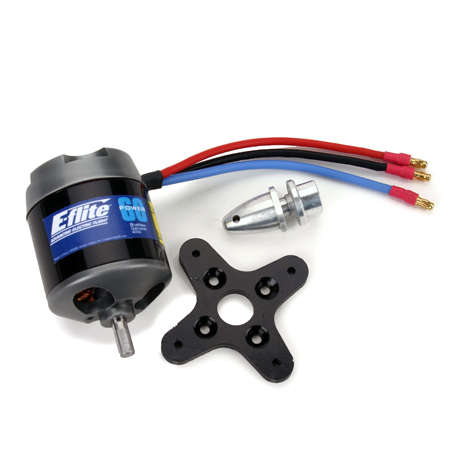

Power 60 Brushless Outrunner Motor
EFLM4060A
Equivalent to a 60-size glow engine for 6 to 10 lb (2.7 to 4.5 kg) airplanes
Equivalent to a 60-size glow engine for 6 to 10 lb (2.7 to 4.5 kg) airplanes
Ideal for 46-size 3D airplanes up to 7 lb (3.2 kg)
Ideal for models requiring up to 1425 watts of power
Type: Brushless outrunner
Size: Replacement for 60-size glow engines
Bearings or Bushings: One 6 x 15 x 5mm Bearing, and Two 6 x 12 x 4mm Bearing
Wire Gauge: 14
Recommended Prop Range: 14x8 to 16x10
Voltage: 18.5 to 28.8
RPM/Volt (Kv): 400
Resistance (Ri): .06 ohms
Idle Current (Io): 2.70A @ 10V
Shaft Diameter: 6mm (.24 in)
Overall Length: 62mm (2.40 in)
Weight: 380 g (13.0 oz)
Overall Diameter: 50mm (2.00 in)
Diameter: 50mm (2 in)
Length: 62mm (2.4 in)
Continuous Current: 40A
Maximum Burst Current: 60A (15 sec)
Cells: 16-24 Ni-MH/Ni-Cd or 5-7S Li-Po
Speed Control: 60A brushless (EFLA1060)
Ideal for 46-size 3D airplanes up to 7 lb (3.2 kg)
Ideal for models requiring up to 1425 watts of power
Type: Brushless outrunner
Size: Replacement for 60-size glow engines
Bearings or Bushings: One 6 x 15 x 5mm Bearing, and Two 6 x 12 x 4mm Bearing
Wire Gauge: 14
Recommended Prop Range: 14x8 to 16x10
Voltage: 18.5 to 28.8
RPM/Volt (Kv): 400
Resistance (Ri): .06 ohms
Idle Current (Io): 2.70A @ 10V
Shaft Diameter: 6mm (.24 in)
Overall Length: 62mm (2.40 in)
Weight: 380 g (13.0 oz)
Overall Diameter: 50mm (2.00 in)
Diameter: 50mm (2 in)
Length: 62mm (2.4 in)
Continuous Current: 40A
Maximum Burst Current: 60A (15 sec)
Cells: 16-24 Ni-MH/Ni-Cd or 5-7S Li-Po
Speed Control: 60A brushless (EFLA1060)
