Power-HD-T50 HV Brushless Servo

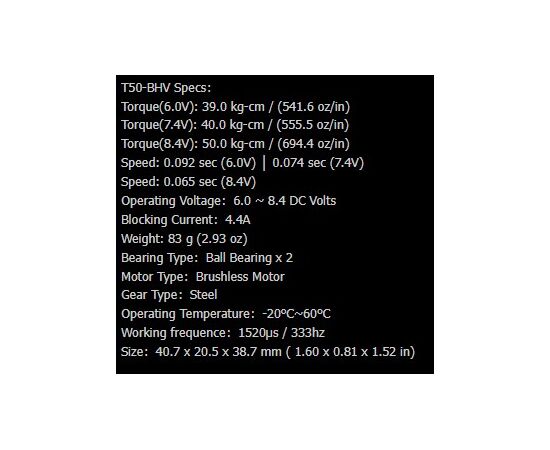

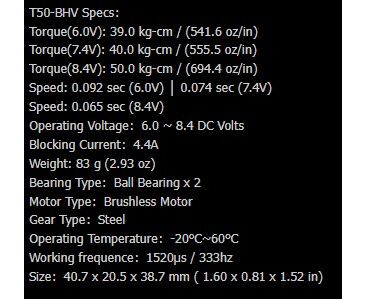

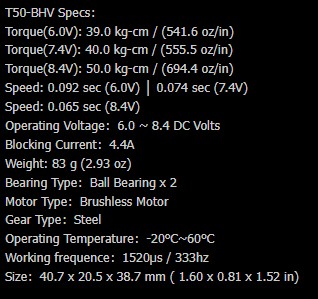

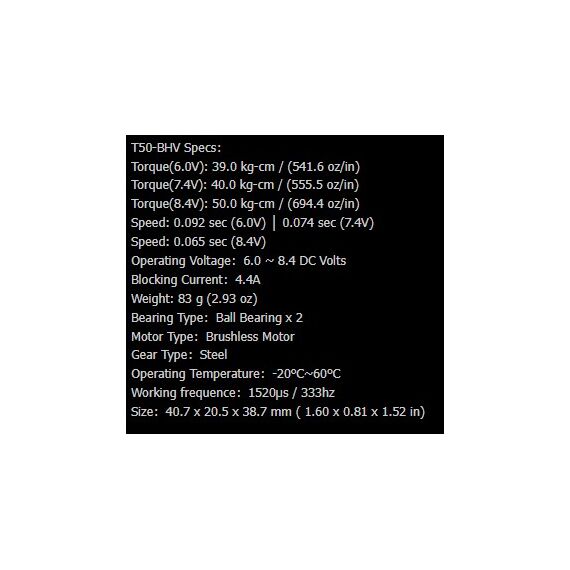

T50-BHV Specs:
Torque(6.0V): 39.0 kg-cm / (541.6 oz/in)
Torque(7.4V): 40.0 kg-cm / (555.5 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Speed: 0.092 sec (6.0V) ¦ 0.074 sec (7.4V)
Speed: 0.065 sec (8.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Blocking Current:4.4A
Weight: 83 g (2.93 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Brushless Motor
Gear Type:Steel
Operating Temperature:-20?~60?
Working frequence:1520µs / 333hz
Size:40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
General
Abmessungen
Standard
Getriebe
Metall
Servo Breite
- bis 20mm
Servo-Typ
- Digital/Brushless
Servogewicht (g)
83
Hersteller
Power HD
Betriebsspannung
6.0V-8.4V
