Classic 10-Hole 1.9 Beadlock Felgen Chrome

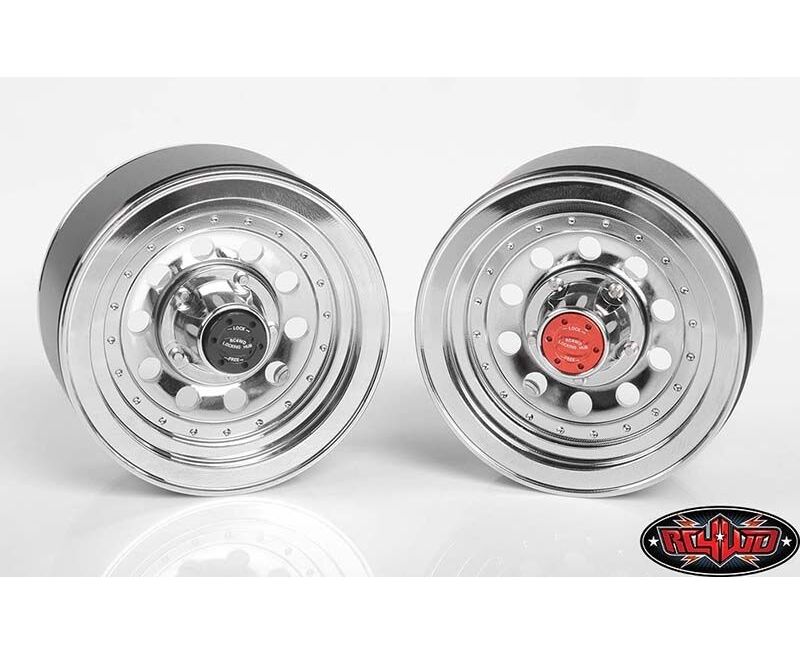

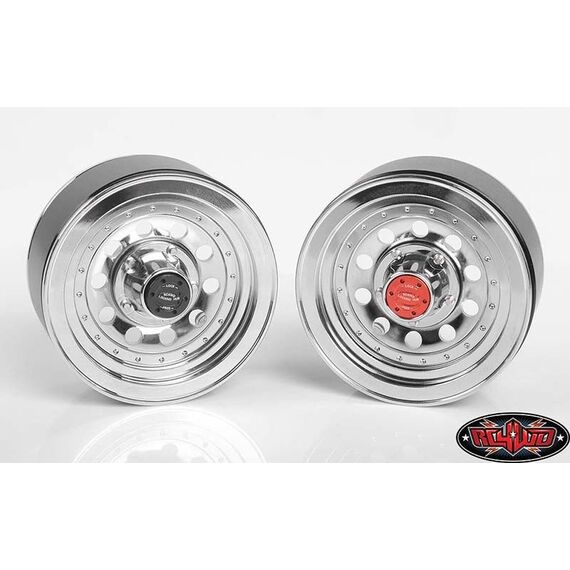

Classic 10-Hole Chrome 1.9" Beadlock Wheels

Specifications:

• CNC Machined
• Billet Aluminum
• Fits Standard 12mm Hex
• Wheel Size: 1.9"
• OD: 2.14in / 54.0mm
• Width: 1.02in / 26.0mm
• Center Hole OD: 0.20in / 5.2mm
• Positive Offset: 0.05in / 1.7mm
• Each Weight: 2.24oz / 63.4g

Shown installed with RC4WD Goodyear Wrangler MT/R 1.9" 4.7" Scale Tires(Z-T0175) for example (Not Included)

Shown installed on Traxxas TRX-4 '79 Bronco Ranger XLT with RC4WD Goodyear Wrangler MT/R 1.9" 4.7" Scale Tires (Z-T0175) for example (Not Included)

Click image below to enlarge photo.

What's Included:

• 4x Classic 10-Hole Chrome 1.9" Beadlock Wheels
• 2x Red Locking Hubs
• 2x Black Locking Hubs
• 1x Locking Hub Installation Tool
• 1x Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex) (Z-S1328)

Replacement Hardware:

• Steel Socket Head Cap Screws M2.5 x 6mm (Black) (Z-S0855)
• RC4WD Miniature Scale Hex Bolts (M1.6 x 5mm) (Silver) (Z-S1759)
• Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex) (Z-S1328)

Notes:

• Fits RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (Z-RTR0029)
• Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
• Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
• Fits RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
• Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
• Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
• Fits RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
• Fits RC4WD Gelande II RTR Truck Kit w/D90 Body Set (Z-RTR0031)
• Fits Axial SCX10
• Fits Axial SCX10 II
• Fits Vaterra Ascender
• Fits Axial Wraith
• Fits HPI Venture FJ Cruiser but may have slight rubbing
•  Installing on Traxxas TRX-4 trucks requires the RC4WD 12mm Wheel Hex Conversion for Traxxas TRX-4 (Z-S1844)
• Due to many different methods to design tires and wheels, we have no control over other manufacturers products, so we can only tell you that RC4WD tires and wheels work together. In some cases, our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome.
