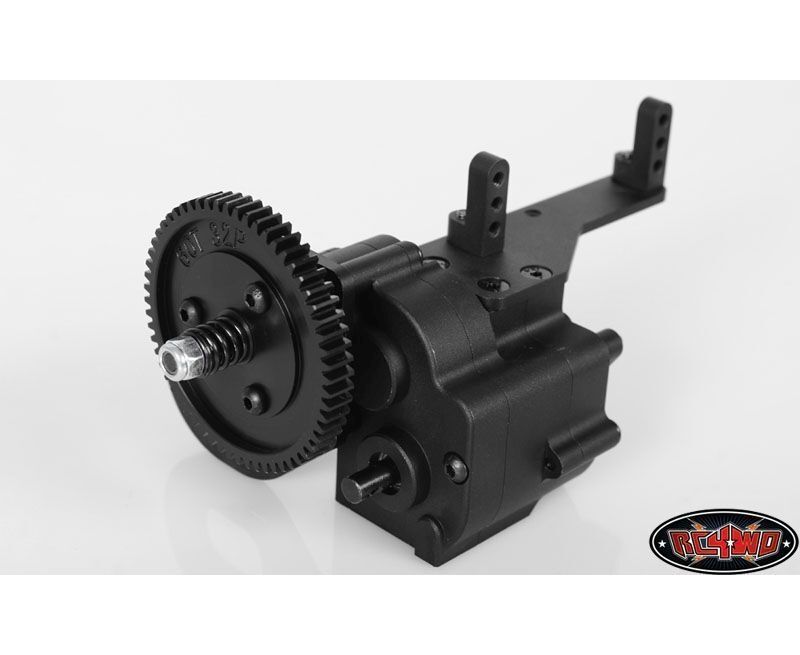

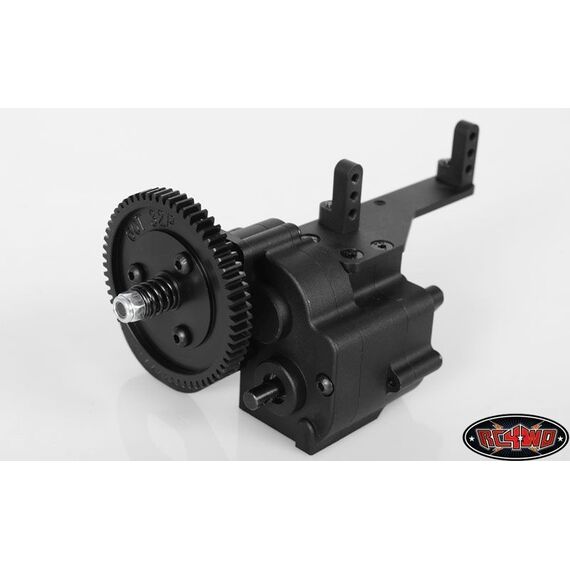

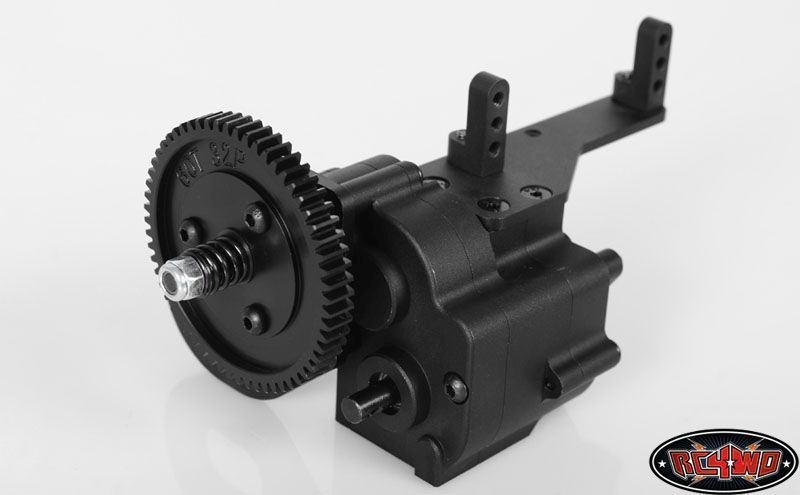

RC4WD AX2 2 Gang Getriebe

Auf Lager bei Lieferant
Produkt wird in ca. 3 Werktagen an sie versendet
Merken Vergleichen


  • CNC Machined Billet Aluminum
  • Wraith / SCX10 Direct Fit
  • 15T 32P Steel Pinion
  • 60T 32P Delrin Spur
  • Gear Ratio Pinion / Spur Ratio = 4:1
  • 2 Speed
  • Wide Steel 48 Pitch Internal Gears
  • 1st Gear Ratio = 5.05:1
  • 2nd Gear Ratio = 1.78:1
  • Slipper Clutch
  • Shift Servo Mount
  • Compatible With Other Brand Pinions and Spur Gears
  • Engineered by RC4WD UK
  • Manufactured by RC4WD
  • Output Shaft OD: 0.19" / 5mm
  • Height: 2.6in / 66mm
  • Length: 3.15in / 80mm
  • Width: 4.8in / 121.7mm
  • Weight: 8.71oz / 247g

What's Included:

  • 1 x AX2 2 Speed Transmission for Axial Wraith & SCX10/Honcho
  • 1 x 15t 32p Hardened Steel Pinion Gear (Z-G0014)
  • 1 x M3 x 15mm Set Screw (1 PCS from Z-S0650)
  • 2 x Mini Plastic Rod End (2 PCS from Z-S0398)
  • 5 x M3 x 10mm FHCS (Black) (Z-S0860)
  • 4 x M3 x 8mm BHSC (Black) (Z-S0652)
  • 2 x M3 x 12mm BHSC (Black) (Z-S0654)
  • 1 x M3 x 3mm Set Screw (1 PCS from Z-S0124)

Replacement Parts:

  • Uses 8x 5x11x4 Bearings (Z-S0683)
  • Uses 2x 5x8x2.5 Bearings (Z-S0684)
  • 60t Delrin Spur Gear for AX2 2 Speed Transmission (Z-G0048)
  • Servo Mount for AX2 2 Speed Transmission (Z-S0509)
  • Motor Mount for AX2 2 Speed Transmission (Z-S0703)
  • Shifting Assembly for AX2 2 Speed Transmission (Z-S0043)
  • Internal Gear Set for AX2 2 Speed Transmission (Z-G0057)
  • Slipper Clutch Assembly for R3 and AX2 Transmissions (Z-S0704)
  • Steel Button Head Cap Screws M3 x 6mm (Z-S0651)

Optional Parts:

  • Spur Gear Cover for AX2 (Z-U0033)
  • M3 Short Straight Aluminum Rod Ends (Silver) (10) (Z-S1630)
  • M3 Short Straight Aluminum Rod Ends (Red) (10) (Z-S1632)
  • M3 Short Straight Aluminum Rod Ends (Blue) (10) (Z-S1634)
  • M3 Short Straight Aluminum Rod Ends (Black) (10) (Z-S1636)

Optional Upgrade:

  • AX2 Transmission Gear Guard (Z-S0858)
  • AX2 Heavy Duty Output Shaft (Z-S0830)



  • For best results you will need to remove the shifters from the wraith interior.
  • Put the servo on and attach the shift linkage.
  • Install in wraith and refit the interior.
  • Without pinion/spur, stock Axial tranny is 2.6:1.
  • Installation into the SCX10 line will require customization of your setup. For a detailed example that can provide some help Click here.

This product has been tested and approved by the Recon G6. It is Recon G6 Certified.
