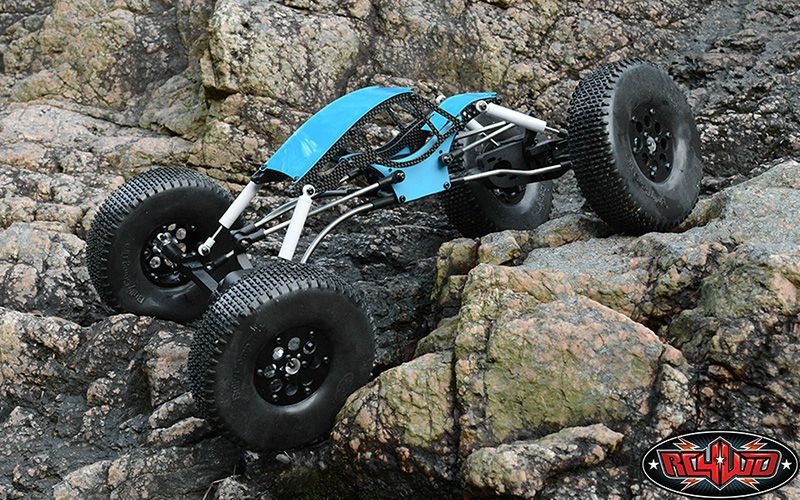

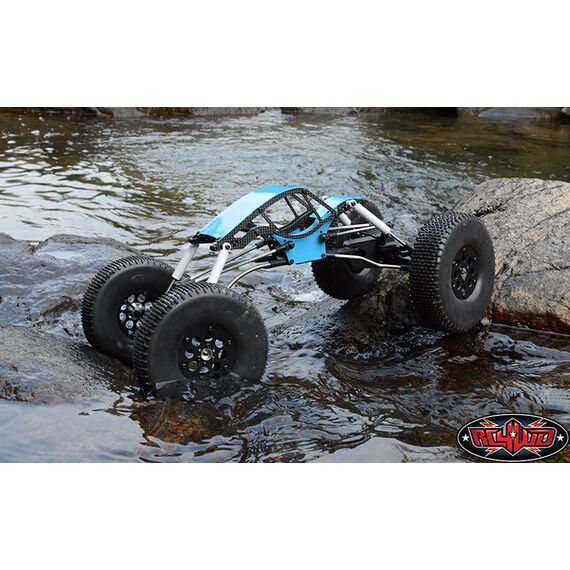

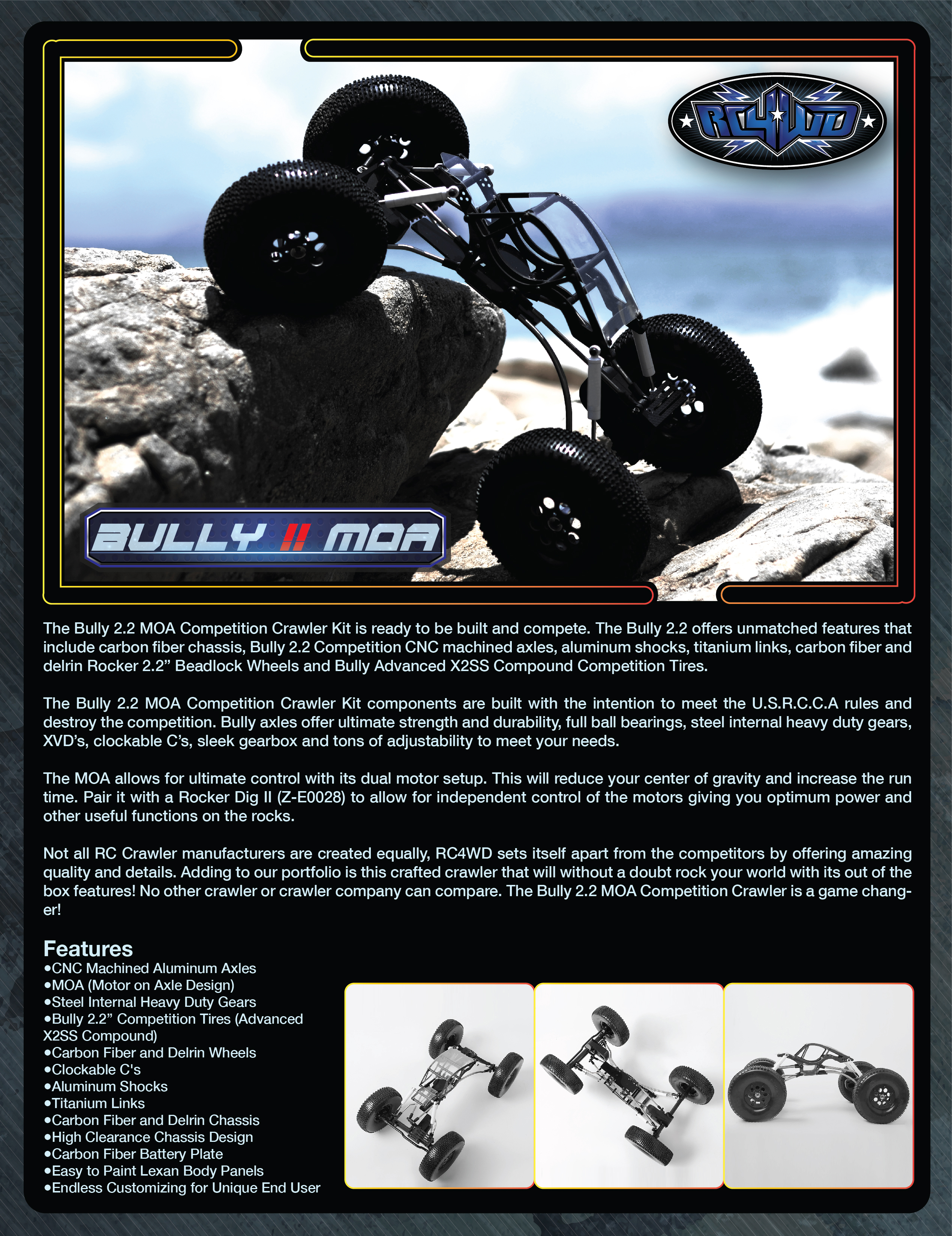

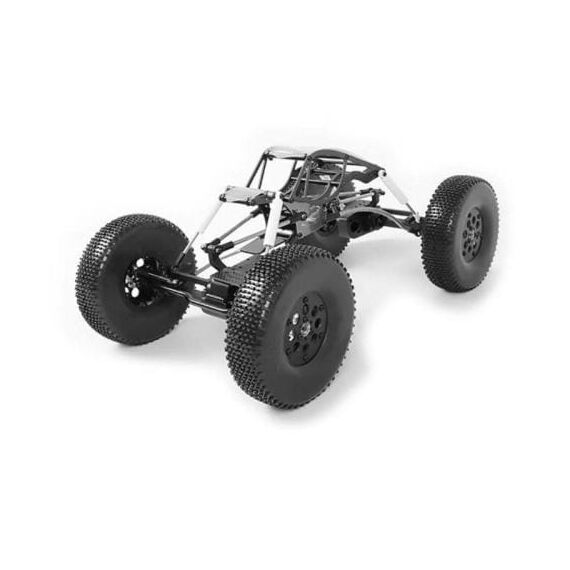

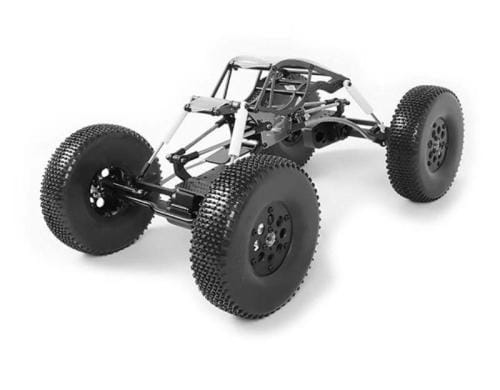

RC4WD Bully II MOA Comp. Crawler KIT

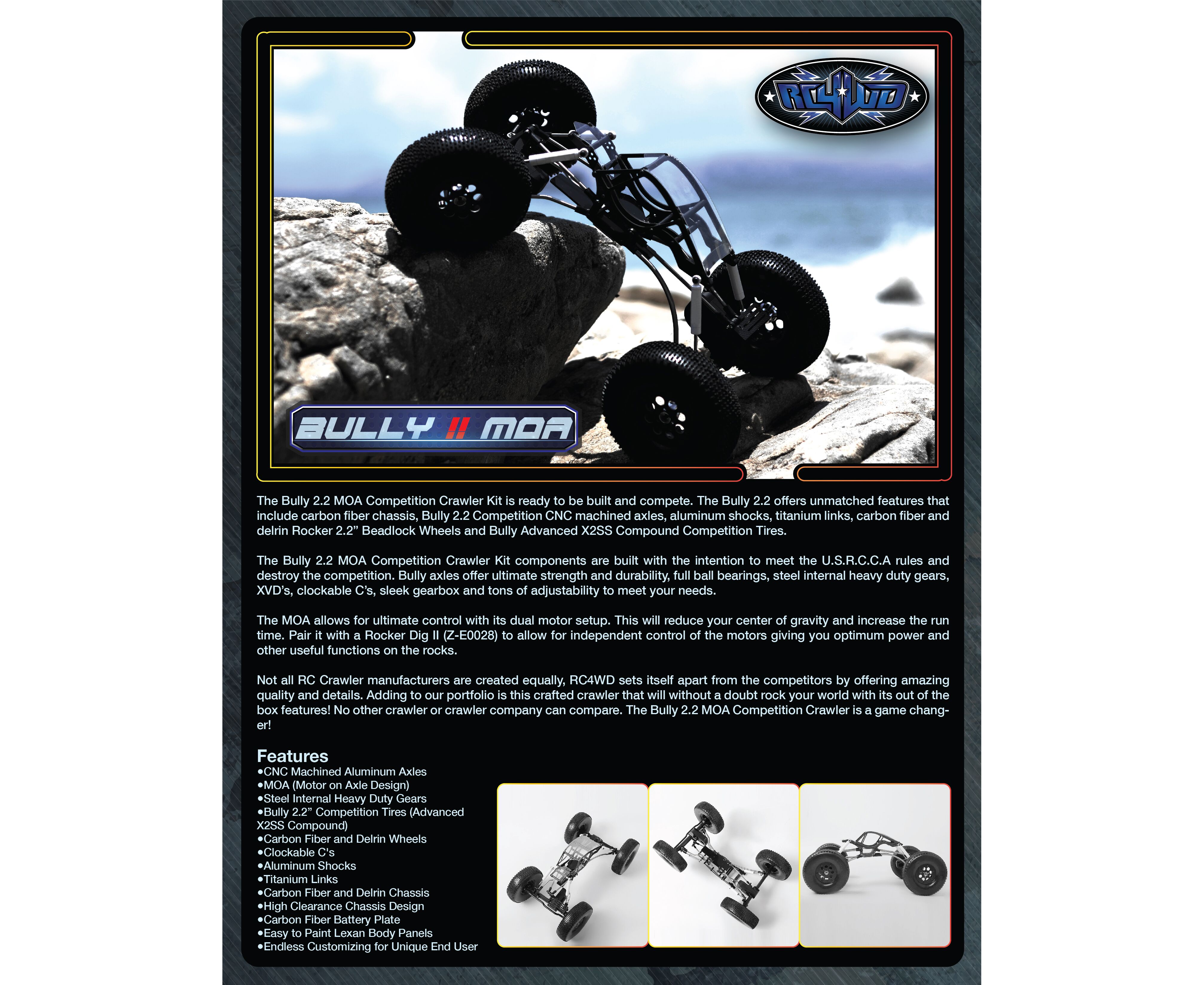

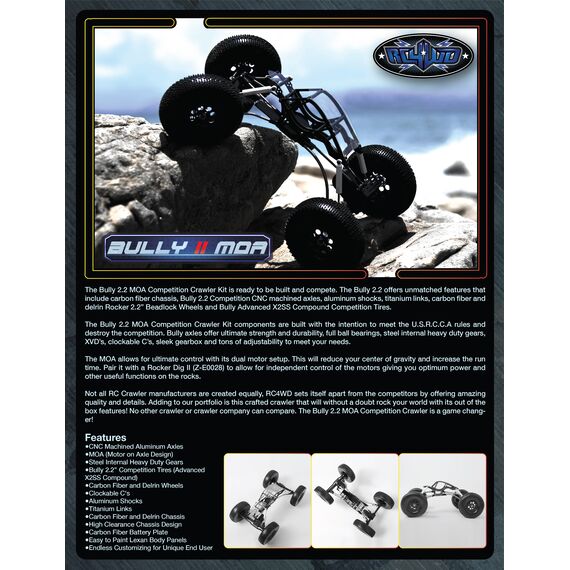

The Bully 2.2 offers unmatched features that include carbon fiber chassis, Bully 2.2 Competition CNC machined axles, aluminum shocks, titanium links, carbon fiber and delrin Rocker 2.2" Beadlock Wheels and Bully Advanced X2SS Compound Competition Tires.
The Bully 2.2 MOA Competition Crawler Kit components are built with the intention to meet the U.S.R.C.C.A rules and destroy the competition. Bully axles offer ultimate strength and durability, full ball bearings, steel internal heavy duty gears, XVD's, clockable C's, sleek gearbox and tons of adjustability to meet your needs.
The MOA allows for ultimate control with its dual motor setup. This will reduce your center of gravity and increase the run time. Pair it with a Rocker Dig II (Z-E0028) to allow for independent control of the motors giving you optimum power and other useful functions on the rocks.
Not all RC Crawler manufacturers are created equally, RC4WD sets itself apart from the competitors by offering amazing quality and details. Adding to our portfolio is this crafted crawler that will without a doubt rock your world with its out of the box features! No other crawler or crawler company can compare. The Bully 2.2 MOA Competition Crawler is a game changer!
CNC Machined Aluminum Axles
MOA (Motor on Axle Design)
Steel Internal Heavy Duty Gears
Bully 2.2" Competition Tires (Advanced X2SS Compound)
Carbon Fiber and Delrin Wheels
Carbon Fiber and Delrin Chassis
High Clearance Chassis Design
Carbon Fiber Battery Plate
Easy to Paint Lexan Body Panels
Endless Customizing for Unique End User

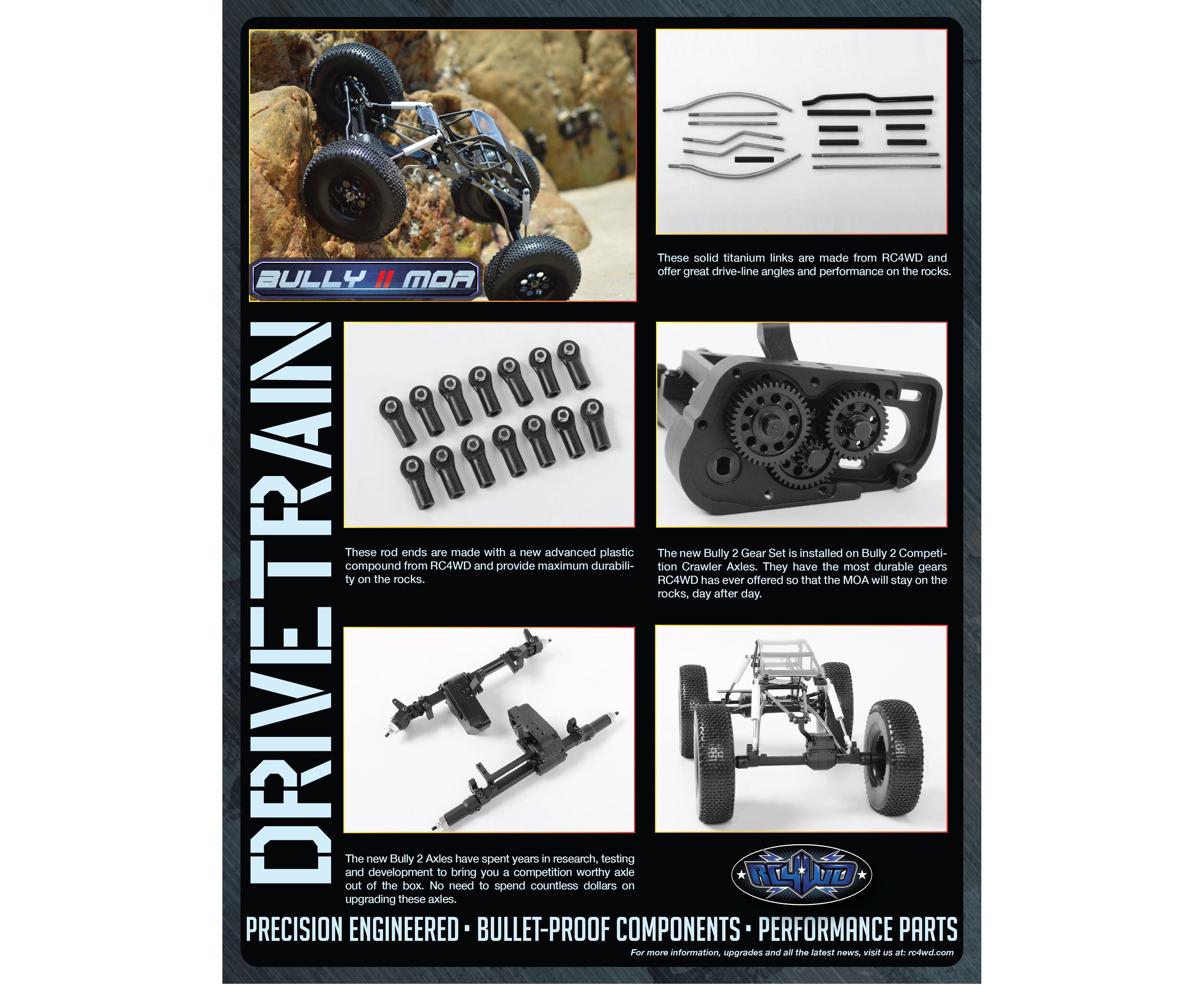

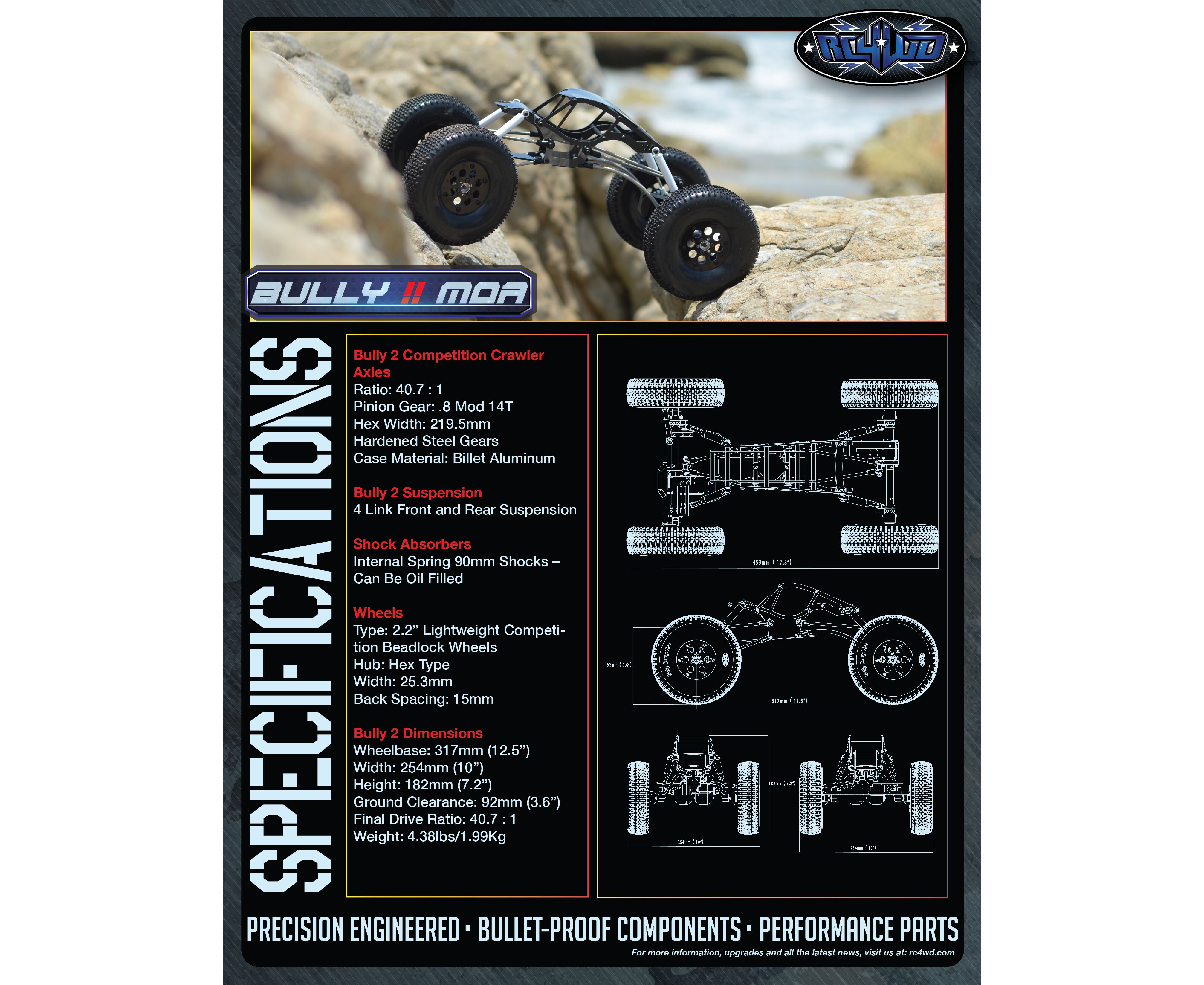

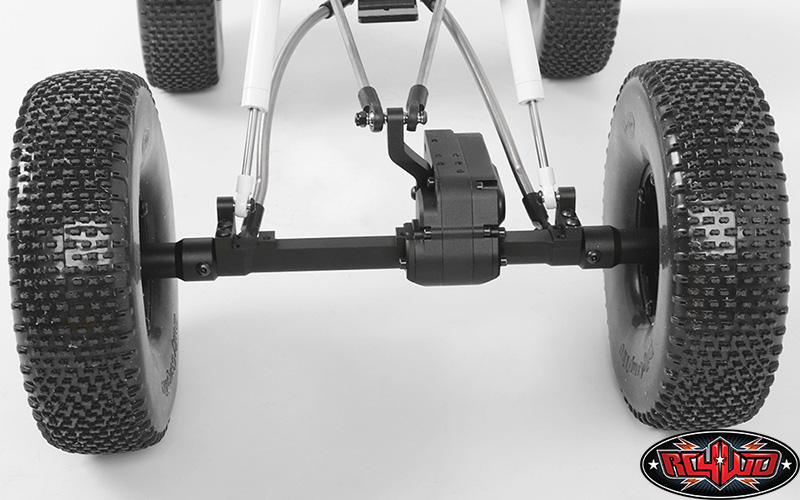

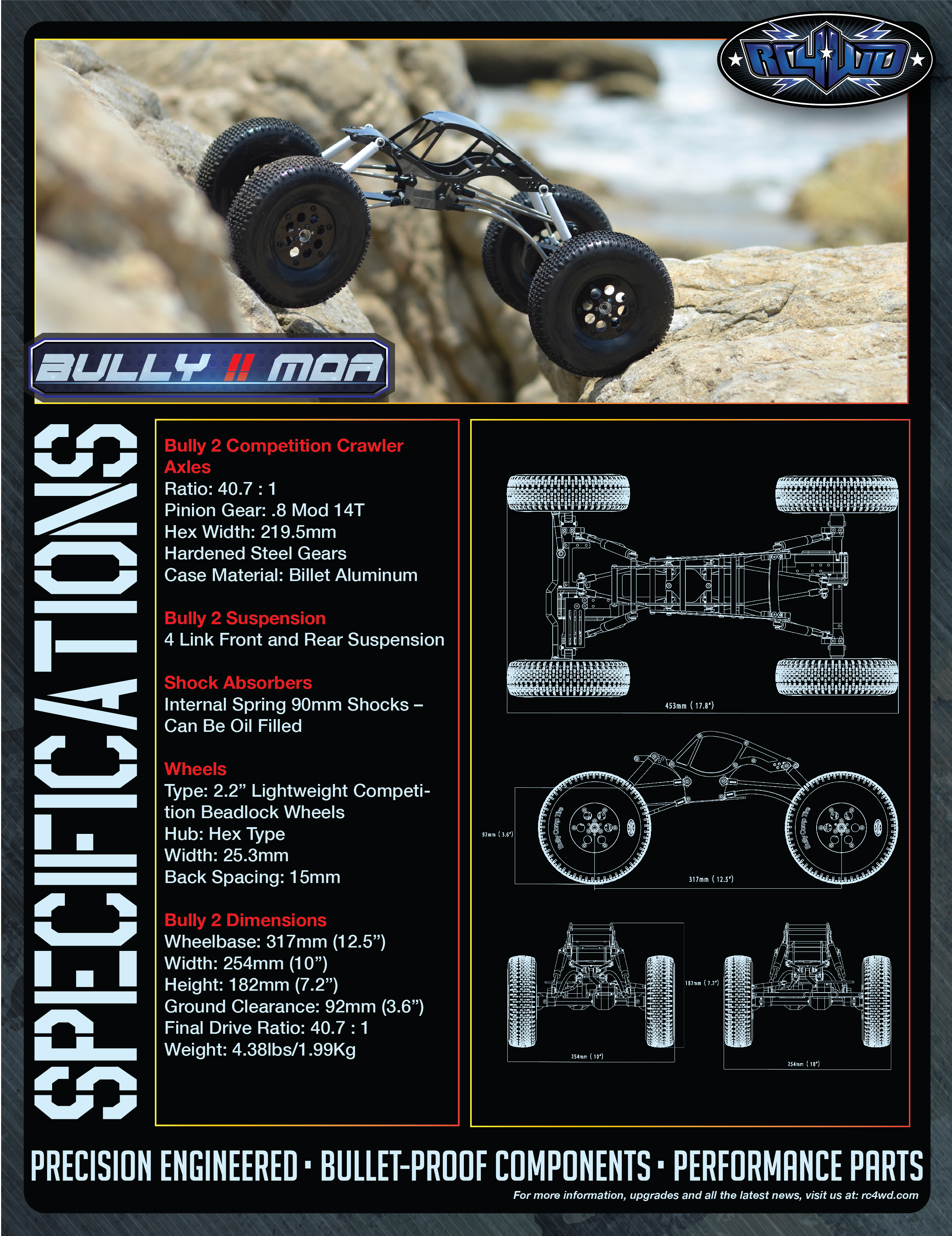

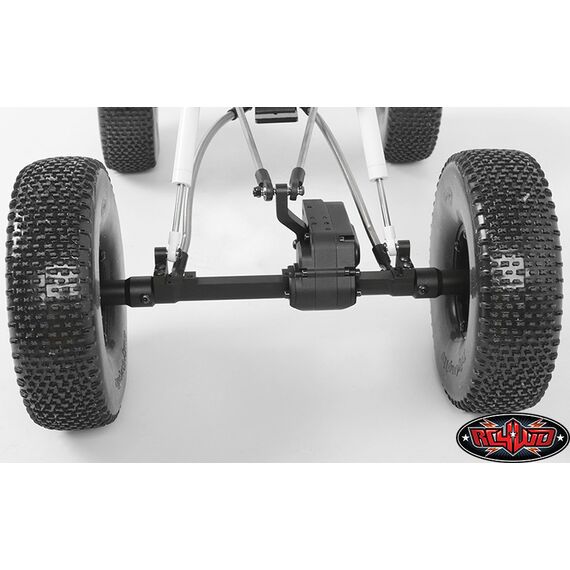

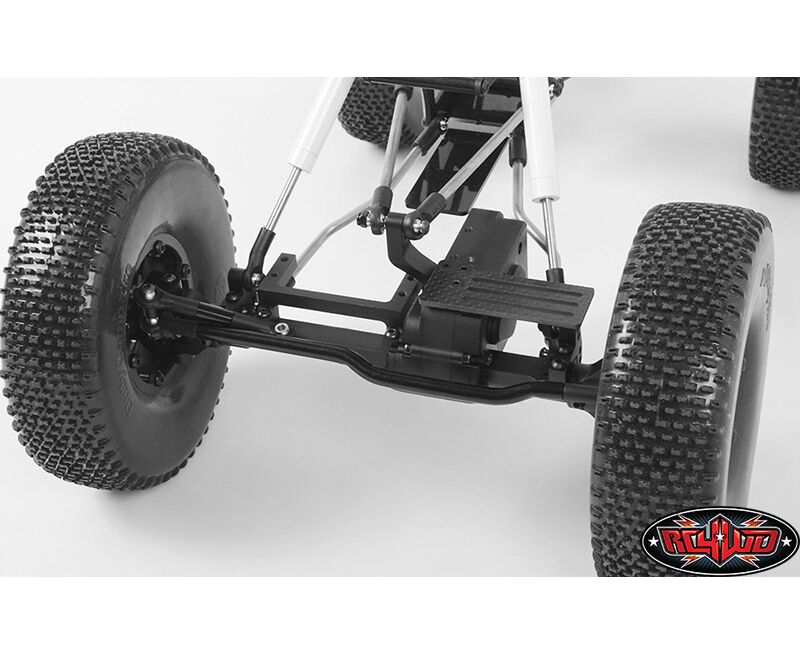

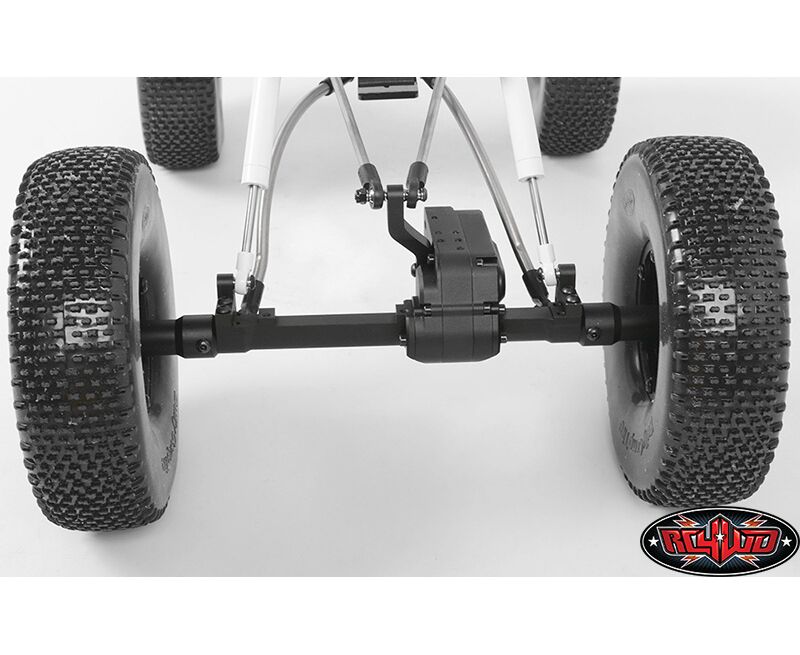

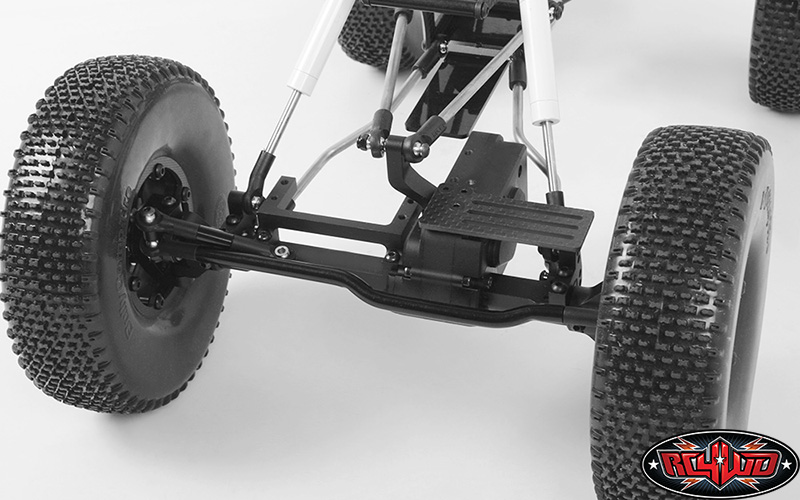

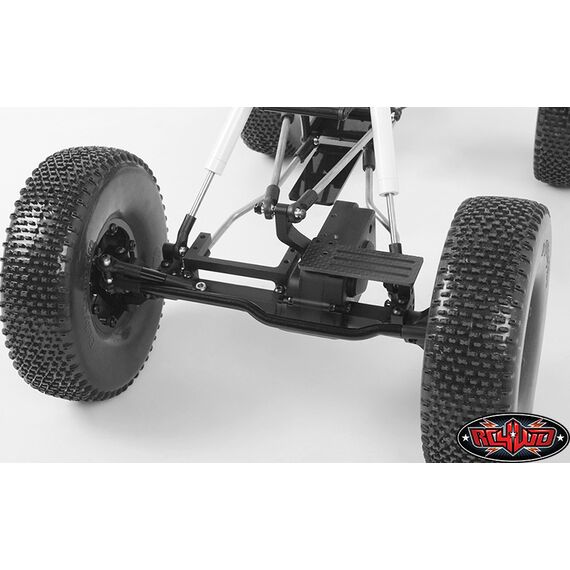

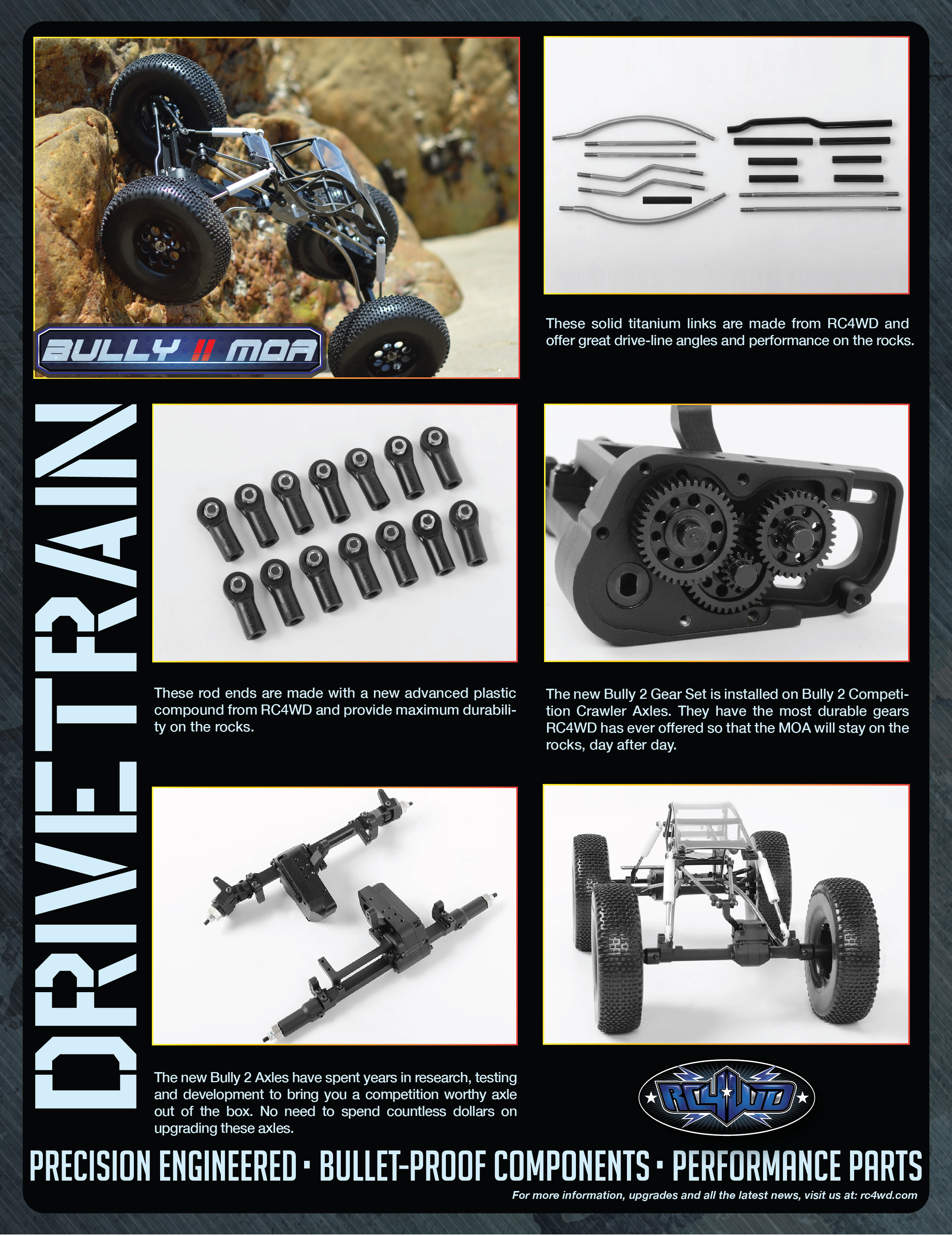

Bully 2 Competition Crawler Axles
Ratio: 40.7 : 1
Pinion Gear: 32P 14T
Hex Width: 219.5mm
Hardened Steel Gears
Case Material: Billet Aluminum

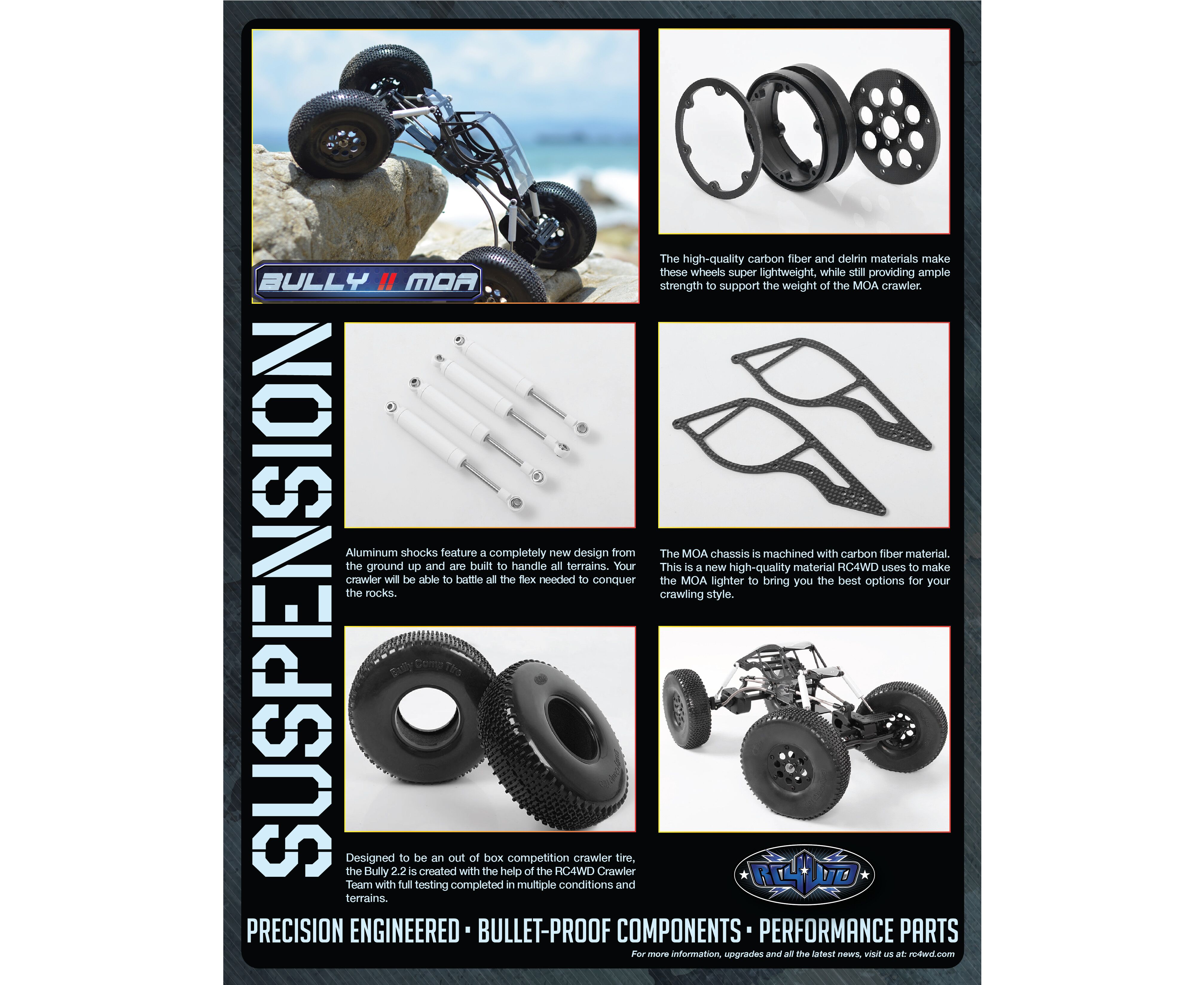

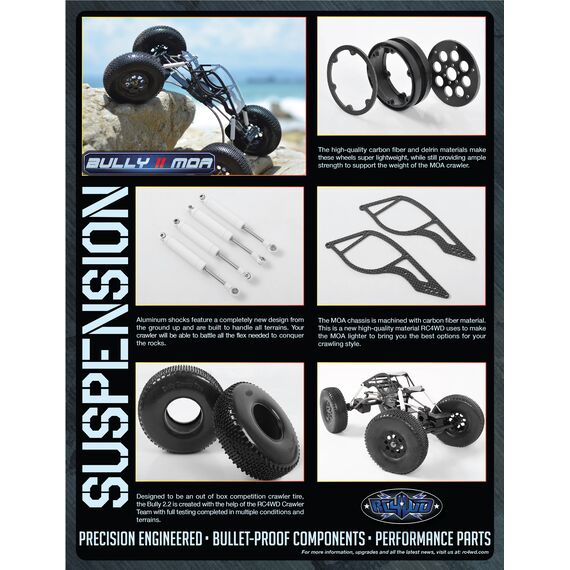

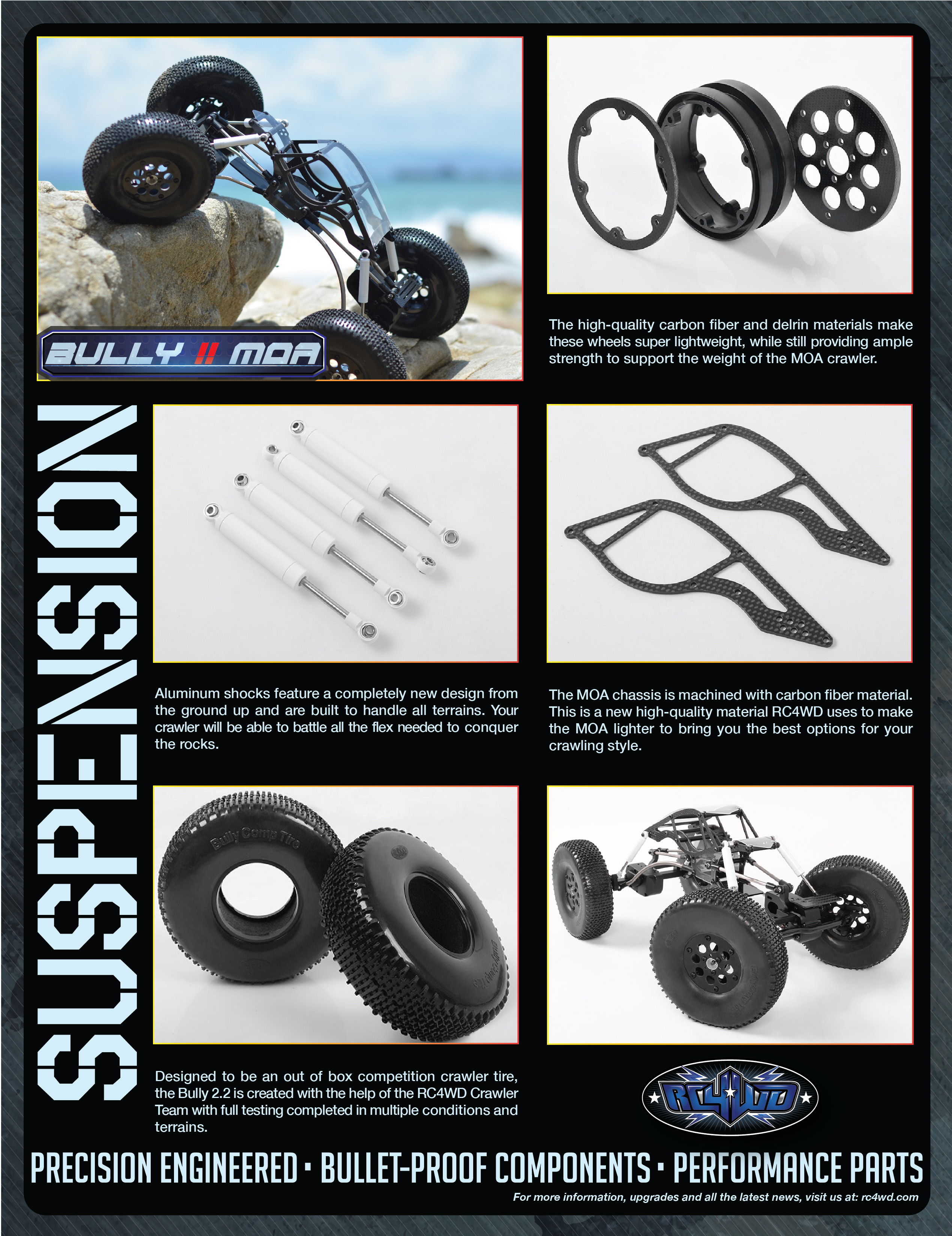

Bully 2 Suspension
4 Link Front and Rear Suspension
Internal Spring 90mm Shocks - Can Be Oil Filled
Type: 2.2" Lightweight Competition Beadlock Wheels
Hub: Hex Type
Back Spacing: 15mm
Bully 2 Dimensions
Wheel Base: 317mm (12.5")
Width: 254mm (10")
Height: 182mm (7.2")
Ground Clearance: 92mm (3.6")
Final Drive Ratio: 40.7 : 1
Weight: 4.38lbs / 1.99Kg

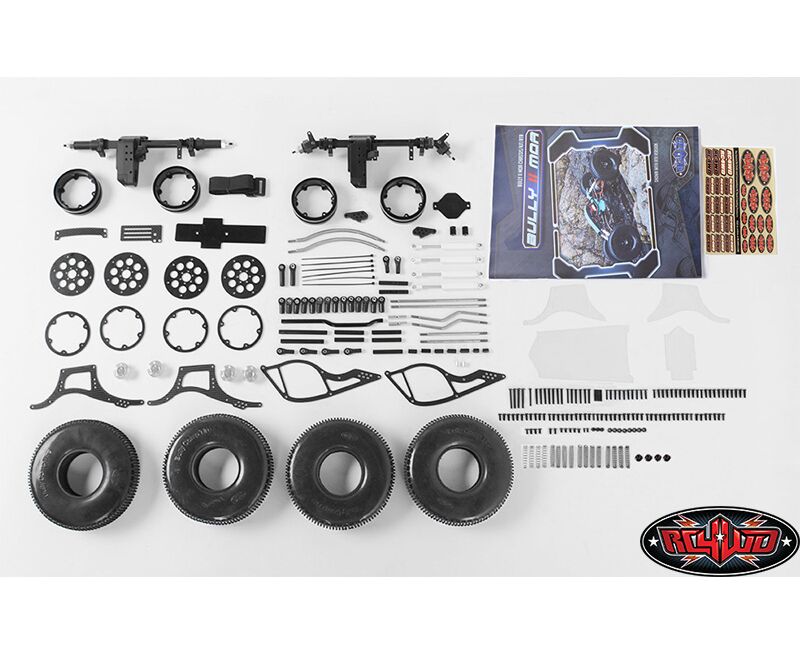

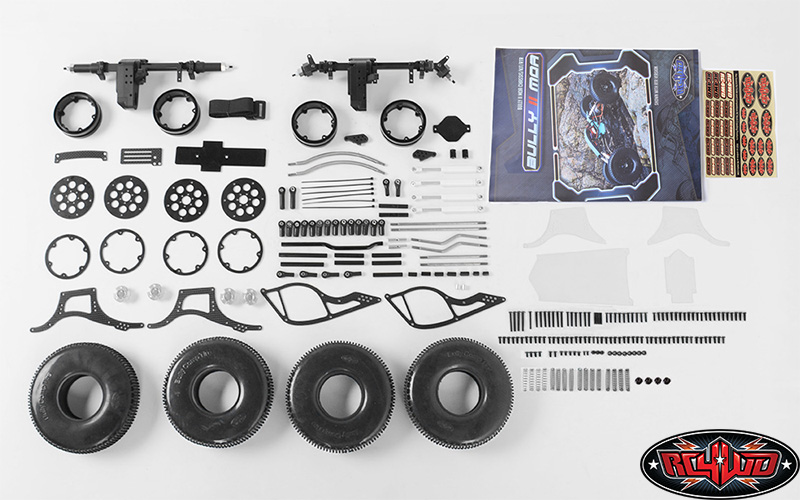

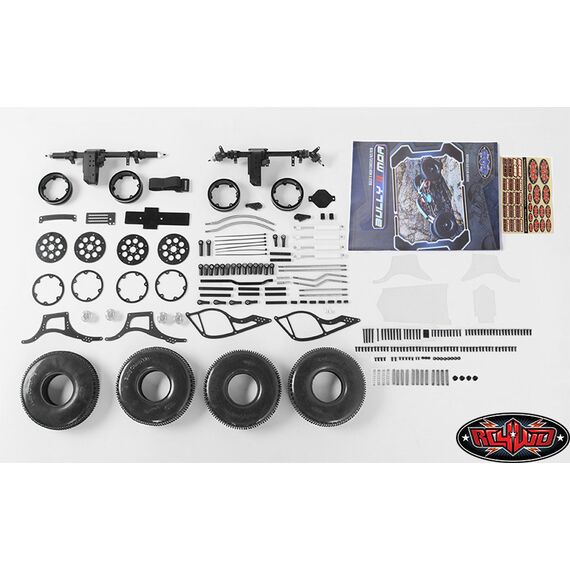

1x RC4WD Bully II MOA Competition Crawler Kit
This kit requires building time (approx. 2-3 hours) and electronics.
While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with a "water-drop" require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.
Required to Complete:
Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Side Cutter Pliers
Associated Thread Locking Adhesive
Cross Wrench or Nut Driver
Motor (35t, 45t, or 55t)
Electronic Speed Controller "ESC" (Z-E0007 and Z-E0028) or (Z-E0008)
Radio and Receiver (2 channel or more) (3 Channel Z-R0009 or 4 Channel Z-R0006)
1x Standard Size Servo (Z-E0035)
Battery (Consult your "ESC" manual) 6 cell NIMH or Lipo battery
Charger (Consult your battery guide) Chargers
RC4WD MOA Competition Crawler Chassis Set (Z-C0047)
Heavy Duty Steel Black 3mm Con Washers (10) (Z-S0843)
Bully 2 Competition Crawler Steering Link Kit (Z-S0952)
Bully 2 Competition Crawler Front Axle (Z-A0012)
Bully 2 Competition Crawler Rear Axle (Z-A0084)
RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
RC4WD M3/M4 Plastic Long Rod Ends (Z-S1375)
RC4WD M3/M4 Plastic Short Rod Ends (Z-S1378)
M3 Plastic Bent Rod End (Z-S0074)
Rocker 2.2" Lightweight Competition Beadlock Wheels (Z-W0178)
Bully 2.2" Competition Tire (Z-T0134)
Heavy Duty Nylon Strap Lock (5) (Z-S0552)
Heavy Duty Metal Servo Arm for Futaba Type Servo (Black) (Z-S0182)
RC4WD Medium Decal Sheet (Z-S1272)
King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061) (Rear Only)
RC4WD Rock Krawler RRD Emulsion Scale Dual Spring Shocks (90mm) (Z-D0052) (Rear Only)
Twister Ultimate High Performance Waterproof Servo (Z-E0063)
Outcry Crawler Dual Motor ESC w. Fan & TurboBEC (Z-E0008)
Chubby Mini 3 TON Scale Jack Stands (Z-S0731)
Outcry Crawler Speed Controller ESC with TurboBEC (Z-E0007)
