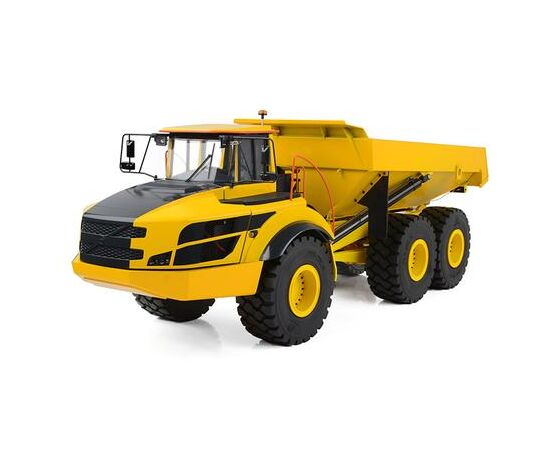

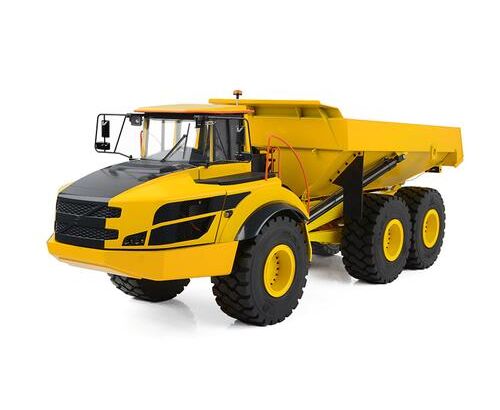

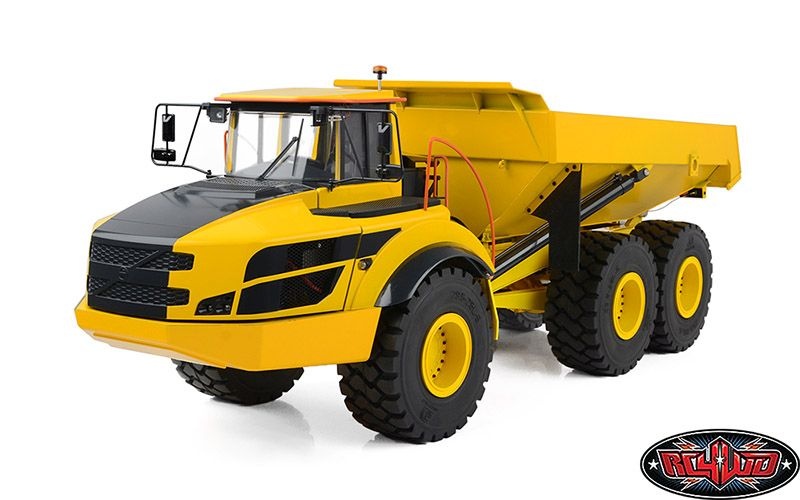

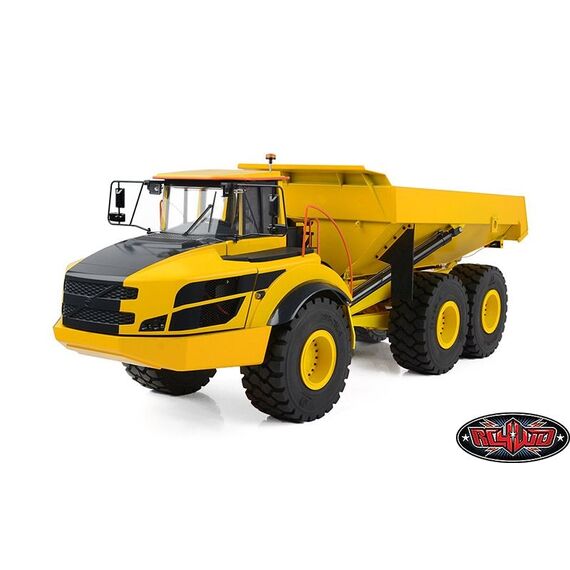

RC4WD E450C Articulating Dump Truck

RC4WD-VV-JD00067
CHF2'619.00
Auf Lager bei Lieferant
Produkt wird in ca. 3 Werktagen an sie versendet
+

Specifications:

  • CNC Machined Metal parts
  • Molded Steel bucket
  • Articulated Steering Design
  • 10 Channel 2.4Ghz Radio
  • Scale Front Cab (Compatible with Driving Figure)
  • Powder Coated in Yellow
  • Massive 29.5-25L-5 Tires
  • Reliable Hydraulic Valve and Adjustable Pump
  • Optimized Steel Hydraulic System
  • Brushless System (Hydraulic)
  • 40A Brushless ESC with BEC
  • 930Kv Brushless Monster Torque Motor
  • 2 Speed Full Metal Transmission (1:64 and 1:16 Gear Ratio)
  • Remote Lockable Front and Rear Axles (Locking Differential)
  • Scale Fully Lighting System
  • Payload Capacity: 25kg / 55lbs
  • Cylinder Maximum Thrust: 40kg / 88.1lbs
  • Scale: 1:14
  • Length: 32.2in / 818mm
  • Width: 9.54in / 242.5mm
  • Height: 10.9in / 278mm
  • Net Weight: 12kg / 26.4lbs
  • Operating oil pressure: 20Bar, 290psi
  • Manufactured by JDCustoms
  • 30 Days Limited Warranty












































































What's Included:

  • 1x 1/14 E450C Articulating Dump Truck (RTR)

Required Parts:

  • 5000mAh 11.1V 50C 3S1P LiPo Battery Pack with XT60 Plug (Battery size must be no bigger than 135mm in length, 43mm in width, and 33mm in height)
  • Compatible Battery Charger
  • 4x AA Batteries for Radio (Z-S1718)
  • Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)



Instruction Manual:

Notes:

  • You need to hold the truck firmly and take it out of the box horizontally to prevent the front compartment from rotating and damaging the whole truck.
  • Using 2S, half speed at 6.5V and shut off at 6V. Using 3S, half speed at 9.75V and shut off at 9V. Do not use more than 3S battery. (11.1 volt(s))
  • Once the hydraulic cylinder (dump) reaches its maximum height, do not push further.
  • Must turn on the transmitter before starting the ESC.
  • ESC Supports XT60 Connector
  • While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some "cases" you may want to apply threadlock to some of the hardware that are already installed. (Please follow our instructions)
  • Use threadlock sparingly.
  • Do not over tighten screws, otherwise, you may strip the thread.
  • This product is for experienced R/C users. Not recommended if you just started with R/C.
General
Massstab
1:14
Einsatz
  • Off-Road
Anspruch
  • Geübte Piloten
Fertigungsgrad
RTR (ready to run)
Hersteller
RC4WD
