RC4WD Earth Digger 360L ARTR

RC4WD-VV-JD00016
CHF3'619.00
Nicht auf Lager
Merken Vergleichen
1:14

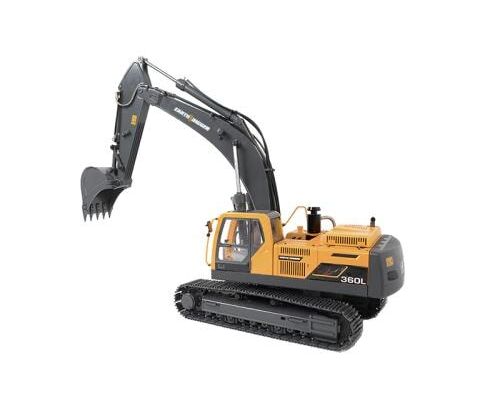

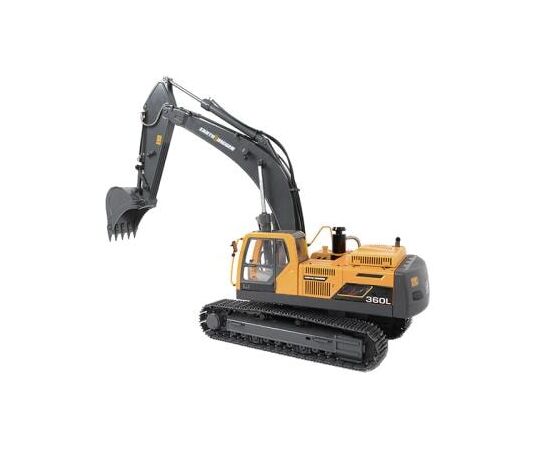

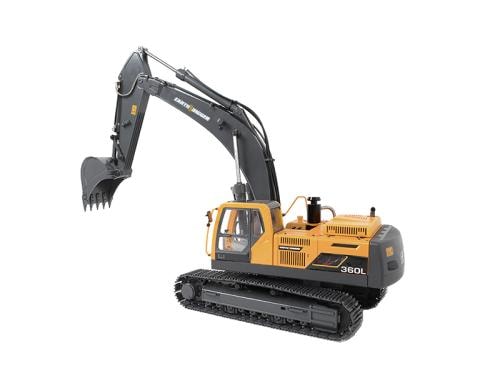

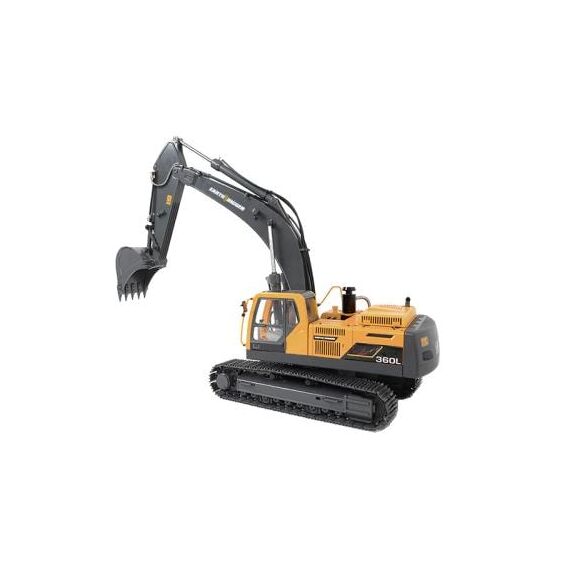

1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (Yellow)




The 1/14 Scale Earth Digger 360L Hydraulic Excavator 360L is even more powerful than its predecessor! Built for those that want reliability, unmatched looks and brute strength for getting that project done. Created with CNC machined metal parts, it's fully assembled and ready to dig! Be ready for the massive power delivered through the high output brushless system. Let's get digging!






Notice: This product is not for first time RC hobbyists and should not be used by persons under the age of 16. This product is considered fairly difficult. Furthermore, we recommend that only experienced RC hobbyists purchase this product.



Specifications:

  • Alloy Zinc and Alloy Aluminum Casting (except Hydraulic Pump)
  • Custom 8 Channel 2.4Ghz Radio
  • Preinstalled High Intensity Light Sockets (Wire and bulbs are not included)
  • Optimized Steel Hydraulic System
  • Scale Driving Figure Ready (Not included)
  • Alloy Zinc Molded Tracks (50mm Width)
  • Efficient Undercarriage
  • Reliable Hydraulic Valve and Adjustable Pump
  • Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)
  • Undercarriage May Rotate 360 Degrees (Endless)
  • Powder-coated in Yellow and Grey
  • Massive Brushless System (Including driving and turning)
  • Hydraulic System 60A Brushless ESC, Driving and Turning System 30A Brushless ESC
  • 270Kv Brushless Monster Torque Motor, Shaft dia. 3.0mm
  • XT60 Power Plug Female
  • Run Time: 20 Minutes based on 4200mAh, 11.1V Battery
  • Steel Machined Oil Pump (60mm x 60mm x 93mm)
  • Digging Force: 15kg / 33lbs
  • Max Lifting Force: 70Kg / 154lbs
  • Driving Speed: 360 Meter per hour
  • Scale: 1:14
  • Length: 823mm / 32.4in
  • Width: 234mm / 9.21in
  • Height: 260mm / 10.2in
  • Operating Oil Pressure: 2.5Mpa
  • Inside Cab Length: 4.72in / 120mm
  • Inside Cab Width: 2.55in / 65mm
  • Inside Cab Height: 4.21in / 107mm
  • Deadweight: 26Kg / 57lbs
  • Manufactured by JDCustoms
  • 30 Days Limited Warranty






















Click image below to enlarge photo.

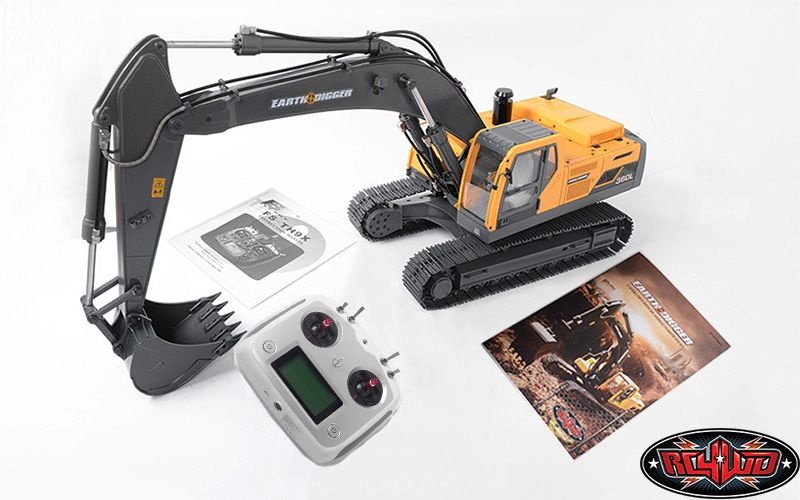

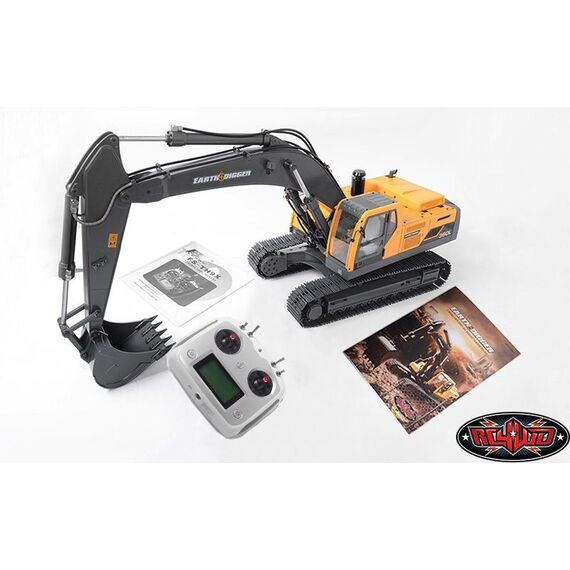

What's Included:

  • 1x 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (Yellow)



Required Parts:

  • 3S 6500mAh 11.1v 20c Lipo Battery (Max size: 2.87in x 3.15in x 5.2in) (Z-E0038)
  • 8x AA Batteries for Radio (Z-S1718)

Optional Parts:

  • Volvo Decal Sheet Set for 1/12 Earth Digger 360L (VVV-C0267)
  • 1/14 Scale Earth Digger 360L Cab Window Protective Screens (VVV-S0186)
  • Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)
  • Earth Mover 870K Warning Light System (VVV-S0189)
  • Skeleton Excavator Bucket for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0217)
  • Quick Connect Ripper Tooth for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0222)
  • Narrow Digging Bucket for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0219)
  • Quick Connect for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0220)
  • Claw Attachment for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0223)
  • Wide Bucket for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0218)
  • Digging Bucket for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0221)


Optional Colors:

  • 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (Green) (VV-JD00022)


Notes:

  • Must turn on the transmitter before starting the ESC.
  • ESC Supports XT60 Connector
  • This unit doesn't have a low voltage cut off. You will want to purchase a LiPo Battery Low Voltage Alarm to protect your battery. This is a common item in RC and should be available at most major online hobby shops.
  • While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply thread lock to some of the hardware that is already installed.
  • Use good quality hex drivers to avoid stripping screw heads.
  • Use thread lock when putting metal screws into metal parts.
  • Steps marked with an asterisk (*) require thread lock.
  • Use thread lock sparingly.
  • Do not over tighten screws otherwise you may strip the thread.

Instruction Manual:

Radio Manual:


General
Massstab:
1:14
Motor / Antrieb:
  • Elektro Brushless-Motor
Einsatz:
  • Off-Road
Anspruch:
  • Geübte Piloten
Fertigungsgrad:
RTR (ready to run)
Max. Geschwindigkeit:
00-10 km/h
Hersteller:
RC4WD
