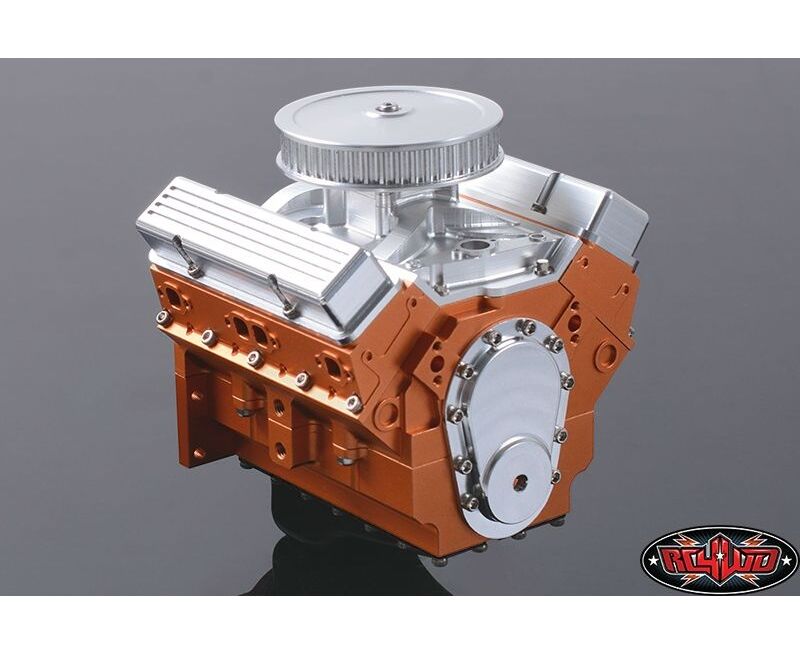

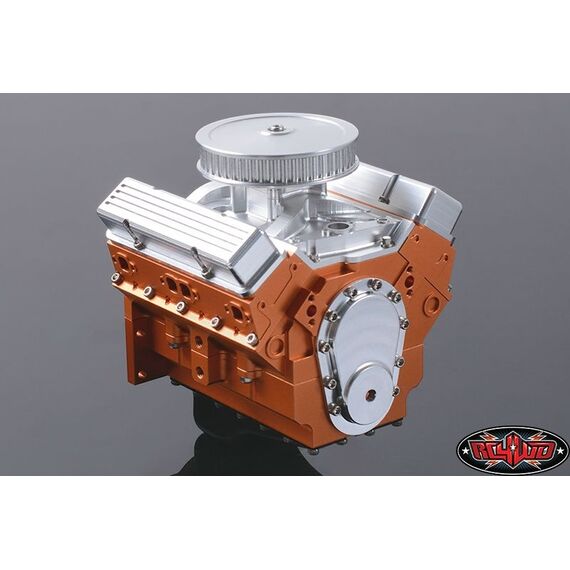

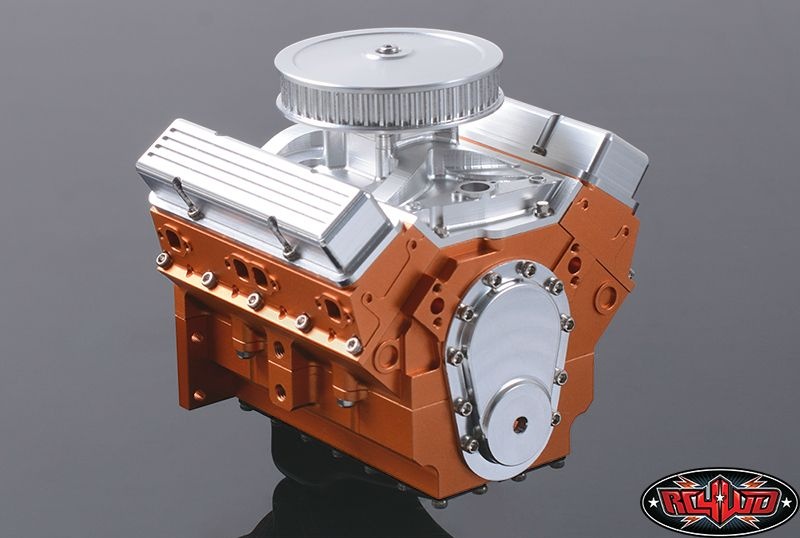

RC4WD V8 Motor 1:10

RC4WD-Z-S1043
CHF239.00
Auf Lager
+
Merken Vergleichen

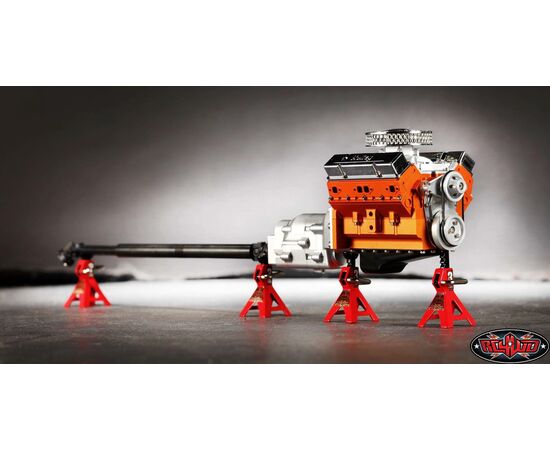

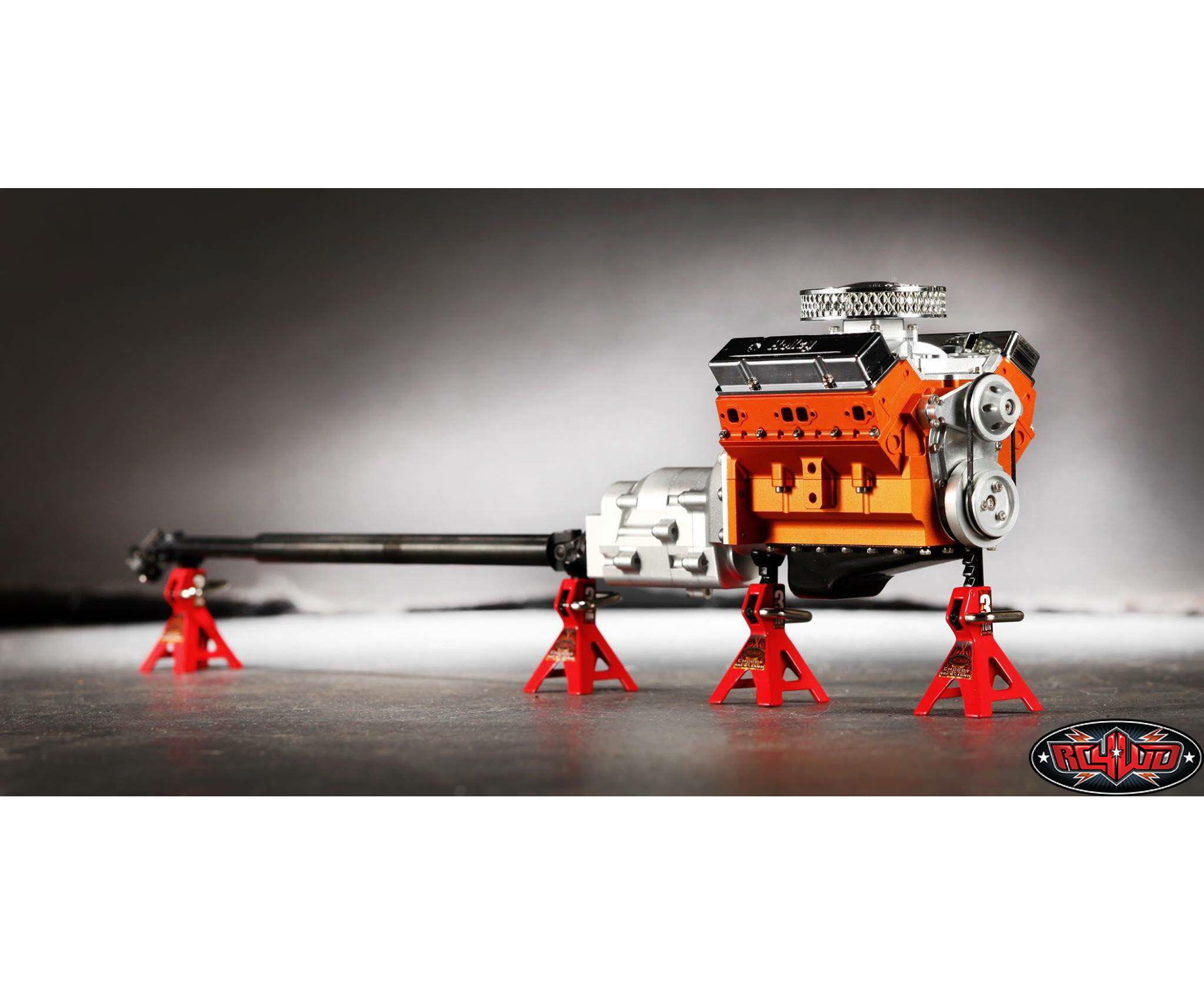

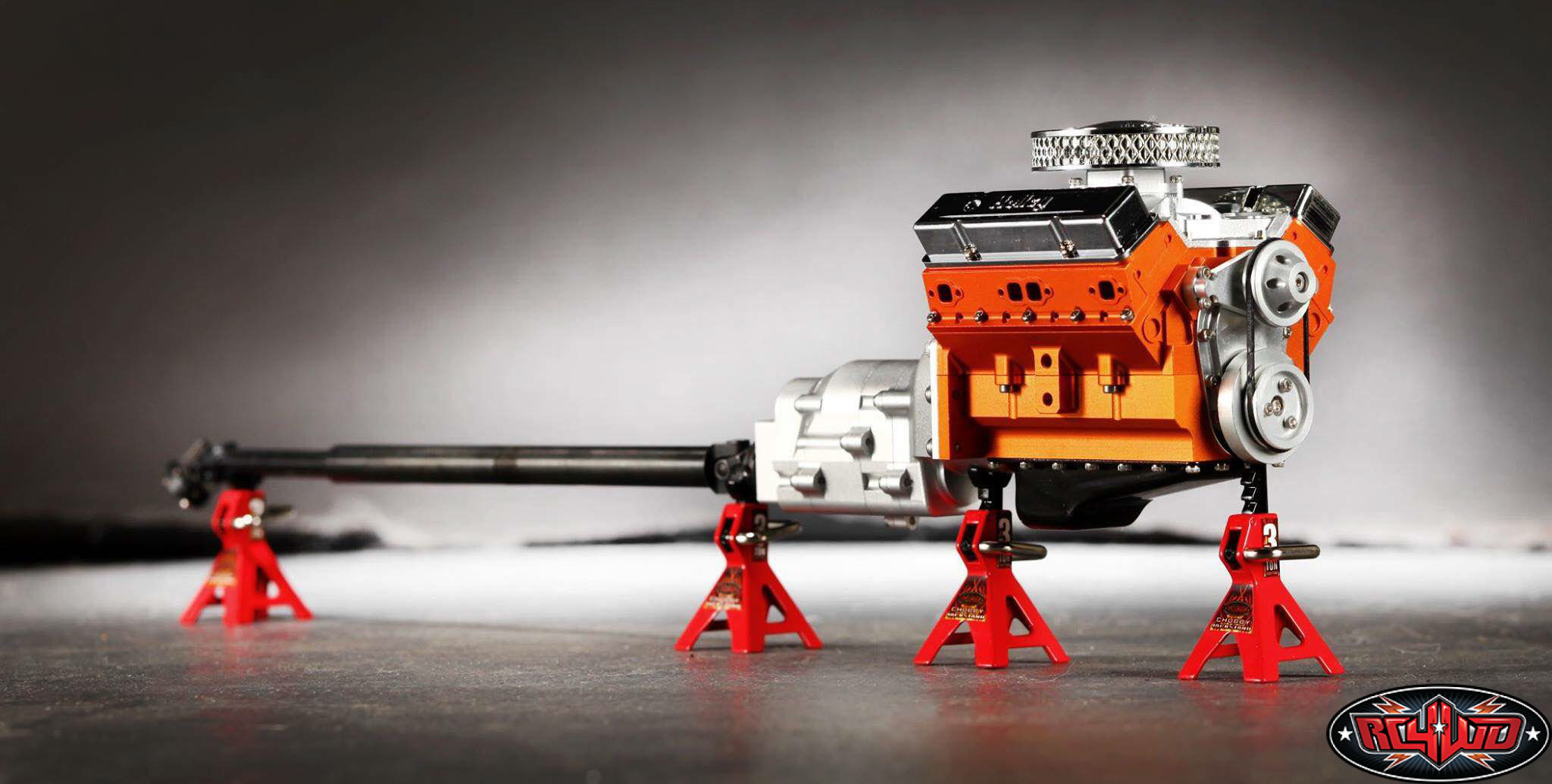

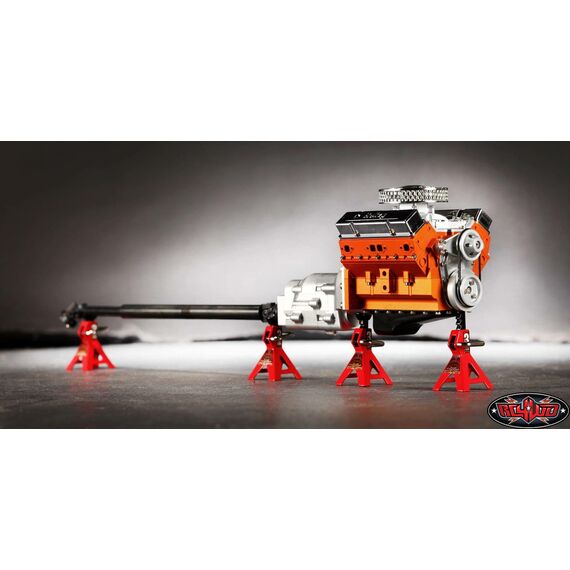

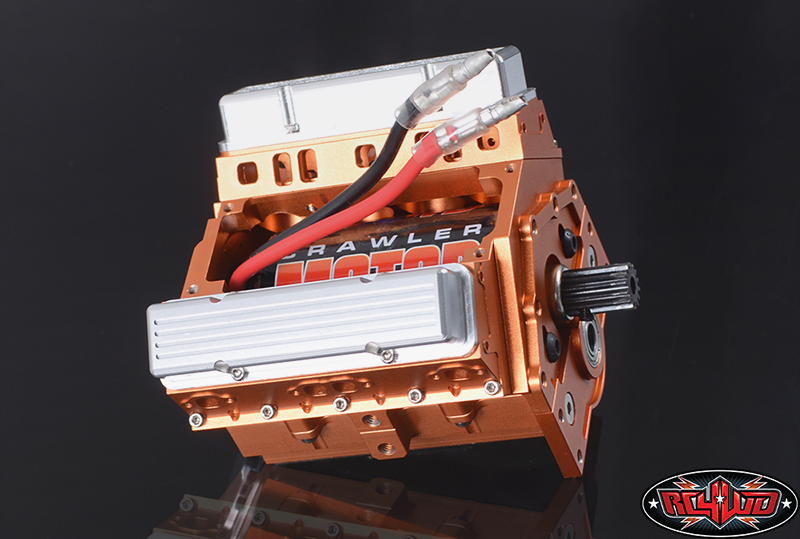

Highly detailed and super realistic. This allows you to hide your 540 motor inside the scale engine to make your build even more realistic. Pair it with the R4 transmission and you have an unbeatable scale combination for your next truck build.

Specifications:

  • Billet Aluminum
  • CNC Machined
  • Total Height:  3.34in / 84.9mm
  • Total Width: 2.77in / 70.4mm
  • Total Length: 2.74n / 69.6mm
  • Weight: 6.45oz / 183g

What's Included:

  • 1x RC4WD 1/10 V8 Scale Engine
  • 1x Single Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)


Required Parts:

  • RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031)
  • 540 Crawler Motor (Motors)

Optional Parts:

  • Trail Finder 2 V8 Engine Mounts (Z-S1239)
  • RC4WD 1/10 Holley® Chrome Valve Covers for Scale V8 Engine (Z-S1500)
  • RC4WD Pulley Kit w/Belt for V8 Scale Engine (Z-S1537)
  • RC4WD "Holley®" V8 Air Cleaner (Z-S1662)
  • Scale Garage Series V8 Engine Stand (Z-X0029)
  • RC4WD Pulley Kit w/Belt for V8 Scale Engine (Z-S1537)
  • Distributor and Rubber Tube for V8 Motor (Z-S1738)
  • Thermostat Housing for V8 Motor (Z-S1739)
  • RC4WD Water Pump for V8 Scale Engine (Z-S1719)
  • Plastic Exhaust Headers for V8 Motor (Z-S1775)
  • RC4WD 1/10 Holley® M/T Valve Covers for Scale V8 Motor (Z-S1748)
  • RC4WD Inglese 8-Stack Induction System for V8 Motor (Z-S1829)


Replacement Hardware:

  • 50 x M1.6 x 4mm SHCS (Silver)
  • 4x M2 x 6mm Hex Screws (Silver) (Z-S1196)
  • 10 x M2 x 6mm SHCS (Silver) (Z-S0994)
  • 1 x M2 x 8mm SHCS (Silver) (Z-S1234)
  • 2x M3 x 8mm FHCS (Silver) (Z-S1271)


Notes:

  • Fits Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc") with Optional Engine Mounts
  • Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049with Optional Engine Mounts
  • Fits Trail Finder 2 RTR w/Mojave Body Set (Z-RTR0019 "Disc") with Optional Engine Mounts
  • Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024with Optional Engine Mounts
  • This product can't be installed on TF2 with the 3/4 link (Z-S0603) / (Z-S0565)

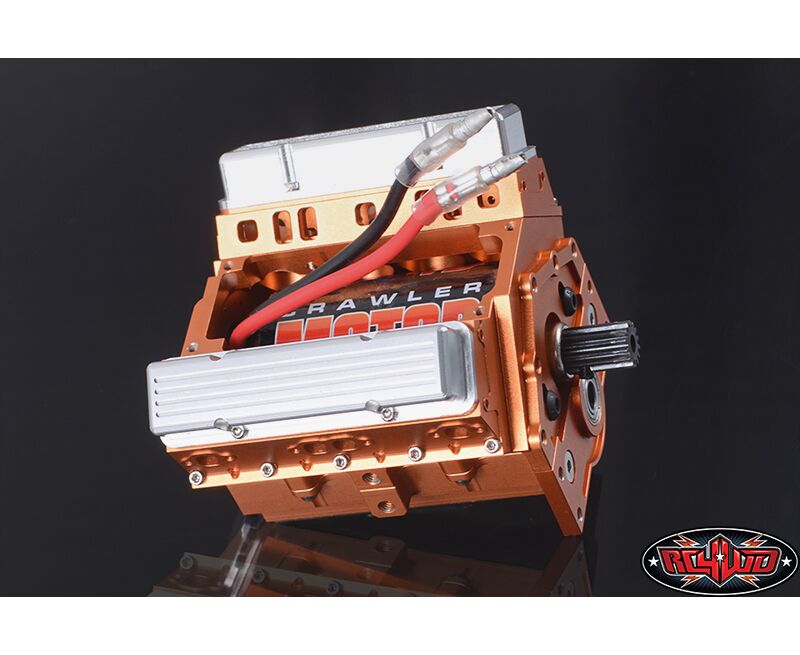

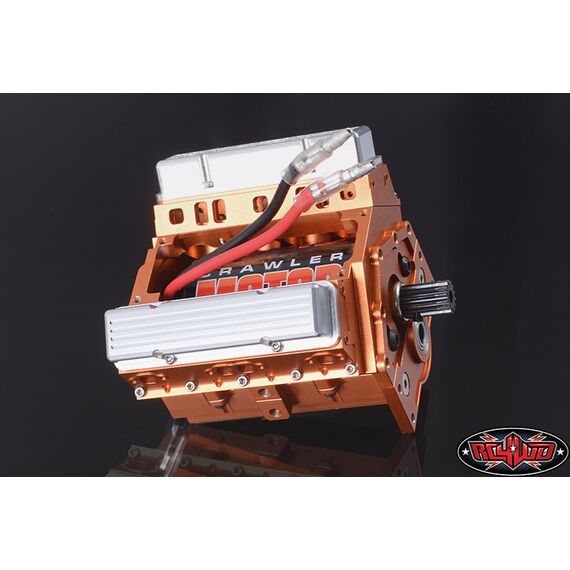

  • Works with brushed 540 motors and 540 sized brushless motors.  Some brushlesss motor brands may not fit inside.
  • Mojave body requires minor modification to clear the faux air cleaner.

Press Information:

  • Click here to see how this product was used on a Class 1 Winner's Jeep Wrangler from the ECSC16.

Instruction Manual:
