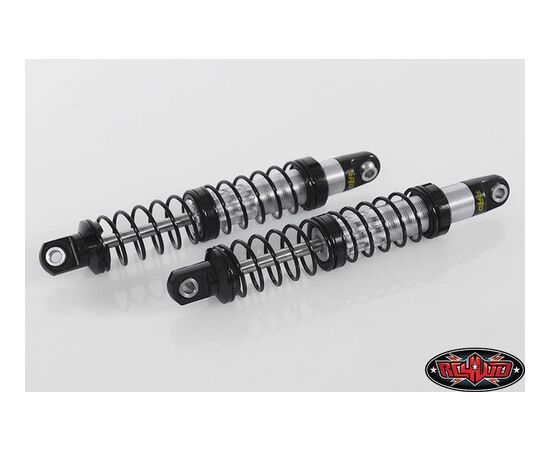

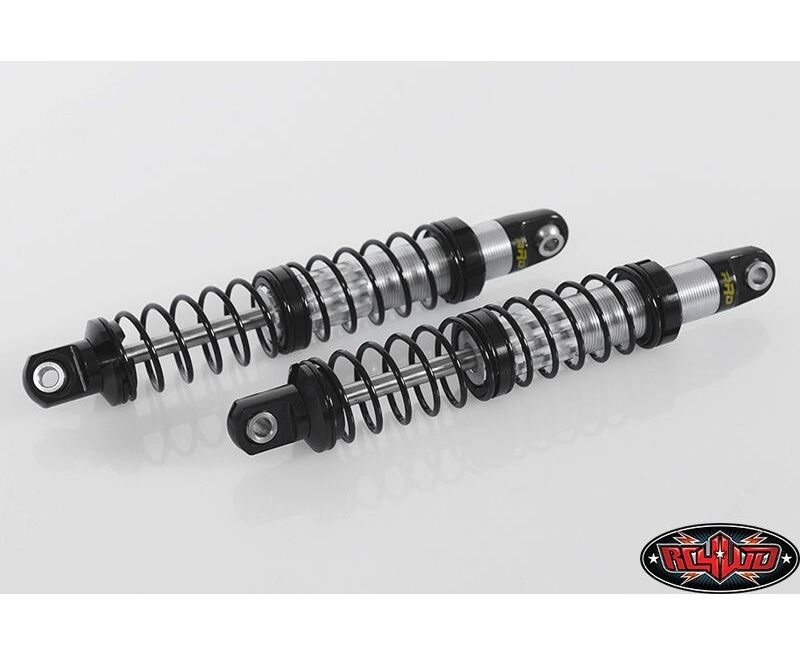

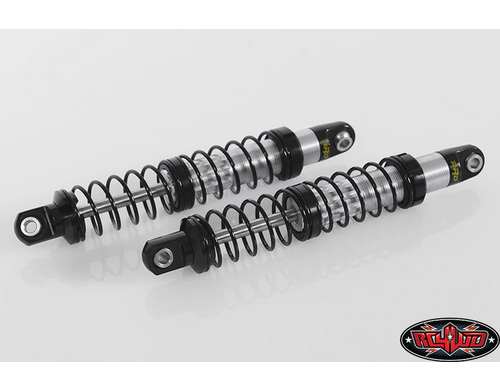

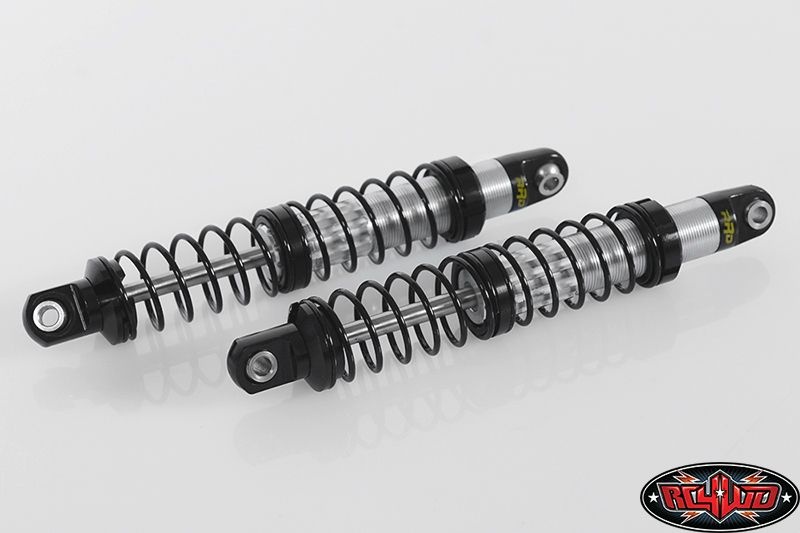

Rock Krawler Stossdämpfer 90mm
RC4WD-Z-D0052
Specifications:
- CNC Machined
- Billet Aluminum
- Smooth Black Anodized
- Rock Krawler Logo on Top
- Dual Spring Design
- Hole to Hole (Compressed): 2.55in / 64.8mm
- Hole to Hole (Uncompressed): 3.54in / 90mm
- Overall Length: 3.90in / 99mm
- Travel Length: 1.02in / 26mm
- Shock Body OD: 0.39in / 10mm
- Spring Body OD: 0.57in / 14.5mm
- Shaft Diameter: 0.14in / 3.5mm
- Each Weight: 0.65oz / 19g
What's Included:
- 2x RC4WD Rock Krawler RRD Emulsion Scale Dual Spring Shocks (90mm)
- 1x Rock Krawler Decal Sheet
Replacement Parts:
- RC4WD Shock Cap for Top of Rock Krawler RRD Shocks (Z-S1182)
- Lower, Center and Threaded Spring Retainer for Rock Krawler RRD Shocks (Z-S1184)
- Shock Ball End for Bottom of Rock Krawler RRD Shock (Z-S1186)
- Replacement Shock Shafts for King Shocks (90mm) (Z-S0785)
- Rebuild Kit for Scale King, ARB & Superlift Shocks (Z-S0788)
Optional Parts:
- RC4WD 90mm Rock Krawler Shock Spring Assortment (Z-S1189)
Notes:
- Fits Gmade Sawback
- Fits Traxxas Rustler Front Axle, but you will need Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
- Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes
- To use this shock with the SCX10 II, you will need to use a 3mm spacer on the top mounting point of the shock. (Z-S0806)
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
Rock Krawler and the Rock Krawler logo are property of Rock Krawler Suspensions and used under license to RC4WD.
