SCR-BL Fahrtenregler für brushed Motoren
AKTION SOLANGE VORRAT

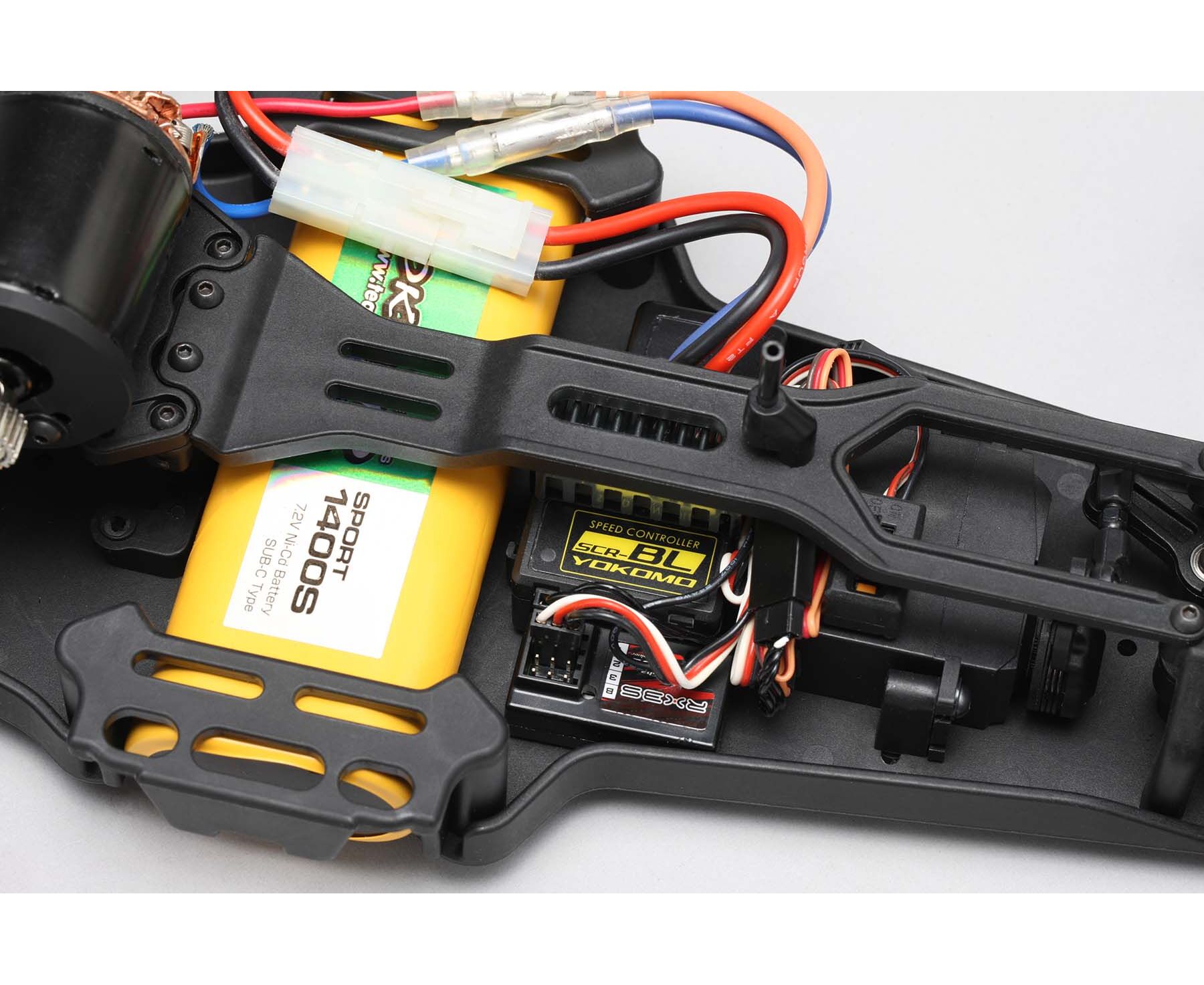

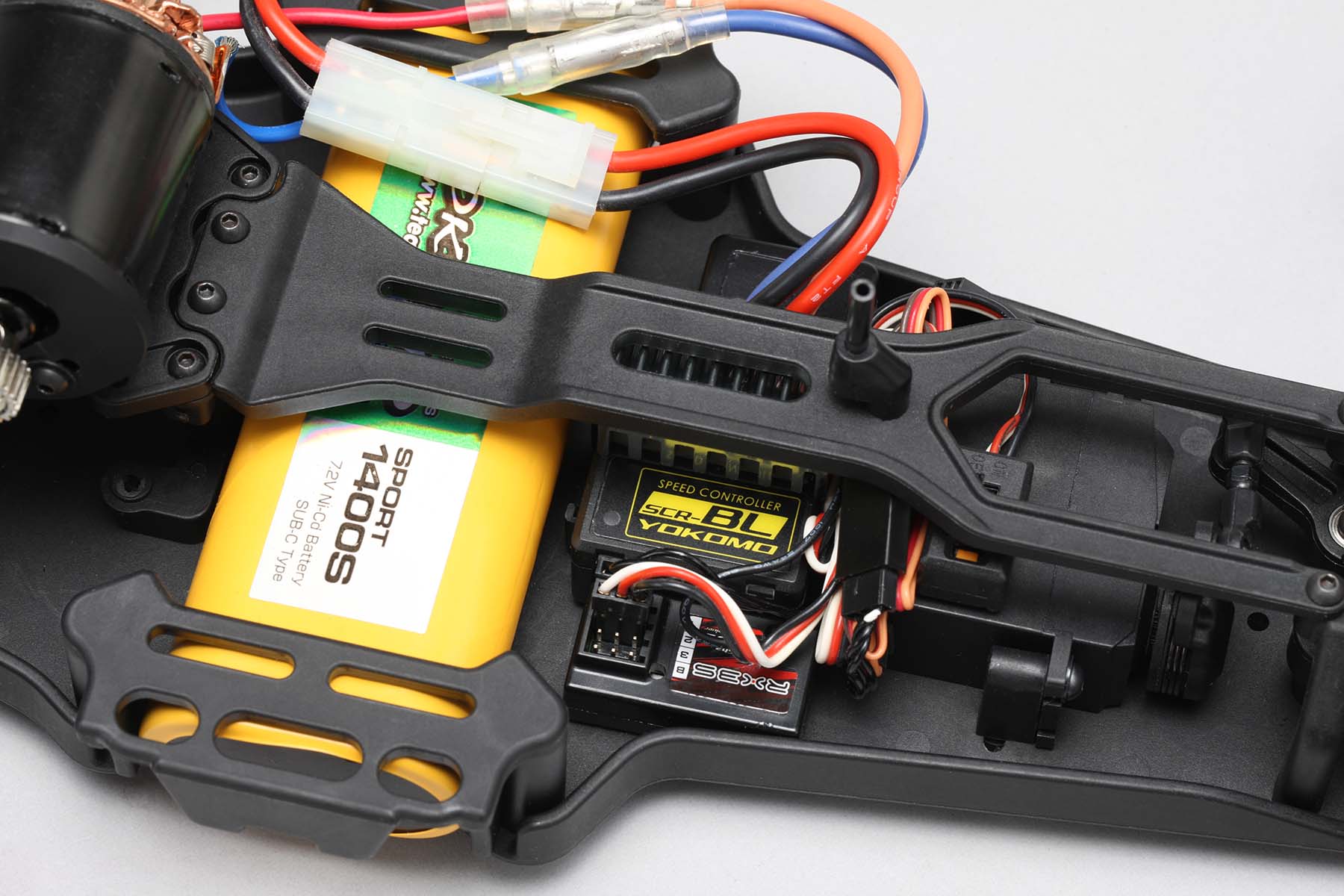

This is a speed controller dedicated to brush motors, which is very popular among beginners and intermediate players. This model was also used in Yokomo's pre-assembled competition off-road car, and it is equipped with a large heat sink, making it a tough performance that can be used in the season when the temperature rises and off-road driving under heavy load.
The motor supports up to 15 turns and is equipped with a setting mode that changes with a push switch. It is possible to adjust the power feeling and drag brake, select the battery type and set the battery protection function.

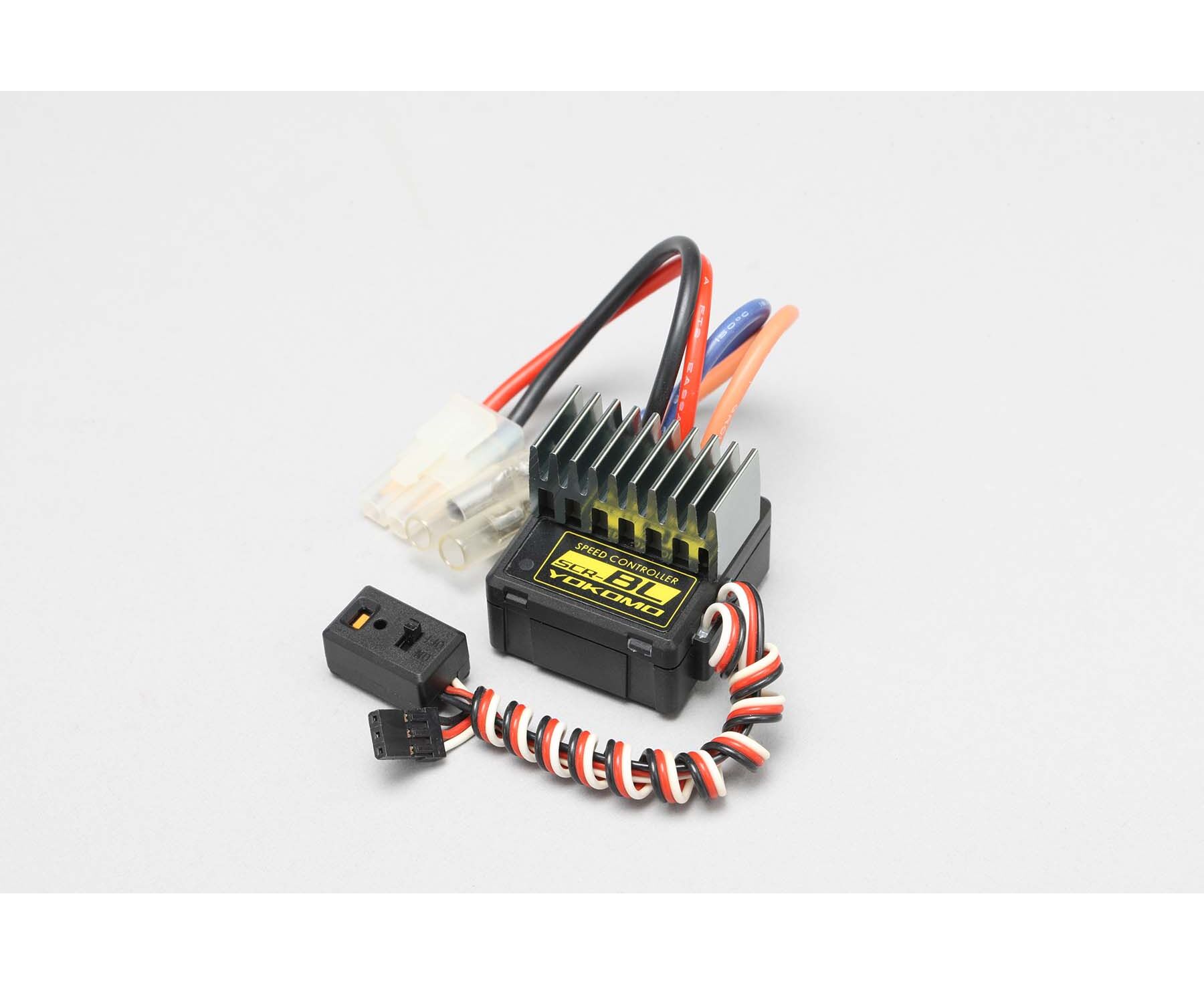

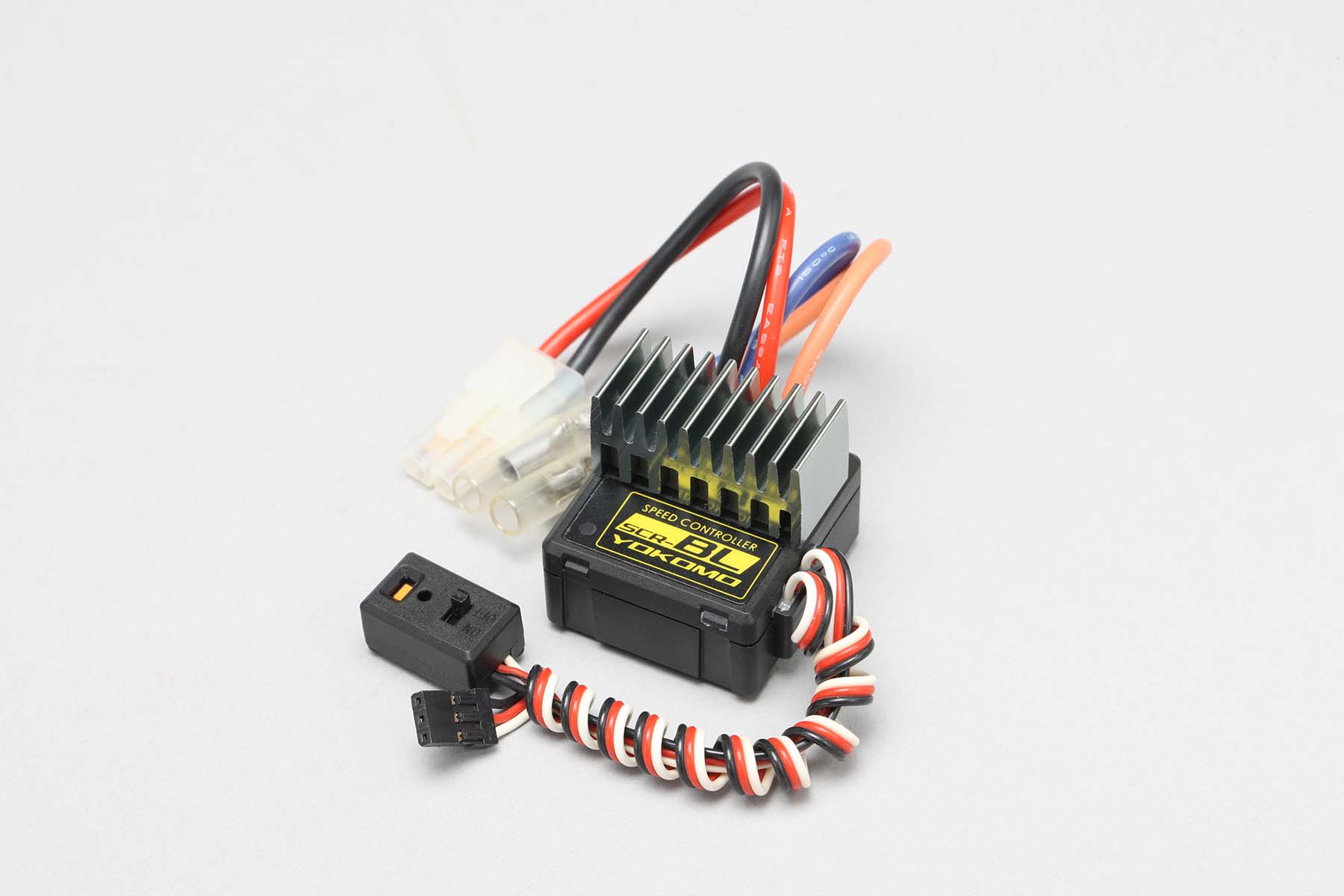

Dedicated speed controller for SCR-BL brush motor
Reverse power, start power, drag brake, battery type selectable in setting mode
Li-po battery protection function installed (initial setting NiCd/NiMH)
Input voltage 7.4V to 8.4V
continuous maximum current 70A Momentary maximum current 500A
Size 33.4mm x 36mm x 33.2mm
Weight 70g Usable
brush motor number of turns 15 turns or more (7.2V)
Pulse frequency 1khz
