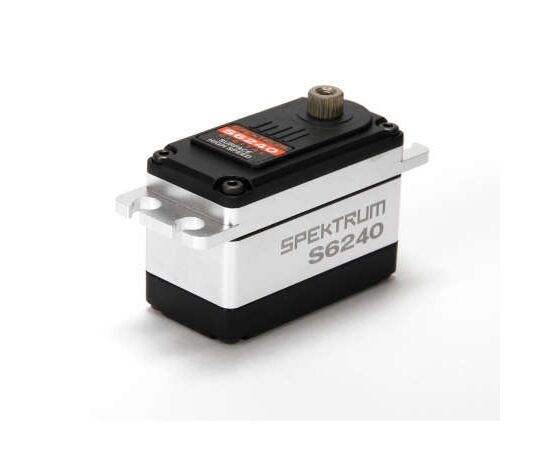

SERVO DIGITAL High Speed
Key Features
- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
- Waterproof
- 1-Year Limited Warranty
Product Specifications
- Size Category:
- Specialty
- Type:
- Digital
- Application:
- 1/10 Buggy, Truck, On-Road
- Torque:
- 208 oz-in (15.0kg-cm) @ 6.0V
- Speed:
- 0.08 sec/60 deg @ 6v (no load)
- Length:
- 1.61 in (41mm)
- Width:
- 0.82 in (20.9mm)
- Height:
- 1.18 in (30mm)
- Weight:
- 2.1 oz (59.5g)
- Bushing Or Bearing:
- Bearing
- Bearing:
- Dual
- Motor Type:
- Coreless
- Connector Type:
- Z-Connector, removable
- Gear Type:
- Metal
- Gear Material:
- Steel, Aluminum
- Current Draw Idle:
- 9.8 mA @ 6.0V
- Current Draw Stall:
- 4.9A @ 6.0V
- Voltage:
- 6.0V
- Deadband:
- 4µs
General
Abmessungen
Standard
Getriebe
Metall
Servo-Typ
- Digital
- Waterproof
Servogewicht (g)
59.50
Hersteller
Spektrum
Betriebsspannung
4.8-6V
