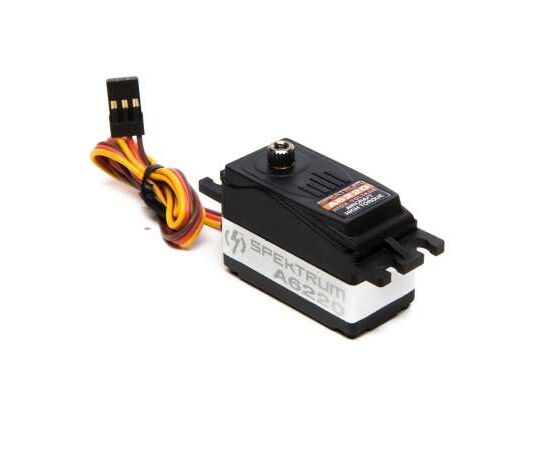

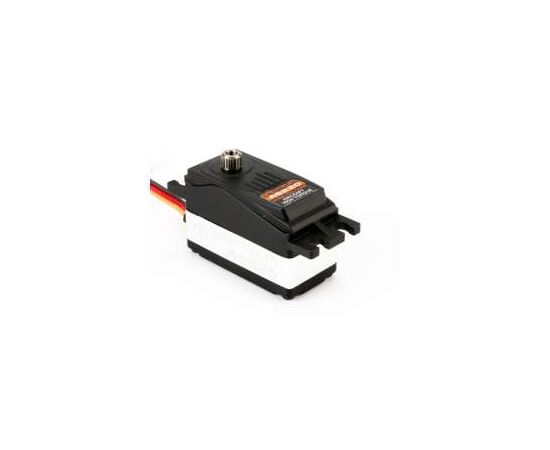

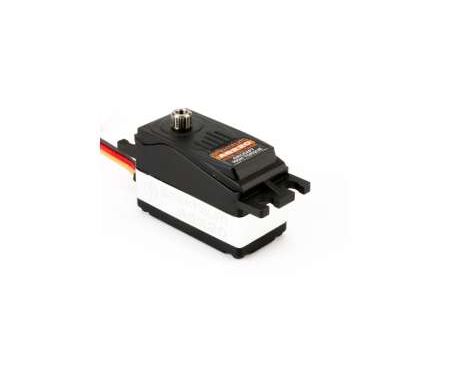

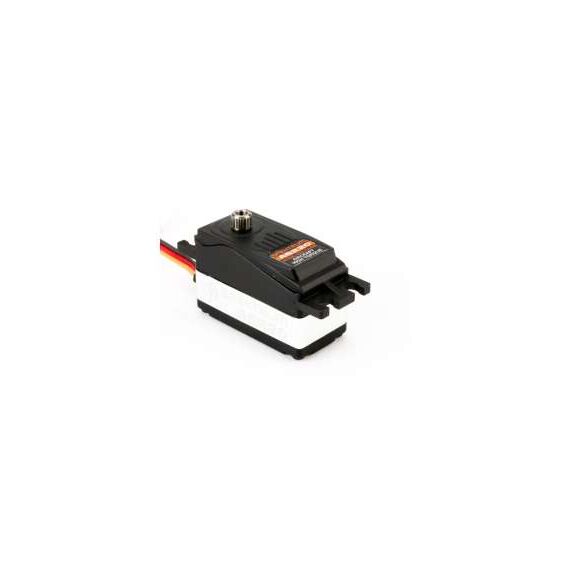

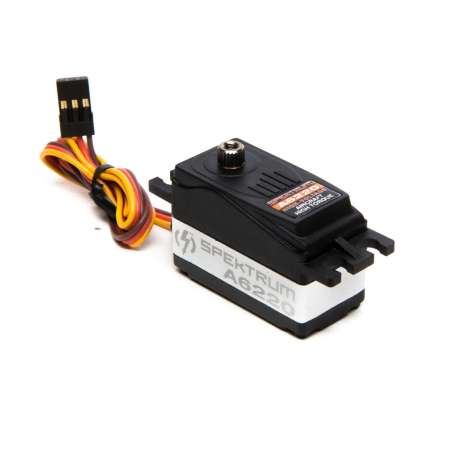

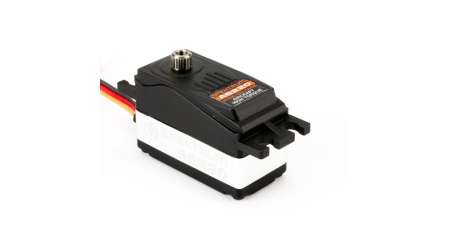

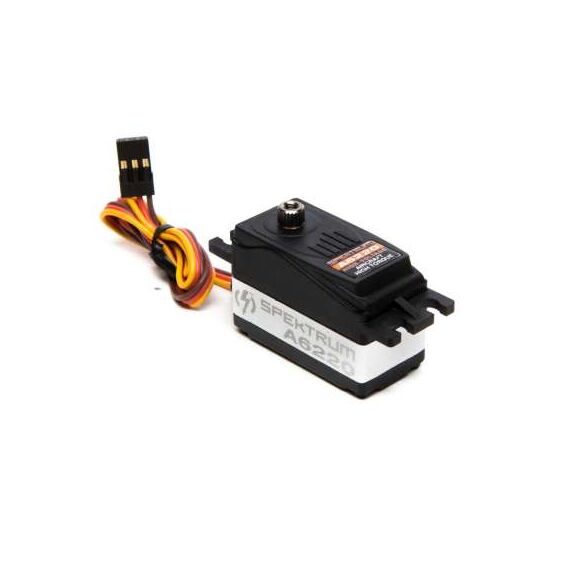

SERVO DIGITAL HV HI TORQUE AIR
KEY FEATURES
- High-voltage compatible
- Low profile to fit in tight spaces
- 0.11 sec/60° transit speed with 140 oz-in of torque @ 7.4V
- Metal gears and metal center section of case
PRODUCT SPECIFICATIONS
- Size Category:
- Specialty
- Type:
- Digital
- Application:
- Airplane
- Torque:
- 94 oz-in (6.8 kg-cm) @ 6.0V; 140 oz-in (10.1 kg-cm) @ 8.4V
- Speed:
- 0.15 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 8.4V
- Length:
- 1.58 in (40.3mm)
- Width:
- 0.79 in (20mm)
- Height:
- 1.02 in (26mm)
- Weight:
- 1.6 oz (46 g)
- Bushing Or Bearing:
- Bearing
- Bearing:
- Dual
- Motor Type:
- Coreless
- Connector Type:
- Universal
- Voltage:
- 4.8 - 8.4V (High Voltage)
General
Abmessungen
Low Profile
Getriebe
Metall
Servo-Typ
- Digital
Servogewicht (g)
46
Hersteller
Spektrum
Betriebsspannung
7.4V
