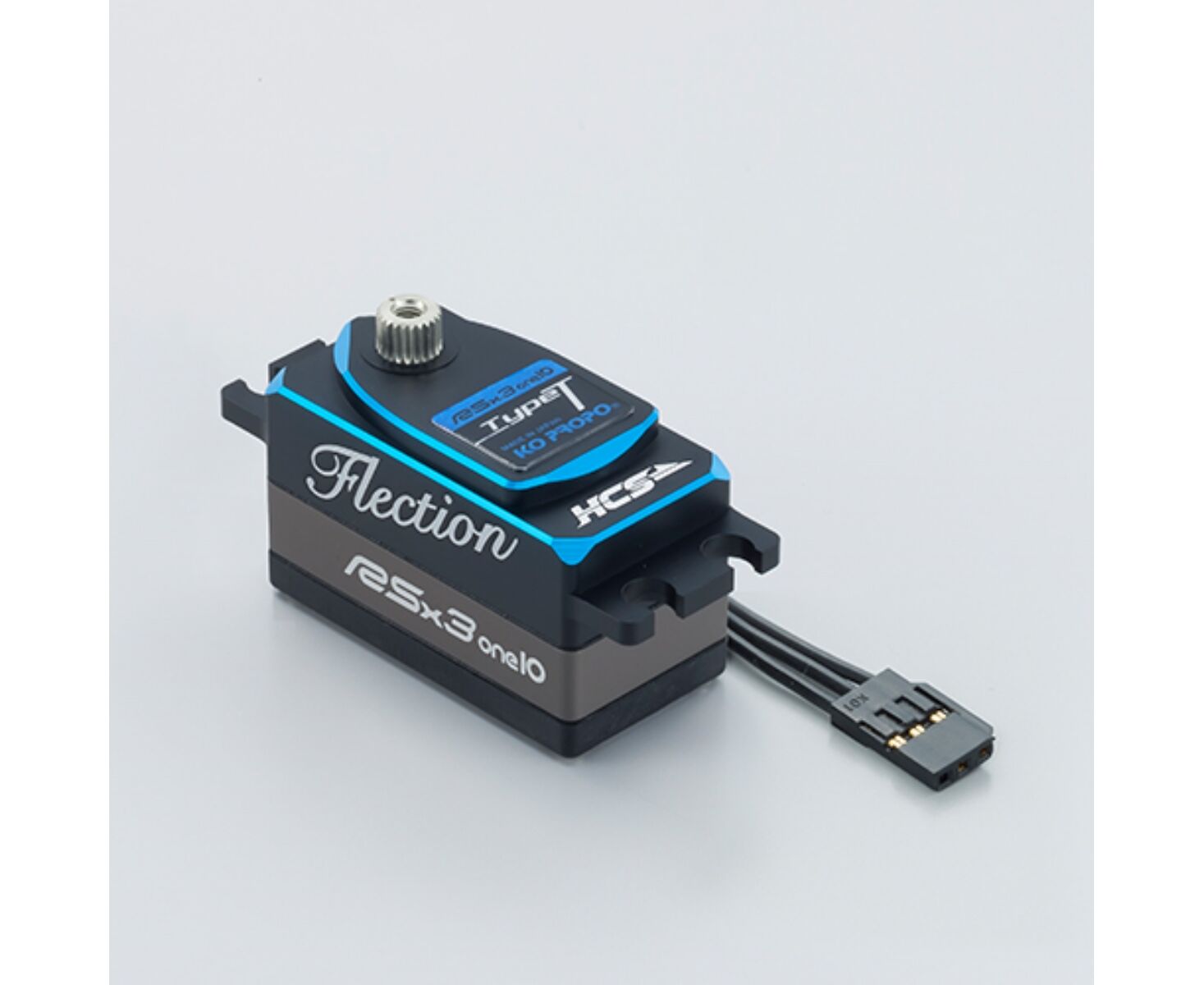

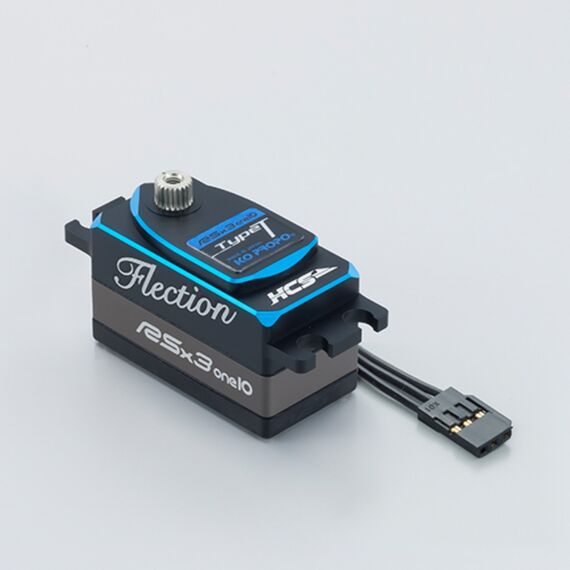

Servo KO Propo RSx3-one10 Flection Type-T
KO30133
This servo is intended for use especially with 1-/10 On-road EP cars like Tamiya Challenge and Tamiya Grand Prix, being designed///to hold the rise in voltage at max.appprox.1.5A to help preventing a possible damage of brushless ESC at the time of collusion.
The following pre-set memories are installed,
-- MODEL1. Asphalt high grip situations
-- MODEL2. Carpet low grip (Selected)
-- MODEL3. Tamiya World Championship Blue Carpet
-- MODEL4. TAMIYA Challenge Kakegawa circuit
-- MODEL5. Asphalt low grip
The other product specifications are the same as #KO30130 RSx3-one10 Flec tion.
-#Torque: 12.5Kg-cm Speed: 0.09sec/60deg(@7.4V)
-#Torque: 11.8Kg-cm Speed: 0.10sec/60deg(@6.0V)
-#Dimensions: 40.5×26×21mm (Low Profile)
-#Weight: 53.3g
-#Operating voltage: 6.0~7.4V (Lipo,Life,Ni-MH)
-#The hard alumite aluminum gear
-#Core-less motor
-#Dual bearings
-#The hard servo gear shaft
-#The aluminum top case
-#The aluminum heat sink middle case
-#Black cable
-#Gold plated connector
-#HCS Compatible
-- MODEL1. Asphalt high grip situations
-- MODEL2. Carpet low grip (Selected)
-- MODEL3. Tamiya World Championship Blue Carpet
-- MODEL4. TAMIYA Challenge Kakegawa circuit
-- MODEL5. Asphalt low grip
The other product specifications are the same as #KO30130 RSx3-one10 Flec tion.
-#Torque: 12.5Kg-cm Speed: 0.09sec/60deg(@7.4V)
-#Torque: 11.8Kg-cm Speed: 0.10sec/60deg(@6.0V)
-#Dimensions: 40.5×26×21mm (Low Profile)
-#Weight: 53.3g
-#Operating voltage: 6.0~7.4V (Lipo,Life,Ni-MH)
-#The hard alumite aluminum gear
-#Core-less motor
-#Dual bearings
-#The hard servo gear shaft
-#The aluminum top case
-#The aluminum heat sink middle case
-#Black cable
-#Gold plated connector
-#HCS Compatible
General
Abmessungen
Low Profile
Getriebe
Metall
Servo-Typ
- Digital
Servogewicht (g)
53.3
Hersteller
KoPropo
Betriebsspannung
7.4V
