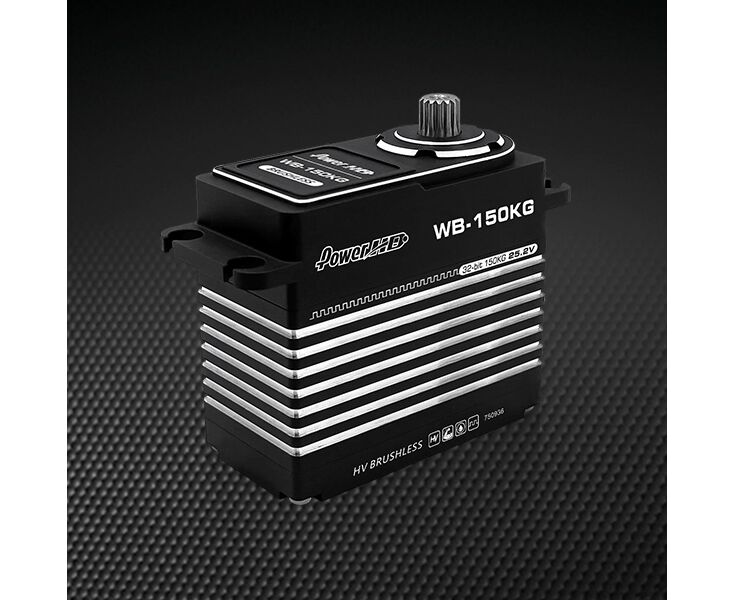

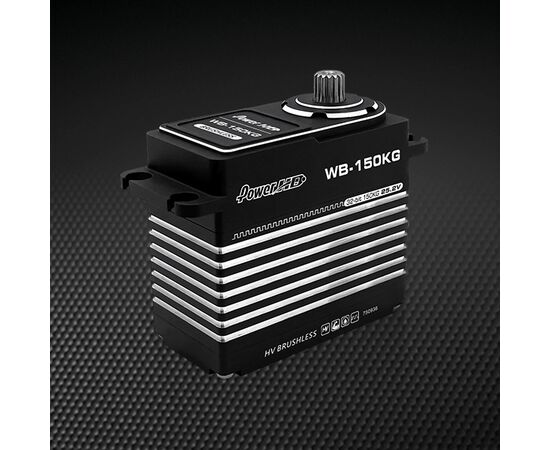

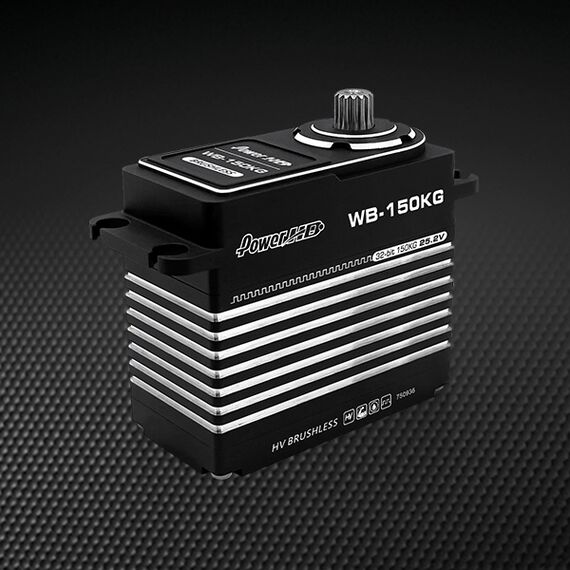

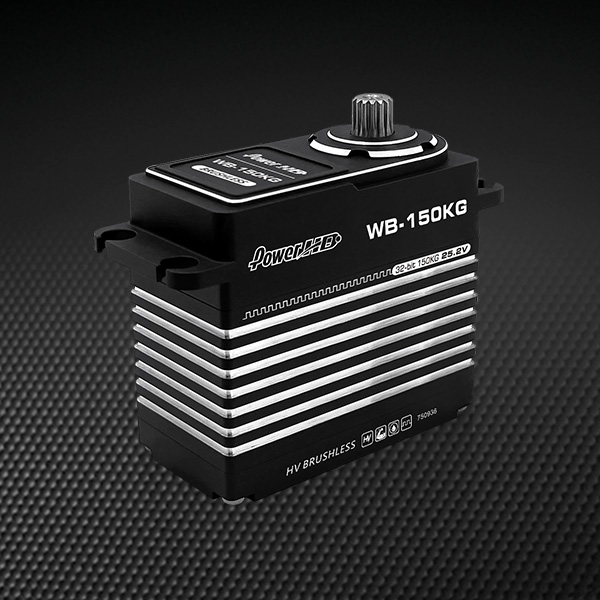

Servo Power-Hd WB-150kg für Grossmodelle
Neu
WB-150KG
Torque(16.8V): 100.0 kg-cm / ( 1388.7 oz/in )
Torque(21.0V): 122.0 kg-cm / ( 1694.3 oz/in )
Torque(25.2V): 150.0 kg-cm / ( 2083.1 oz/in )
Speed: 0.13 sec (16.8V) │ 0.11 sec (21.0V) │
Speed: 0.09 sec (25.2V)
Operating Voltage：16.8 ~ 25.2 DC Volts
Weight: 213 g (7.51 oz)

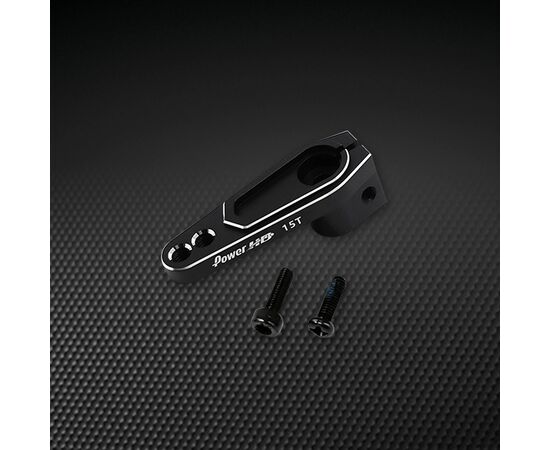

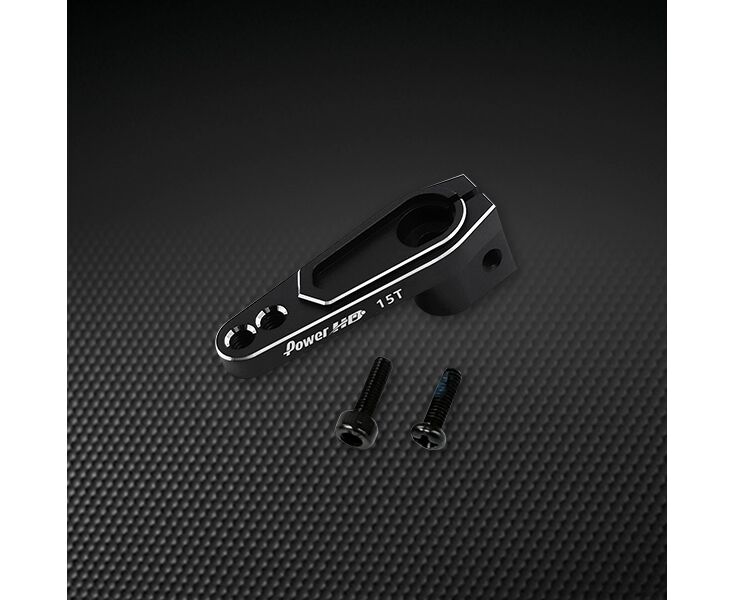

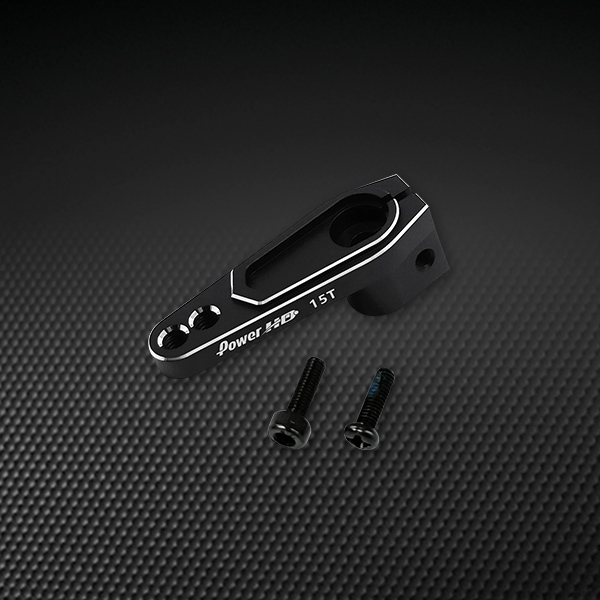

Horn gear spline: 15T
Motor Type: Brushless Motor

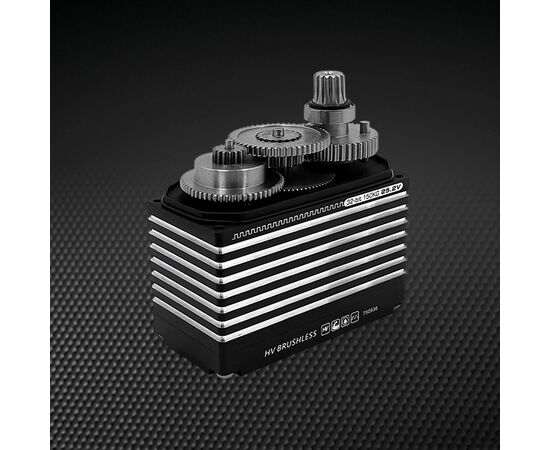

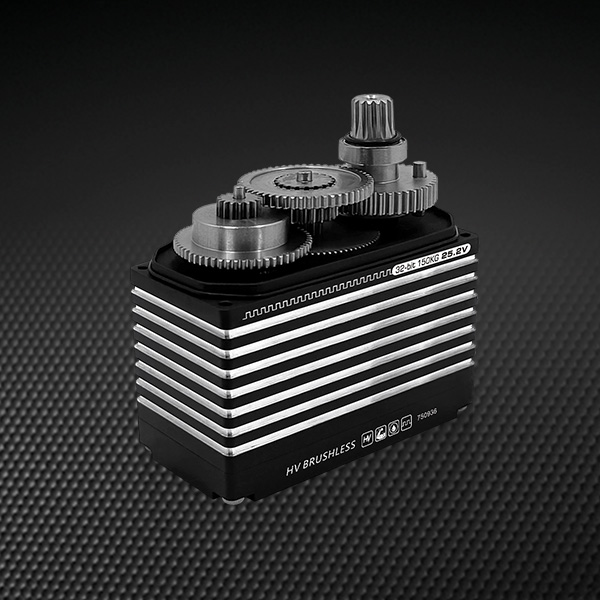

Gear Type：Steel
Max current: 6A
Operating Temperature：-10℃~60℃
Working frequency：1520μs / 333hz
Size：59.5 x 29.5 x 54.4 mm ( 2.34 x 1.16 x 2.14 in)
Torque(21.0V): 122.0 kg-cm / ( 1694.3 oz/in )
Torque(25.2V): 150.0 kg-cm / ( 2083.1 oz/in )
Speed: 0.13 sec (16.8V) │ 0.11 sec (21.0V) │
Speed: 0.09 sec (25.2V)
Operating Voltage：16.8 ~ 25.2 DC Volts
Weight: 213 g (7.51 oz)
Horn gear spline: 15T
Motor Type: Brushless Motor
Gear Type：Steel
Max current: 6A
Operating Temperature：-10℃~60℃
Working frequency：1520μs / 333hz
Size：59.5 x 29.5 x 54.4 mm ( 2.34 x 1.16 x 2.14 in)
General
Abmessungen
Jumbo
Getriebe
Metall
Servo Breite
- bis 30mm
Servo-Typ
- Digital/Brushless
Servogewicht (g)
213
Hersteller
Power HD
Betriebsspannung
6.0V-8.4V
