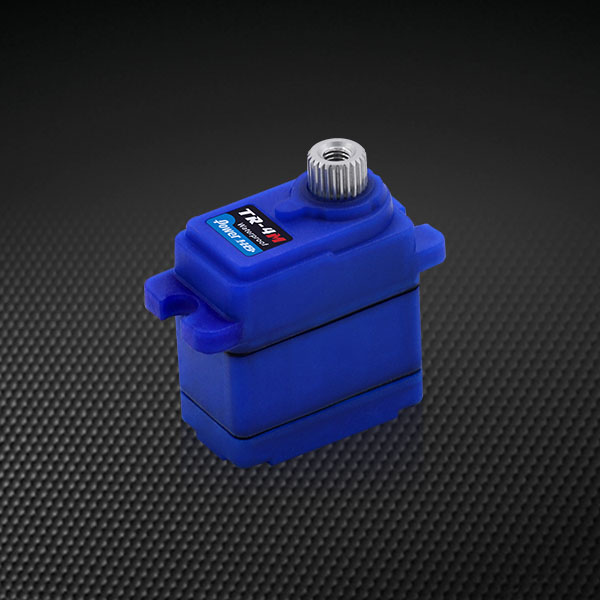

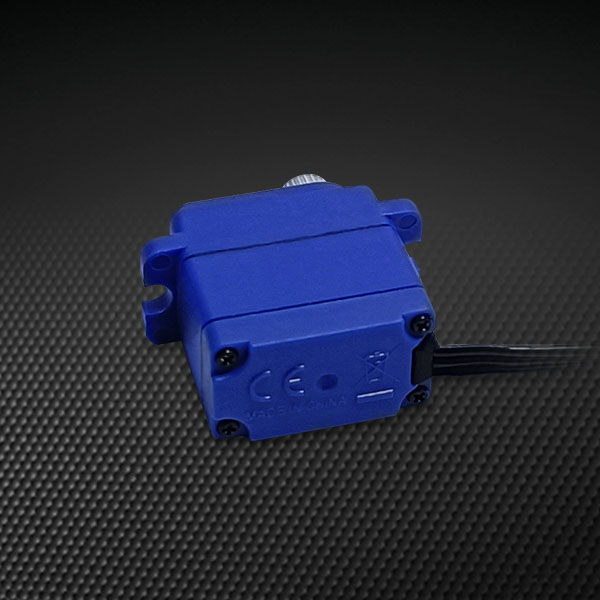

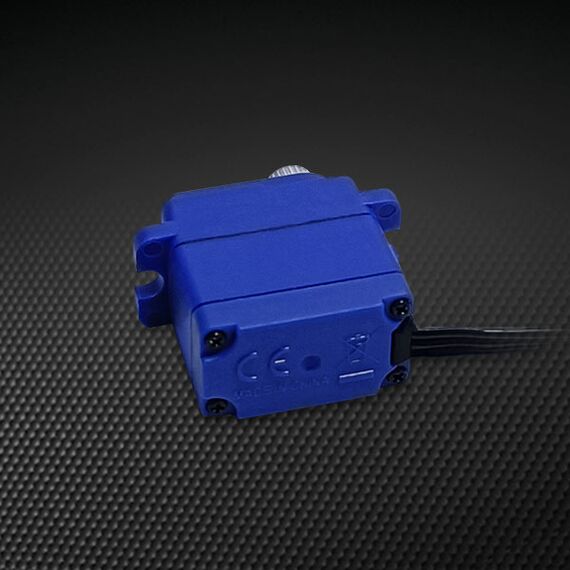

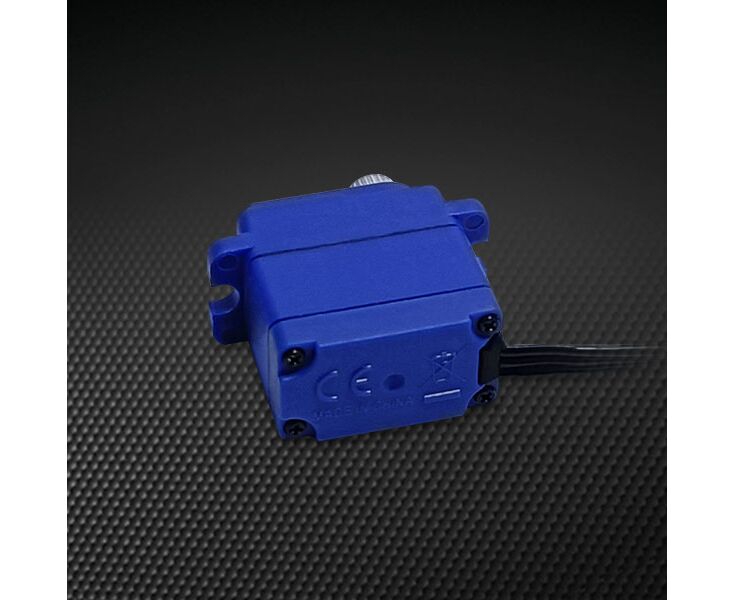

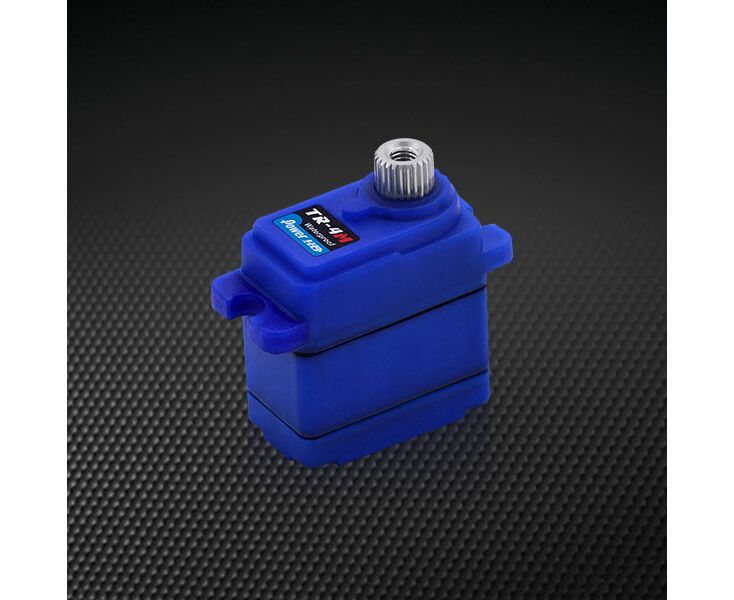

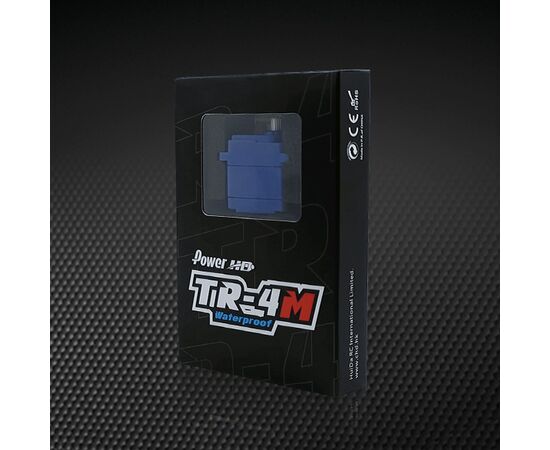

Servo Power-HD zu Traxxas TR-4M
Neu
TR-4M
Torque(4.8V): 2.5 kg-cm (34.7 oz/in)
Torque(6.0V): 3.0 kg-cm (41.7 oz/in)
Torque(7.4V): 3.2 kg-cm (44.4 oz/in)
Speed: 0.11 sec (4.8V) │ 0.095 sec (6.0V) │
Speed: 0.085 sec (7.4V)
Operating Voltage：4.8 ~ 7.4 DC Volts
Weight: 14.0 g (0.49 oz)
Gear Type：Copper&Alu
Connector wire length: JR 180 mm
Operating Temperature: -10℃~60℃
Working frequency：1520μs / 50hz
Size：22.5 x 12.5 x 24.0 mm ( 0.89 x 0.49 x 0.94 in)
Torque(6.0V): 3.0 kg-cm (41.7 oz/in)
Torque(7.4V): 3.2 kg-cm (44.4 oz/in)
Speed: 0.11 sec (4.8V) │ 0.095 sec (6.0V) │
Speed: 0.085 sec (7.4V)
Operating Voltage：4.8 ~ 7.4 DC Volts
Weight: 14.0 g (0.49 oz)
Gear Type：Copper&Alu
Connector wire length: JR 180 mm
Operating Temperature: -10℃~60℃
Working frequency：1520μs / 50hz
Size：22.5 x 12.5 x 24.0 mm ( 0.89 x 0.49 x 0.94 in)
General
Abmessungen
Mini
Getriebe
Metall
Servo Breite
- bis 15mm
Servo-Typ
- Digital
- Waterproof
Servogewicht (g)
14
Hersteller
Power HD
Betriebsspannung
4.8 V - 7.4 V
