SVT Panhard Reinf. Brakcet für Axial SCX10 III
- There's lots to like about the new Axial SCX10 III, but the Panhard mount on the stock AR45 portal axle housing could use a little help. We've designed our Panhard reinforcement bracket to bolt right onto the stock housing with no modifications, making installation a snap. And it's made of CNC machined aluminum to withstand whatever you can throw at it out on the rocks and trails.
Package includes:
- Panhard reinforcement bracket
- 1x M3 x 8mm flat head screw
- 1x M3 x 20mm flat head screw
Installation notes:
- Start by removing right front tire. Then remove screw securing right front shock and lower link to the axle housing.
- Unscrew panhard mount from axle housing.

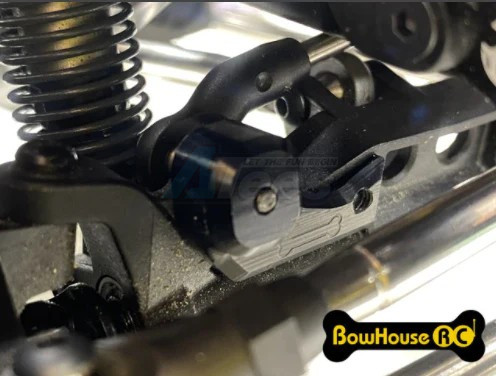

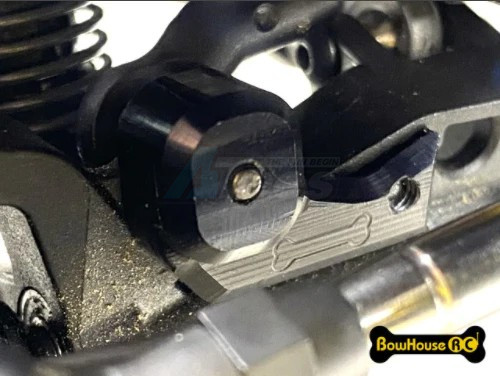

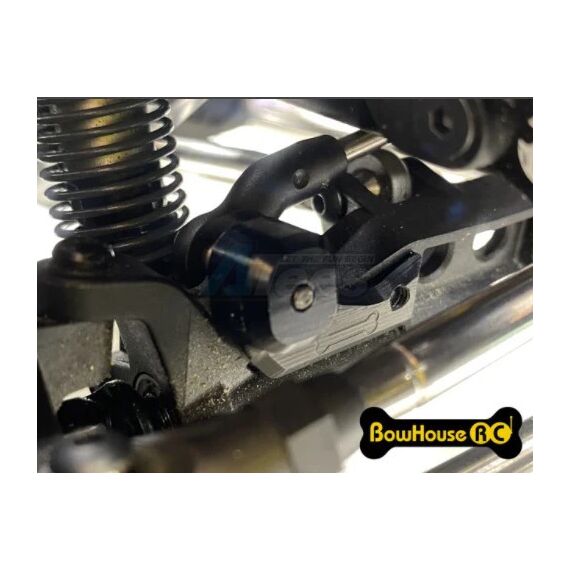

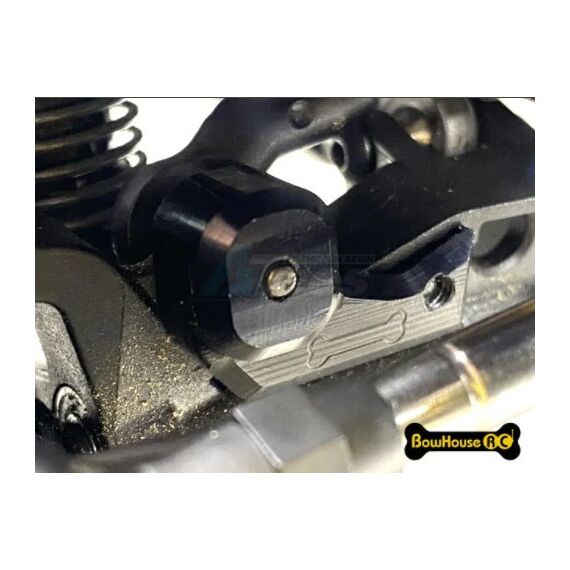

- Snap panhard reinforcement bracket onto front of axle housing around existing panhard mount so that secondary screw hole is visible through the hole in the axle housing truss.

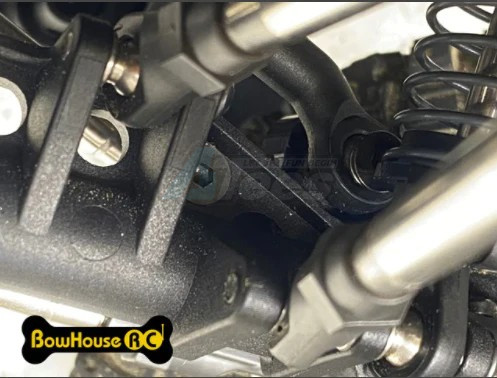

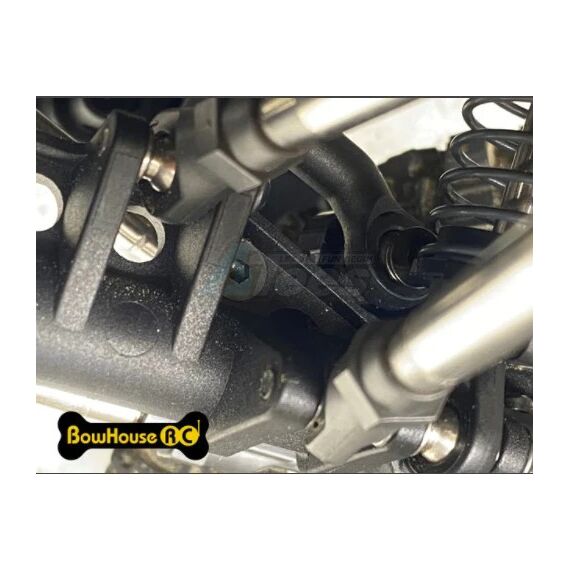

- Use M3 x 8mm flat head screw to secure bracket to axle housing through hole in axle housing truss (thread lock recommended).
- Use M3 x 20mm flat head screw to attach panhard to axle (do NOT use thread lock). Make sure that screw threads all the way into panhard reinforcement bracket.
- Package total weight: 12.00 grams (incl. packaging)
- Factory description: BowHouse RC Axial SCX10 III SVT Panhard Reinforcement Bracket for Axial SCX10 III
General
Hersteller
BowHouse RC
