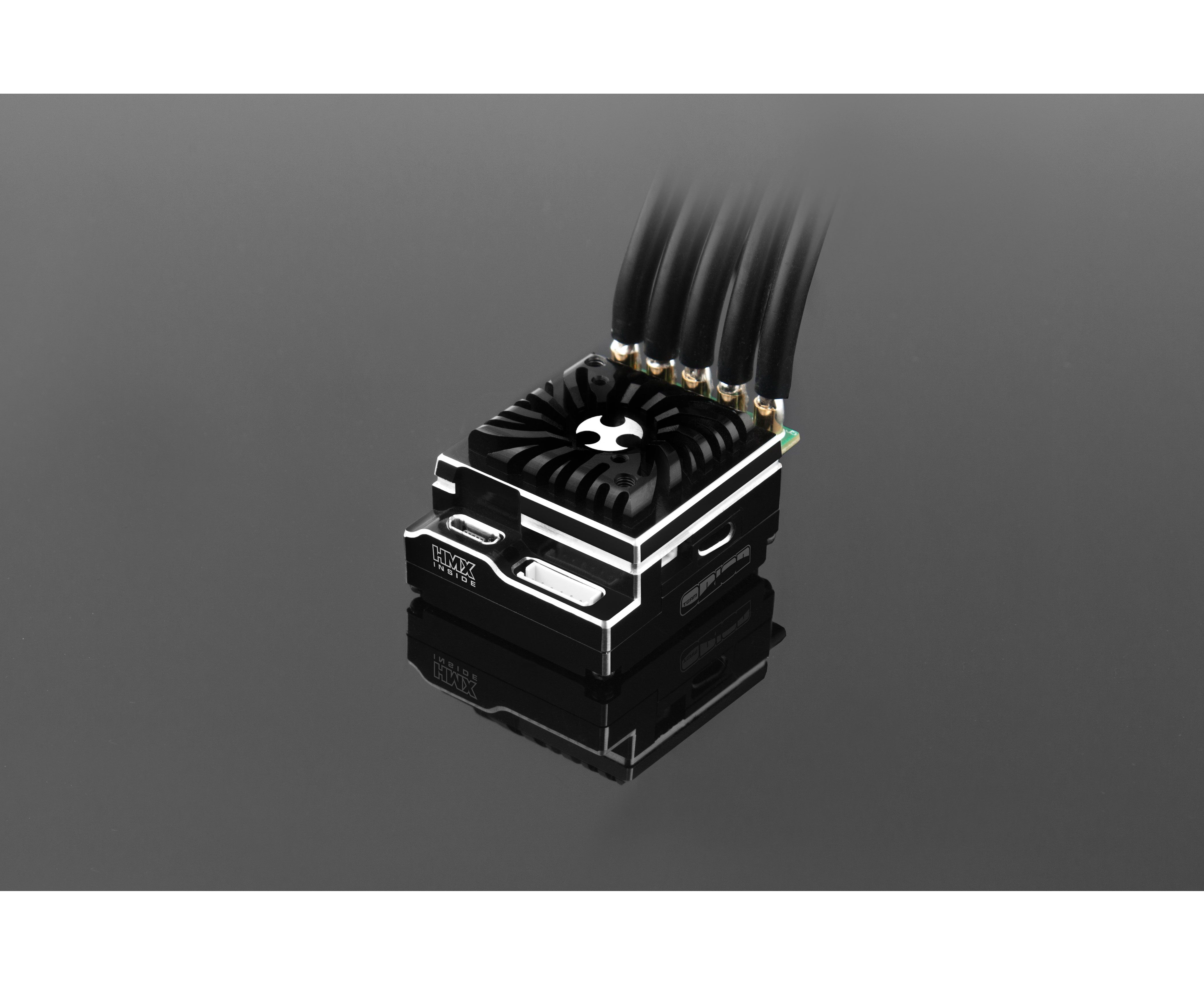

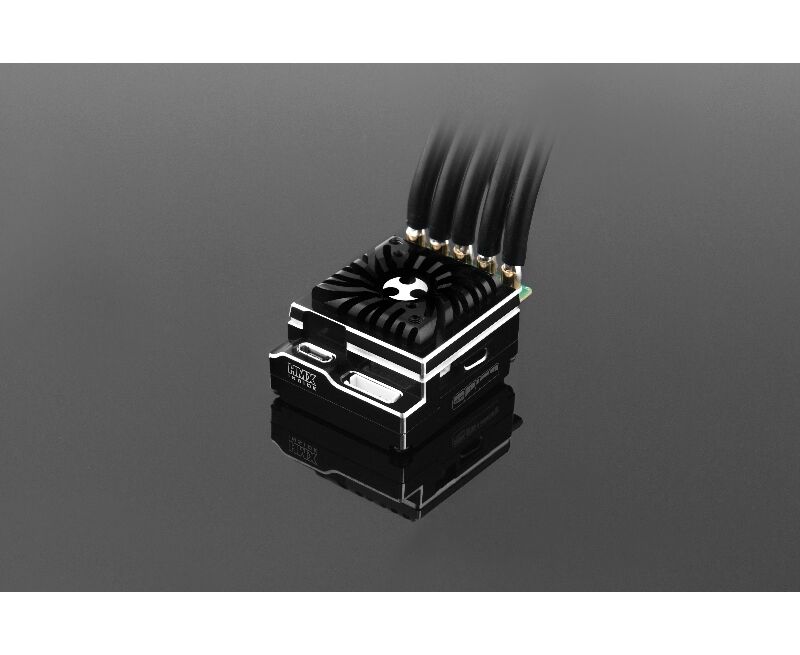

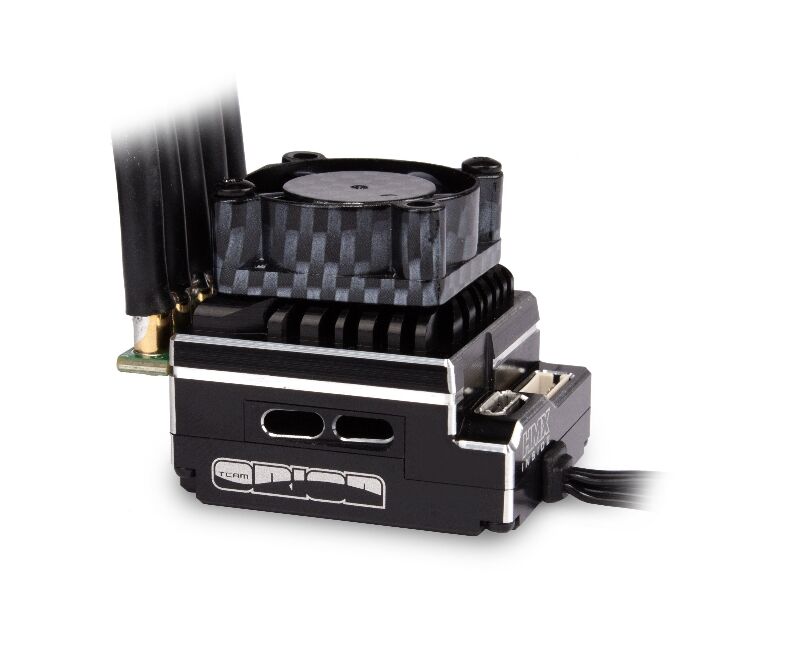

TEAM ORION HMX 10 Controller Modified

Auf Lager
HMX® - The Best of RC and Industry Combined

Team Orion hat unter dem Namen HMX10 den Nachfolger des Weltmeister-Reglers R10.1 Pro vorgestellt. Das neuartige am HMX10 ist die komplett neuentwickelte HMX Brushless-Technologie, zu der es eine neue Webseite gibt. Der HMX10 kann mit einem Smartphone eingestellt werden und er überzeugt mit hohen Leistungswerten.

Technische Daten Team Orion HMX10:

  • Stromstärke: konstant 250A / Peak bis zu 2000A
  • Akku: 2S
  • BEC: 6/7.2V 5A einstellbar
  • Grösse & Gewicht: 43.9×32.7×22.4mm, 44g (without cables)

#ORI65132 HMX 10 Controller Modified EAN 7612888651323


  • HMX® OTP Kabel für Android Smartphones inbegriffen (Bluetooth Dongle für iOS folgt später)
  • Power Kondensatoren und Carbon Look Ventilator inbegriffen


Team Orion® is a world-renowned manufacturer of World Championship winning batteries, chargers, motors and electronic speed controllers (ESC). Since their first release of a brushless ESC in 2012, the Swiss brand's Vortex R10 and R10.1 Pro ESC have dominated almost every major off-road event in the USA, won several European Championships and taken home World Championship titles in on-road and off-road categories.

After many successful years, Team Orion has decided to take brushless technology to the next level. Improving on the R10 and R10.1 design is not easy feat. To achieve this, Team Orion has partnered with some of the most brilliant engineers in the field of brushless power technology. Under the name HMX® Technology a totally new brushless controller technology has been developed and incorporated into an RC ESC.

Full App Control

Changing the settings of your speed controller with painful pushes on a small button are a thing of the past. Also forget program cards and boxes. The HMX speed controllers can be managed with an advanced iPhone or Android app! We invested a lot of time into the development of a really great app which allows you to easily change settings, save setups or download Pro-Setups from professional drivers. Find more information about the app by clicking here.

ESC Features

State-of-the-art mobile application to setup and program the speed controller

Extremely fast response and precision thanks a 32bit micro processor

Unrivaled power feeling and control thanks to newly developed power and brake control curve algorithms, developed with the world best rc car drivers.

Improved braking characteristics for constant braking feeling at every speed

Real time signal translation: The signals from the receiver are translated into throttle control signals in real-time for fastest throttle control.

High-grade components, tested and selected by our engineers

3 piece lightweight precision machined aluminum case with machined air ducts for improved cooling

High efficiency dual PCB design with high performance power board and ultra fast response digital control board

Highly efficient cooling system that uses a cooling middle plate equipped with air ducts to channel fresh air directly to power PCB where the mosfet are installed.

Top of the line "Dual Cool" Mosfet transistors for improved heat dissipation

Advanced Timing settings: two RPM based timing settings and one "Turbo" (full throttle) timing settings

Switched BEC 6V and 7.4V: Easily switch between 6V and 7.4V BEC voltage for the best servo performance

Temperature monitoring: real time ESC temperature monitoring to prevent damage from overheating

Micro USB connector for smartphone connection (iOS support incoming)

ABC motor wire order protection: in case of motor wire reversal, the ESC cannot be damaged

Dual sensor port

Technical Specifications:

Rated current: const. 250A / peak up to 2000A

Battery: 2S

BEC: 6/7.2V 5A adjustable

Size & weight: 43.9x32.7x22.4mm, 44g (without cables)

#ORI65132 HMX 10 Controller Modified EAN 7612888651323

HMX® OTP cable for the connection with Android smartphones included.

Power capacitors and carbon look high speed cooling fan included.

Bluetooth dongle for the connection with iOS phones in the making and available soon.

Motor / Antrieb
  • Elektro Brushless-Motor
Team Orion
