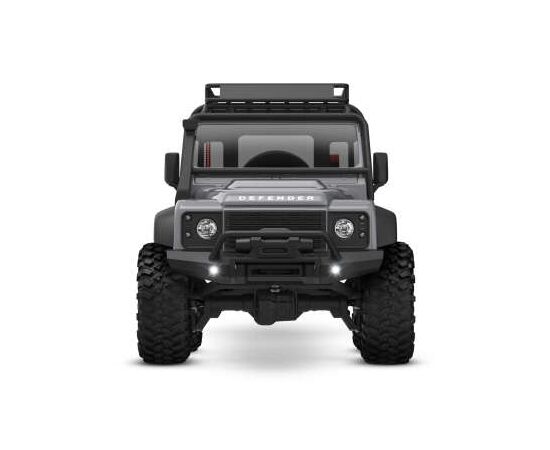

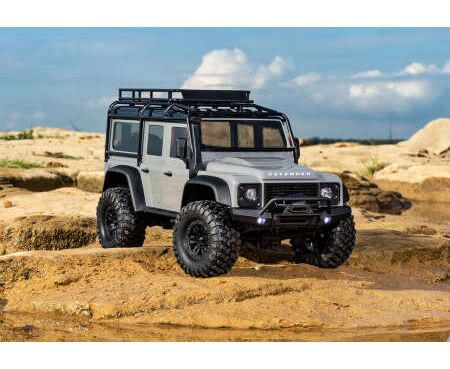

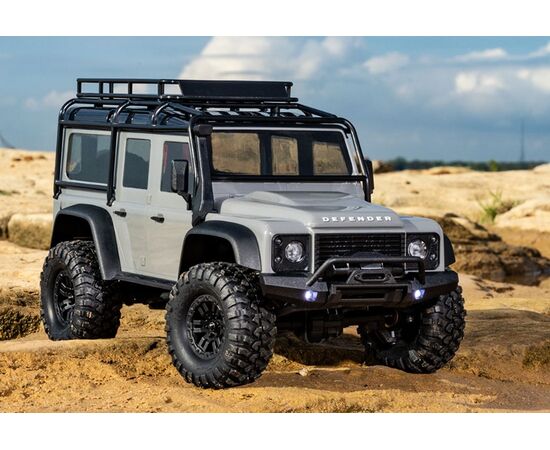

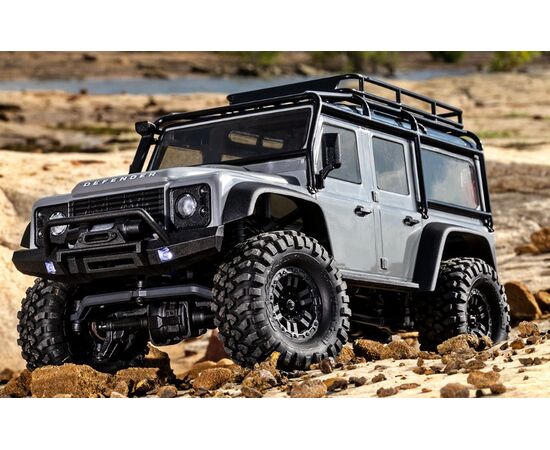

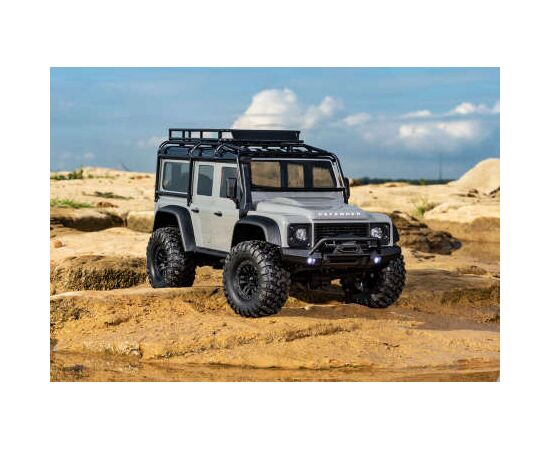

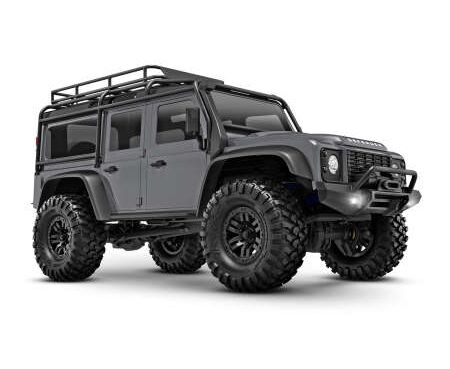

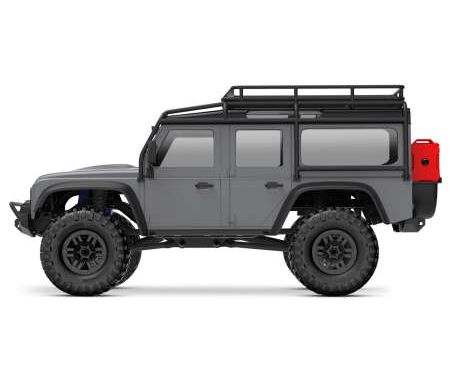

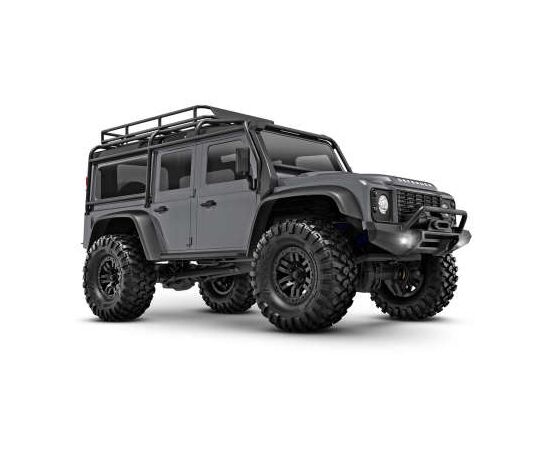

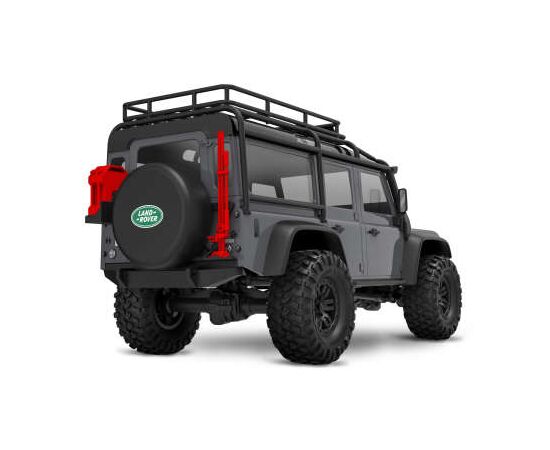

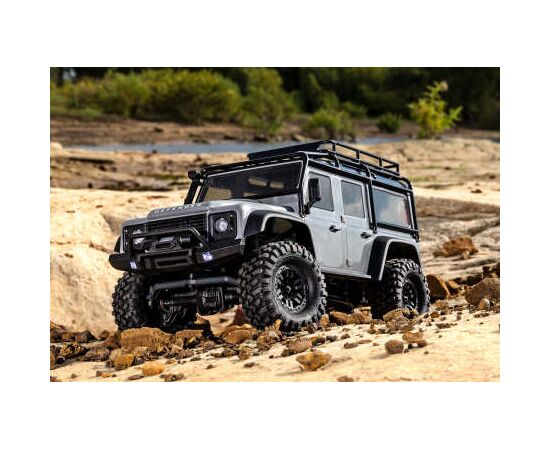

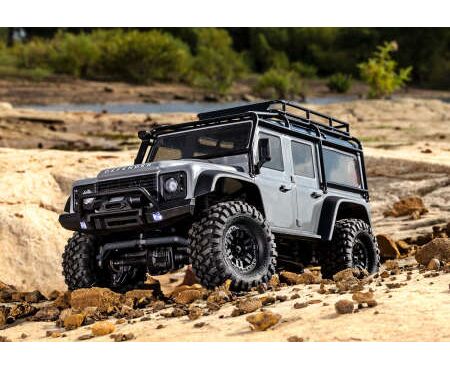

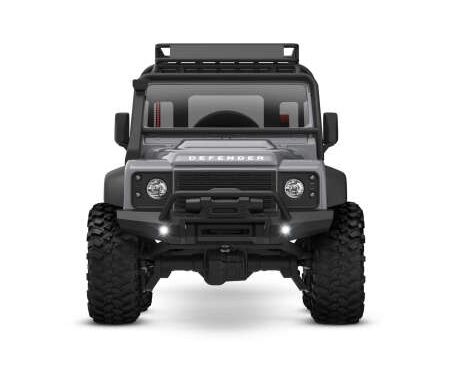

Traxxas Crawler LR Defender 1:18 4WD EP RTR silber
Der TRX-4M schließt die Lücke zwischen der 1/24 und 1/10 Crawler-Szene hinsichtlich Topqualität und Leistung. Ölgefüllte Stoßdämpfer, Rahmenschienen aus Stahl und ein leistungsstarkes Fahrwerk verleihen dem TRX-4M überall im Terrain, ob drinnen oder draußen, überlegene Fahreigenschaften.
Der TRX-4M glänzt überall wo es Spaß macht zu fahren. Die sanfte Gasannahme, der drehmomentstarke Motor und ein um 30% engerer Lenkradius ermöglichen es dem TRX-4M, Kletteraktionen in Innenräumen problemlos zu bewältigen und präzise zu manövrieren. Aufgrund der großen Reifen und Bodenfreiheit, sowie der hohen Geschwindigkeit stellt anspruchsvolles Outdoor-Gelände für den kleinen TRX-4M kein Problem dar.
Details im Überblick: • Detaillierte lizenzierte ABS-Karosserie • Splintenlose Karosseriebefestigung • LED-Stoßstangenbeleuchtung • Heavy-Duty Stahl-Rahmenschienen • Unglaublich kleiner 45° Wenderadius • 4-Link Aufhängung vorne & hinten • Sperrdifferential vorne & hinten • Heavy-Duty Mittelantriebswelle • GTM™ Öldruck-Stoßdämpfer • BF-Goodrich® Mud Terrain T/A® KM3 Reifen auf detaillierten 1.0" Felgen • Hex-Felgenadapter 7mm • Niedriger Batterieschwerpunkt • Wasserdichte Elektronik • TQ™ 2,4GHz 2-Kanal Fernsteuerung • All-In-One ECM-2.5™ Fahrtenregler (inkl. TQ-Empfänger & LED Pro-Scale® Modul*) • Drei einstellbare Fahrmodi • Leistungsstarker Titan® 180 87T Motor • 2s LiPo 750mAh 7.4V 20C und iD® (über 1h Fahrzeit) • 2-Amp USB iD®-Schnellladegerät • Heavy-Duty 2065T Lenkservo • Umfangreiches Tuning-Sortiment erhältlich
*Optionale Pro Scale® LED-Beleuchtung separat erhältlich
Abmessungen: Länge: 262mm Breite: 124mm Höhe: 117mm Bodenfreiheit: 29mm Radstand: 155mm Gewicht: 468g (ohne Akku) Reifengröße: 57 x 25,4mm Felgengröße: 25,4 x 12,5mm Dämpferlänge: 51mm Akkuabmessungen: L50,5mm x B31mm
Notwendiges Zubehör: • 4x AA Batterien für Sender
THE RIGHT SIZE FOR FUN
TRX-4M is the perfect size to fit in a backpack for fun on the go. It’s small, powerful, and maneuverable so just about any space becomes an instant trail or crawling course. Whether it’s a mountain of books indoors or a rock garden in the backyard, TRX-4M is always ready for big fun and adventure.
ALL-TERRAIN VERSATILITY

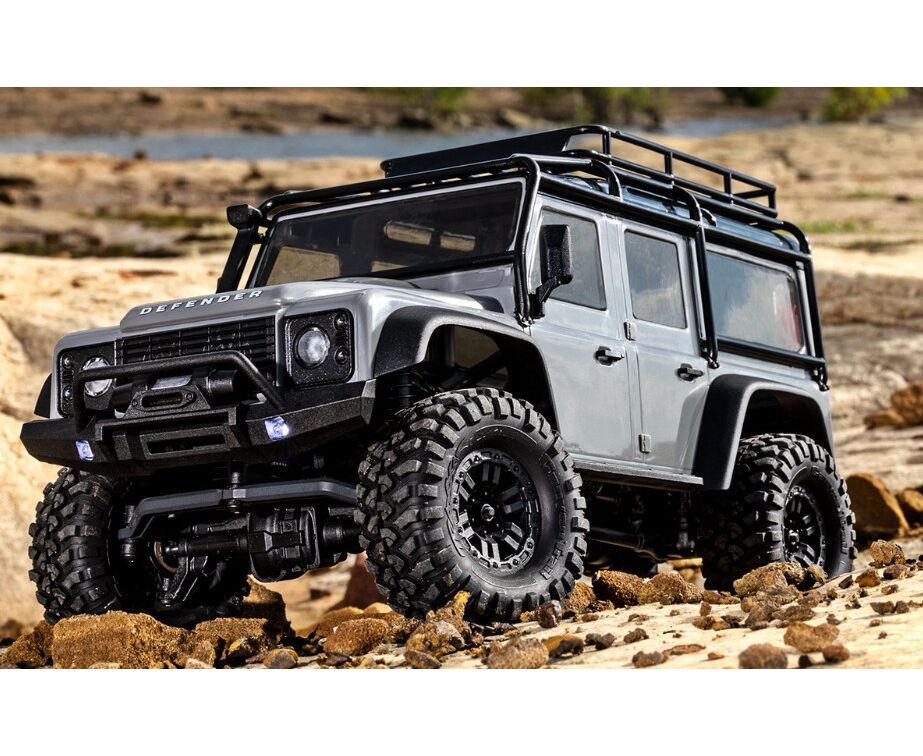

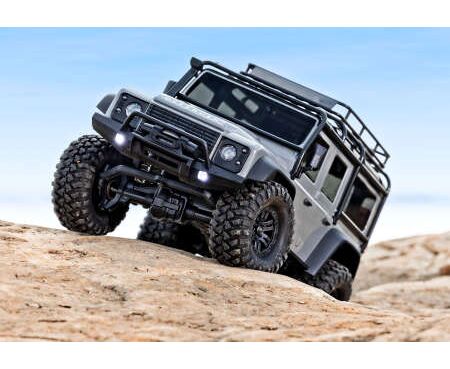

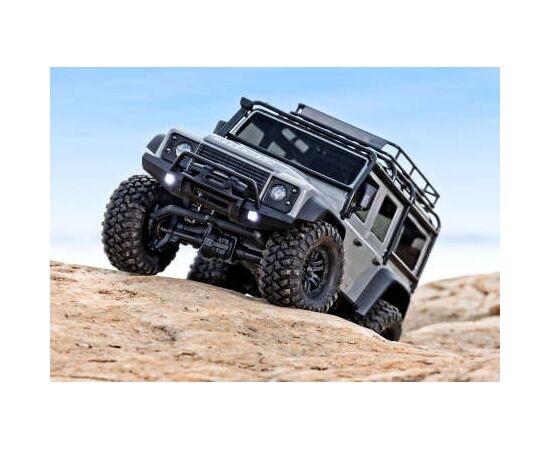

TRX-4M is equipped to take on tough off-road terrain with grippy soft-compound tires, precision-engineered 4-link suspension geometry, and smooth oil-filled shocks. High center ground clearance, big approach angles, and low CG give the TRX-4M impressive capability everywhere it goes.
45° STEERING ANGLE
A full 45° steering angle gives TRX-4M an exceptionally tight turning radius and extreme maneuverability in small spaces where every inch counts. A heavy-duty 2065T steering servo delivers powerful steering authority, even on thick carpet.
OIL-FILLED GTM™ SHOCKS
TRX-4M’s oil-filled GTM shocks offer smooth suspension damping to keep the wheels firmly planted on uneven surfaces. The added control also keeps the body from bouncing around on rough terrain for a more realistic driving experience.
DETAILED ABS BODY WITH CLIPLESS MOUNTING
The innovative clipless body removes and installs in just seconds with no clips to lose or frustrating hook and loop tabs. Tough, highly detailed ABS bodies feature molded-in color with a deep glossy finish that won’t chip or scrape off.
WATERPROOF ELECTRONICS
TRX-4M is the truck that goes where you want to go, without boundaries or restrictions. Only Traxxas’ fully-waterproof innovation gives you the freedom to drive through wet grass, puddles, and streams that for.
INNOVATION

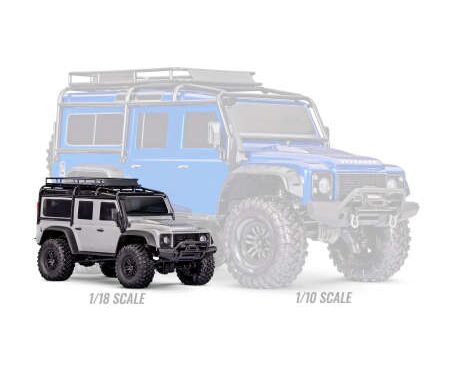

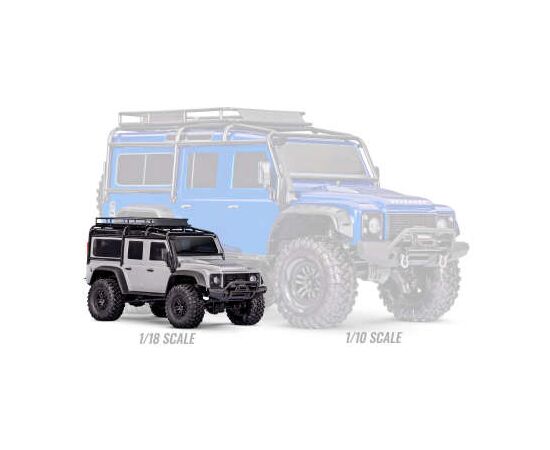

TRX-4M captures all the functionality of a full-size TRX-4 in a smaller 1/18 size for an all-new driving experience.
ULTIMATE SMALL-SCALE CRAWLER
TRX-4M provides all the fun and versatility of a compact crawler without any of the limitations. TRX-4M is larger and yet more maneuverable than 1/24 scale vehicles with its tighter turning radius. TRX-4M’s tires and superior ground clearance open the door for tough off-road terrain and big challenges.
DETAILS

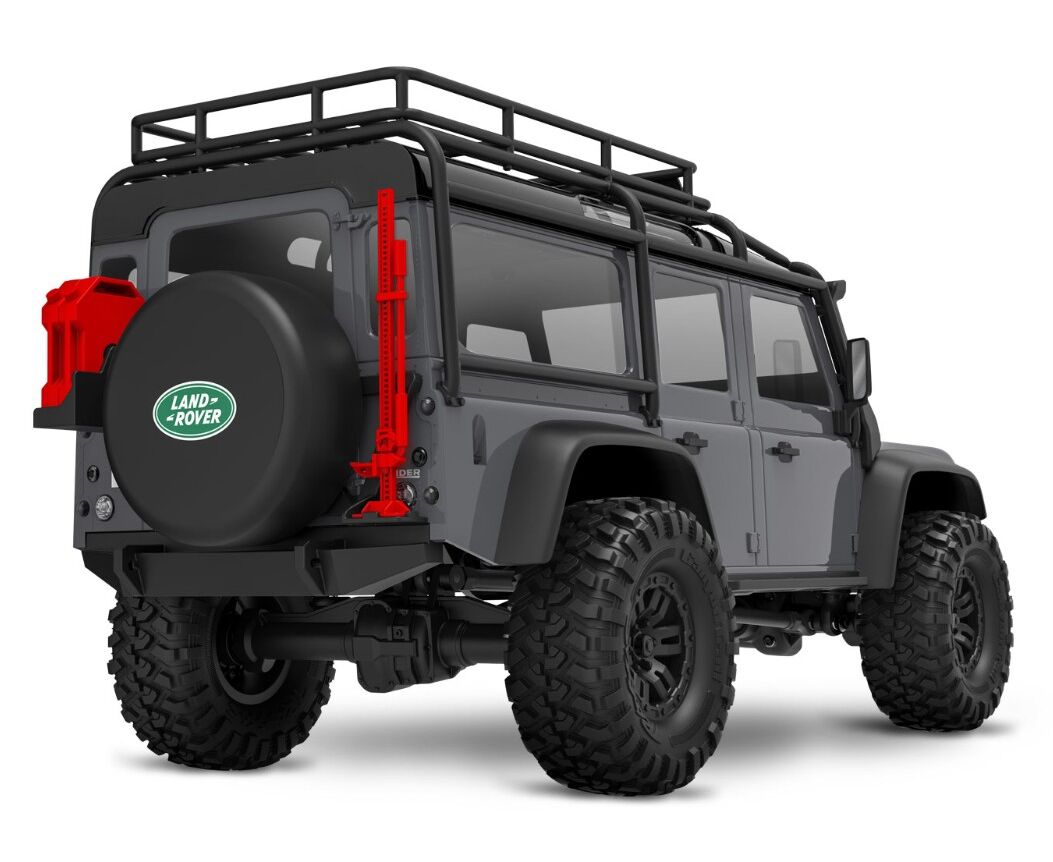

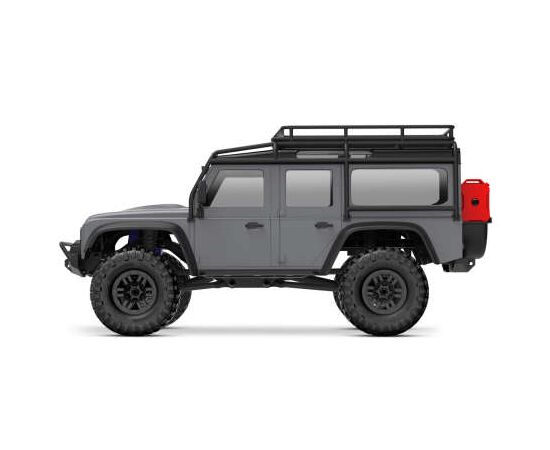

Realistic Body Elements

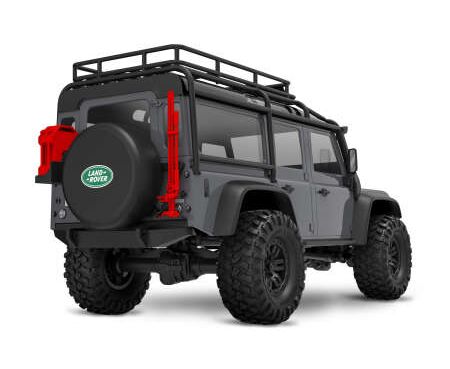

Great care was taken to replicate the full-size bumpers, fender flares, roof rack, and spare tire in precise 1/18 scale. Even the smallest features like side mirrors, door handles, and wipers are molded in exacting detail for exceptional scale realism.
Detailed 1.0" Wheels
TRX-4M’s replica 1.0" wheels are authentic scale replicas with molded lug nut and beadlock details. TRX-4M utilizes a standard 7mm hex, making wheel swaps quick and easy.

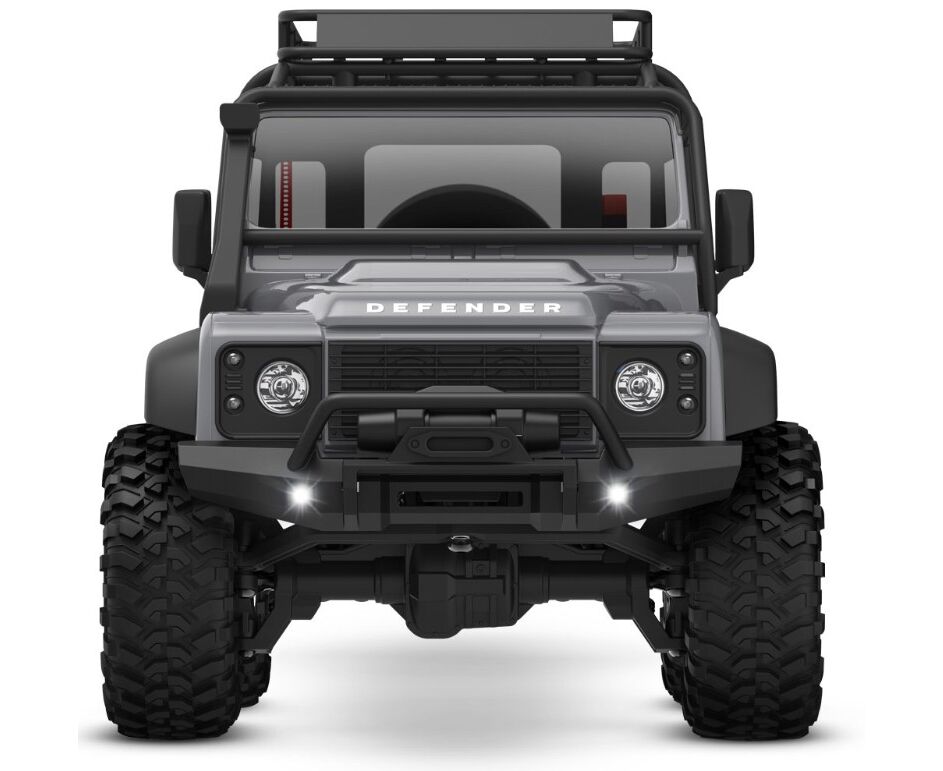

LED Lighting
TRX-4M includes standard LED lighting in the front bumper. Add optional Pro Scale LED lights and your TRX-4M comes to life with functional brake lights, headlights, reverse lights, and even emergency flashers (Pro Scale lights sold separately).
Included 2s LiPo Battery with iD®
The included 2-cell LiPo battery provides 7.4 volts of high-performance power and over an hour of runtime with Traxxas iD® safety and simplicity. The specially-designed iD connector plugs directly into the ECM-2.5.
2-Amp USB Fast Charger with iD®
The included 2-amp USB-A charger provides fast and convenient charging almost anywhere. Traxxas iD technology is the easier and safer way to charge LiPo batteries. Just plug the iD battery in and the charger does the rest. When the LED light turns green, the battery is charged.
Clipless Body Mounting System
Traxxas’ innovative clipless body mounting solution holds the molded body firmly in place no matter how rough the action gets. A quick pull on the hidden clips releases the body in seconds, with no body clips to lose, ureliable magnets, or messy hook and loop tape.
Molded Fender Flares
Tough fender flares give TRX-4M an aggressive appearance and protect the body from scrapes and damage.
High-Performance Tires
Licensed BFGoodrich® Mud Terrain T/A® KM3 tires on the Bronco are accurate down to the smallest detail with an authentic lug pattern and raised sidewall lettering. The Defender’s Canyon Trail™ tires are scaled versions of standard TRX-4 rubber with aggressive lugs for dynamic traction.

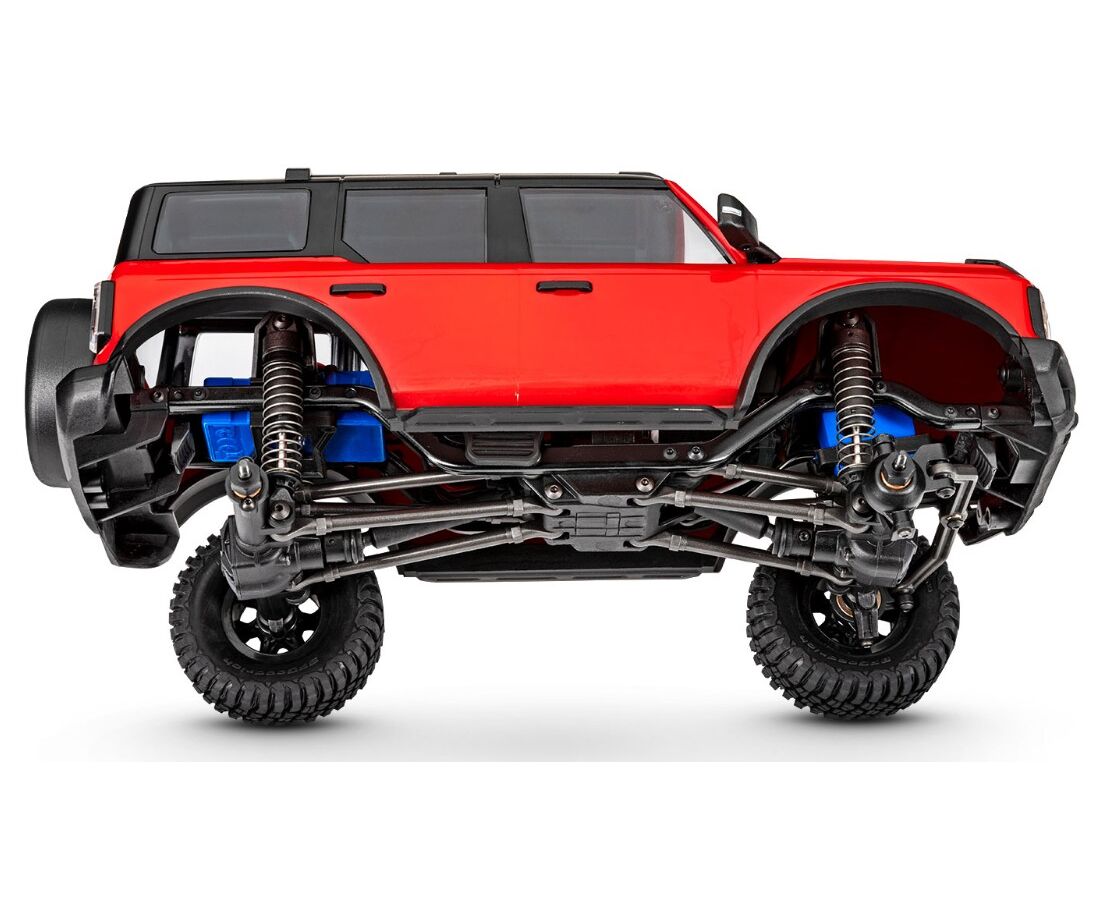

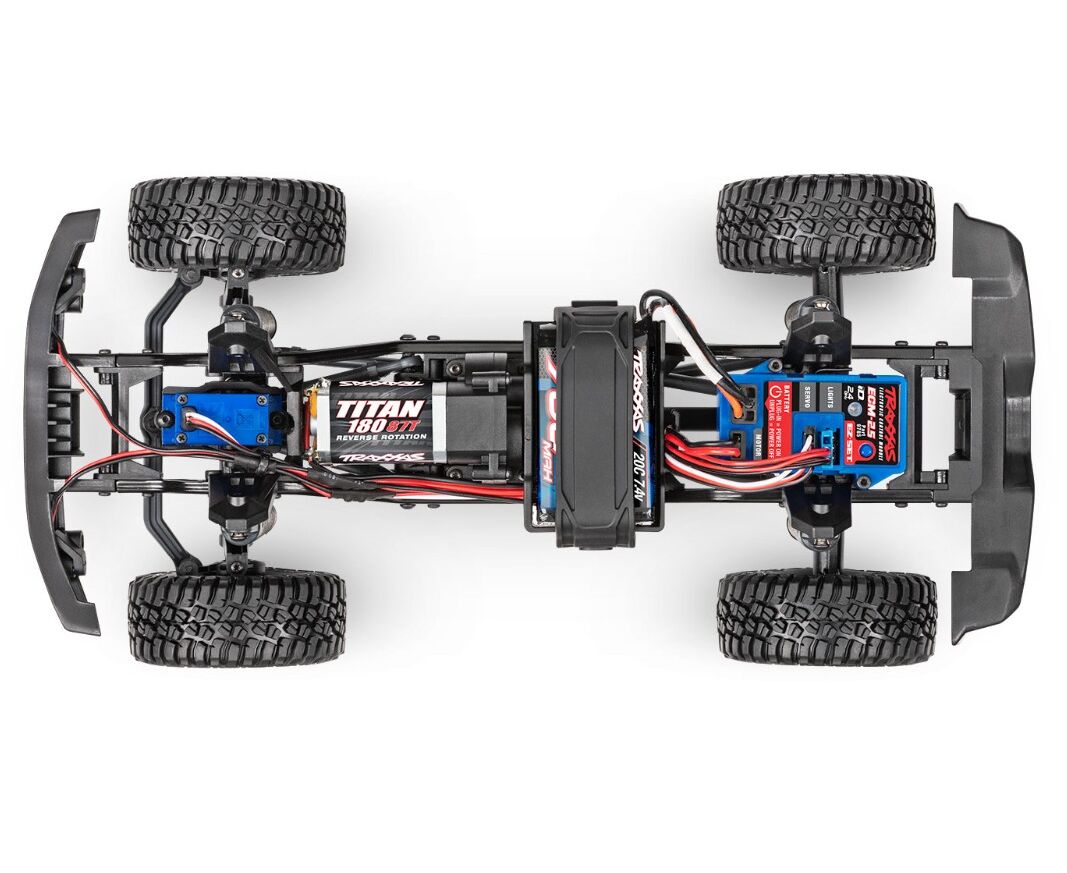

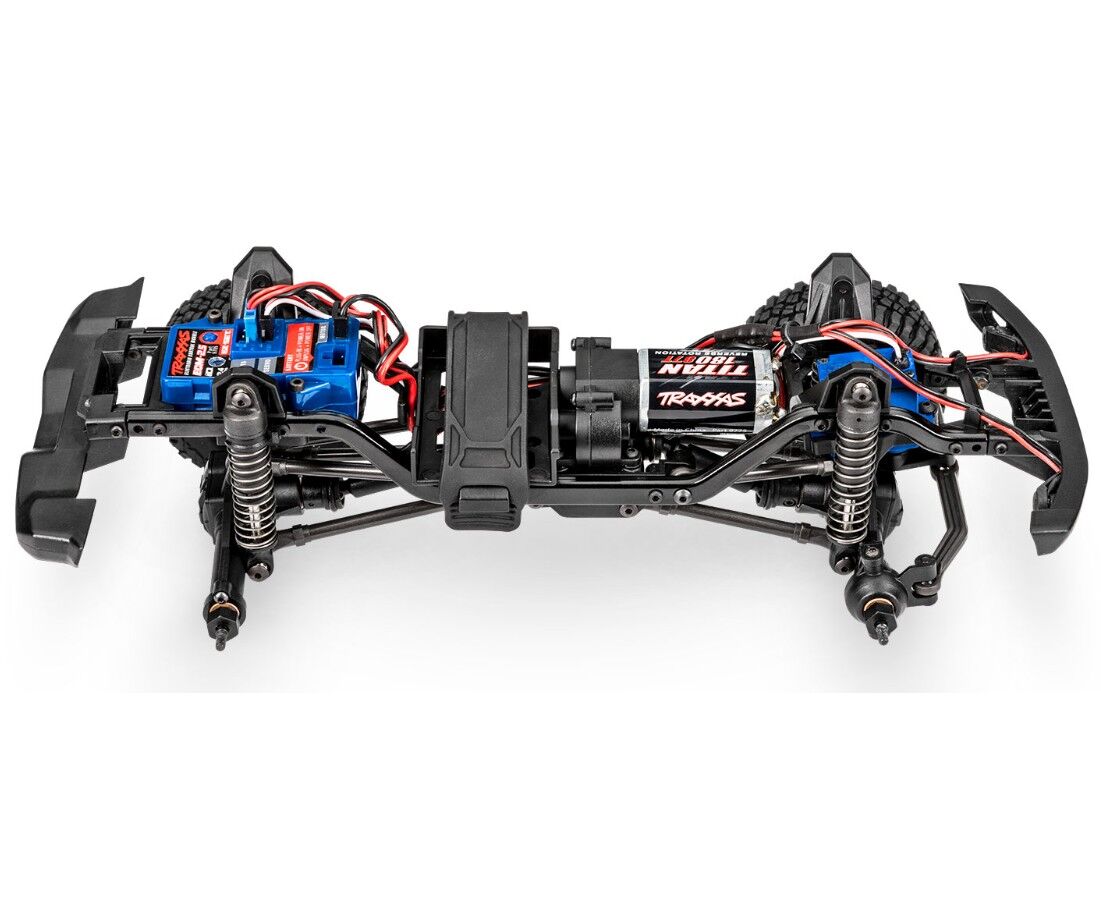

Triangulated Four-Link Suspension
TRX-4M rides on a sophisticated four-link suspension with heavy-duty triangulated rods. Solid front and rear axles provide excellent articulation to climb over the toughest obstacles.
Heavy-Duty Center Driveshafts
TRX-4M’s heavy-duty center driveshafts telescope freely to allow maximum suspension travel. Smooth-running CV joints are engineered for long-lasting, trouble-free performance.
Spool-Equipped Front & Rear Axles
TRX-4M’s front and rear axles are locked with spools to supply non-stop climbing power to all four wheels. Tough, steel constant-velocity (CV) joints allow increased steering angle at the front wheels for tight turns.
Oil-Filled GTM Shocks
TRX-4M’s oil-filled GTM shocks feature dual O-ring seals at the shaft for a perfect seal and smooth performance. Tuned specifically for the TRX-4M, GTM shocks smooth out bumps for a realistic and controlled ride.
ECM-2.5 Electronic Control Module
ECM-2.5 features low voltage detection for 2s LiPo batteries and EZ-Set® one-button programming to select driving modes. Choose Sport Mode for all-around driving, or Trail Mode for smooth drag braking on steep descents. For a smooth scale look while creeping over technical terrain, Crawl Mode applies full brakes the instant the throttle is released and allows drivers to continue through to reverse without a second push on the trigger.

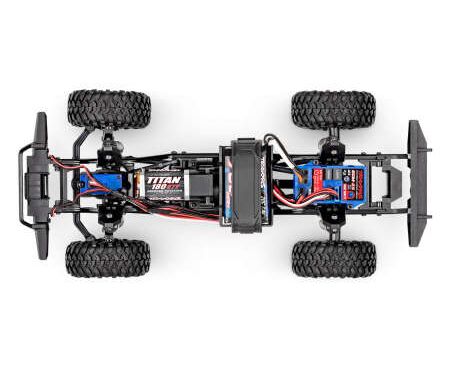

Low-CG Battery Tray
TRX-4M’s battery tray lies deep in the chassis to concentrate weight as low as possible. A lower center of gravity increases stability and reduces the risk of a rollover. A wide rubber strap keeps the battery safely locked in place and prevents the weight from shifting.
Optional Transmission Ratios
TRX-4M’s modular assembly allows you to swap out different transmissions to change the performance characteristics of the truck. Install the low-range transmission for smooth low-speed torque or boost your top end with the speed gearing option (Optional ratios sold separately).

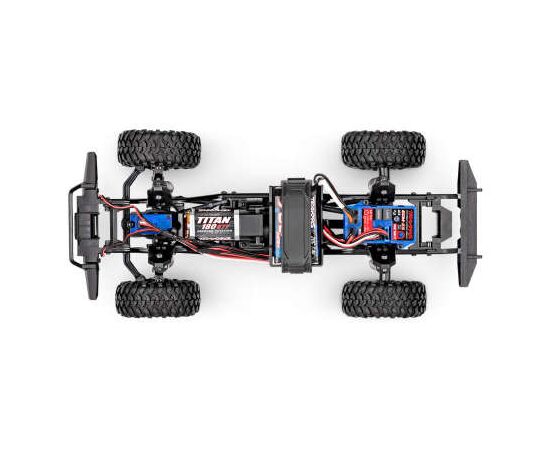

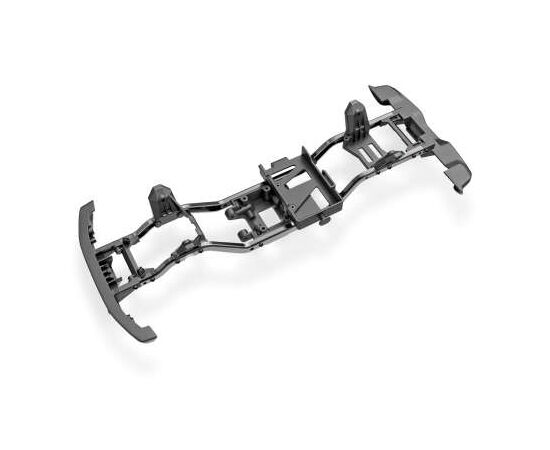

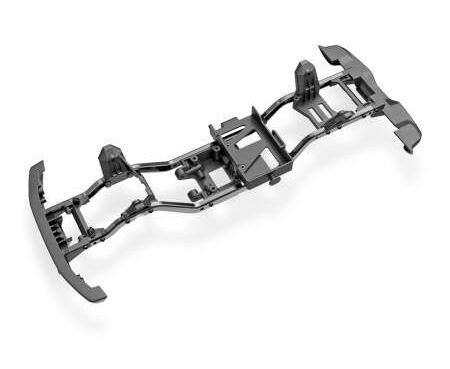

Steel C-Channel Frame Rails
Heavy-duty frame rails are formed with a deep C-channel for maximum rigidity. The rails are taller through the middle section for increased strength where it’s needed most.
Forward-Mounted Motor
The Titan® motor mounts securely to the transmission module with a fixed gear mesh that never needs adjustment. The motor’s mounting position shifts the weight bias forward for improved crawling dynamics over obstacles.
Heavy-Duty Steering Servo
TRX-4M’s heavy-duty 2065T servo operates on full 6-volt power with a metal main gear for precise control and powerful steering authority. The rugged one-piece drag link sits high up in the axle to avoid snags and impacts.
High-Quality Hardware
TRX-4M rides on low-maintenance self-lubricating bushings for long-lasting performance. TRX-4M is assembled with high-quality hex hardware for long-term durability and secure fastening.
Length: | 10.3 inches (262mm) (Bronco) 11 inches (279mm) (Defender) |
---|---|
Front Track: | 4.9 inches (124mm) |
Rear Track: | 4.9 inches (124mm) |
Ground Clearance: | 1.12 inches (29mm) |
Weight (w/o battery): | 1.03lbs (468g) (Bronco) 1.06lbs (483g) (Defender) |
Height: | 4.6 inches (117mm) (Bronco) 5.3 inches (135mm) (Defender) |
Wheelbase: | 6.10 inches (155mm) |
Approach Angle: | 54° (Bronco) 52° (Defender) |
Breakover Angle: | 45° (Bronco) 45° (Defender) |
Departure Angle: | 48° (Bronco) 41° (Defender) |
Shock Length (front and rear): | 2.0 inches (51mm) |
Hex Size: | 7mm |
Wheels (front and rear): | 1.0 x 0.49 inches (25.4 x 12.5mm) |
---|---|
Tires (front and rear): | 2.2 x 1.0 inches (57 x 25.4mm) |
Electronic Control Module: | ECM-2.5™ (Combo ESC, Receiver, Lighting Control*) |
Motor (electric): | Titan® 180 87T |
Differential Type: | Fully Locked; 2:1 Axle Ratio |
Chassis Structure/Material: | Steel Ladder Frame with Nylon Composite Crossmembers |
Brake Type: | Electronic “Hill Hold” |
Drive System: | Shaft-Driven 4WD |
Steering: | Axle-Mounted Servo |
Radio System: | TQ™ 2.4GHz 2-Channel Transmitter |
Servo: | #2065T Heavy-Duty Waterproof |
Skill Level: | 1 |
Battery Tray: | 50.5mm L X 31mm W |
*Requires accessory Pro Scale LED Light Kit, sold separately |
